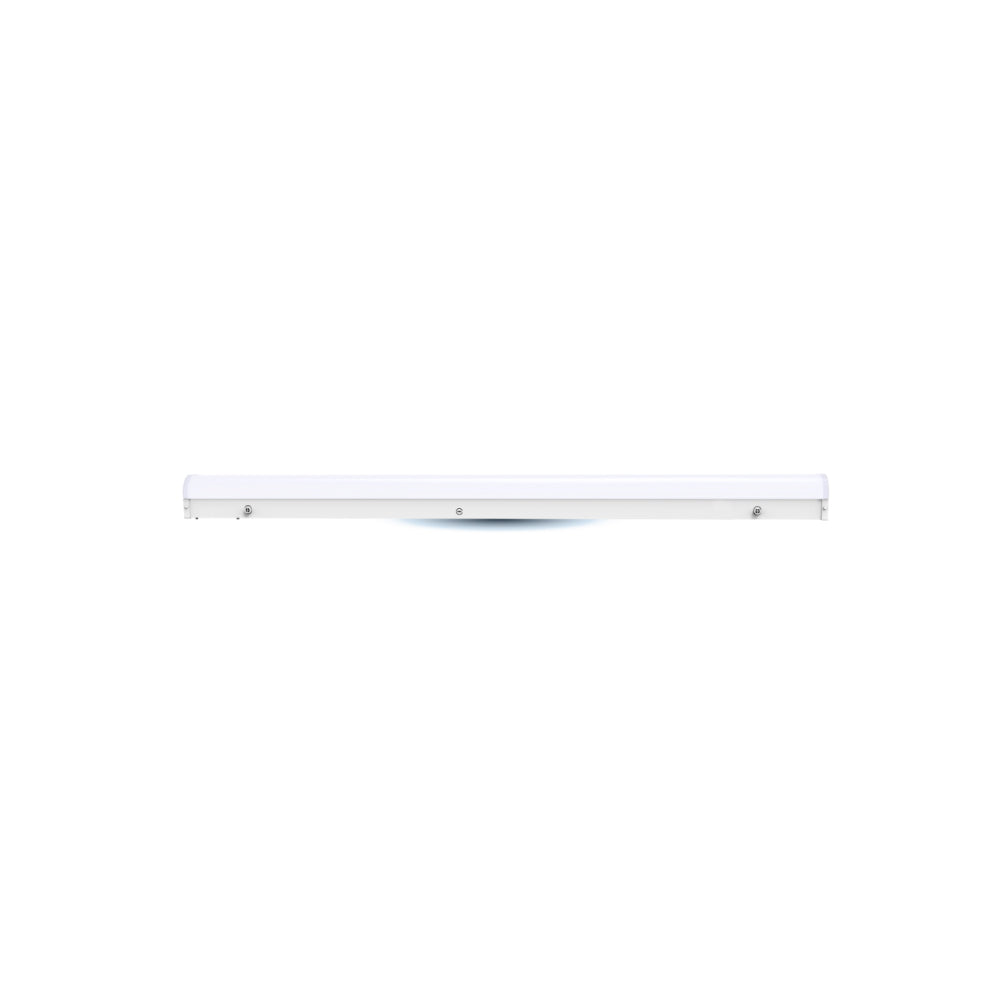

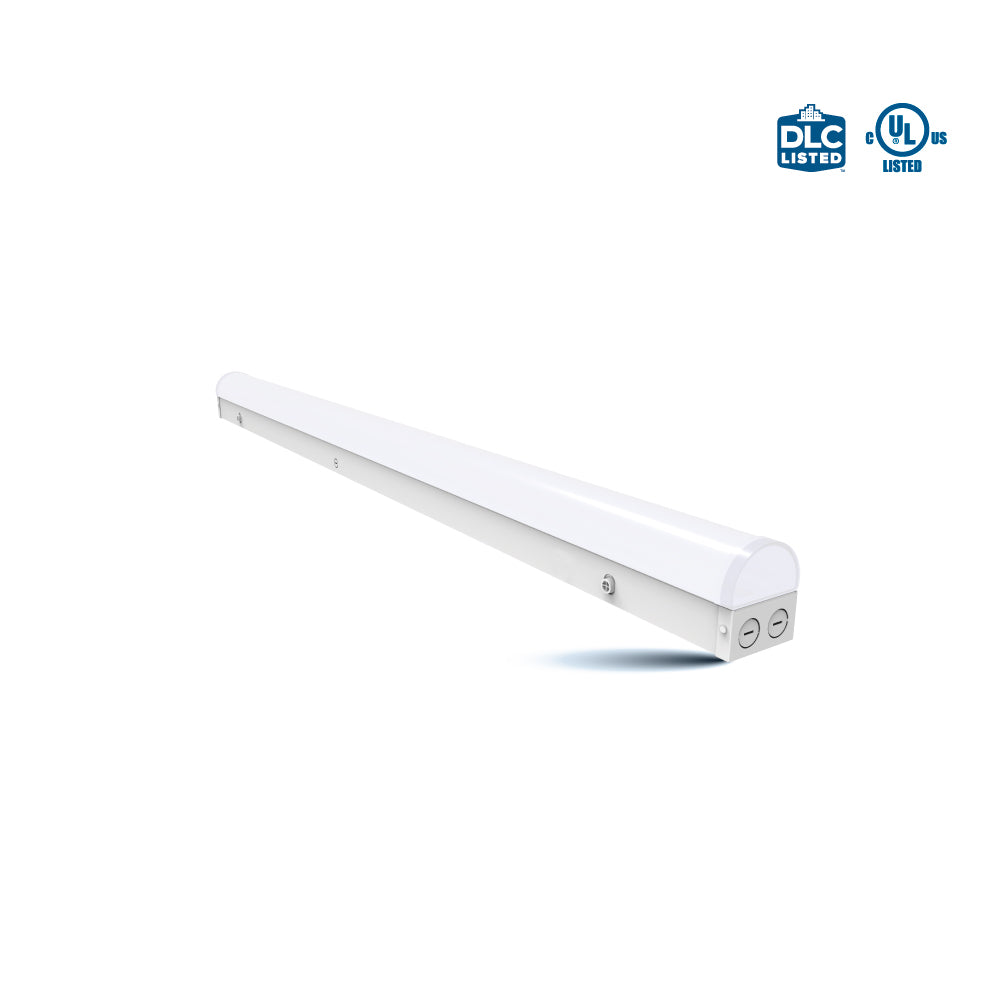

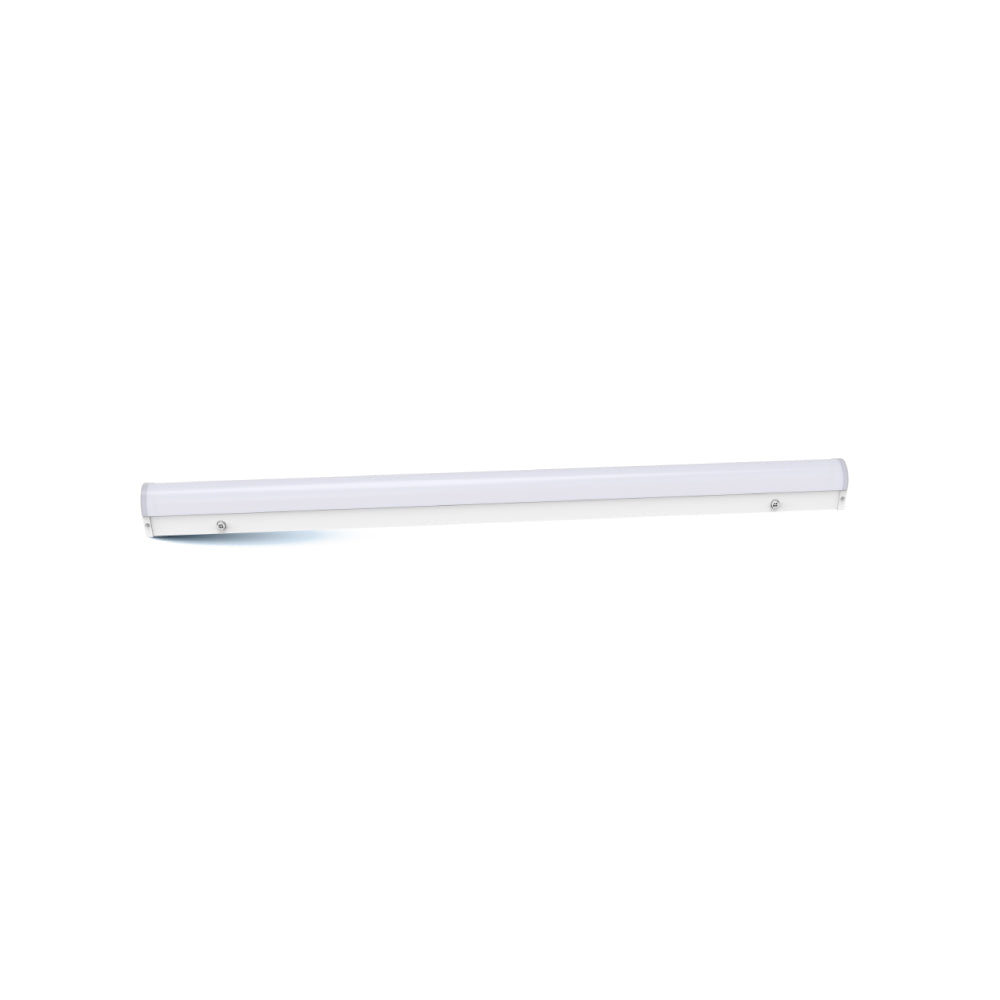

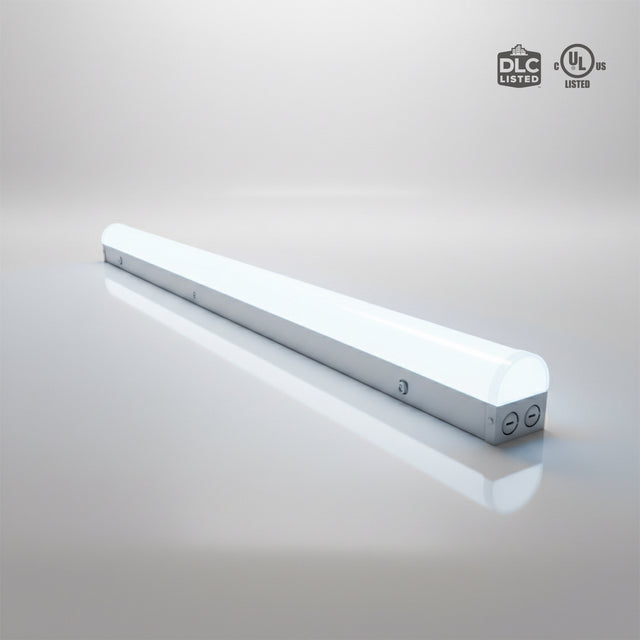

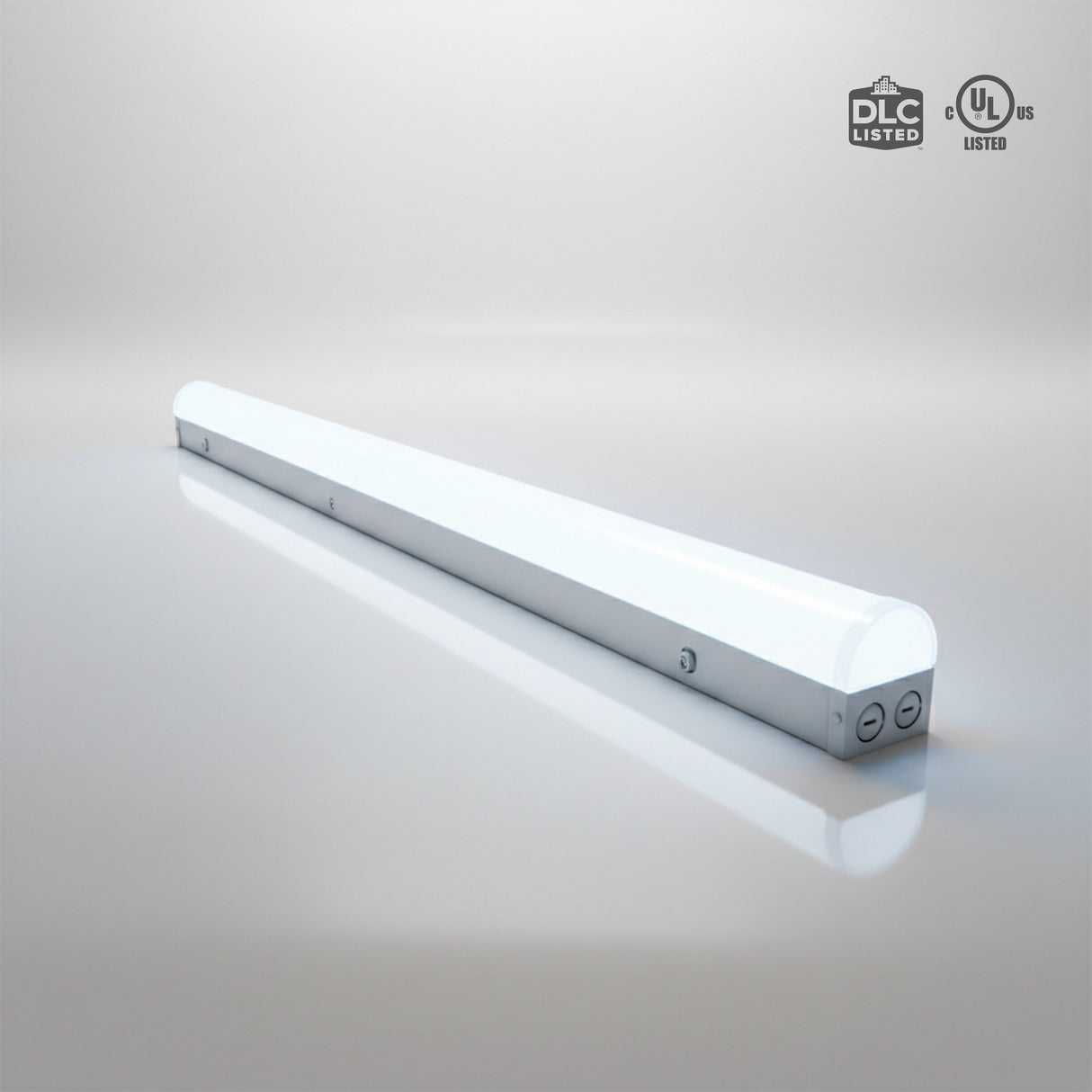

OL-ST2-3CCT+WMS

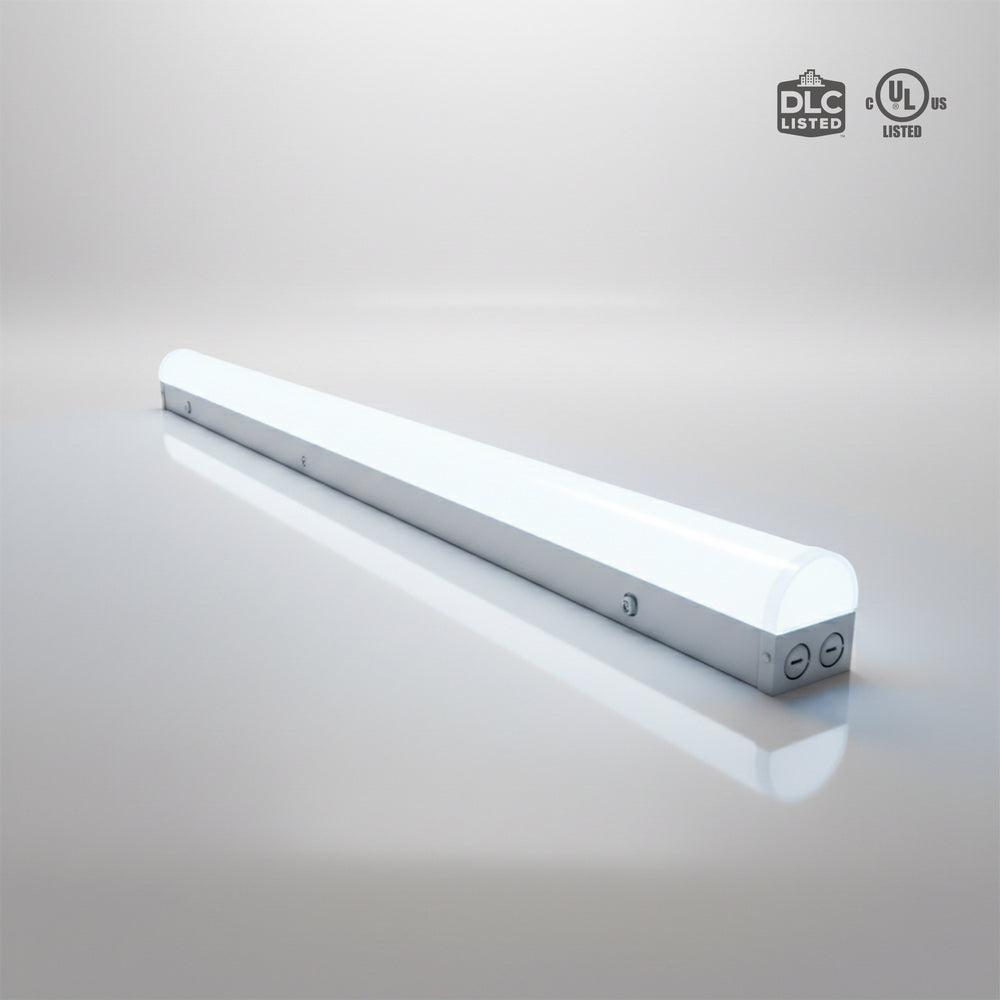

24" LED Linear Strip Light - Includes a built-in motion sensor with selectable color temperature (CCT) and adjustable wattage for smart, efficient lighting in compact areas.

HIGHLIGHTS

  • Built-In Motion Sensor: Integrated sensor with dip switches for customizable detection and response settings.
  • Factory Default Setting: Automatically dims to 50% when no motion is detected.
  • Daisy Chain Capability: Supports connection of up to 48 units from a single 347V power source.
  • Flexible Dimming & Voltage Range: Compatible with 0–10V dimming and operates across 120–347V.
  • Mounting Versatility: Suitable for both suspended and surface-mounted installations.

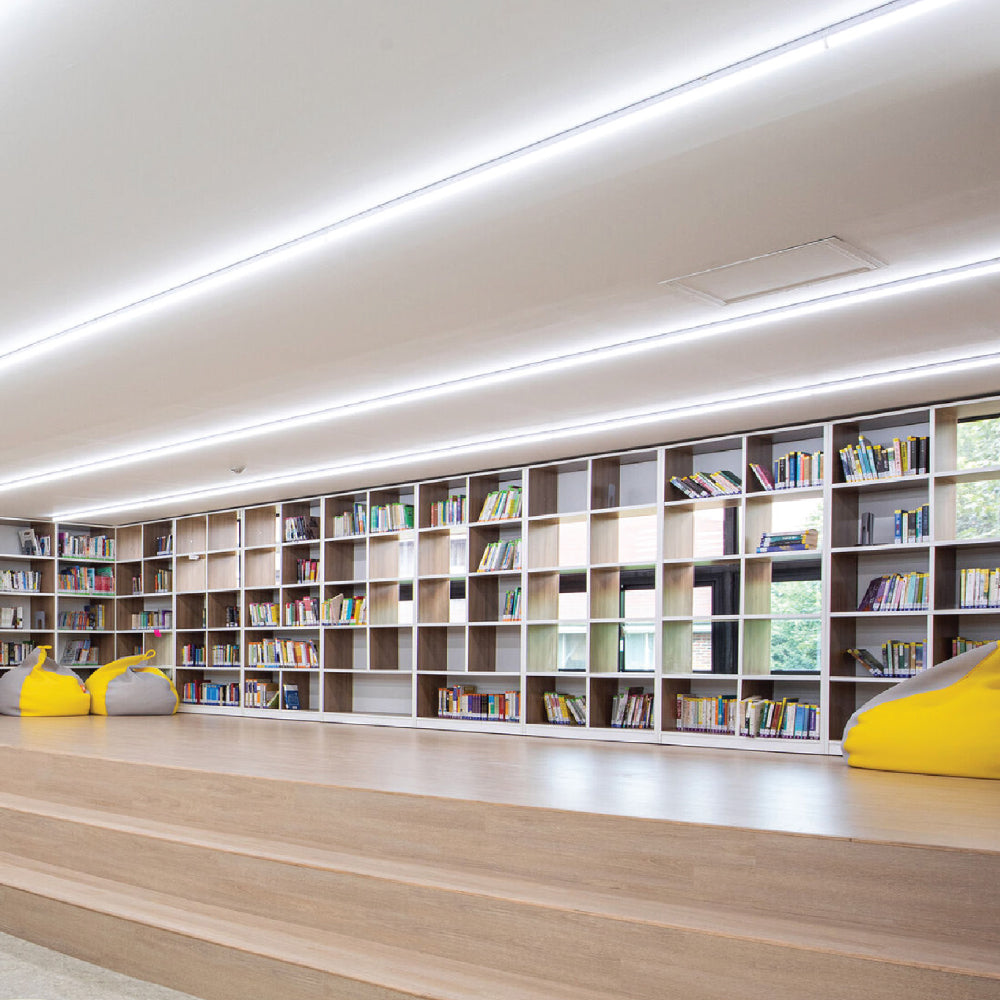

  • Broad Application Scope: Ideal for use in schools, hospitals, supermarkets, offices, and warehouses.

DLC No. / Product ID: S-HLV6M5

PRODUCT SHEETS

Spec Sheet

OL-ST2-3CCT+WMS Spec Sheet

Instruction Manual

OL-ST2-3CCT+WMS Instruction Manual

Dimmer List

OL-ST2-3CCT+WMS Dimmer Compatible List

IES Files

OL-ST2-3CCT+WMS IES Files

with Built-in Motion Sensor

Specifications
  • Wattage
    15W/20W/25W
  • Voltage
    AC 120-347V
  • Lumens
    1950 lmn | 2600 lmn | 3250 lmn
  • Beam Angle
    120°
  • CRI
    80
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Dry And Damp Location
  • Grade of Protection
    IP20

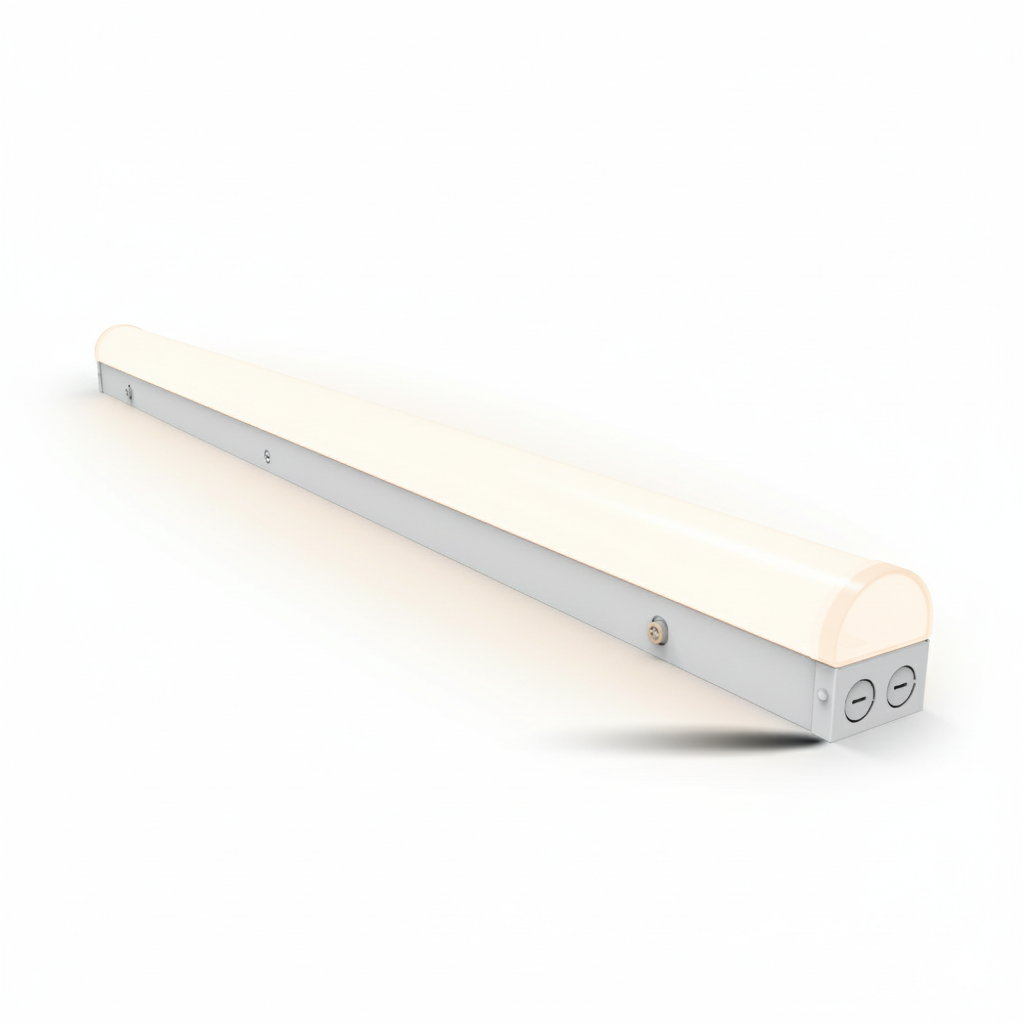

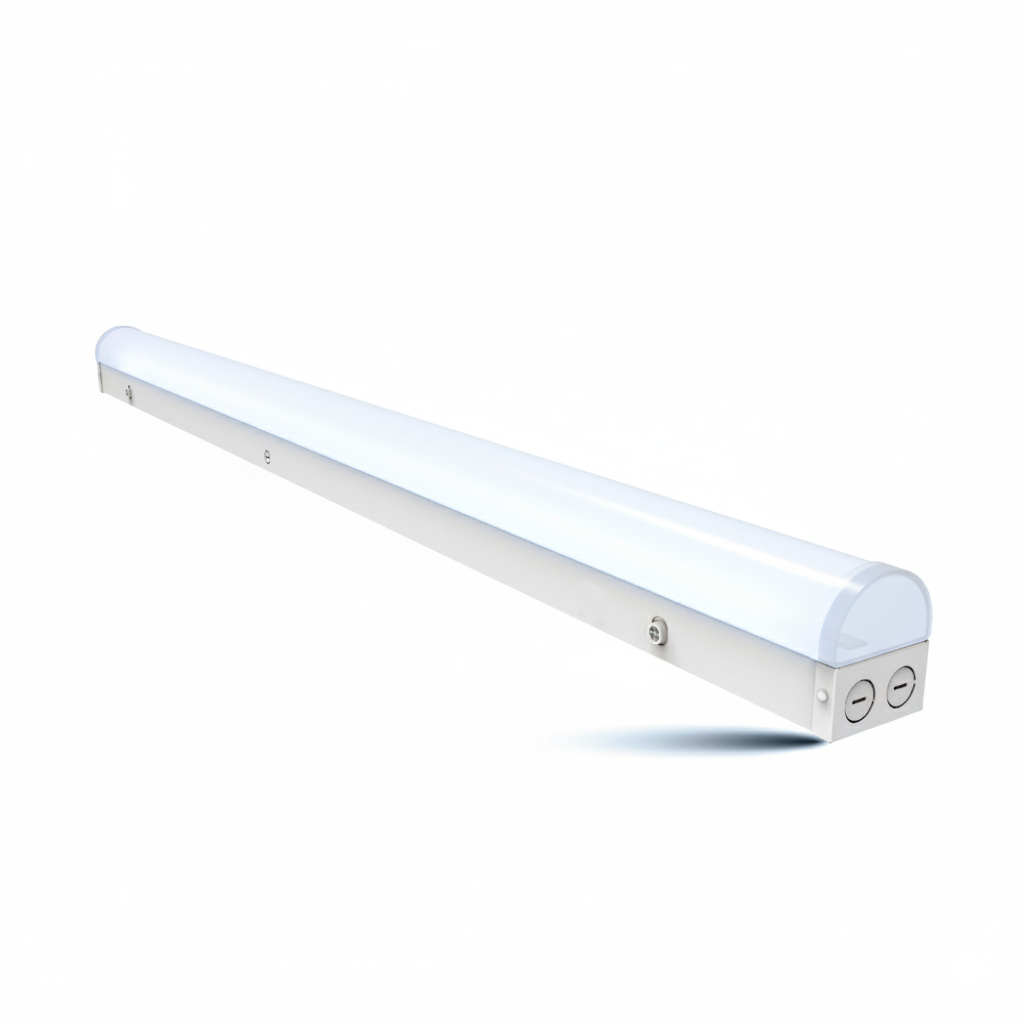

  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Daisy Connection
    120V: 20 units
    277V: 38 units
    347V: 48 units
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    10

Daisy Connection

Accessories (sold separately)

OL-ST2-LINK-KIT
OL-ST2-LINK-KIT
OL-ST2-SUS-KIT
OL-ST2-SUS-KIT
(aircraft cable length: 4.2ft.)
