1 5

SLST4-5CCT+W

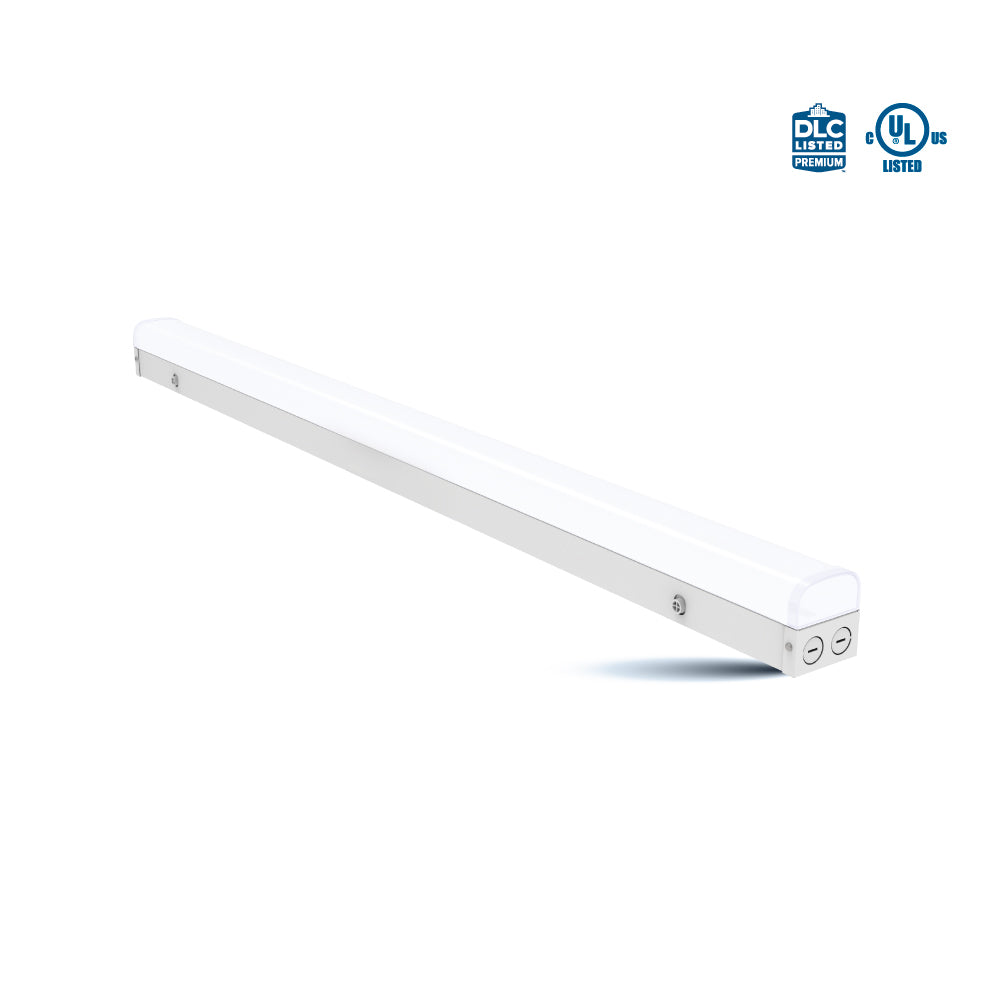

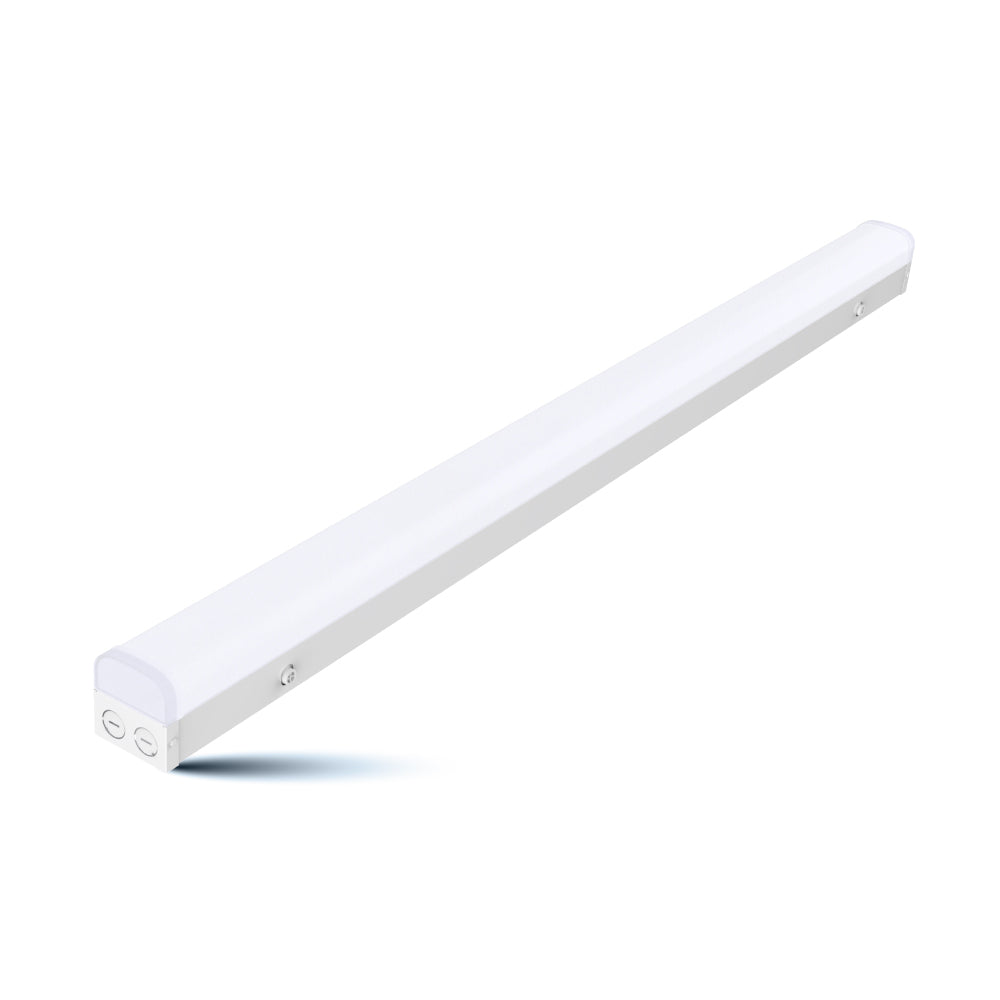

48" LED linear strip light with selectable color temperature and wattage for customizable lighting in any space.

HIGHLIGHTS

  • Daisy Chain Capability: Connect up to 20 units from a single 347V power source for streamlined installation and reduced wiring.

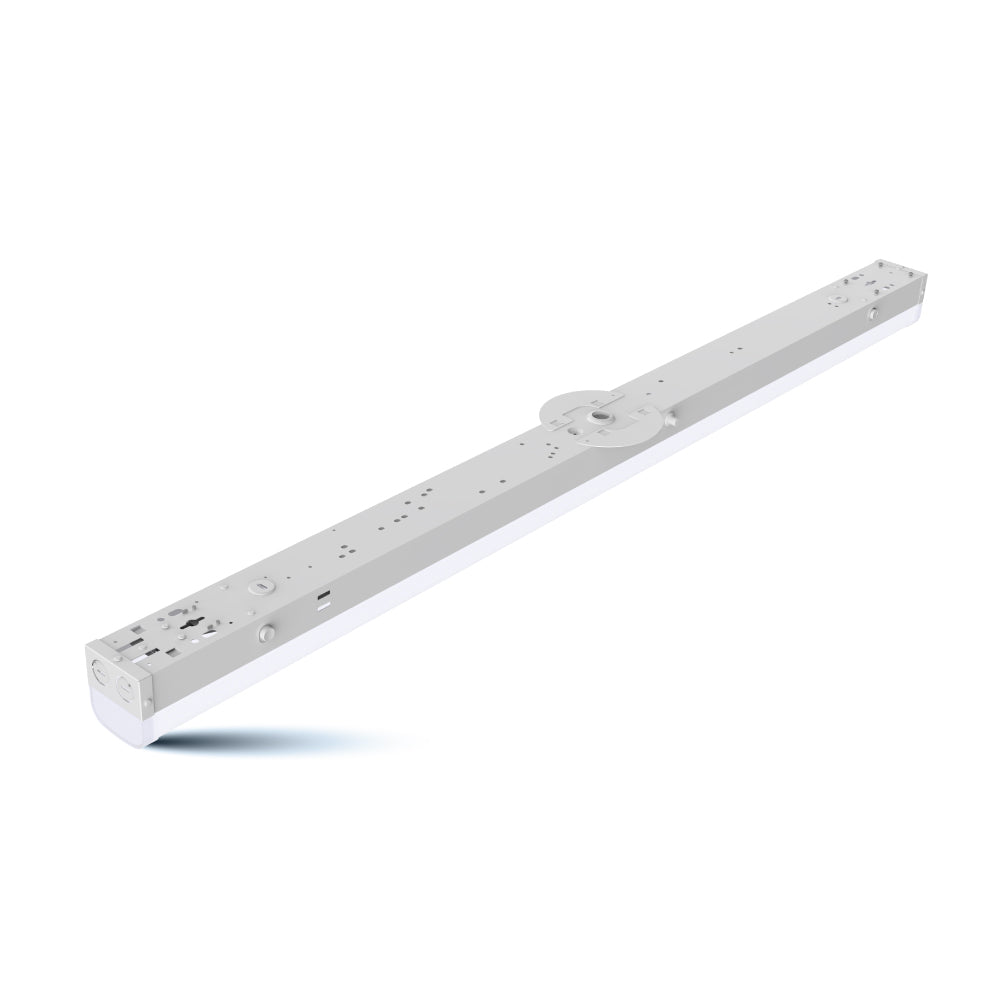

  • Flexible Mounting Options: Supports both suspended and surface-mounted installations to accommodate different ceiling types.
  • Optical Features: Provides diffused light for uniform illumination, rated for damp locations, and equipped with a durable polycarbonate lens.
  • Integrated Motion Sensor: Model SLST4-5CCT+WMS includes a built-in motion sensor for enhanced energy efficiency and automated lighting control.

DLC No. / Product ID: S-61QFGC

PRODUCT SHEETS

Spec Sheet

SLST4-5CCT+W Spec Sheet

Instruction Manual

SLST4-5CCT+W Instruction Manual (english)
SLST4-5CCT+W Instruction Manual (french)

Dimmer List

SLST4-5CCT+W Dimmer Compatible List

IES Files

SLST4-5CCT+W IES Files

SELECTABLE 5CCT and WATTAGE

Specifications
  • Wattage
    40W/50W/60W
  • Voltage
    AC 120-347V
  • Lumens
    5200 lmn | 6500 lmn | 7800 lmn
  • Beam Angle
    120°
  • CRI
    80
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Dry And Damp Location
  • Grade of Protection
    IP20
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Daisy Connection
    120V: 8 units
    277V: 16 units
    347V: 20 units
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    8

Daisy Connection

Accessories (sold separately)

OL-ST4-LINK-KIT
OL-ST4-LINK-KIT
OL-ST4-SUS-KIT
OL-ST4-SUS-KIT
(aircraft cable length: 4.2ft.)
