OD-1X4-3CCT+3WT

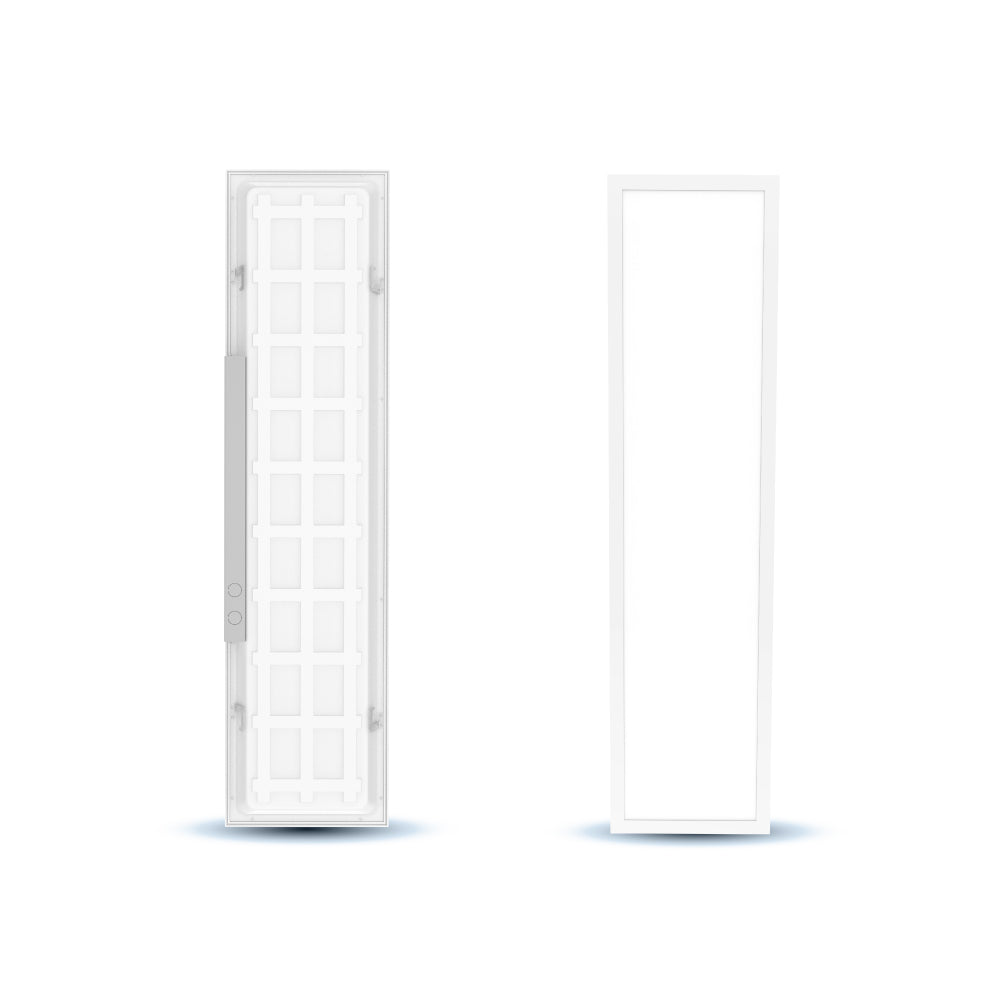

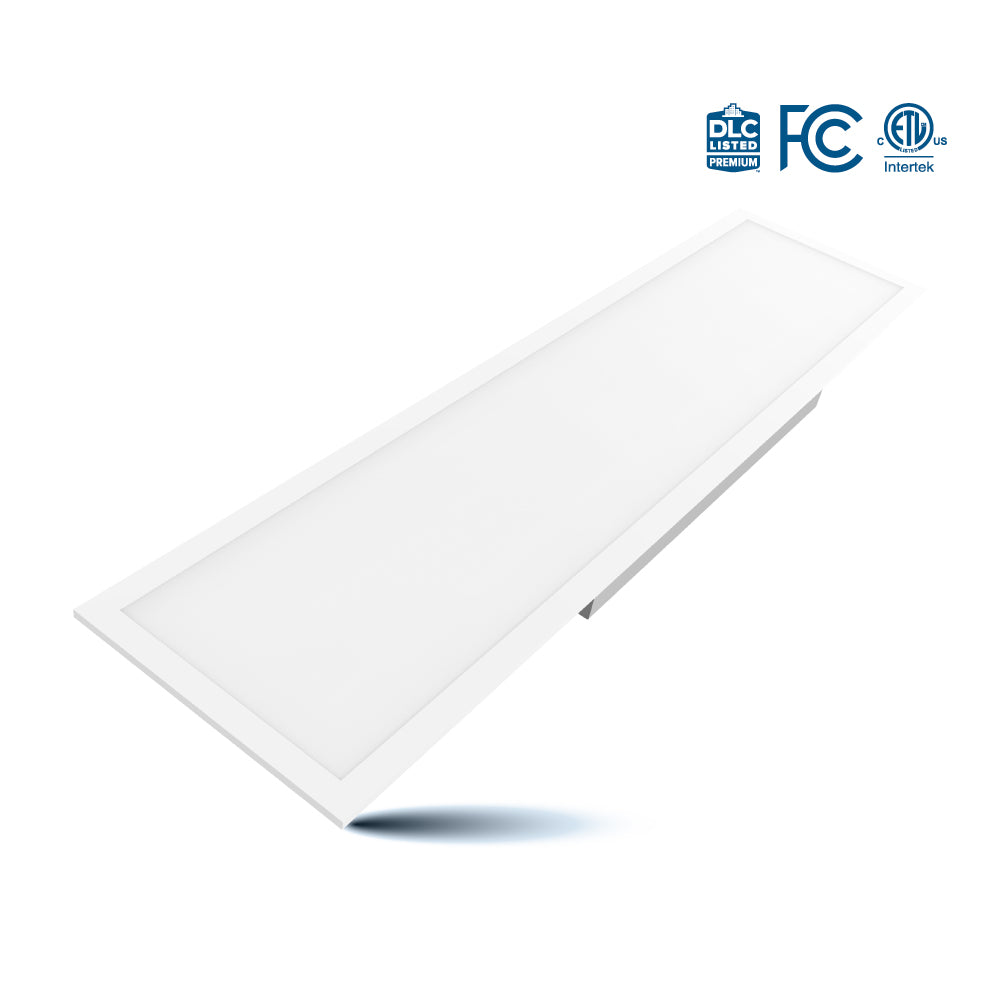

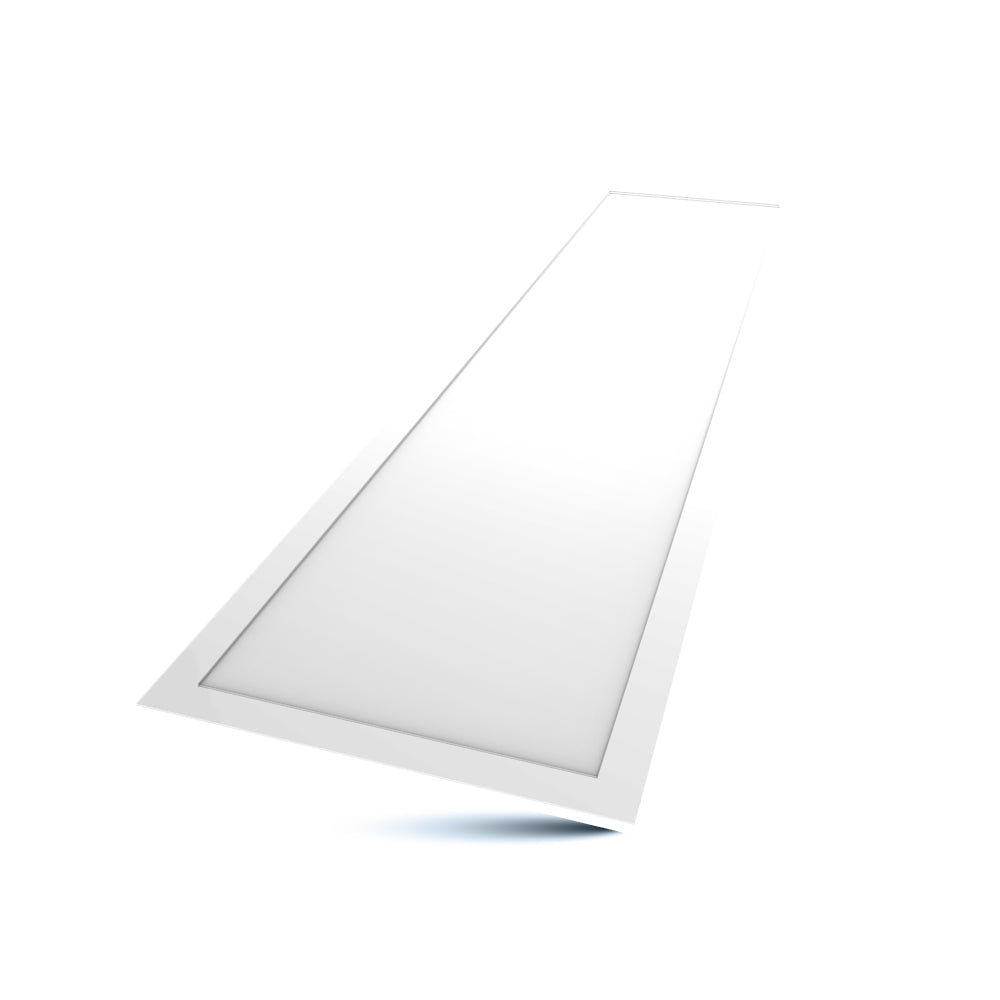

1x4 FT. Commercial Grade Back-Lit Slim LED Panel Lights With Great Heat Dissipation And Low Light Degradation, Along With Selectable CCT & Wattage


HIGHLIGHTS

  • Soft, Efficient Illumination: Delivers uniform and gentle light with high luminous efficacy, promoting energy savings and environmental sustainability.
  • Ultra-Slim Frame Design: Features a sleek 0.38" thick frame for a clean, modern look that complements any space.
  • Durable Aluminum Construction: High-quality aluminum frame offers excellent heat dissipation and resists light degradation over time.
  • High-Performance Driver: Equipped with a reliable driver boasting over 86% efficiency and a power factor greater than 0.9 for stable operation.
  • Universal Dimming Compatibility: Supports 0–10V dimming and works seamlessly with a wide range of brand-name dimmers.

DLC No. / Product ID: S-0J5SU2 (Ambient Lighting for Interiors) / S-D9FMX6 (Low-Bay for Commercial)

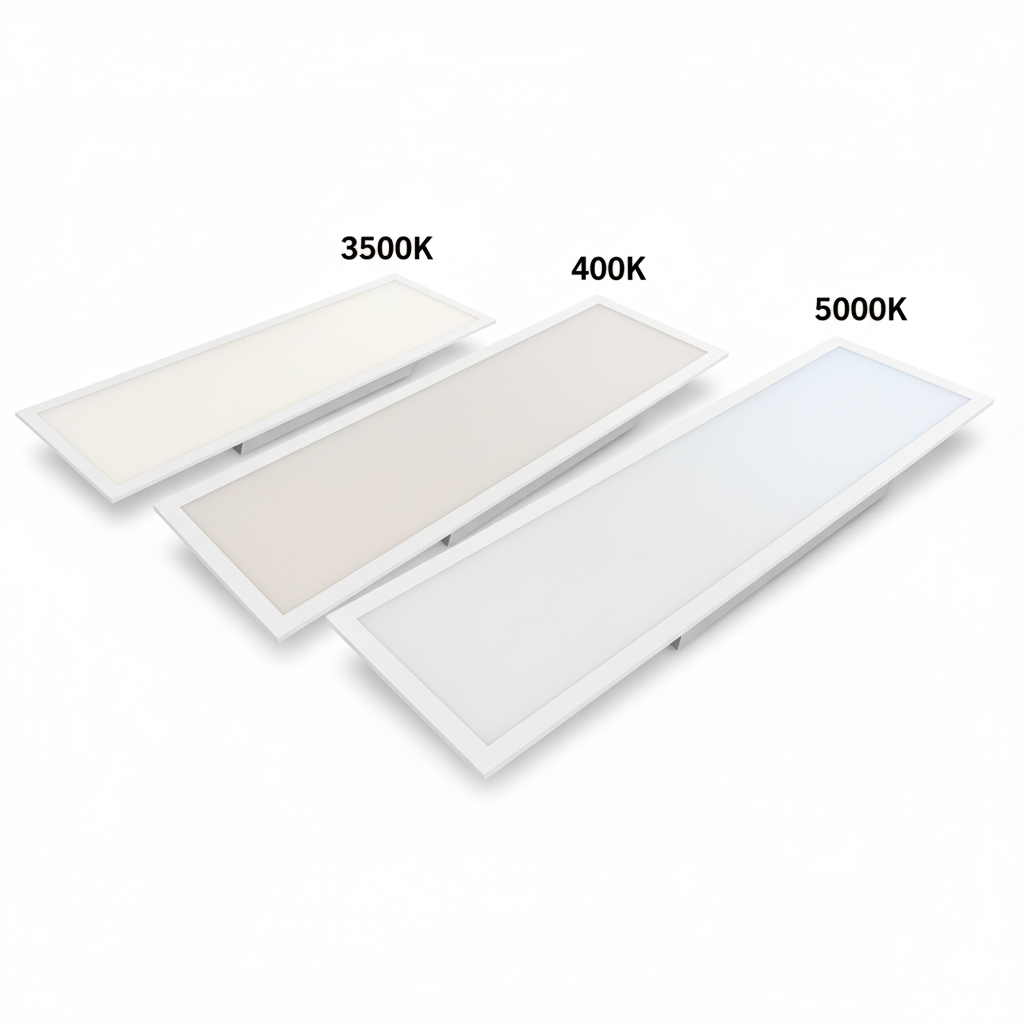

3CCT AND WATTAGE SELECTABLE

Specifications

  • Wattage
    30W/35W/50W
  • Voltage
    120-347V AC
  • Lumens
    125 lmn/W
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated | Dry and damp location
  • Grade of Protection
    IP20
  • Application
    Office / Factory / Supermarket, etc.
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Working Current
    0.44A
  • Operating Temperature
    -20°C ~ 45°C
  • Warranty
    5 Years
  • Case Quantities
    4

Certifications

Product features

Accessories (sold separately)

PANEL-SUS-KIT
PANEL-SUS-KIT
(aircraft cable length: 3.28ft.)

PRODUCT SHEETS

Spec Sheet

Instruction Manual

Dimmer List

IES Files

NA
