SM-2x4-5CCT+W

2x4 FT. commercial-grade back-lit LED panel with surface mount design offers selectable color temperature and wattage for versatile indoor lighting. Ideal for offices, shops, and utility spaces.


HIGHLIGHTS

  • Uniform & Soft LuminanceDelivers smooth, glare-free lighting with high luminous efficiency for optimal brightness.
  • Energy Saving & Eco-Friendly: Designed to reduce power consumption and support sustainable energy use.
  • High-Quality Materials: Built with durable components that offer excellent heat dissipation and minimal light degradation over time.
  • 0–10V Dimming Driver: Supports adjustable brightness levels for enhanced lighting control and energy efficiency.
  • Easy Surface Mount Installation: Mounts directly to the ceiling using brackets — no frame kit required, simplifying setup.

5CCT AND WATTAGE SELECTABLE

Specifications

  • Wattage
    20W/25W/30W/35W/40W
  • Voltage
    120-347V AC
  • Lumens
    115 lmn/W
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Power Factor
    >0.9
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Non-IC Rated | Damp location
  • Grade of Protection
    IP20

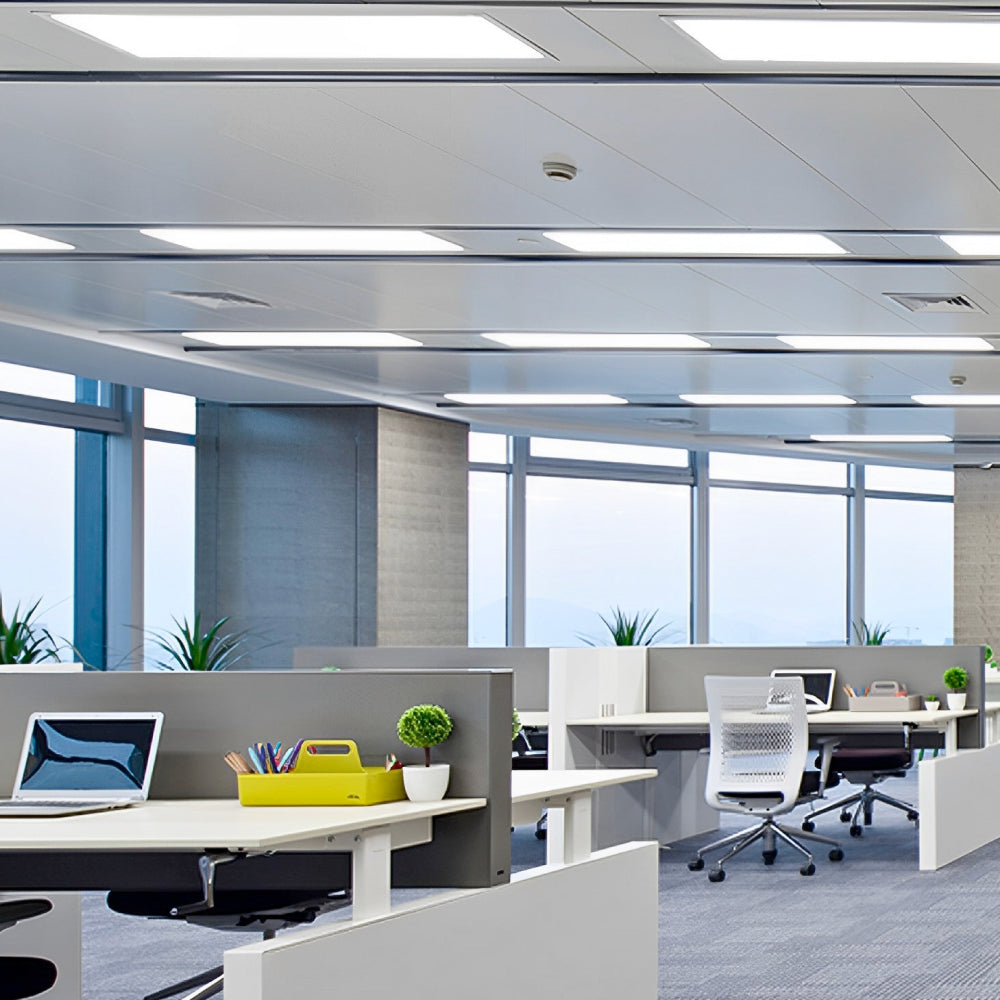

  • Application
    Office / Factory / Supermarket, etc.
  • Colour Temperature
    5CCT [3000K/3500K/4000K/5000K/6000K]
  • Diffuser/Lens Material
    PC
  • Frequency Range
    60Hz
  • Working Current
    0.458A
  • Efficiency
    >86%
  • Operating Temperature
    -20°C ~ 45°C
  • Warranty
    5 Years
  • Case Quantities
    4

Certifications

Product features
