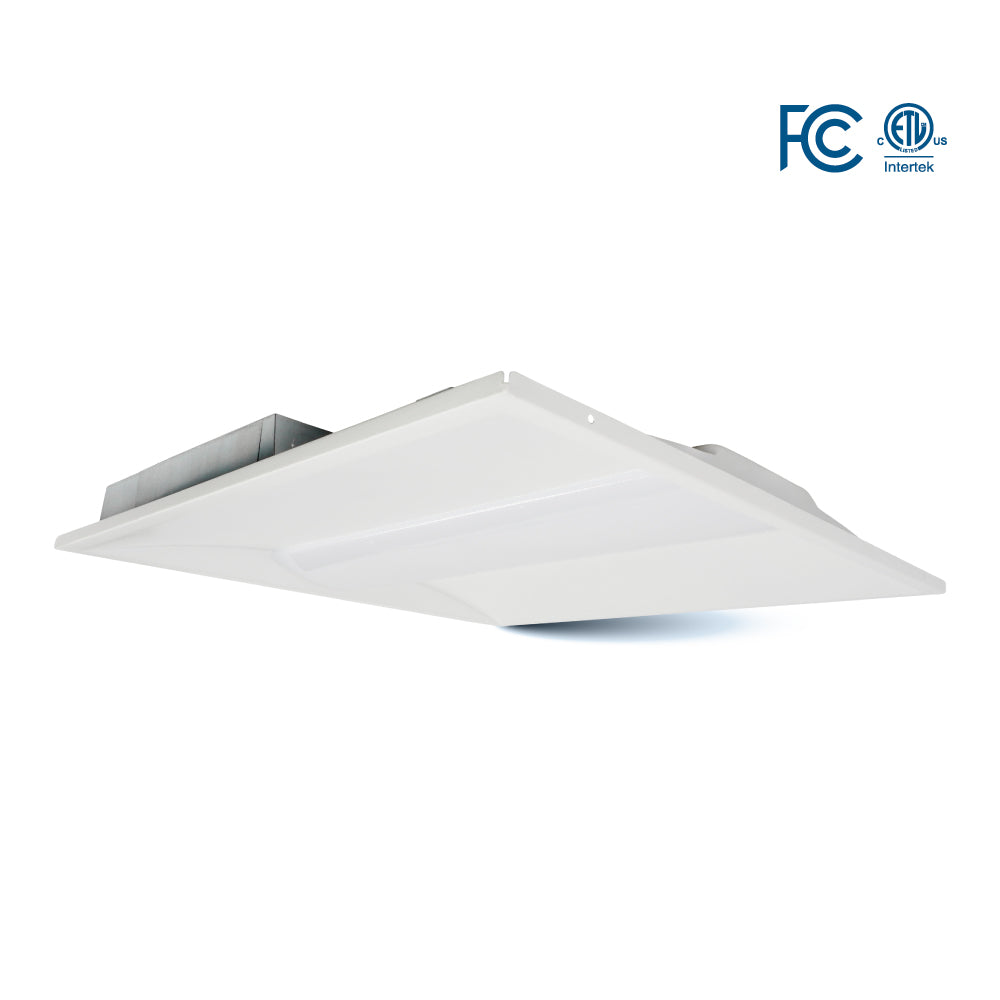

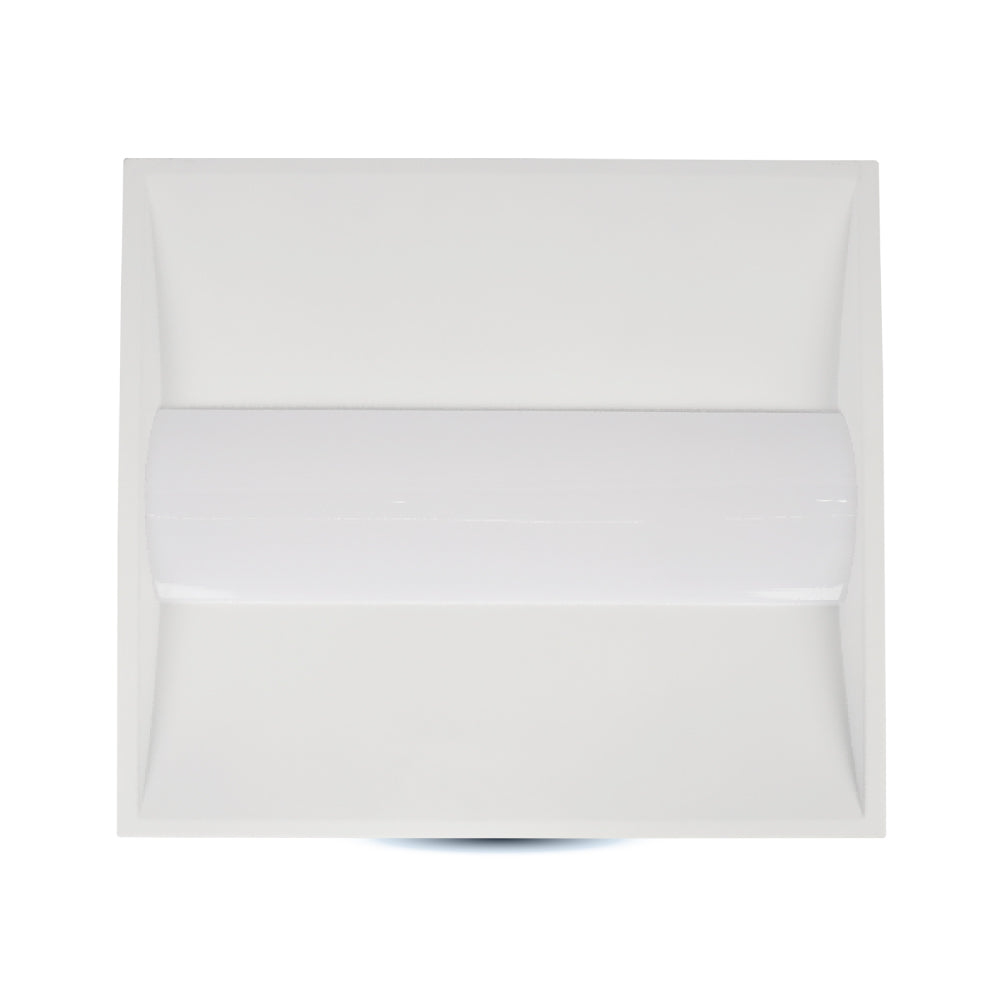

TF-2x2-3CCT+W

2x2 FT commercial-grade slim troffer panel light with selectable color temperature and wattage for versatile lighting solutions.

HIGHLIGHTS

  • Adjustable Power and CCT: Offers three selectable levels for both wattage and color temperature to suit various lighting needs.
  • Low Glare Illumination: Provides smooth, comfortable light that reduces eye strain and enhances visual comfort.
  • Sensor Compatibility: Plug & Play design supports optional sensors (sold separately) for added functionality.
  • Commercial-Grade Driver: Features a high-quality isolated driver ideal for offices, factories, supermarkets, and other commercial environments.

DLC No. / Product ID: S-8363SP

3CCT AND WATTAGE SELECTABLE

Specifications
  • Wattage
    30W/35W/40W
  • Lumens
    135 lmn/W
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated | Dry and damp location
  • Grade of Protection
    IP40
  • Application

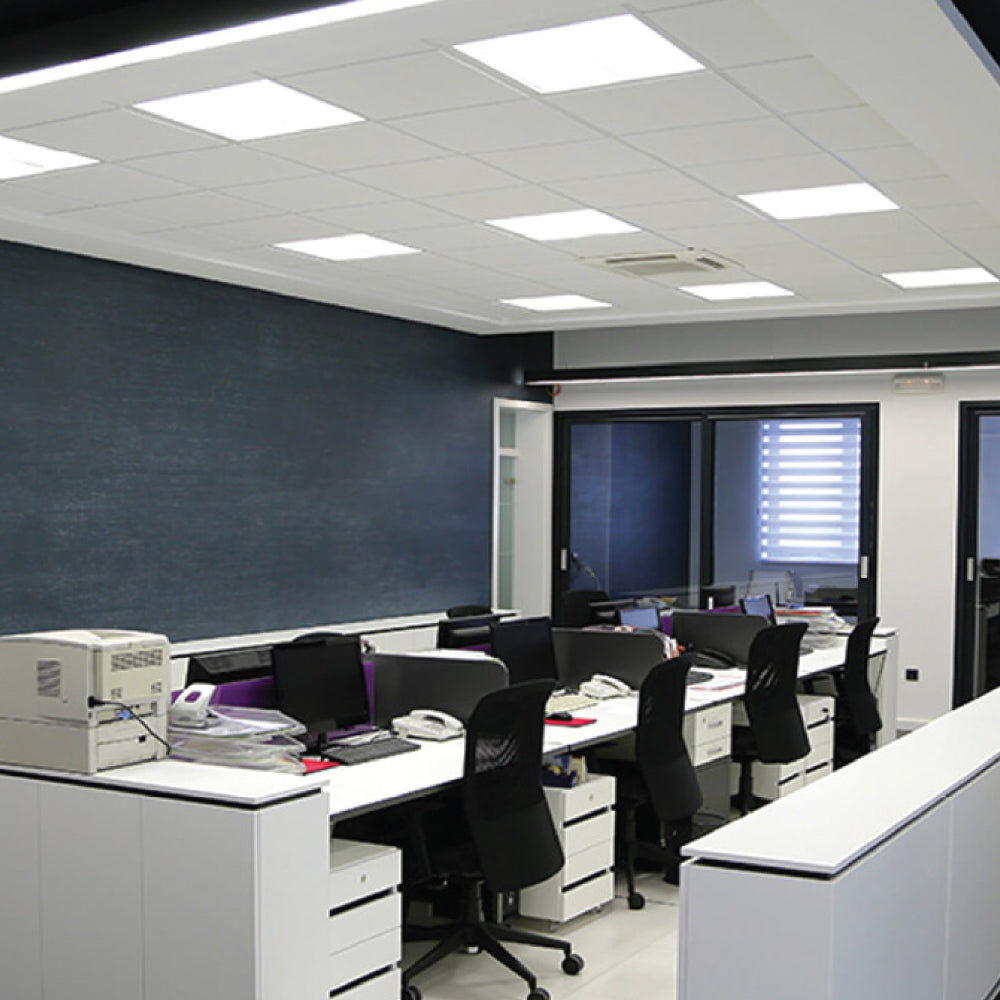

    Office / Factory / Supermarket, etc.
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Input Voltage
    AC120-347V
  • Operating Temperature
    -20°C ~ 45°C
  • Warranty
    5 Years

CERTIFICATIONS

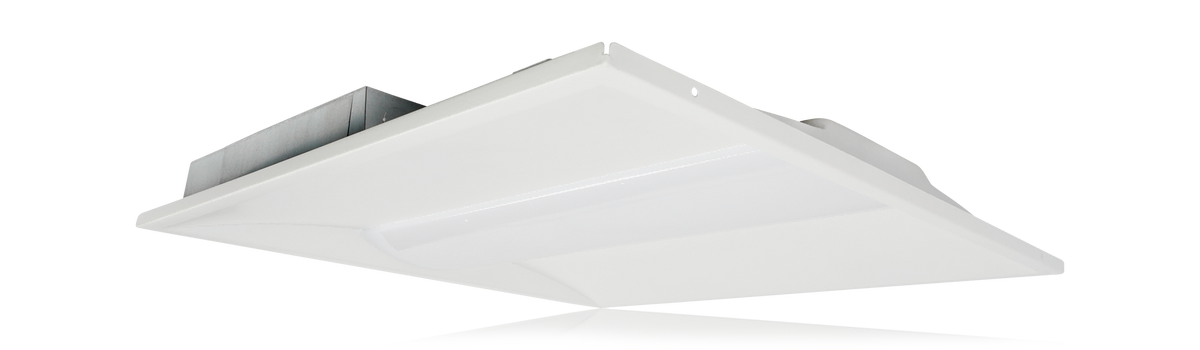

Product features

Accessories (sold separately)

PNP-SENSOR-DS
PNP-SENSOR-DS
PANEL-SUS-KIT
PANEL-SUS-KIT
(aircraft cable length: 3.28ft.)

Check Out the Video to Learn How These Accessories Work

PRODUCT SHEETS

Spec Sheet

TF-2x2-3CCT+W Spec Sheet

Instruction Manual

TF-2x2-3CCT Instruction Manual (english)
TF-2x2-3CCT Instruction Manual (french)

Dimmer List

TF-2x2-3CCT+W Compatible Dimmer List

IES Files

TF-2x2-3CCT+W IES Files
