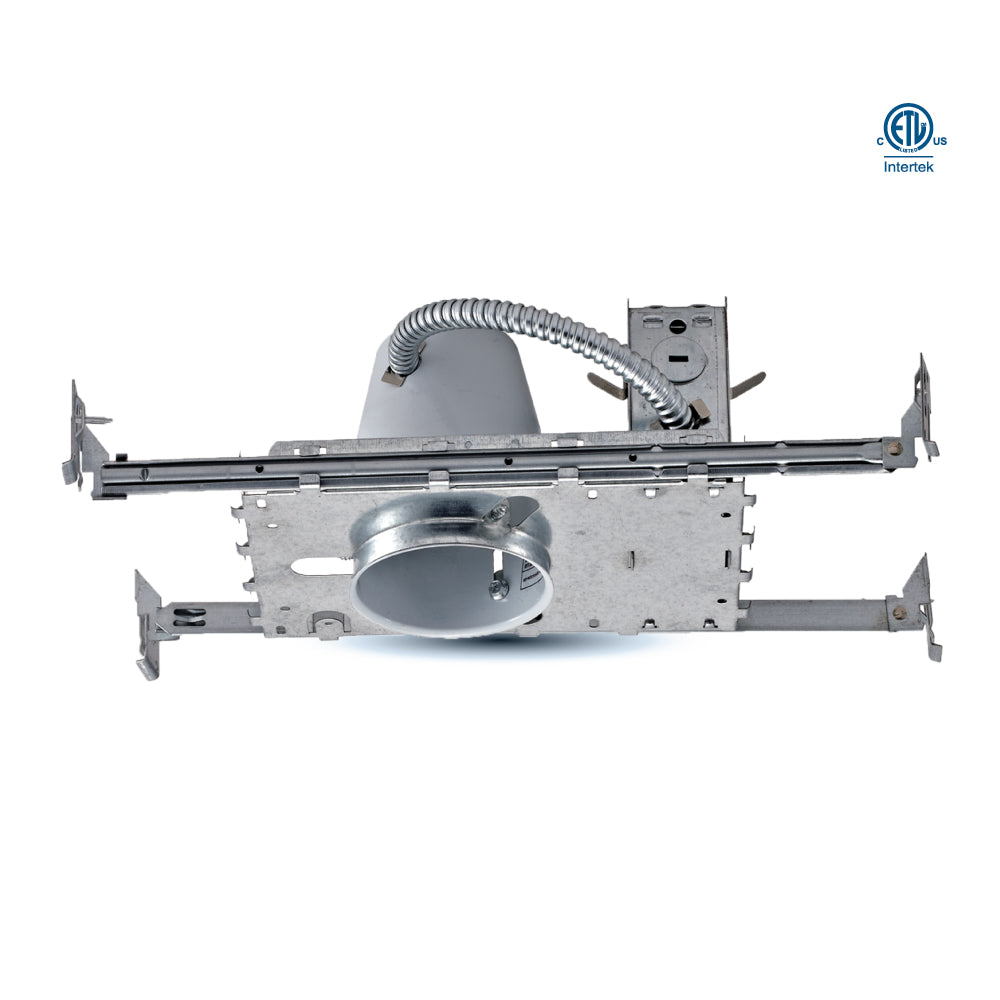

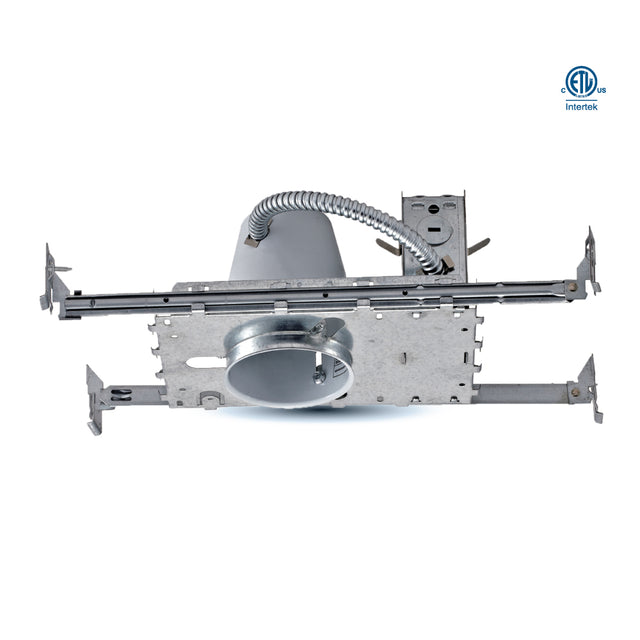

ODH2-3

Commercial/residential grade GU10 base 3″ line voltage recessed housing, designed for use with GU10 base bulbs in both commercial and residential settings, operates on standard line voltage for easy integration, features a compact 3″ housing ideal for tight ceiling spaces, and provides a reliable and efficient solution for modern recessed lighting applications.

HIGHLIGHTS

  • Wire through junction box: Enables safe and efficient electrical connections
  • Adjustable hanger bar from 14"–24": Accommodates various joist spacing for flexible installation
  • Thermally protected with shut-off sensor: Automatically cuts power to prevent overheating
  • New construction & rated for damp locations: Suitable for new builds and moisture-prone environments
  • Includes cover to protect exposed cone from paint: Shields internal components during finishing
  • Minimum 3" space between housing and insulation

3 INCH RECESSED HOUSING

Specifications
  • Application
    Commercial/Residential
  • Mounting Access
    Four-sided
  • Lamp
    GU10 base 50W Max.
  • Input Voltage
    120V AC
  • Output Voltage
    120V AC
  • Included
    Detachable socket
    Push-in connectors
    Cover to protect exposed cone from paint

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

ODH2-3 Spec Sheet

Instruction Manual

ODH2-3 Instruction Manual
