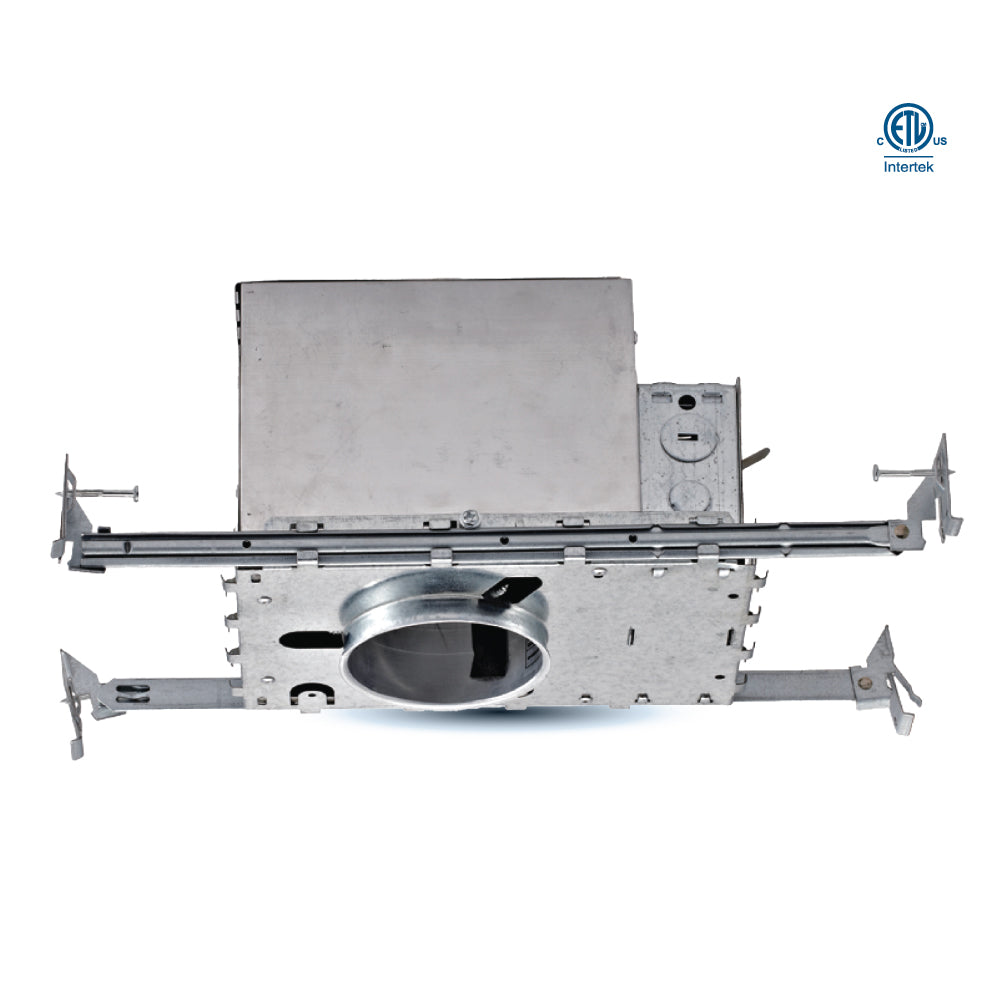

ODH2-3IA

Commercial/residential grade GU10 base 3″ line voltage air-tight recessed housing, designed for energy-efficient lighting in both residential and commercial applications, features a GU10 socket compatible with line voltage bulbs, a compact 3″ housing ideal for tight ceiling spaces, and an air-tight construction that minimizes airflow for improved thermal performance and energy savings.

HIGHLIGHTS

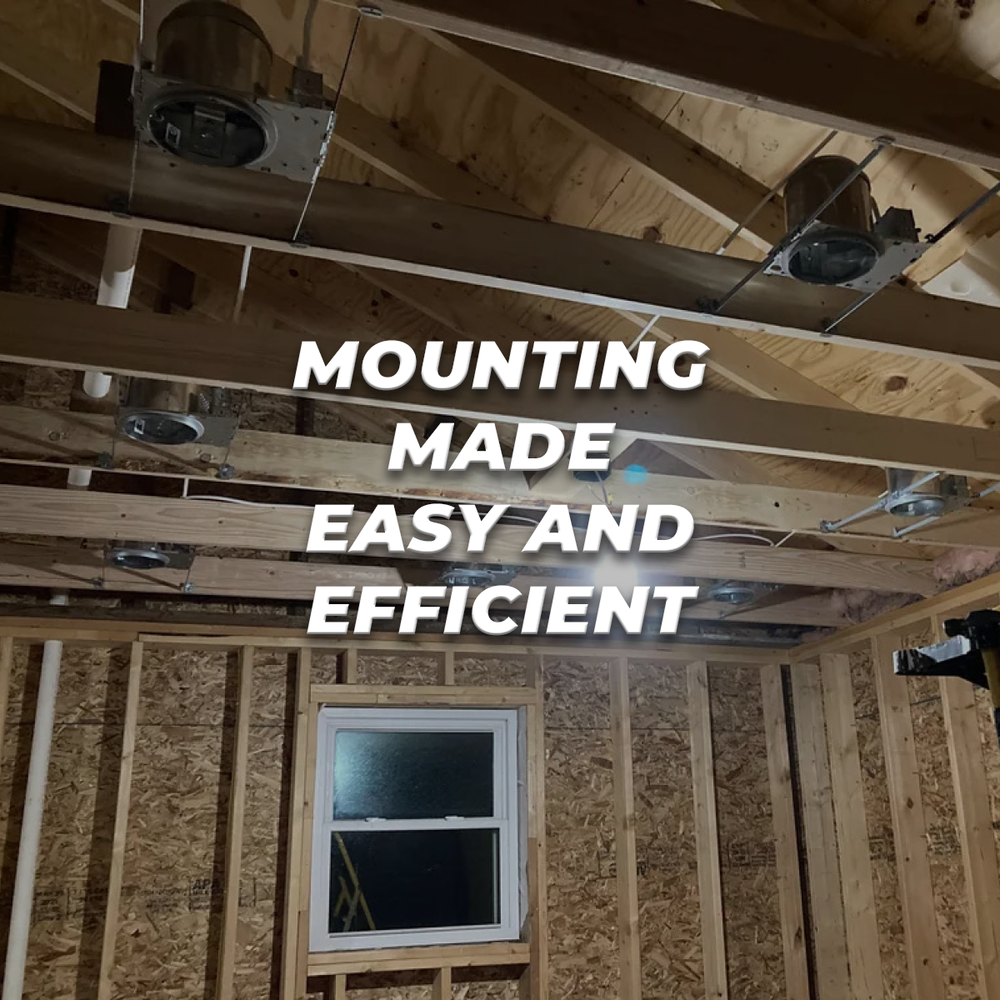

  • Adjustable hanger bar from 14"–24": Allows flexible installation across varying joist spans
  • Thermally protected with shut-off sensor: Automatically disables power to prevent overheating
  • New construction & 3″ line voltage insulated: Designed for new builds with compact, insulated housing
  • Wire through junction box & rated for damp locations: Supports safe wiring and use in moisture-prone areas
  • Meets State of WA energy code ASTM E283 for Air Tight: Complies with air-tight standards for energy efficiency

3 INCH RECESSED HOUSING

Specifications
  • Application
    Commercial/Residential
  • Mounting Access
    Four-sided
  • Lamp
    GU10 base 50W Max.
  • Input Voltage
    120V AC
  • Output Voltage
    120V AC
  • Included
    Push-in connectors
    Cover to protect exposed cone from paint

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

ODH2-3IA Spec Sheet

Instruction Manual

ODH2-3IA Instruction Manual
