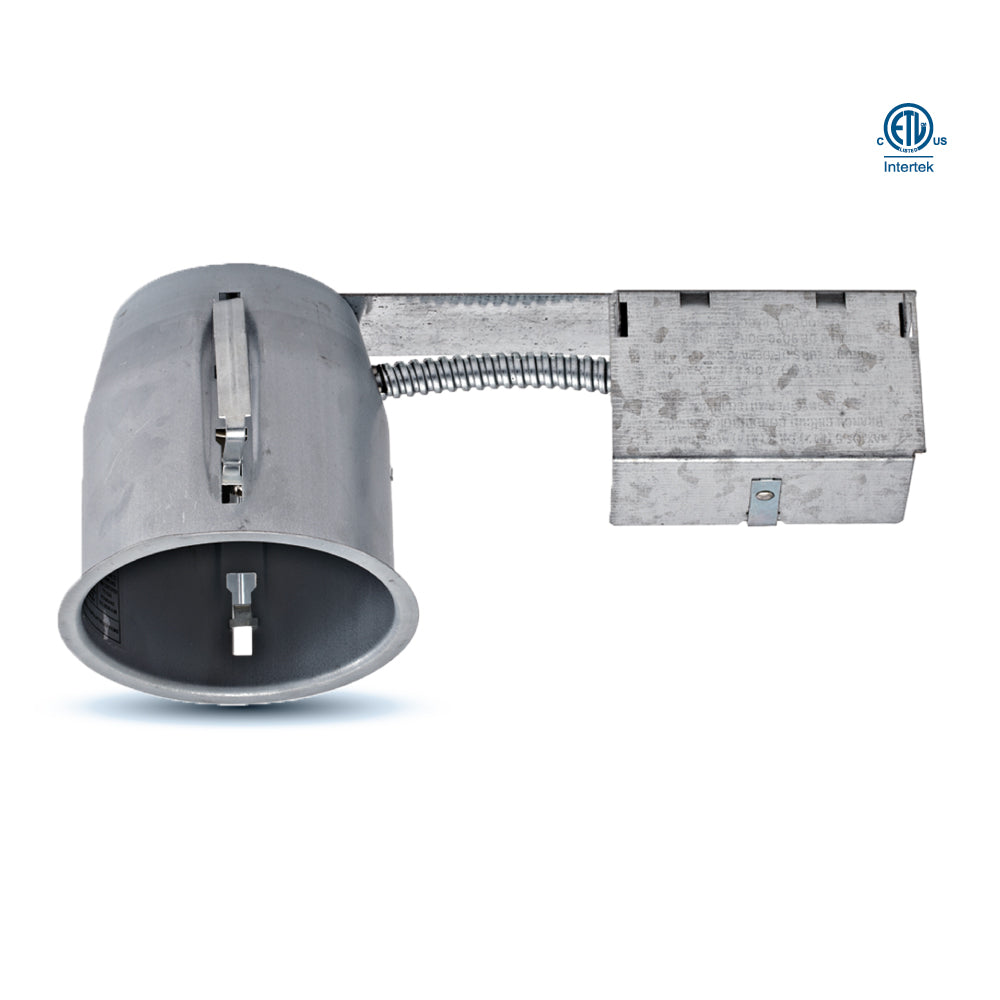

ODH2-4RS

4″ PAR20 35W max. remodel air-tight housing for insulated ceilings, designed for retrofit applications in existing structures, supports PAR20 bulbs up to 35 watts, features an air-tight construction to minimize energy loss, and is approved for direct contact with insulation, making it ideal for energy-efficient lighting upgrades in residential or commercial settings.

HIGHLIGHTS

  • Thermally protected: Prevents overheating to ensure safe operation
  • Wire through junction box: Allows secure and efficient electrical connections
  • Suitable for damp locations: Approved for use in moisture-prone environments
  • Retrofit design with screw-down clamps: Enables easy installation in existing ceilings with secure mounting

4 INCH RECESSED HOUSING

Specifications
  • Application
    Commercial/Residential
  • Cutout
    Ø4-1/2"
  • Lamp
    PAR20 120V 35W Max.
  • Input Voltage
    120V AC
  • Output Voltage
    120V AC
  • Included
    Screw down clamps
    Adjustable socket bracket

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

ODH2-4RS Spec Sheet

Instruction Manual

ODH2-4RS Instruction Manual
