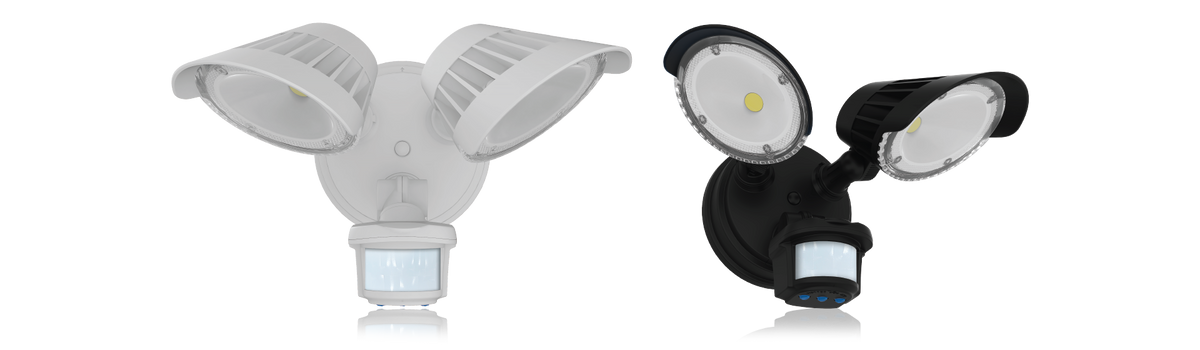

SSL-A2-5CCT

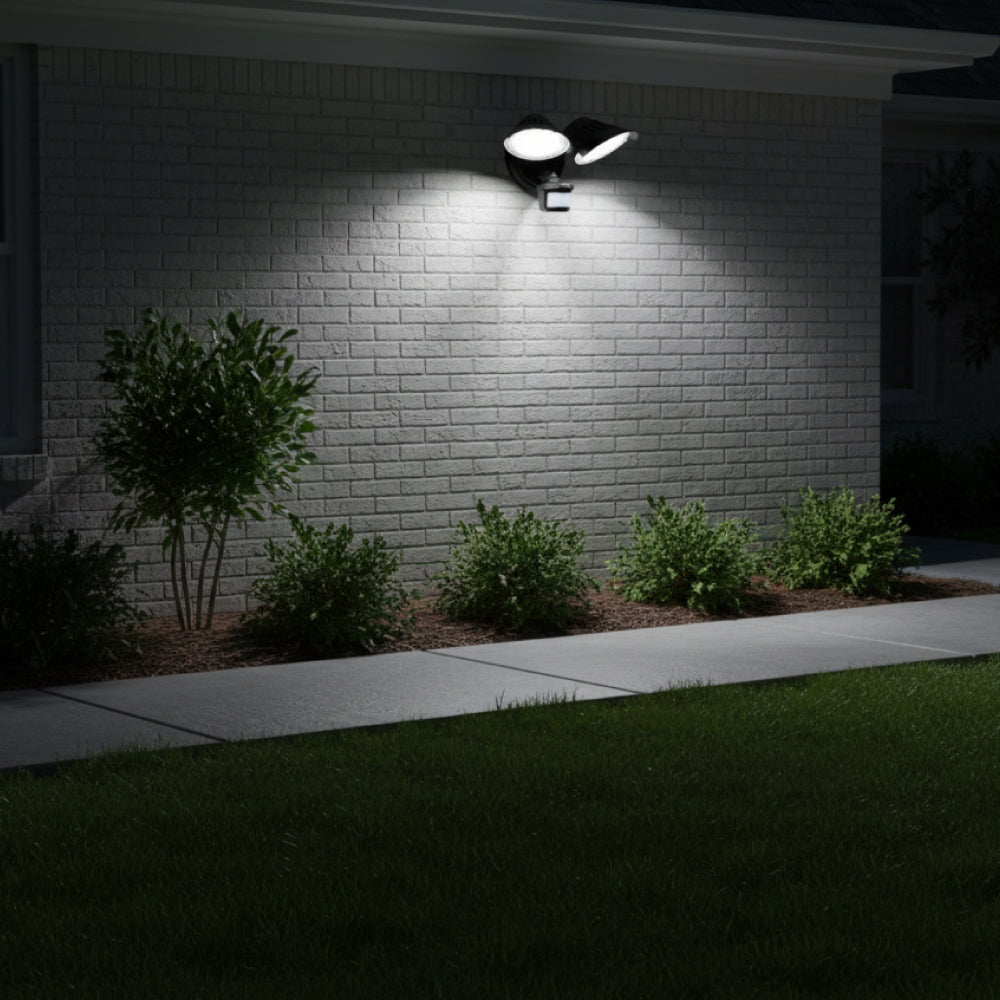

New generation security light with selectable CCT and built-in motion sensor for customizable and responsive outdoor lighting.

Color: Black

HIGHLIGHTS

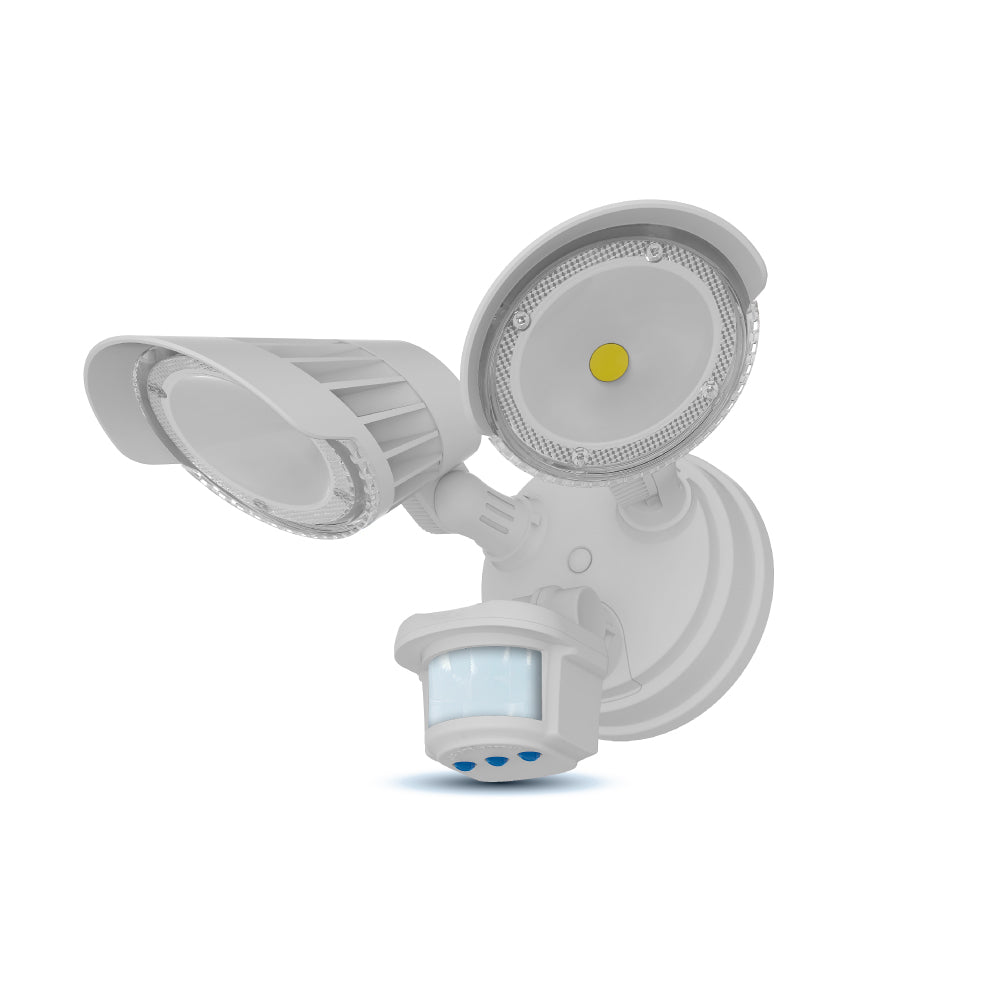

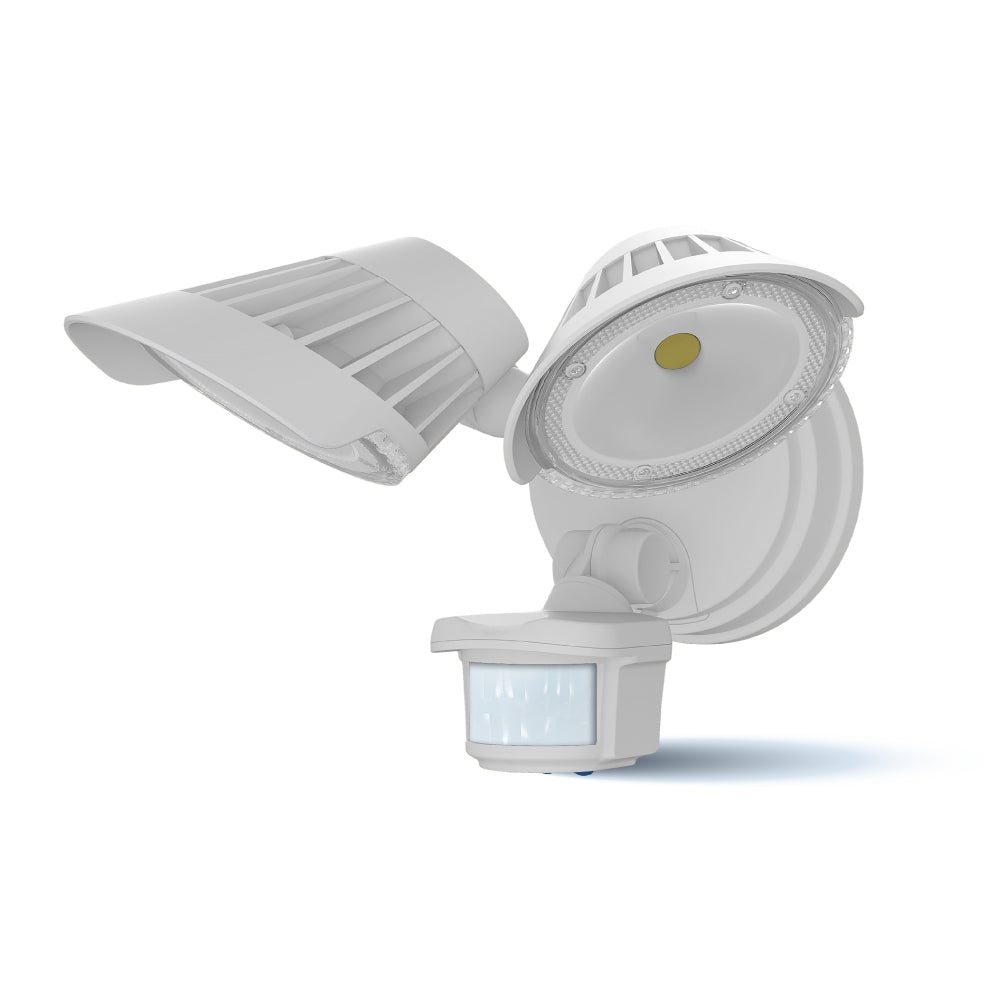

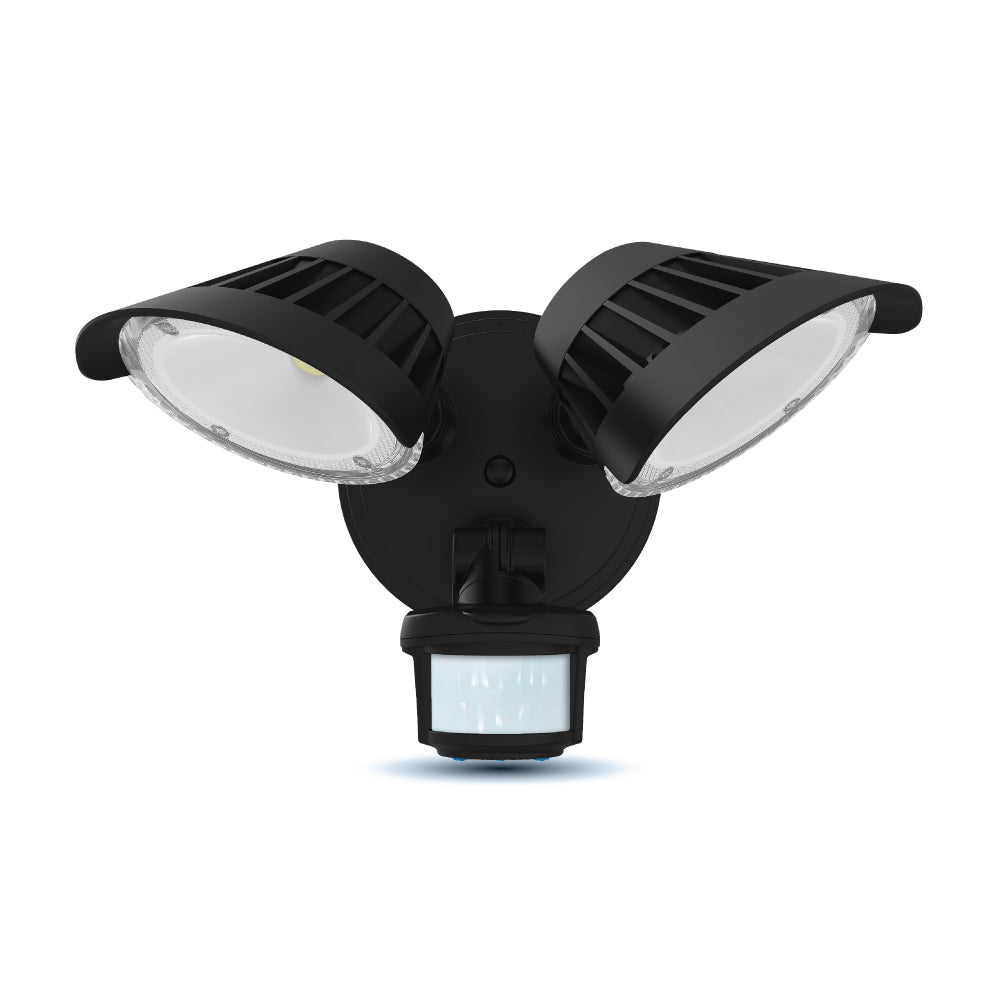

  • Adjustable Light Heads: Light heads can be positioned to direct illumination where needed.

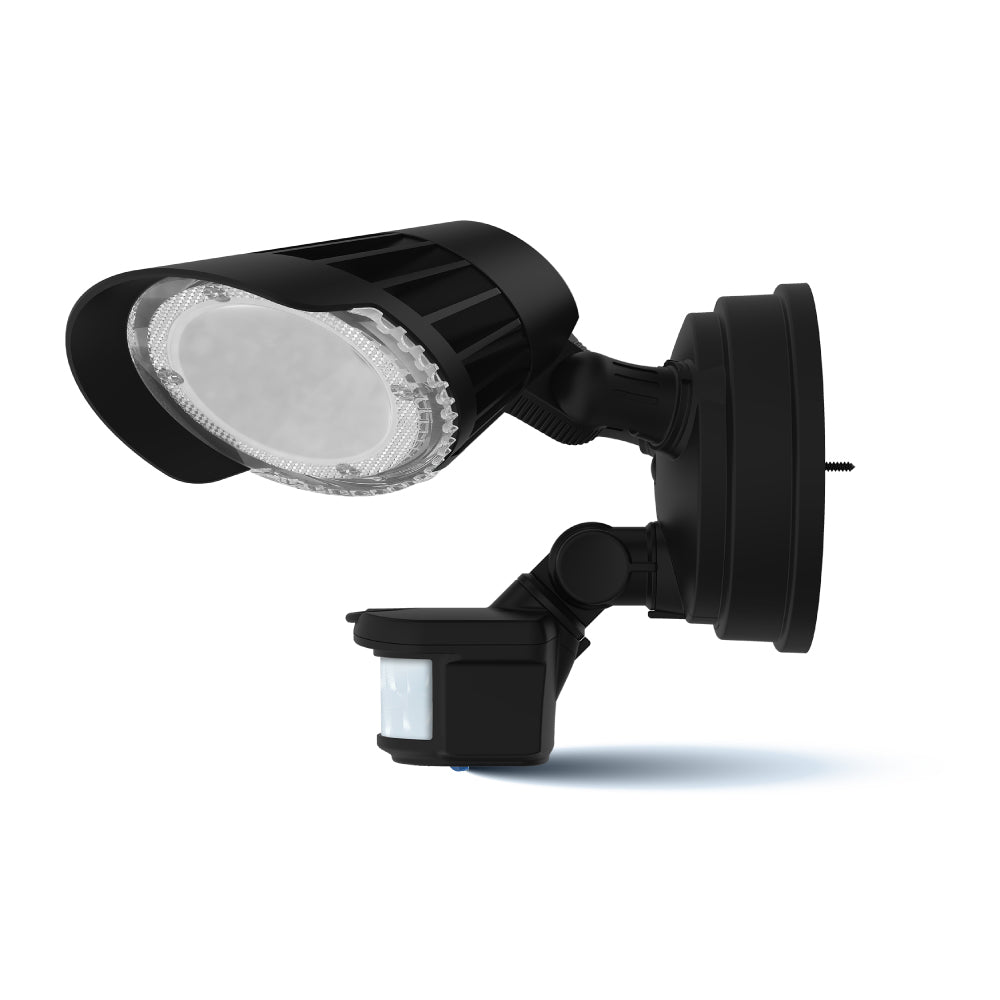

  • Flexible Motion Sensor Movement: Sensor can move side-to-side and up-and-down for optimal coverage.
  • PIR Motion Sensor and D2D Mode: Includes passive infrared motion detection and dusk-to-dawn functionality.
  • Wide Detection Angle: Detects motion within an angle of up to 180 degrees.
  • Versatile Mounting Options: Can be installed on walls or ceilings, including soffit areas.
  • Customizable Settings: Detection distance, operating mode, and timing can be adjusted.
  • Long Lifespan: Engineered for durability with a rated life of over 50,000 hours.

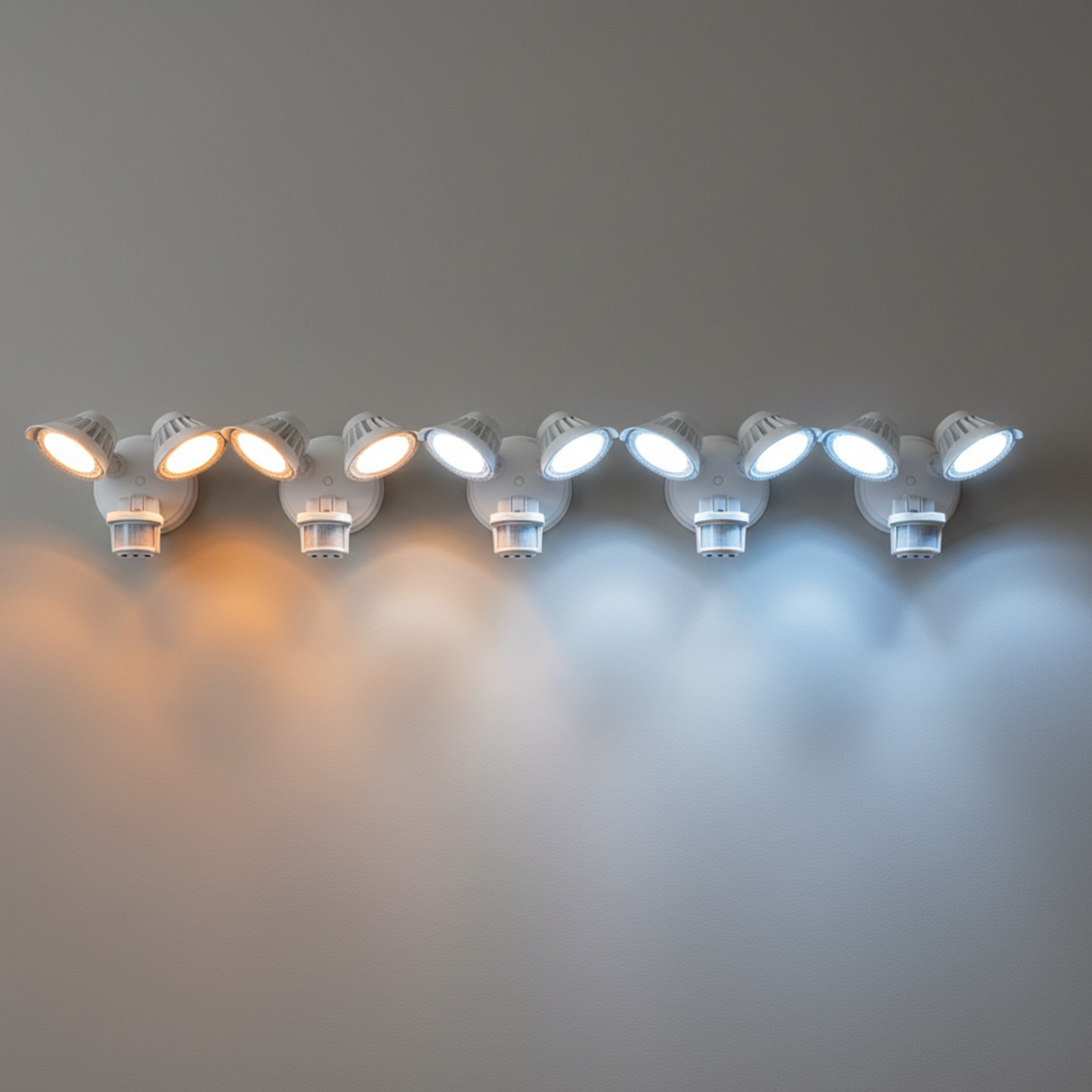

5CCT Selectable & Build-in Motion Sensor

Specifications
  • Wattage
    24W
  • Voltage
    AC 120V/60Hz
  • Lumens
    2500 lmn
  • Beam Angle
    120º
  • CRI
    80Ra+
  • Dimmable
    No
  • Lifetime
    50,000 Hours
  • Rating
    Wet locations
  • Grade of Protection
    IP65
  • Application

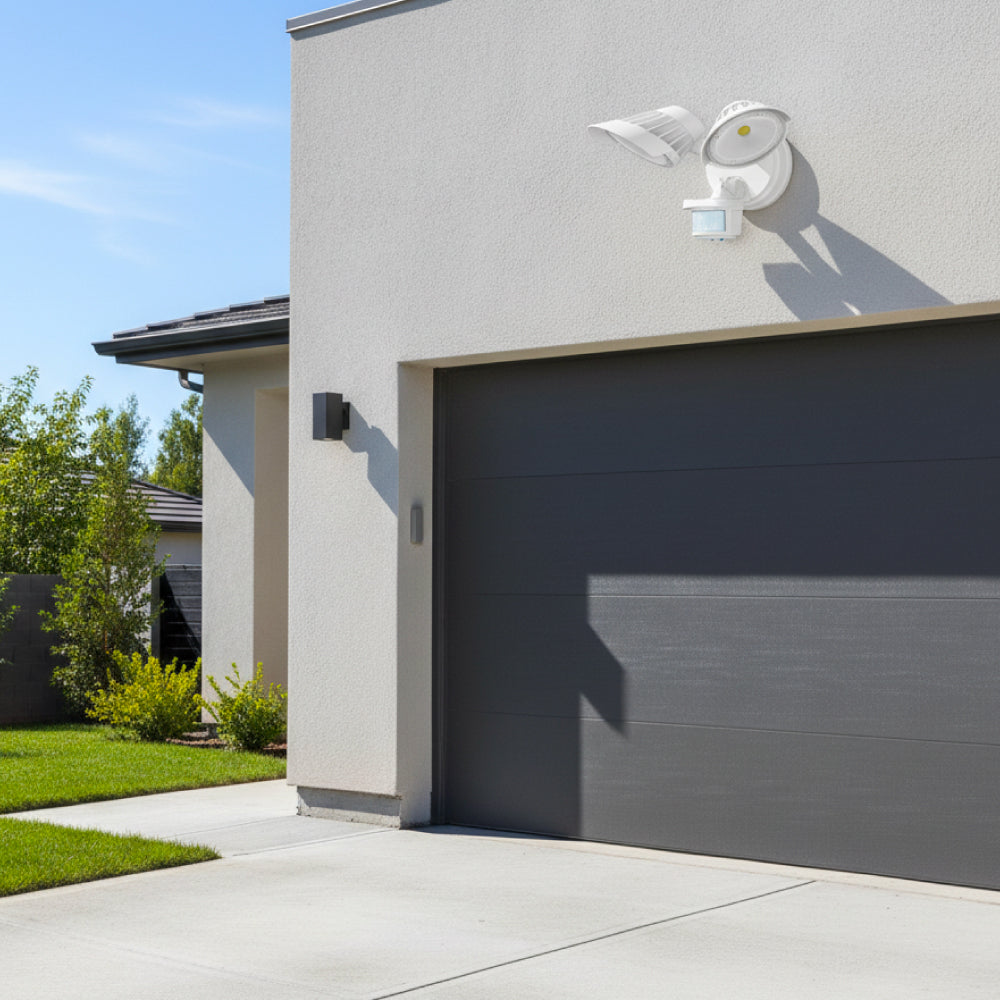

    Entryways/Front porch/Backyard/Sheds/Decks/Walkways/Fences
  • Colour Temperature
    5CCT [2700K/3000K/4000K/5000K/6500K]
  • Detection Angle
    up to 180°
  • Operating Temperature
    -30ºC ~ +50ºC
  • Warranty
    5 Years
  • Case Quantities
    18

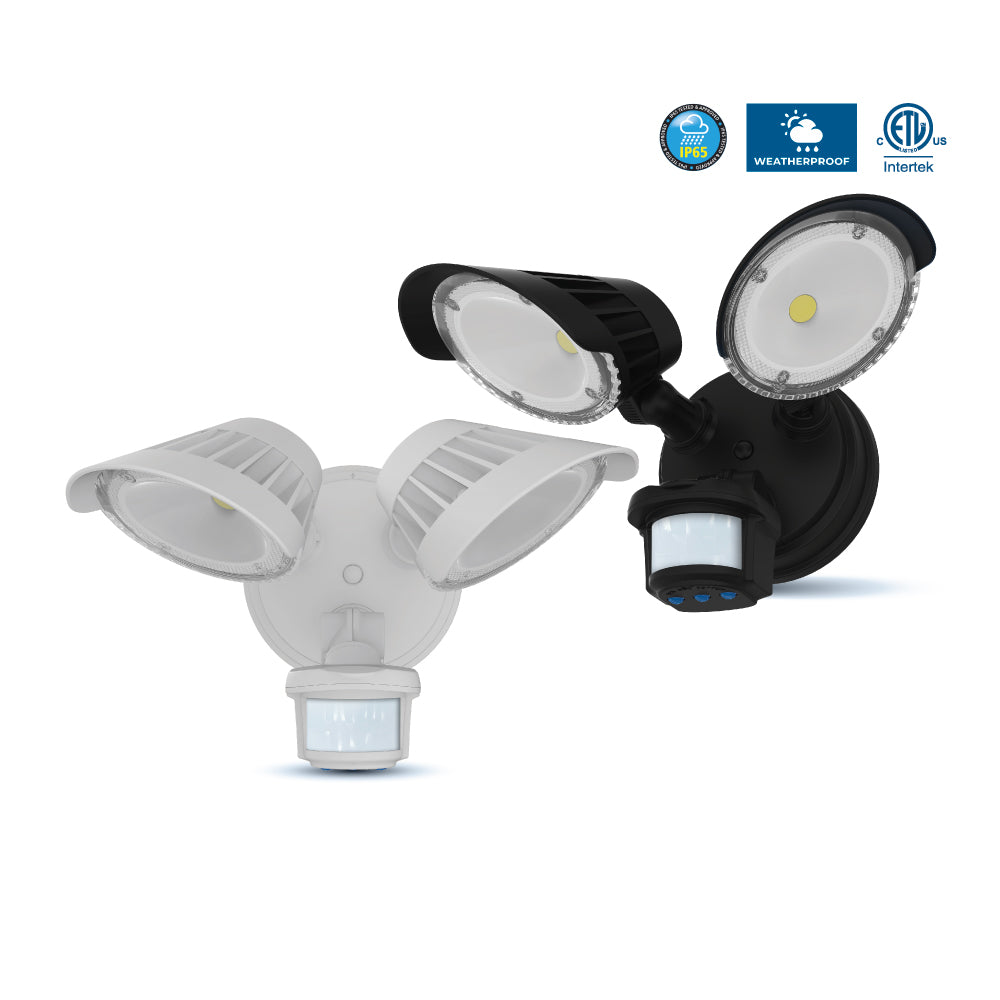

Certifications

Product features

PRODUCT SHEETS

Spec Sheet

SSL-A2-5CCT Spec Sheet

Instruction Manual

SSL-A2-5CCT Instruction Manual (english)
SSL-A2-5CCT Instruction Manual (french)

Dimmer List

NA

IES Files

SSL-A2-5CCT IES Files
