SSL-B2-5CCT

New generation security light with selectable CCT and built-in motion sensor for customizable and responsive outdoor lighting.

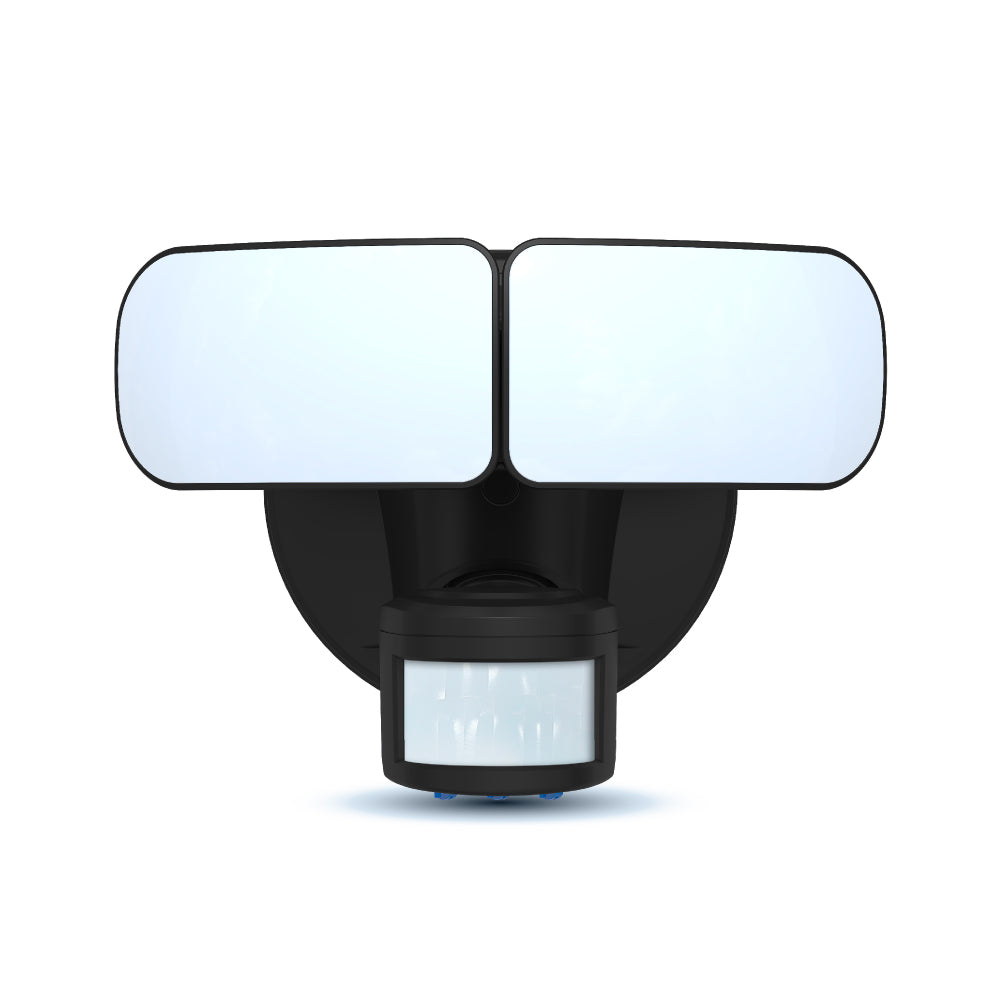

Color: Black

HIGHLIGHTS

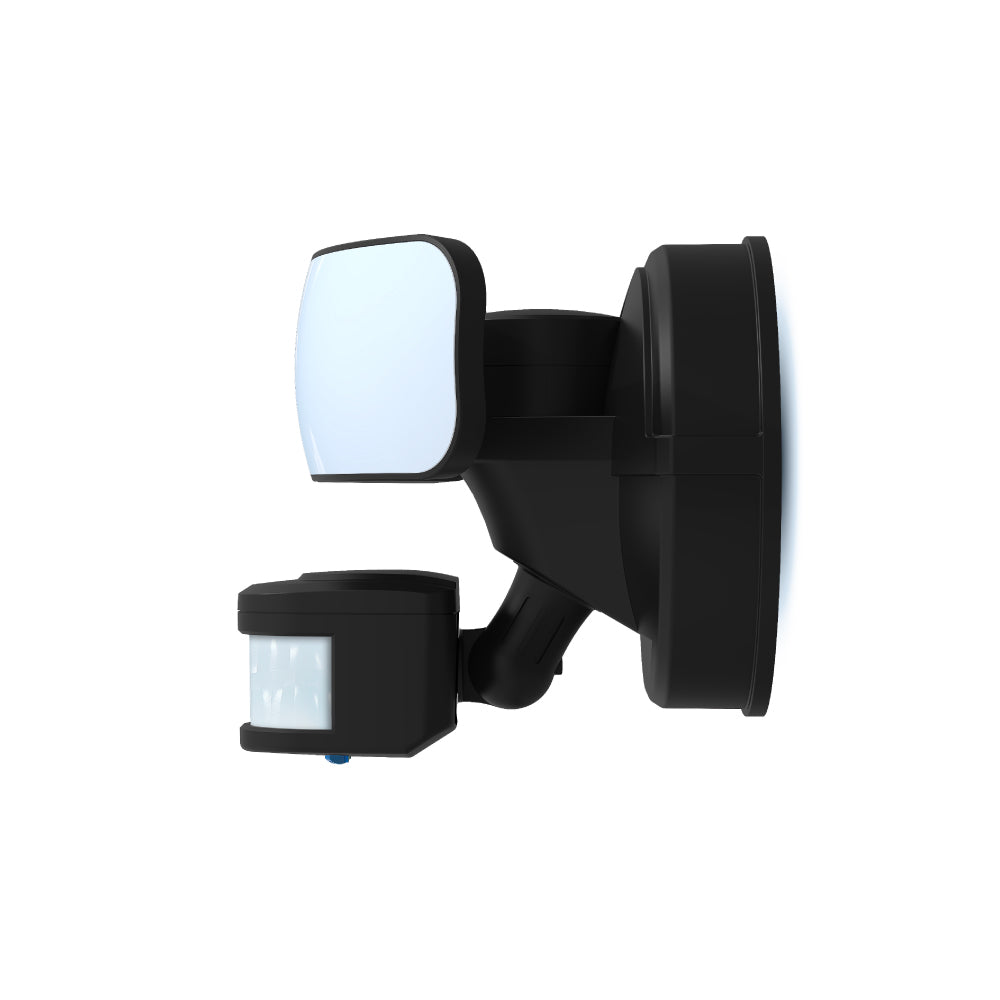

  • Adjustable Light Heads: Easily position the light heads to direct illumination where needed.
  • Multi-Directional Motion Sensor: Sensor allows side-to-side and up-and-down movement for enhanced coverage.
  • PIR Motion Sensor with D2D Mode: Features passive infrared detection and dusk-to-dawn operation for added convenience.
  • Wide Detection Angle: Detects motion across a broad 180° field for maximum area coverage.
  • Flexible Mounting Options: Suitable for wall mounting or ceiling installation within a soffit.
  • Customizable Detection Settings: Adjust detection distance, operating mode, and timing to suit your needs.
  • Extended Lifespan: Built to last with a rated life exceeding 50,000 hours.

5CCT Selectable & Build-in Motion Sensor

Specifications
  • Wattage
    15W
  • Voltage
    AC 120V/60Hz
  • Lumens
    1500 lmn
  • Beam Angle
    120º
  • CRI
    80Ra+
  • Dimmable
    No
  • Lifetime
    50,000 Hours
  • Rating
    Wet locations
  • Grade of Protection
    IP65
  • Application

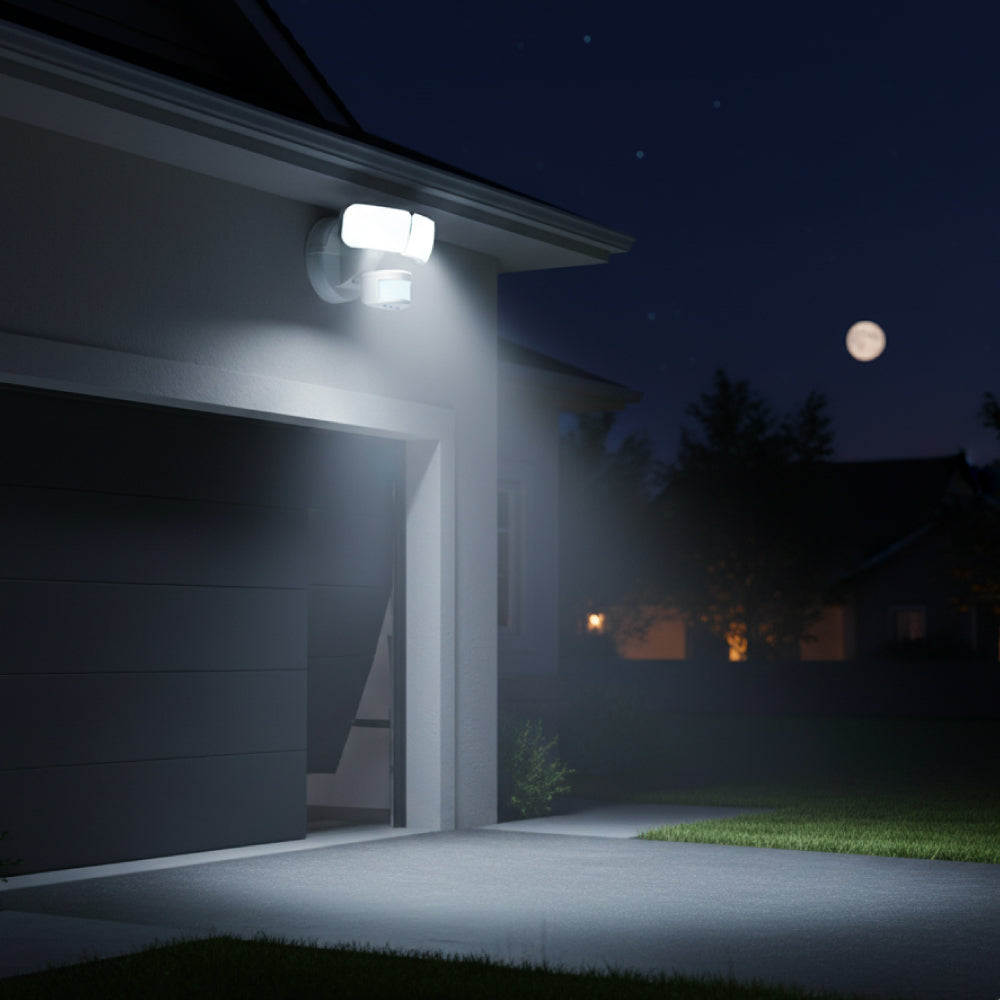

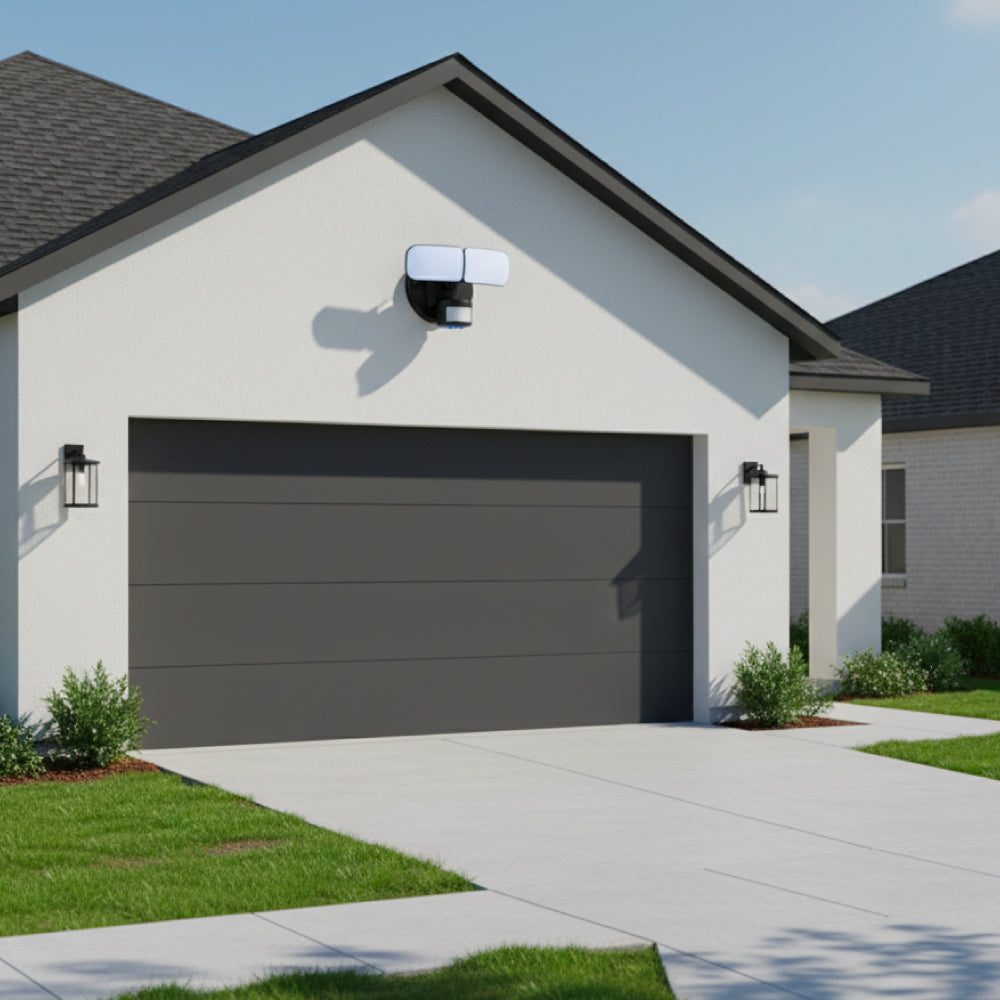

    Entryways/Front porch/Backyard/Sheds/Decks/Walkways/Fences
  • Colour Temperature

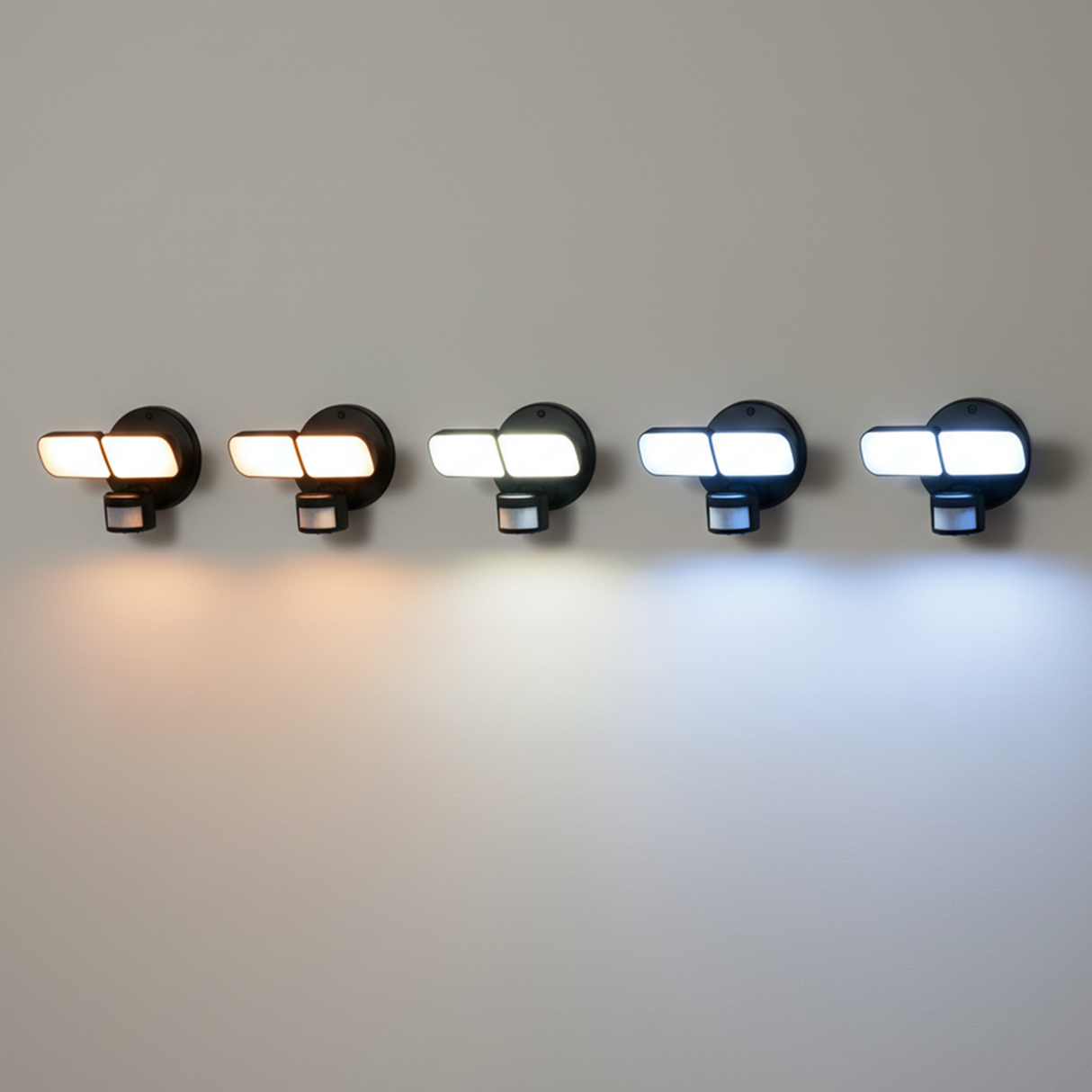

    5CCT [2700K/3000K/4000K/5000K/6500K]
  • Detection Angle
    up to 180°
  • Operating Temperature
    -30ºC ~ +50ºC
  • Warranty
    5 Years
  • Case Quantities
    18

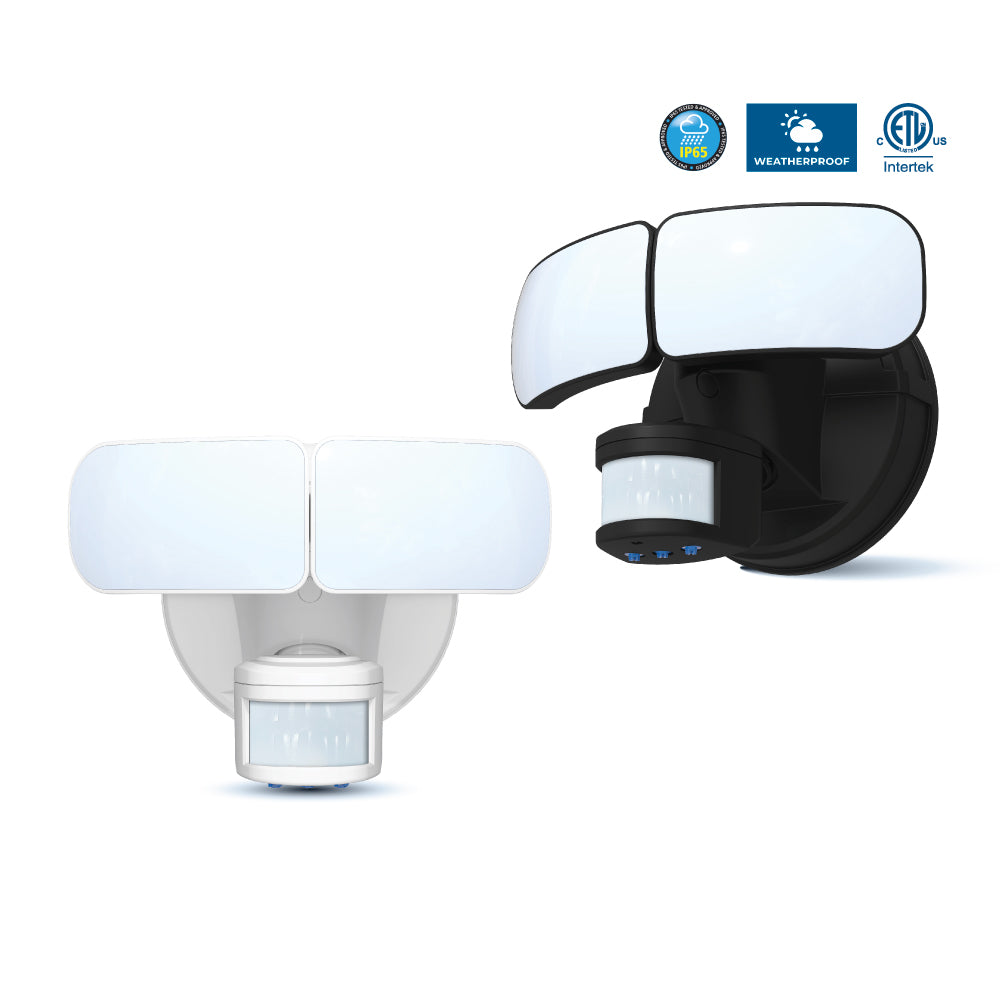

Certifications

Product features

PRODUCT SHEETS

Spec Sheet

SSL-B2-5CCT Spec Sheet

Instruction Manual

SSL-B2-5CCT Instruction Manual (english)
SSL-B2-5CCT Instruction Manual (french)

Dimmer List

NA

IES Files

SSL-B2-5CCT IES Files
