SSL-SO

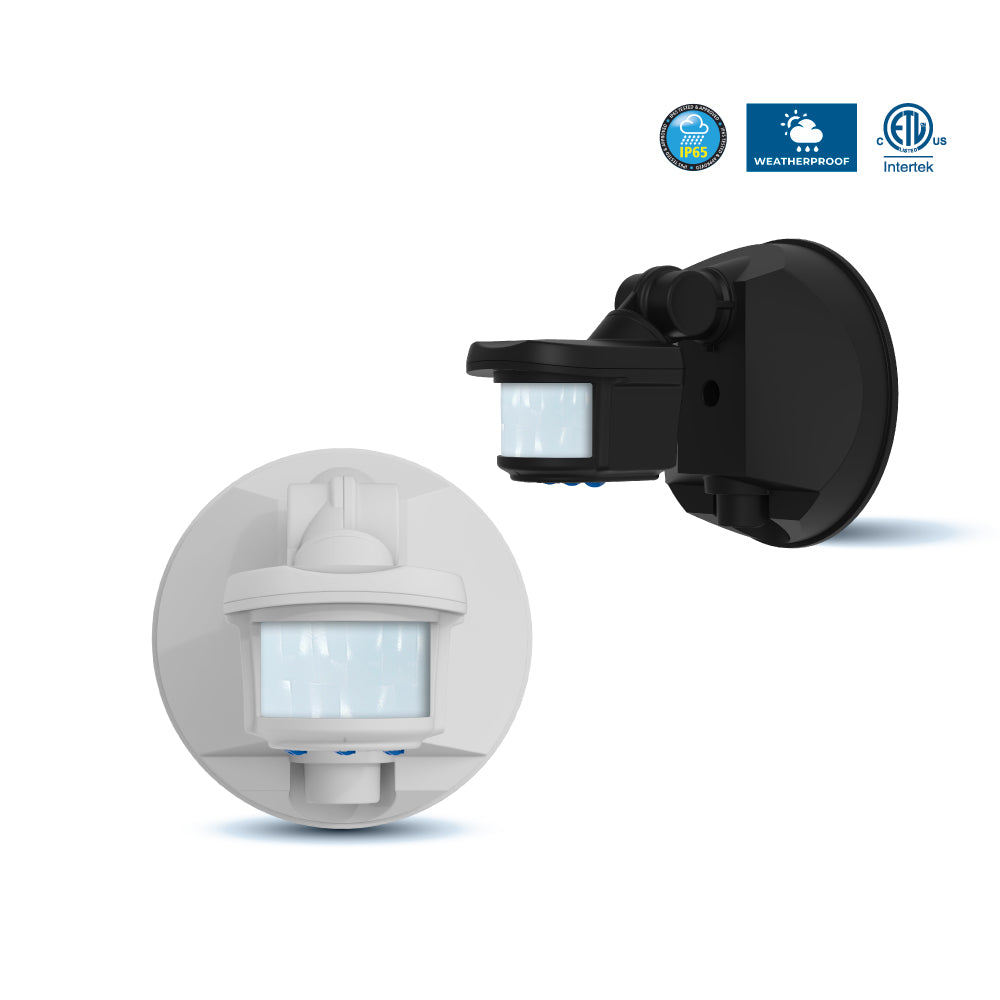

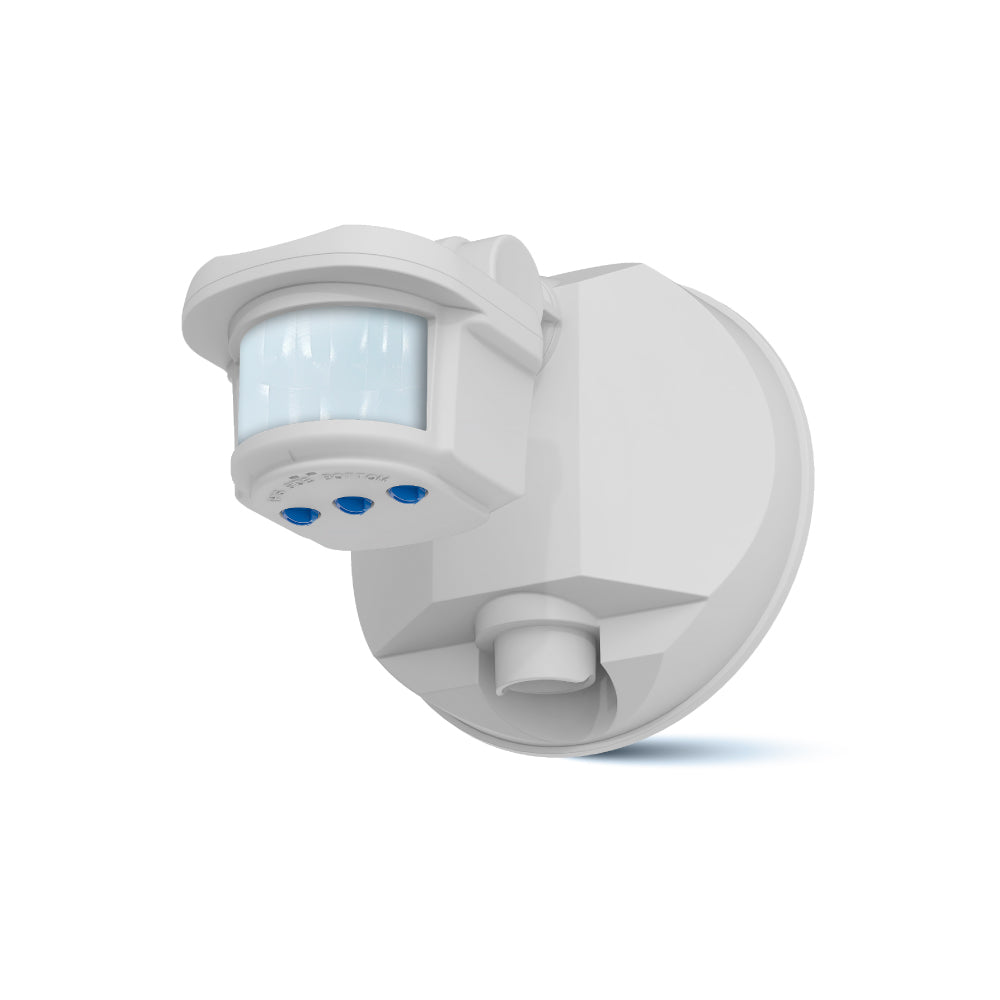

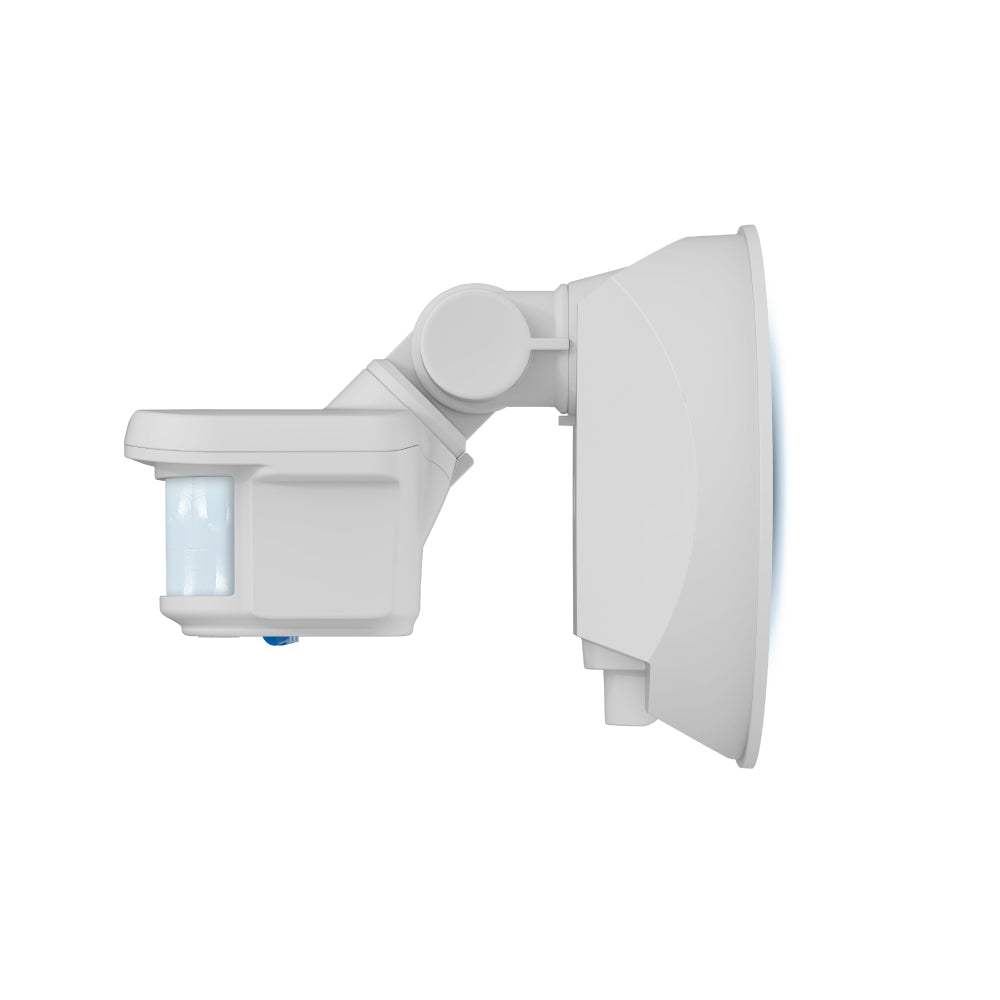

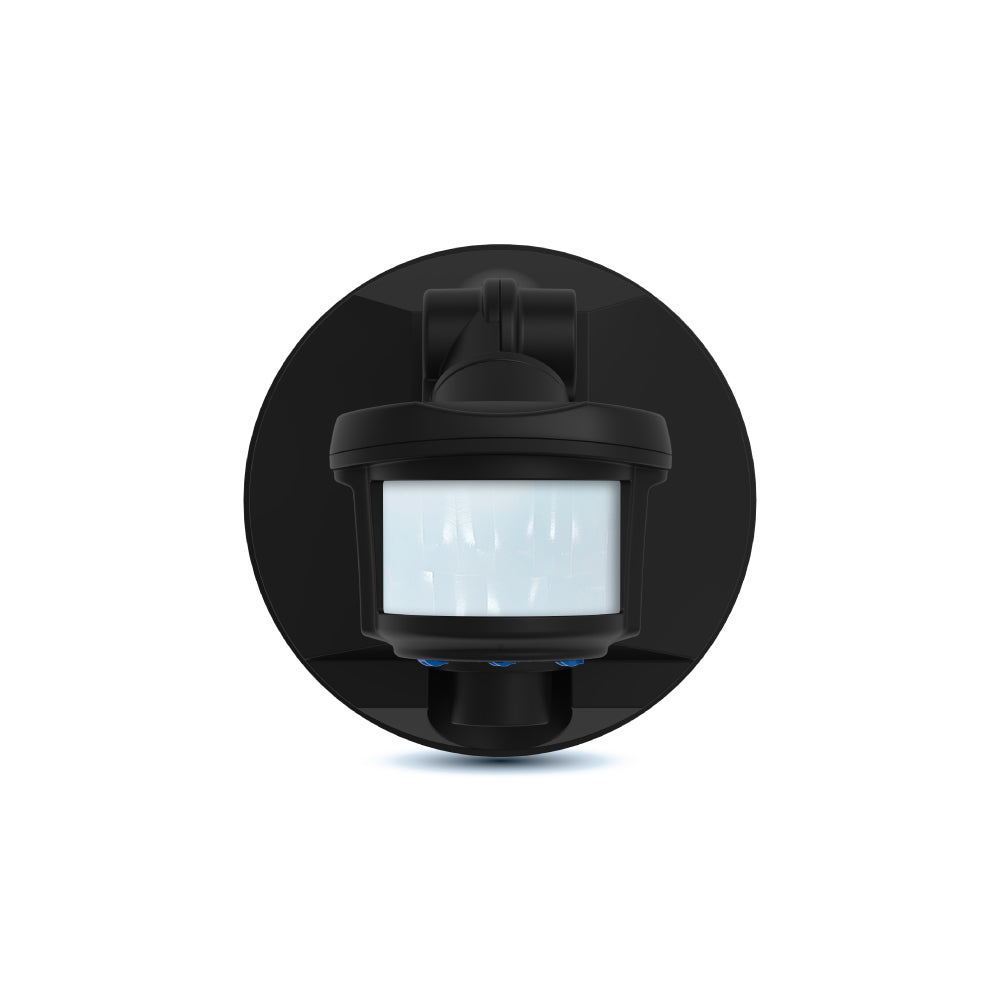

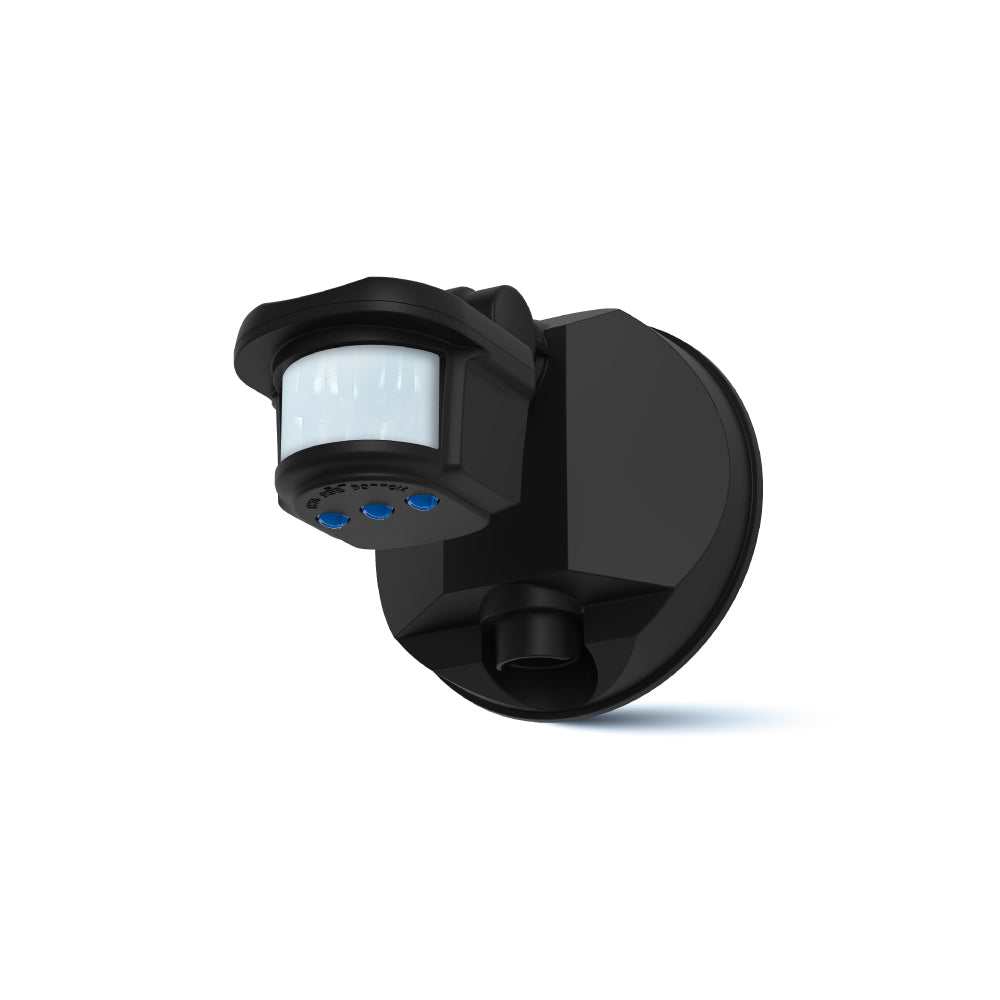

New generation LED motion-activated security light with built-in sensor for enhanced outdoor safety and efficiency.

Color: Black

HIGHLIGHTS

  • PIR Motion Sensor with D2D Mode: Combines passive infrared motion detection with dusk-to-dawn functionality for automatic lighting control.
  • Wide Detection Angle: Offers up to 180° motion detection coverage for broad area monitoring.
  • Versatile Mounting Options: Can be installed on walls or ceilings, including soffit applications.
  • Adjustable Settings: Customize detection distance, operating mode, and timing to fit your environment.
  • Simple Installation: Designed for quick and easy setup with minimal tools required.

Motion Activated Sensor

Specifications
  • Lifetime
    50,000 Hours
  • Grade of Protection
    IP65
  • Time Adjustment
    test/5s/20min
  • Detection Angle
    180º
  • Load Rating
    Max. 500W Incandescent lamp
    Max. 150W LED DRIVER/ LED Bulbs
  • Detection Area
    50 ft.
  • Input Voltage
    120V AC, 60Hz 5A
  • Operating Temperature
    -30ºC ~ +50ºC
  • Warranty
    5 Years

Certifications

PRODUCT SHEETS

Spec Sheet

SSL-SO Spec Sheet

Instruction Manual

SSL-SO Instruction Manual (english)
SSL-SO Instruction Manual (french)

Dimmer List

NA

IES Files

NA
