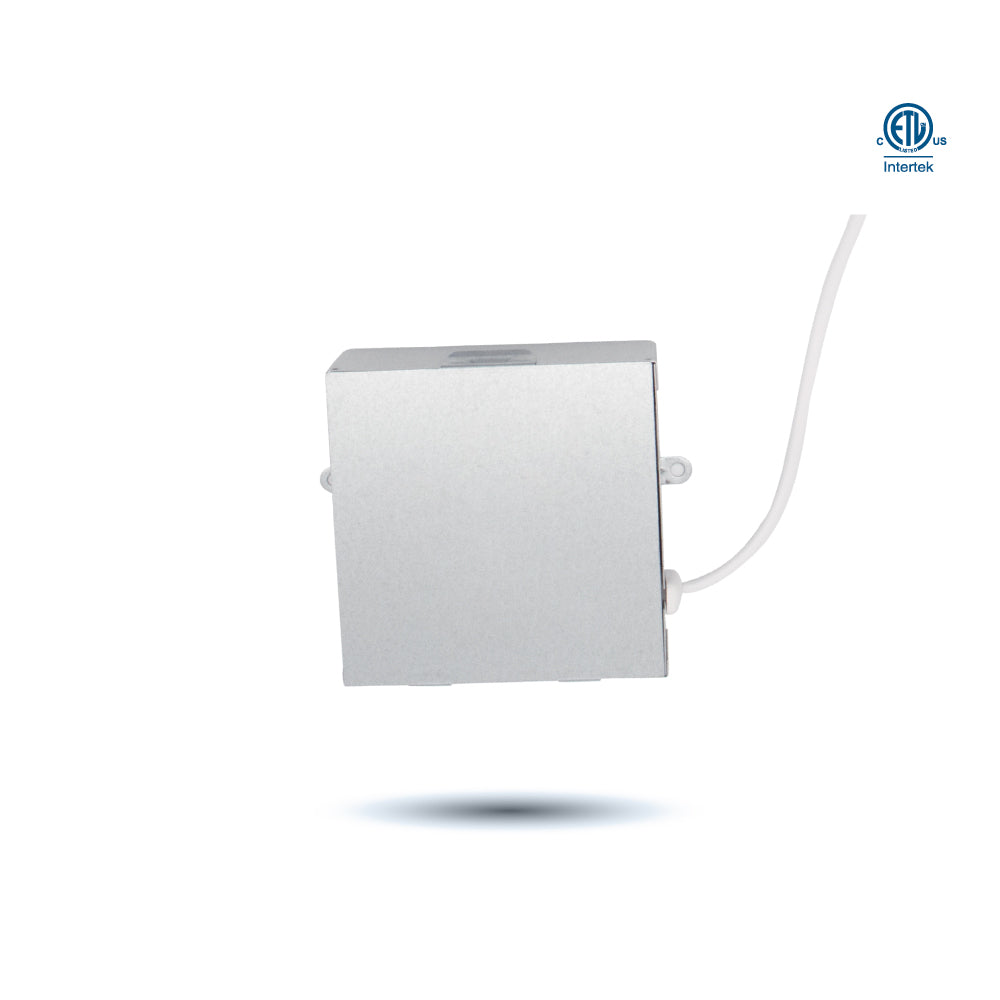

OT-010-DR4

0-10V LED Class 2 Driver for SLIM4DR-5CCT and DISC4DR-5CCT

HIGHLIGHTS

  • Compatible with 0-10V dimmers
  • Inherently protected

0-10V Class 2 LED Driver

Specifications
  • Wattage
    12W
  • Power Factor
    >0.9
  • Dimmable
    Yes
  • Grade of Protection
    IP44
  • Input Voltage
    120-347V AC
  • Output Voltage
    24-30V DC
  • Amps
    270mA
  • Frequency Range
    50/60Hz
  • AC Current (max.)
    120mA
  • Short Circuit
    Hiccup mode, recover automatically after fault condition is removed
  • Over Loading
    ≤120%
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years

CERTIFICATIONS

Compatible with

SLIM4DR-5CCT
SLIM4DR-5CCT
DISC4DR-5CCT
DISC4DR-5CCT

PRODUCT SHEETS

Spec Sheet

OT-010-DR4 Spec Sheet

Instruction Manual

OT-010-DR4 Instruction Manual (english)
OT-010-DR4 Instruction Manual (french)

Dimmer List

NA
