DISC4DGR-5CCT

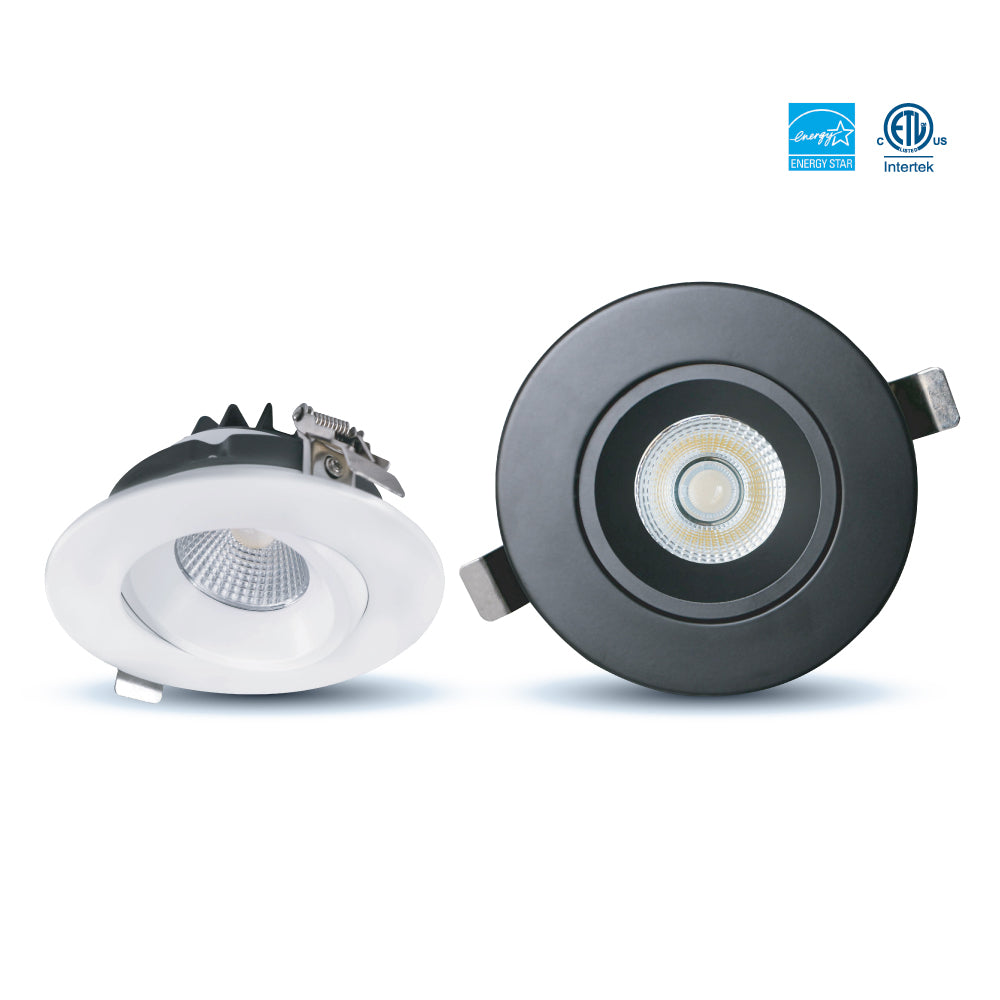

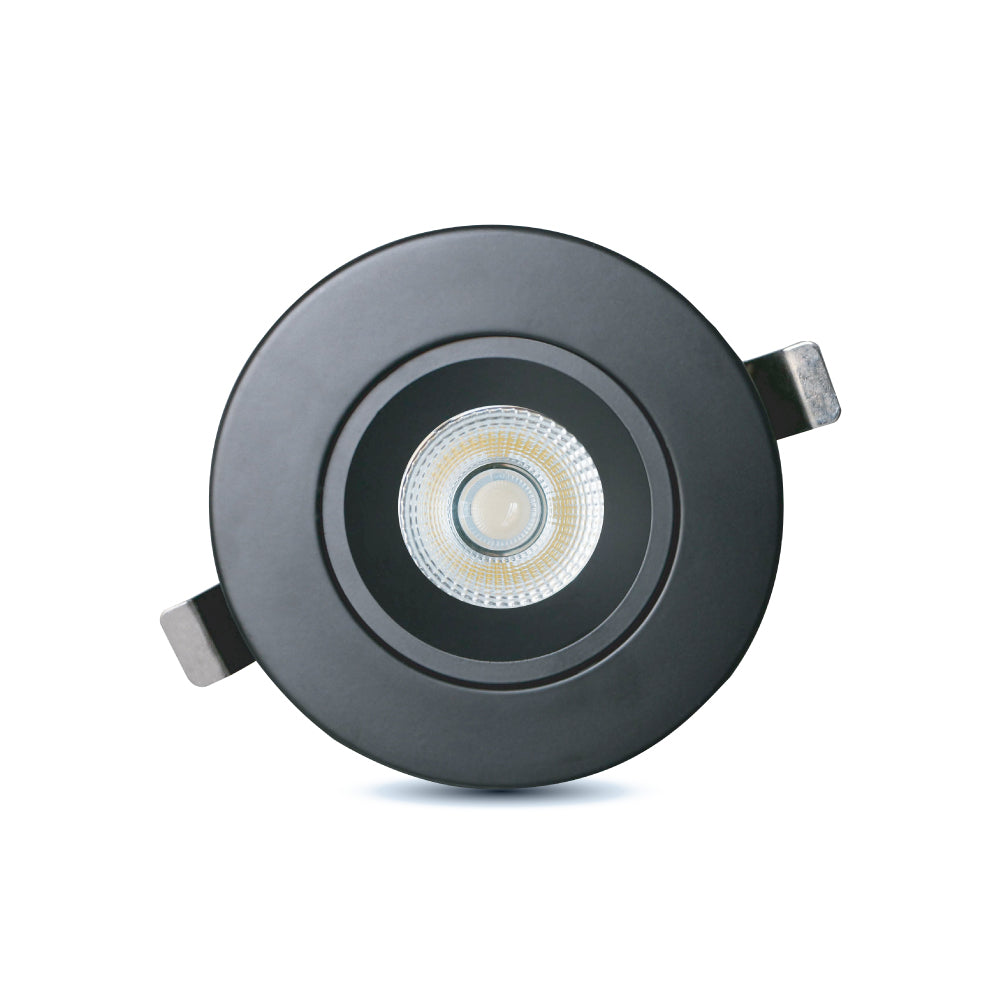

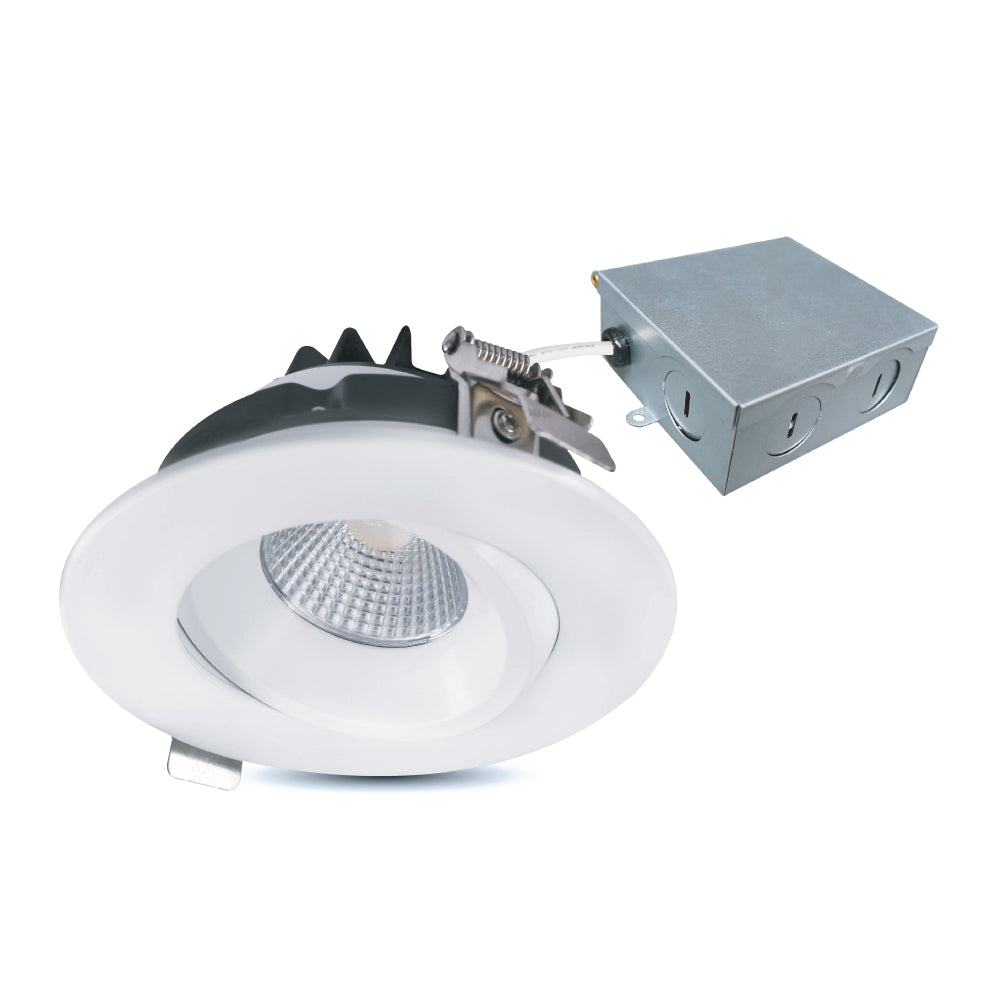

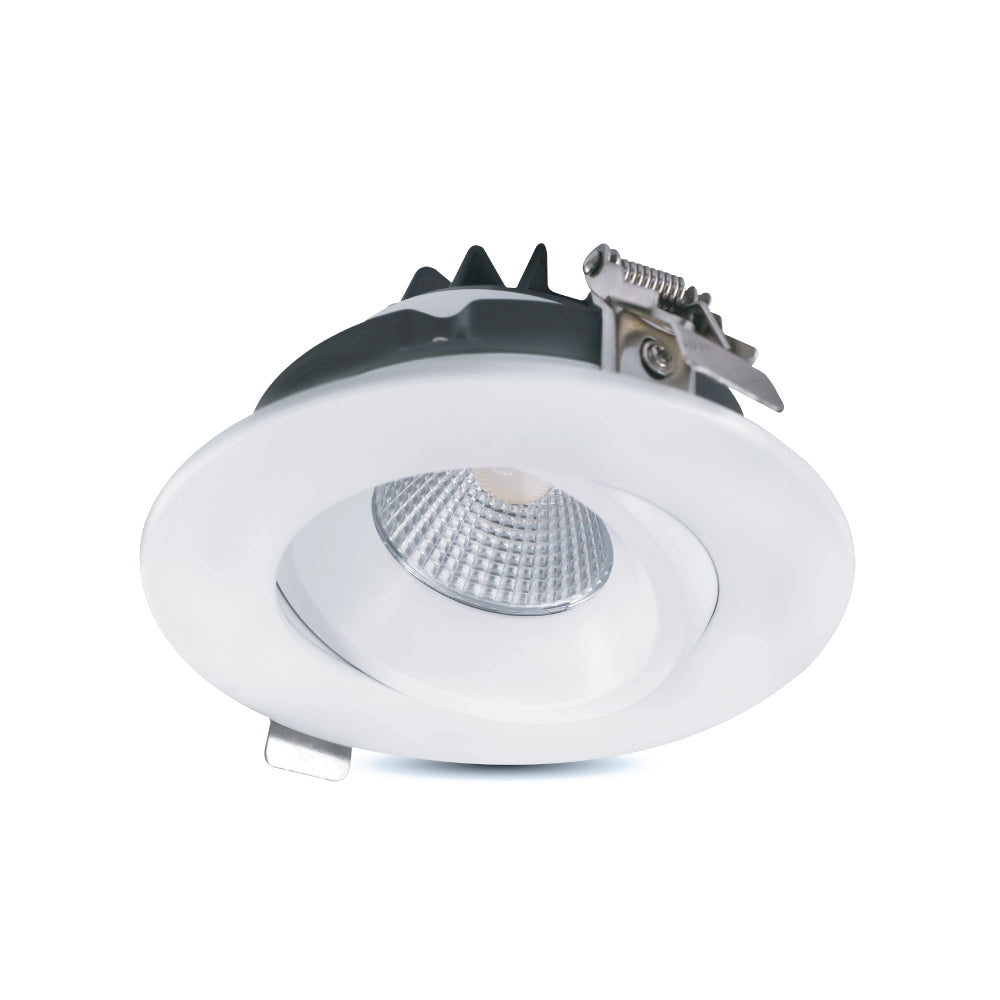

4" round slim regressed LED gimbal light with selectable CCTs and anti-glare design, driver/transformer not included.

Color: White

HIGHLIGHTS

  • Driver/Transformer Not Included – Must be paired with compatible driver, sold separately
  • 0–10V Driver Compatible – Designed for use with OT-010-DGR4 for dimming functionality
  • Flexible Beam Control – 38° beam angle with 30° tilt and full 360° rotation
  • No Housing Required – Type IC rated, air tight, and suitable for wet locations
  • Quick Ceiling Install – Mounts easily with spring clips, no additional housing needed

PRODUCT SHEETS

Spec Sheet

DISC4DGR-5CCT Spec Sheet

Instruction Manual

DISC4DGR-5CCT Instruction Manual (english)
DISC4DGR-5CCT Instruction Manual (french)

Dimmer List

DISC4DGR-5CCT Compatible Dimmer List

IES Files

DISC4DR-5CCT IES Files

5CCT Selectable Without Driver/Transformer

Specifications
  • Wattage
    12W
  • Voltage
    120V AC
  • Lumens
    900 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Wet location (indoor only)
  • Grade of Protection
    IP44
  • Application

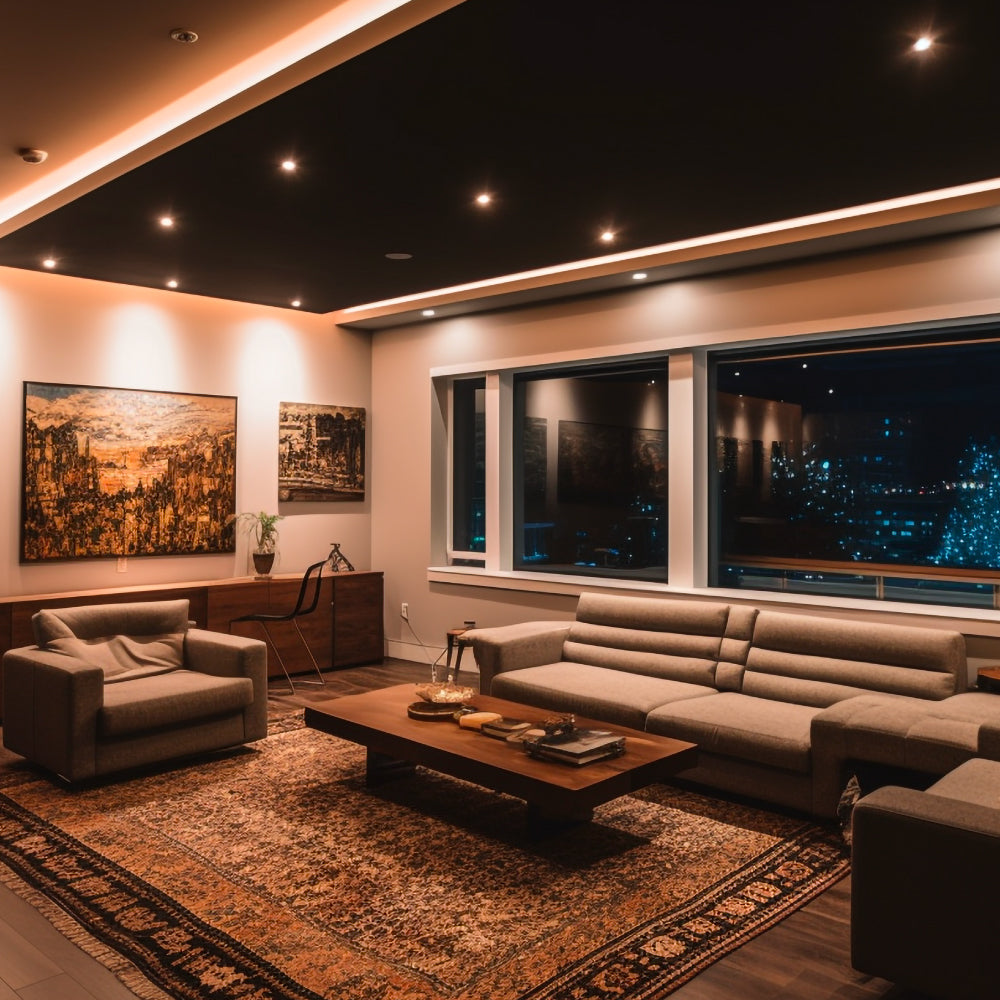

    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø4-1/4" (108mm)
  • Colour Temperature

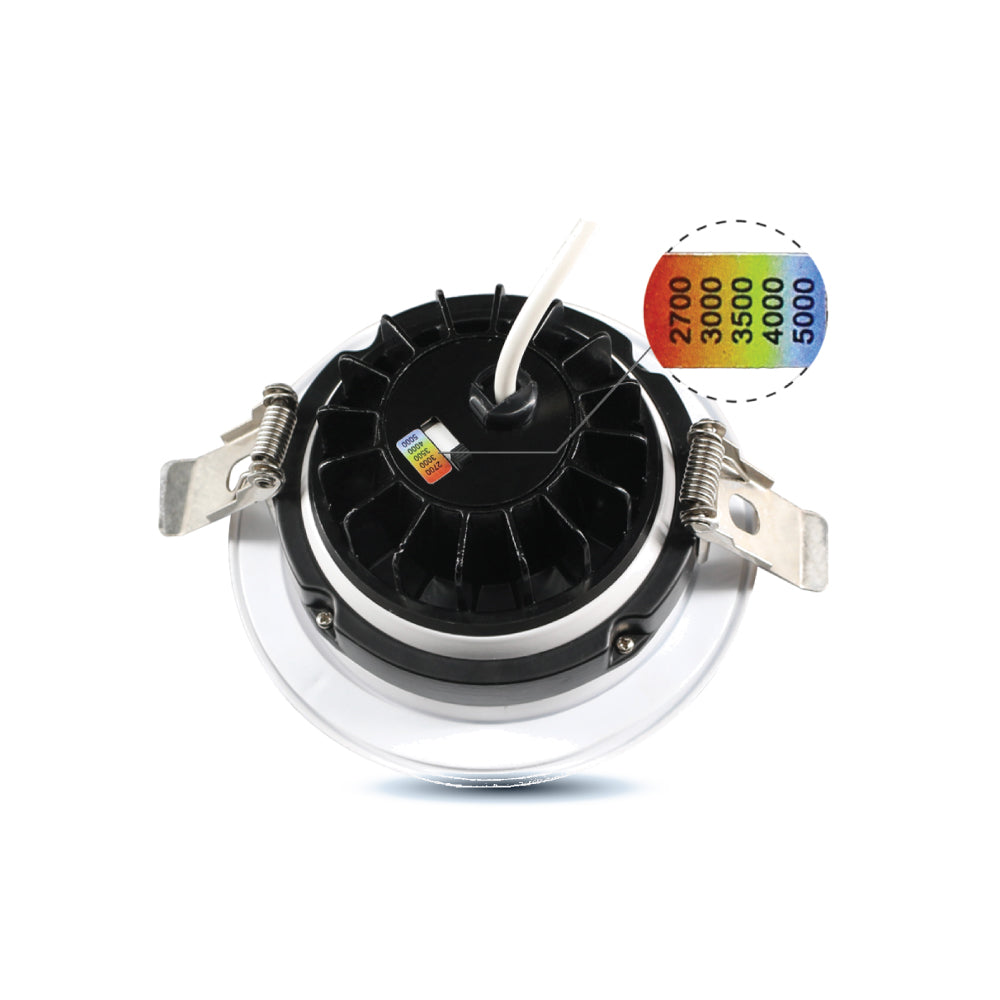

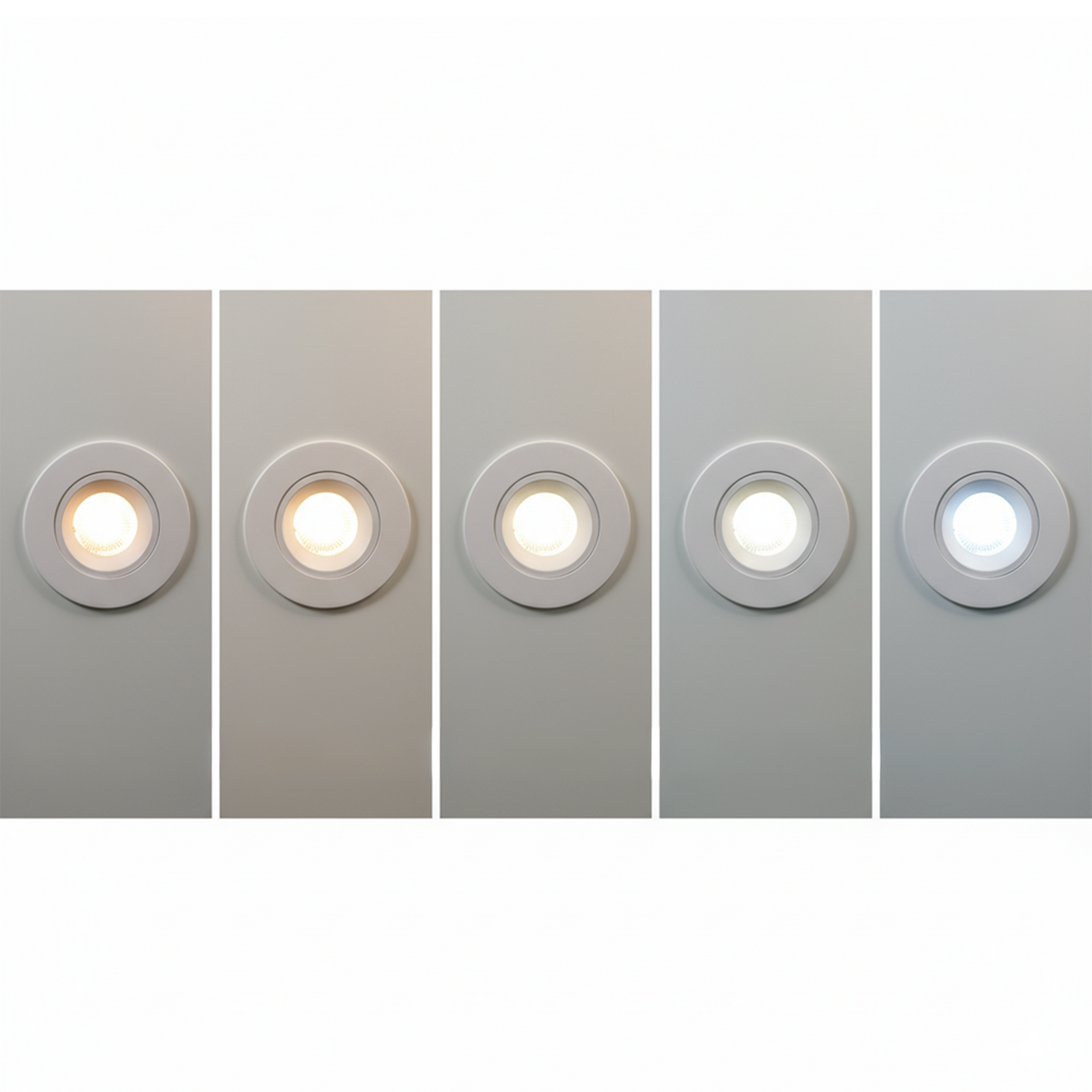

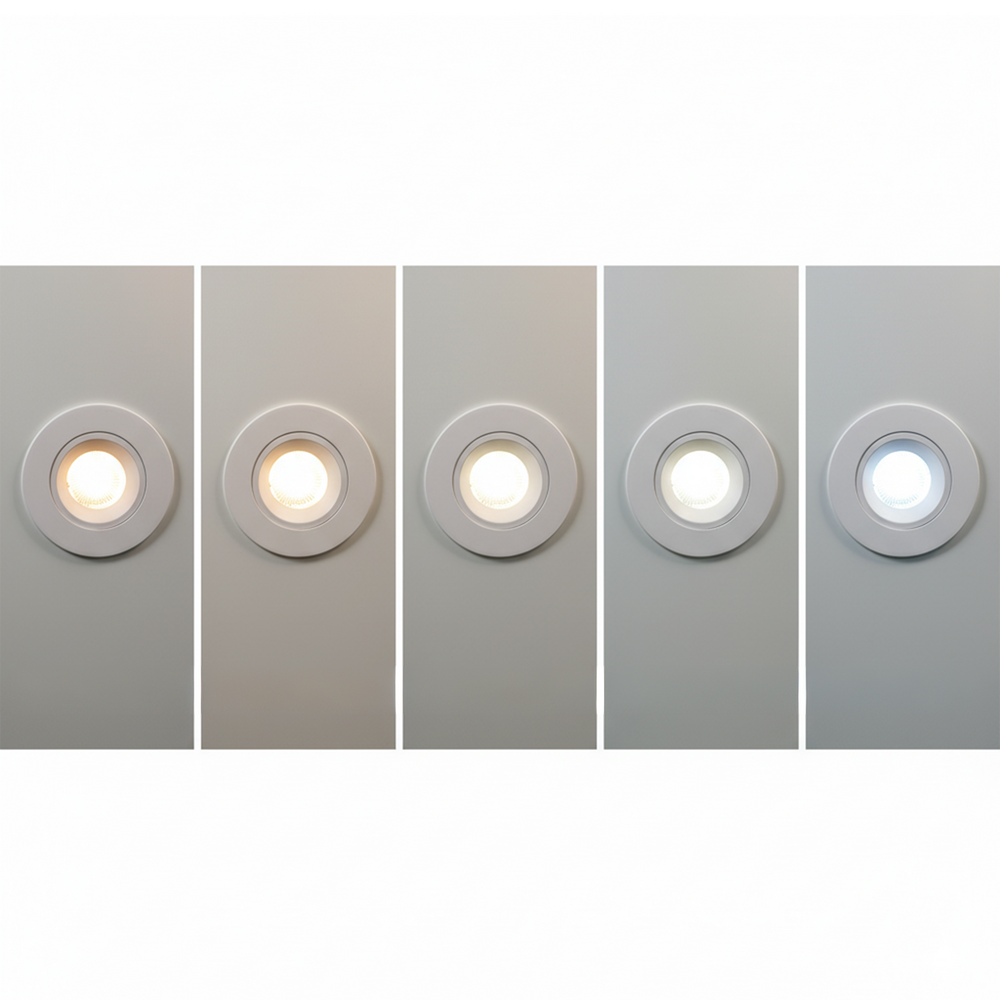

    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

Product features

ACCESSORIES (sold separately)

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4-HB
PLATE4-HB
(Galvanized steel mounting plate with hanger bars)
CORD-12/24/60/120/240
CORD-12/24/60/120/240
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
OT-010-DGR4
OT-010-DGR4
(0-10V Class 2 LED Drive)
