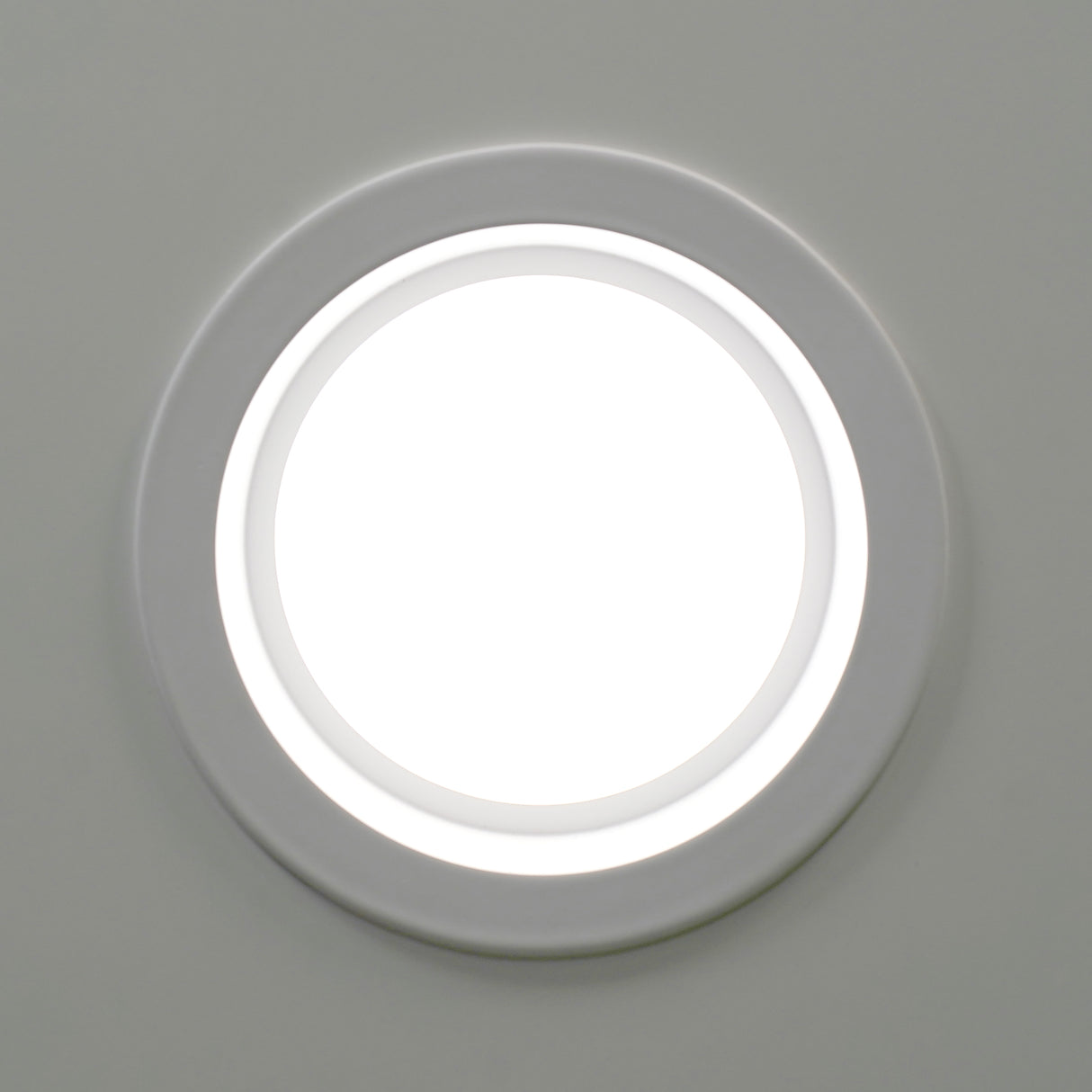

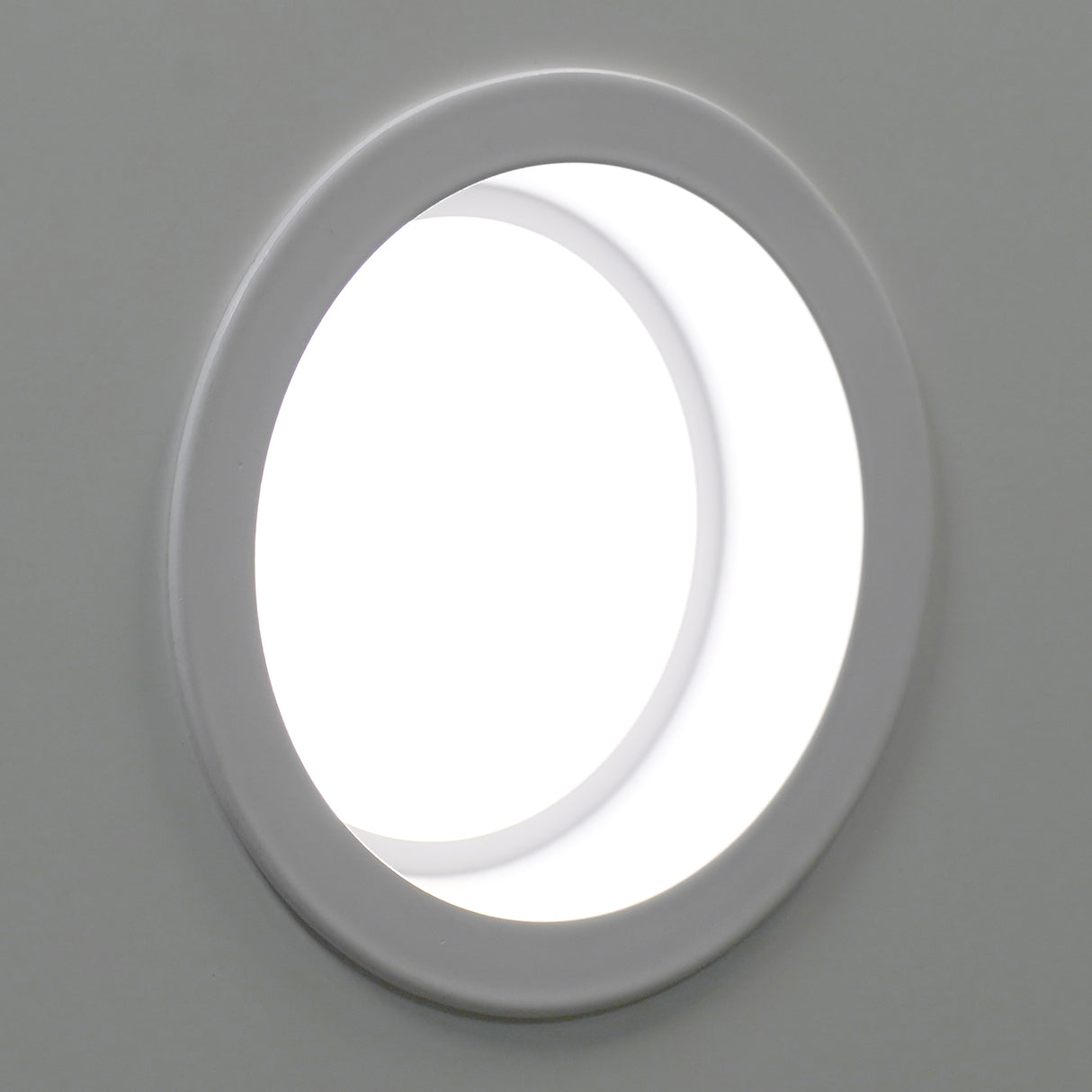

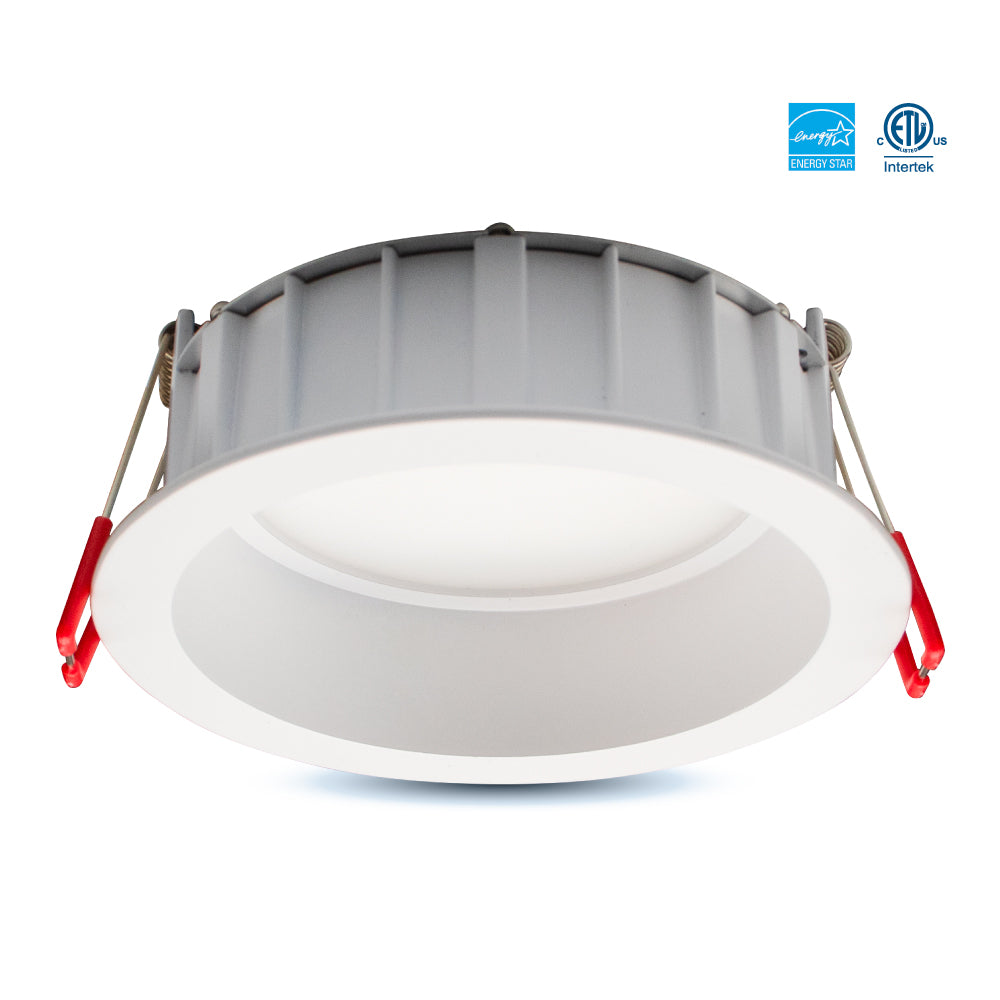

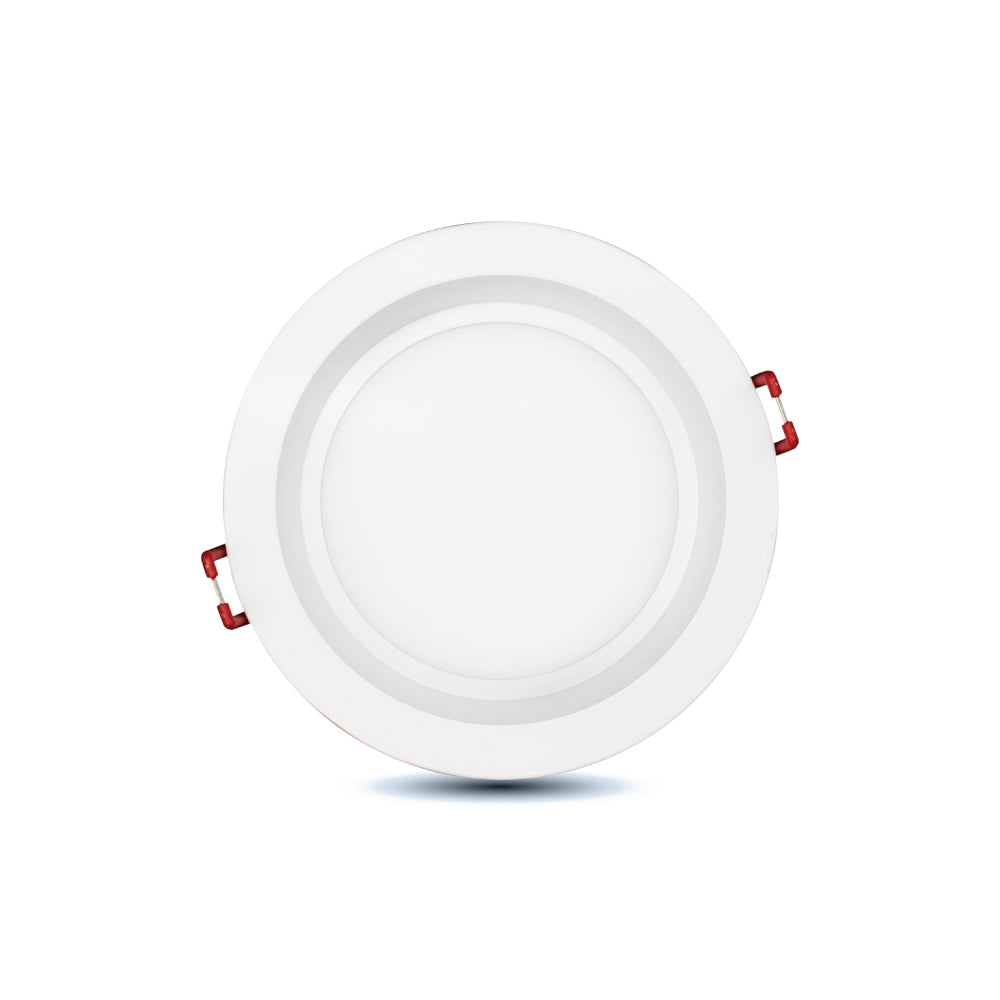

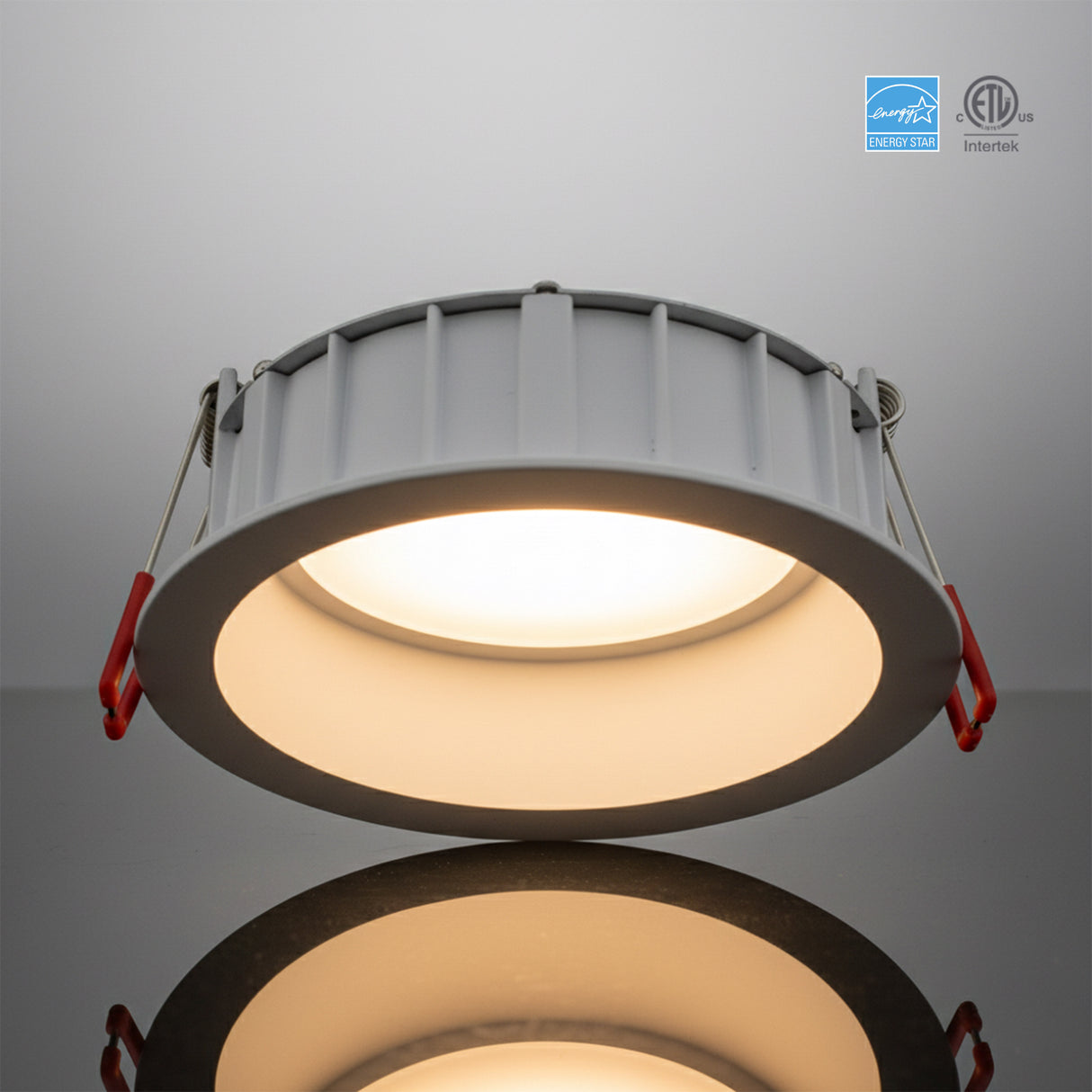

DISC4DR-5CCT

4" deep regressed slim panel light with selectable CCTs, driver/transformer not included.

HIGHLIGHTS

  • Driver/Transformer Not Included – Requires separate purchase; not included in packaging
  • 0–10V Driver Compatible – Designed for use with OT-010-DR4 for dimming control
  • Edge-Lit Performance – Provides uniform, glare-free light with instant-on response
  • Smooth Dimming – TRIAC dimmable down to 10% for adjustable brightness
  • I.C. Rated – Safe for direct contact with insulation
  • Damp Location Approved – Suitable for indoor areas with moisture exposure
  • Long Lifespan – Rated to last over 50,000 hours
  • User-Friendly Design – Easy-access CCT switch and frosted lens for soft diffusion

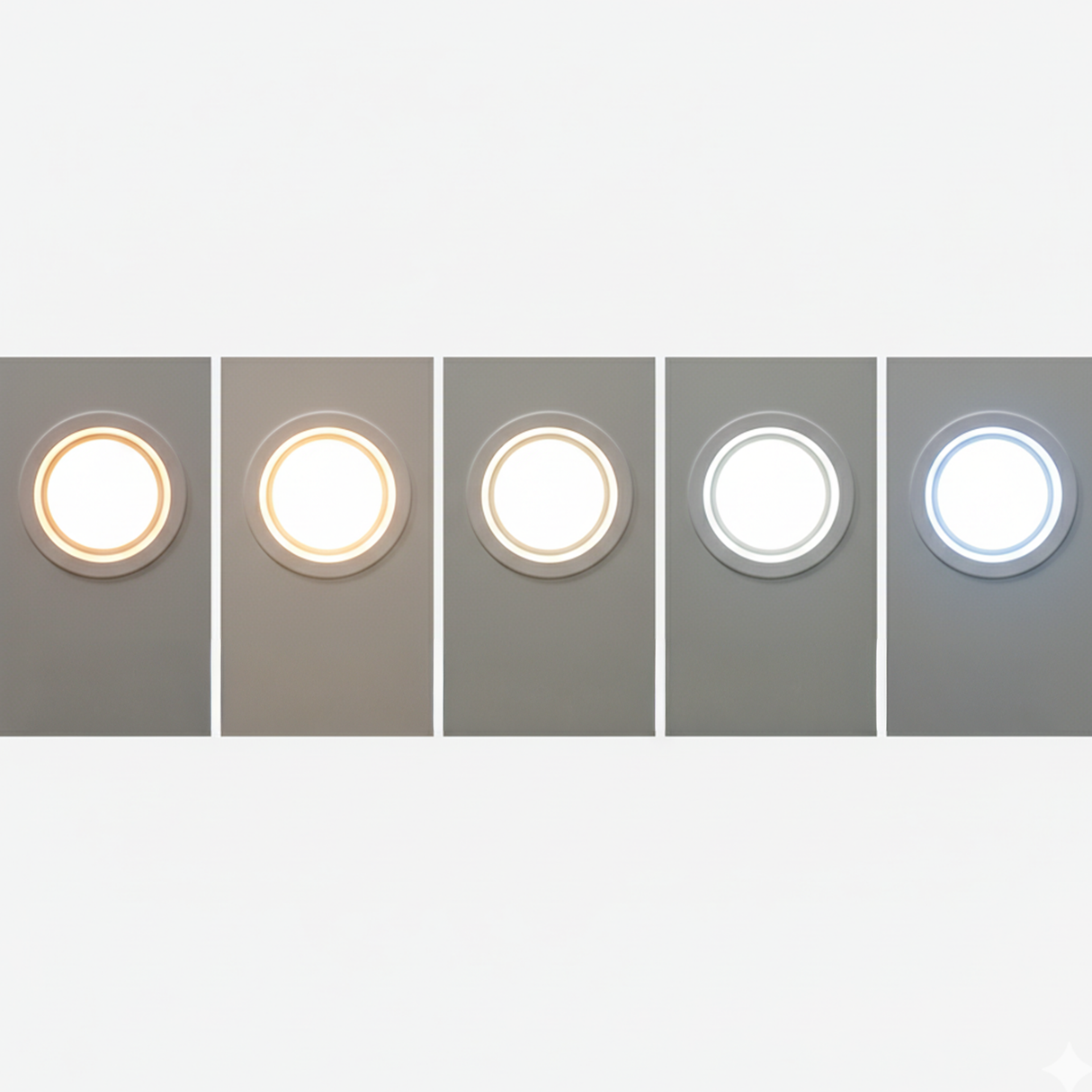

  • Selectable CCT – Choose from 2700K, 3000K, 3500K, 4000K, or 5000K

5CCT Selectable Without Driver/Transformer

Specifications
  • Wattage
    12W
  • Voltage
    120V AC
  • Lumens
    750 lmn
  • Beam Angle
    100°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Damp Location
  • Grade of Protection
    IP44
  • Application

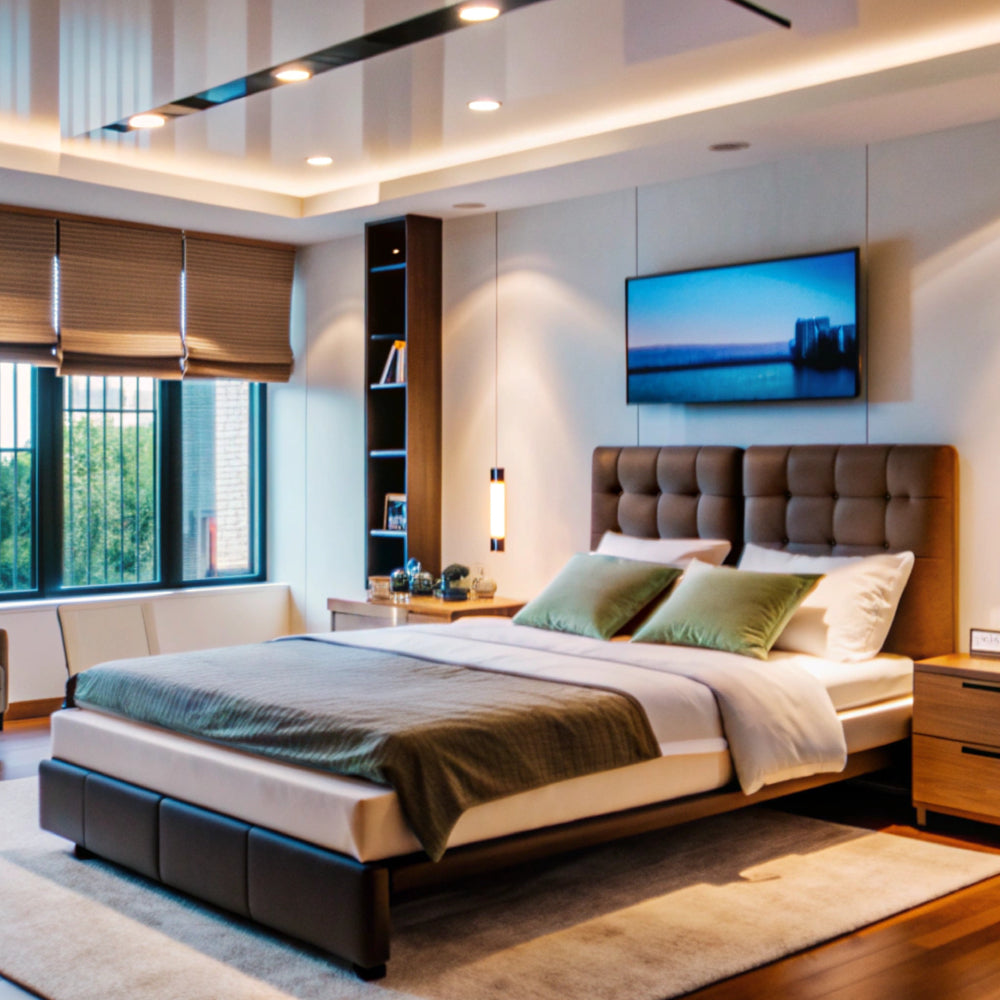

    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø4-1/8" (105mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

CERTIFICATIONS

Product features

DECORATIVE TRIMS (sold separately)

Black
SLIM4DR-TRIM-BK
(Black)
Haze
SLIM4DR-TRIM-HZ
(Haze)
White Black
SLIM4DR-TR-WHBA
(White Black)
White Chrome
SLIM4DR-TR-WHCL
(White Chrome)

ACCESSORIES (sold separately)

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4-HB
PLATE4-HB
(Galvanized steel mounting plate with hanger bars)
CORD-A24/A120
CORD-A24/A120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
OT-010-DR4
OT-010-DR4
(0-10V Class 2 LED Drive)

PRODUCT SHEETS

Spec Sheet

DISC4DR-5CCT Spec Sheet

Instruction Manual

DISC4DR-5CCT Instruction Manual (english)
DISC4DR-5CCT Instruction Manual (French)

Dimmer List

DISC4DR-5CCT Compatible Dimmer List

IES Files

DISC4DR-5CCT IES Files
