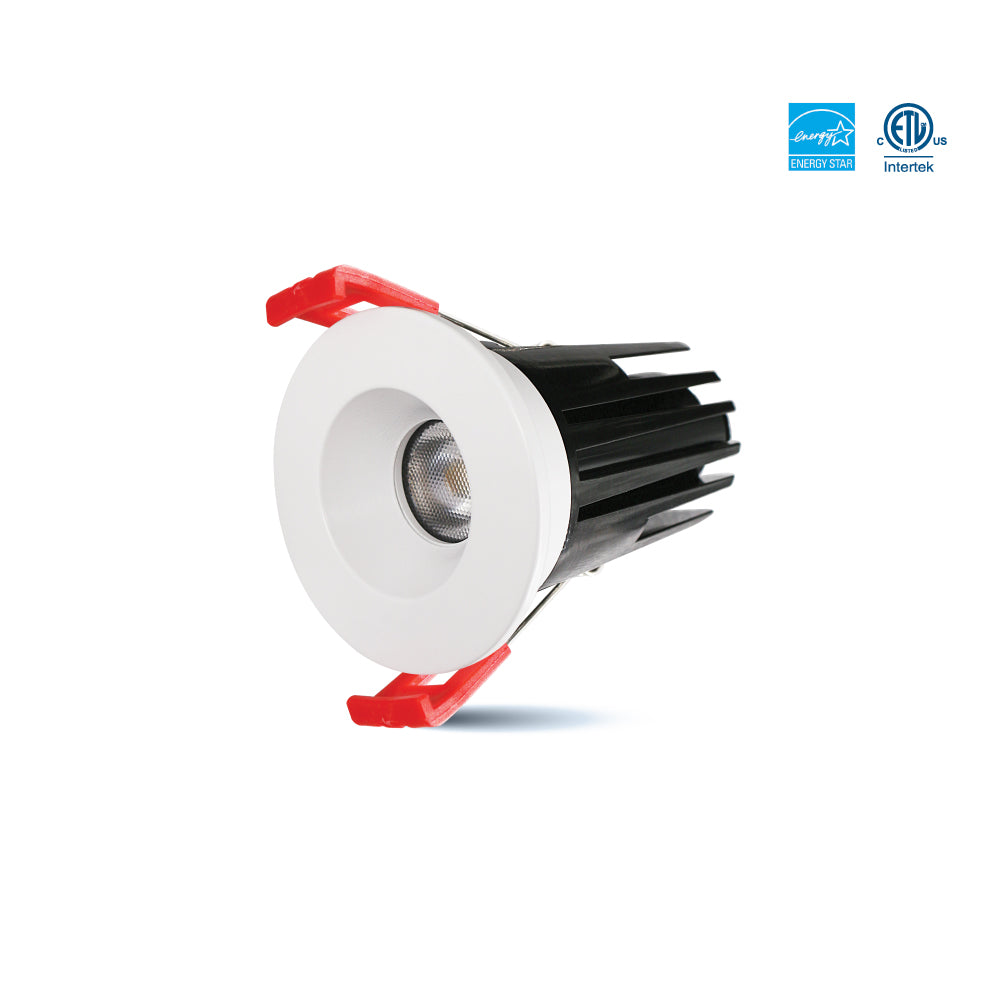

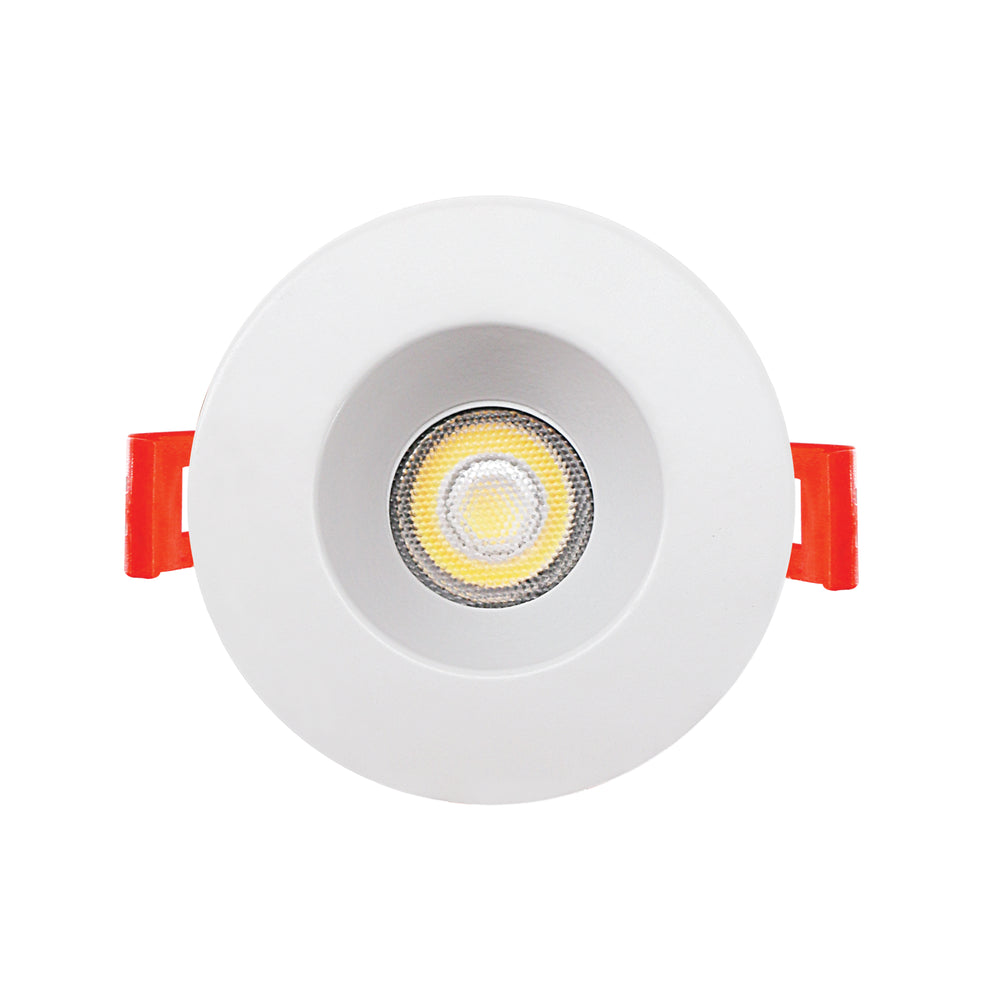

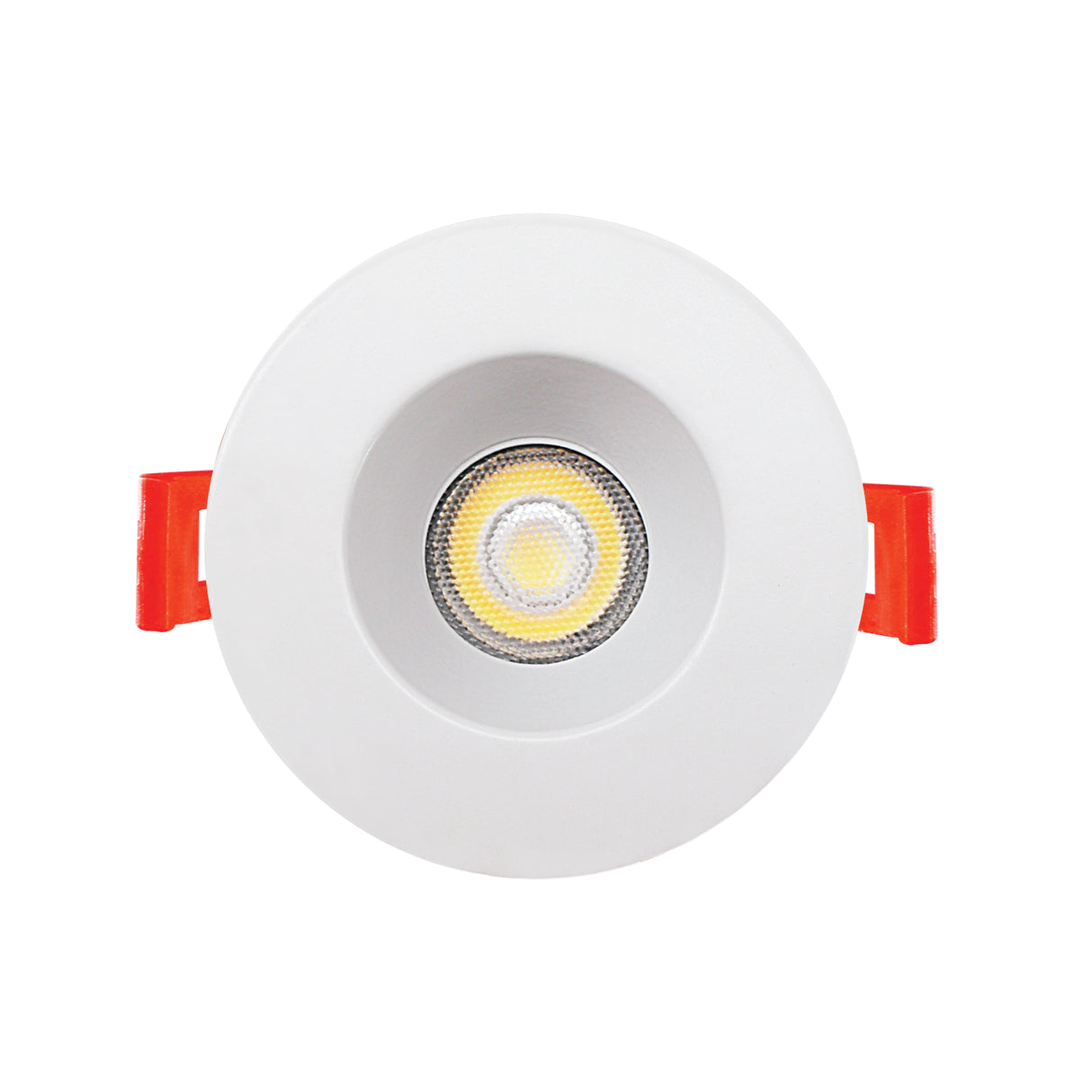

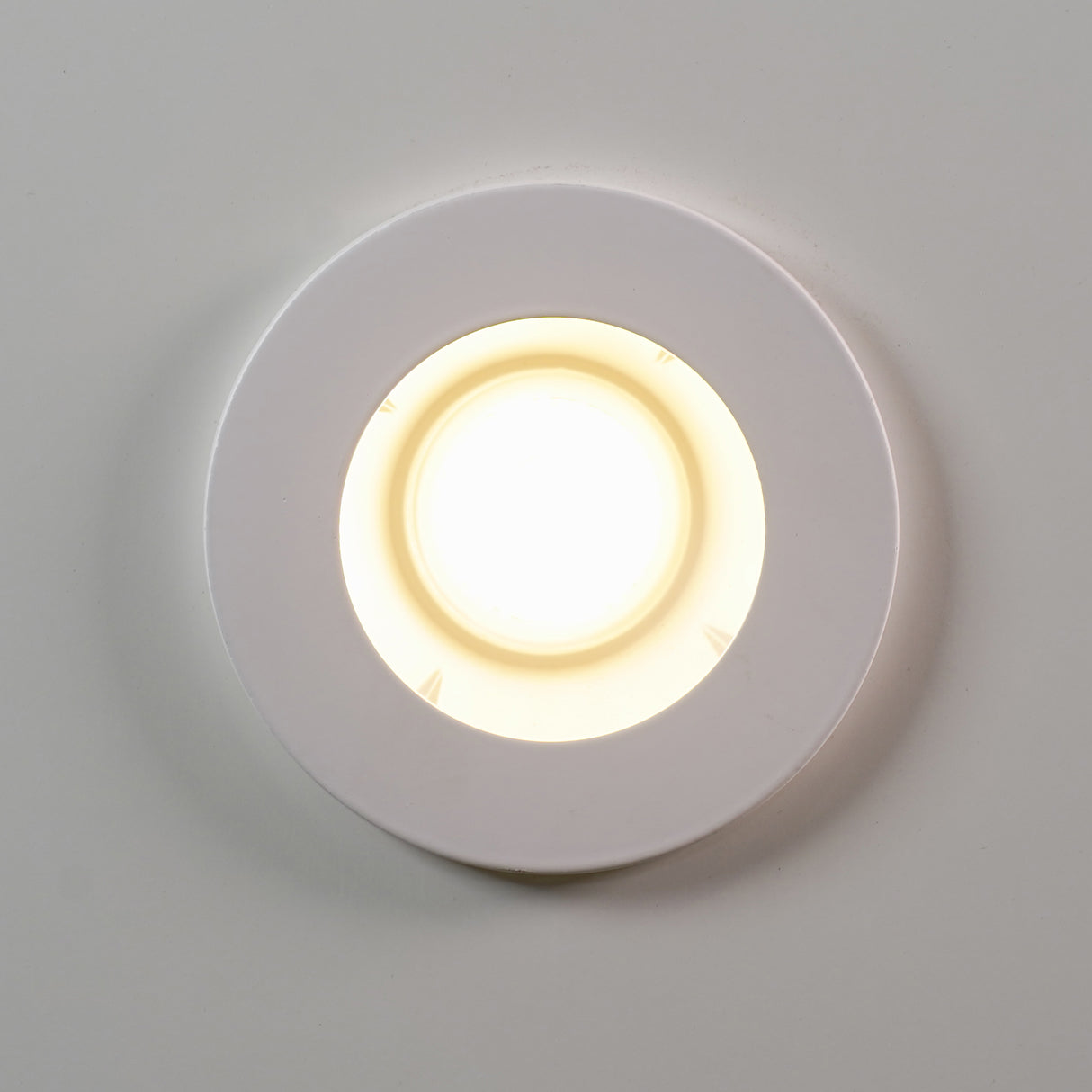

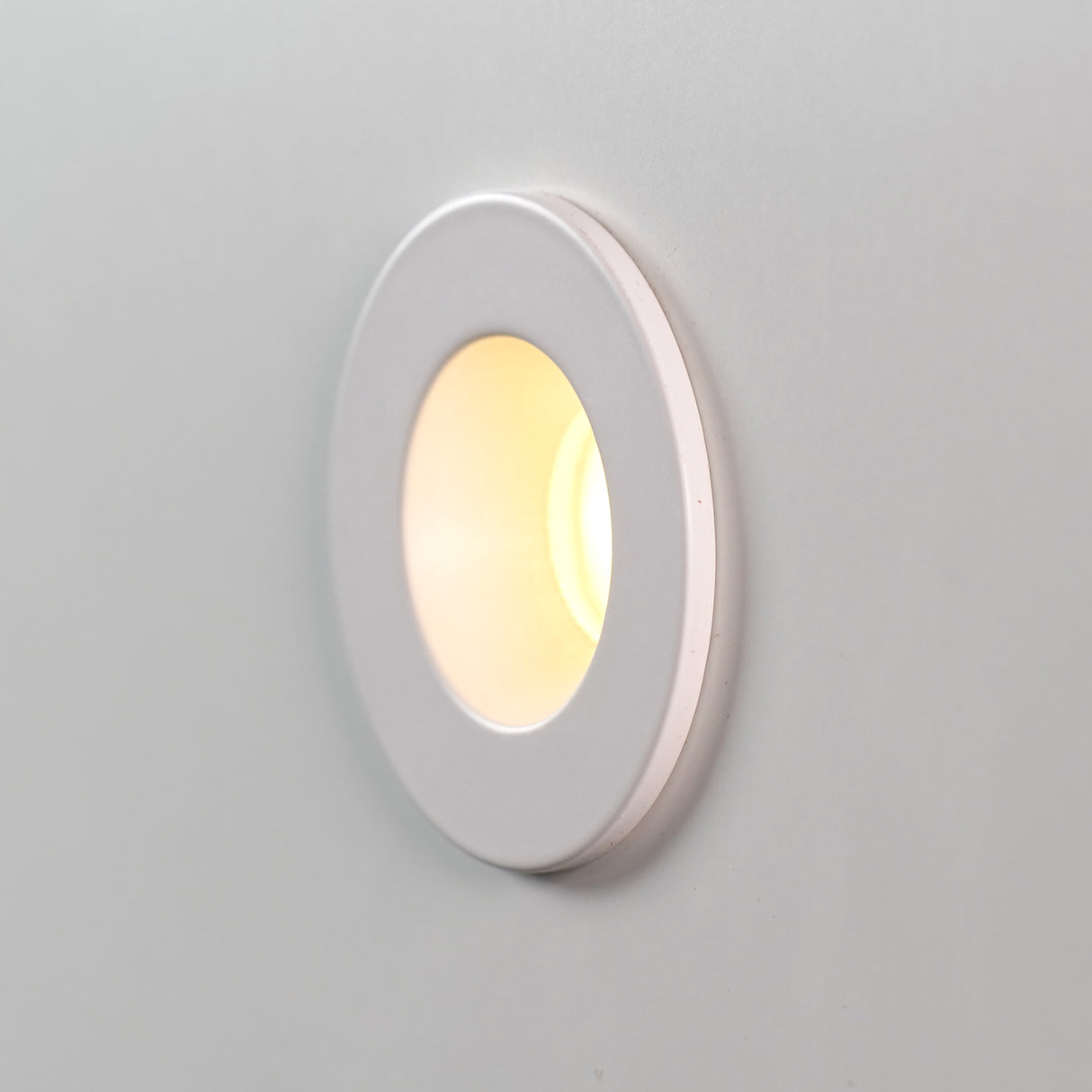

SLIM-RG1-5CCT

1" regressed LED module with changeable trim and adjustable CCT for flexible lighting design.

HIGHLIGHTS

  • Interchangeable Trims – Easily swap trims to match any design aesthetic
  • Type IC & Air-Tight – No housing required; safe for insulated ceilings

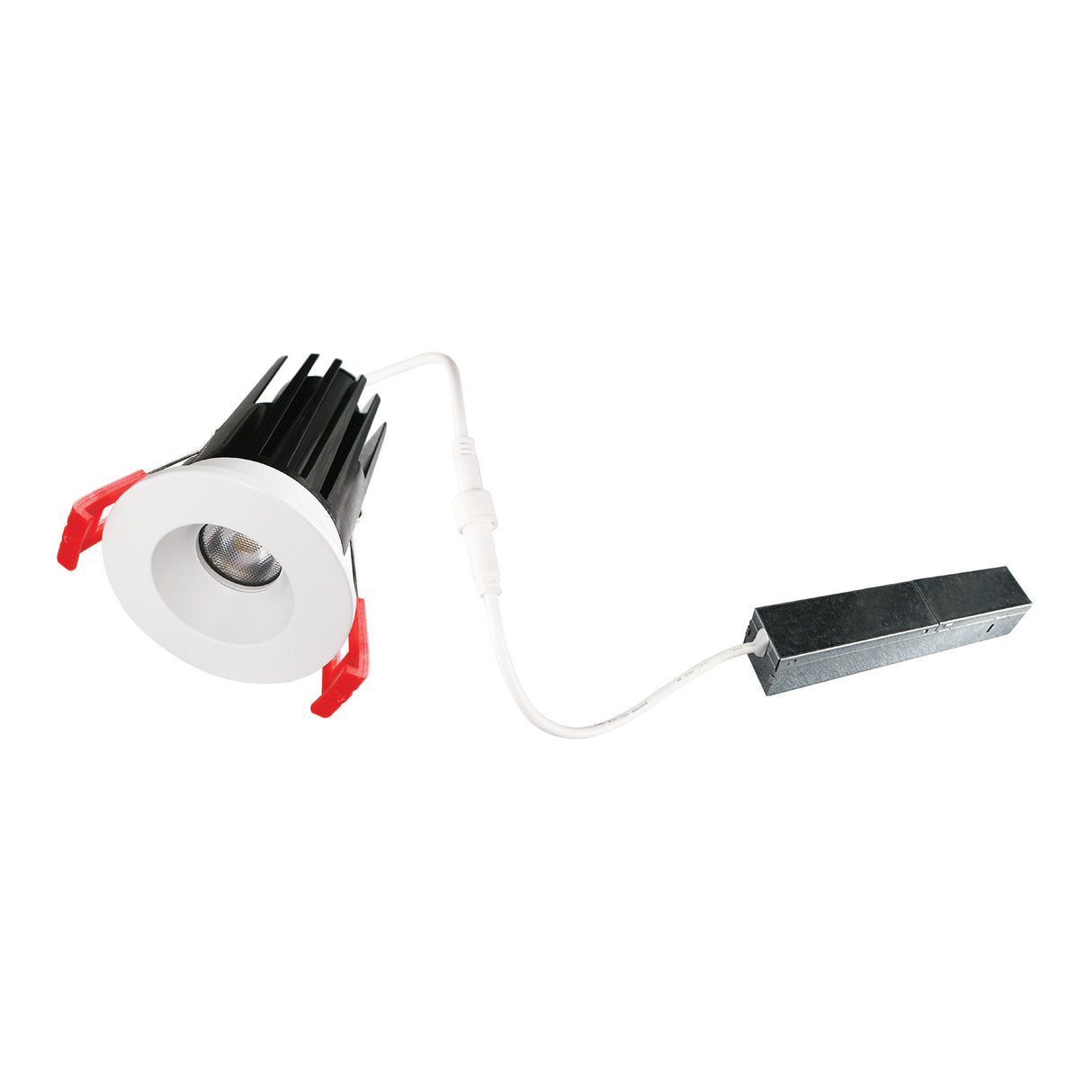

  • Quick Install – No junction box needed for fast, hassle-free setup

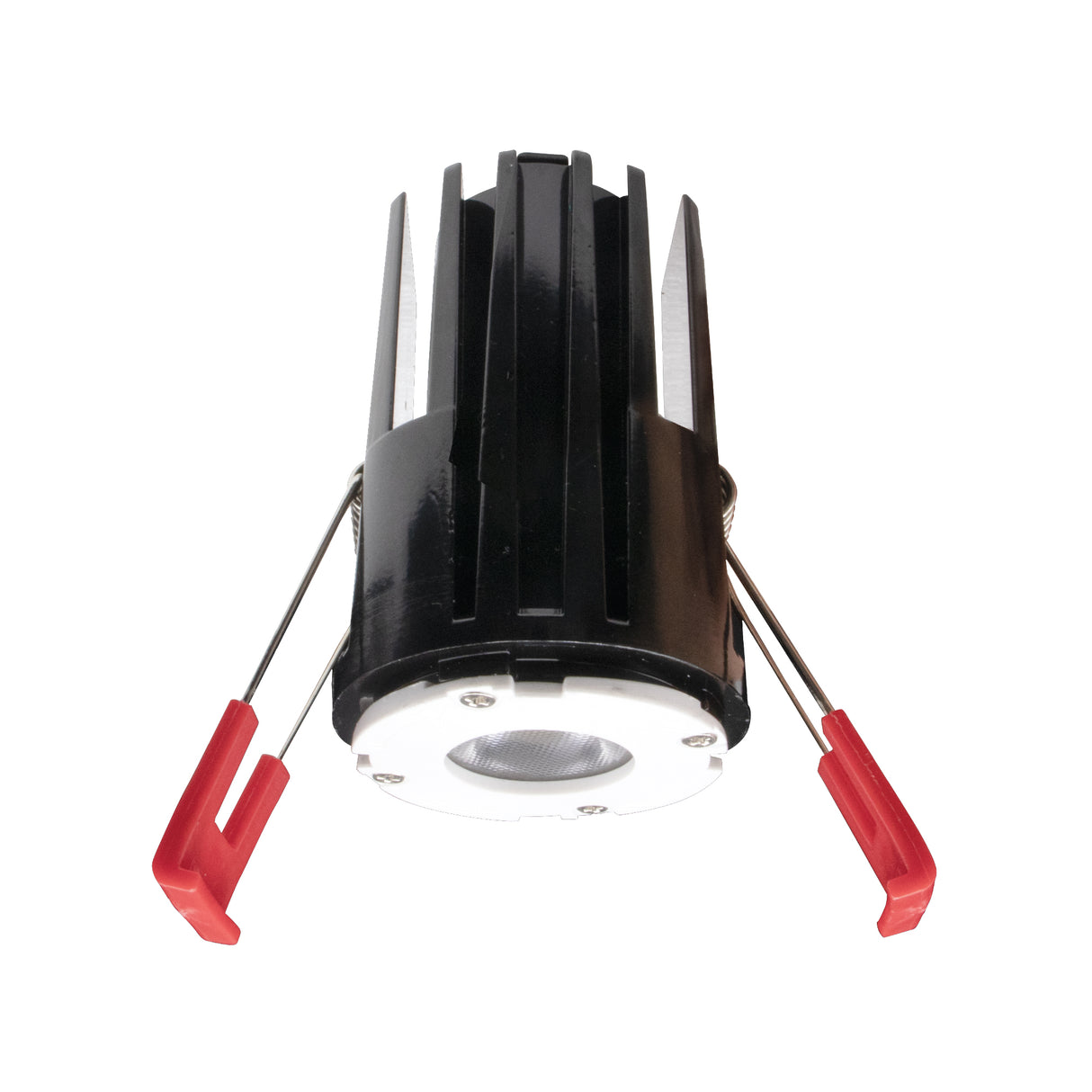

  • Universal Mounting – Spring-loaded clips attach securely to any ceiling material
  • Wide Dimming Range – 100%–10% dimming with Triac, ELV, and phase-cut dimmers
  • Extended Lifespan – Rated to last over 50,000 hours
  • Included Trim – Comes with a free white trim in standard packaging

PRODUCT SHEETS

Spec Sheet

SLIM-RG1-5CCT Spec Sheet

Instruction Manual

SLIM-RG1-5CCT Instruction Manual

Dimmer List

SLIM-RG1-5CCT Compatible Dimmer List

IES Files

SLIM-RG1-5CCT IES Files

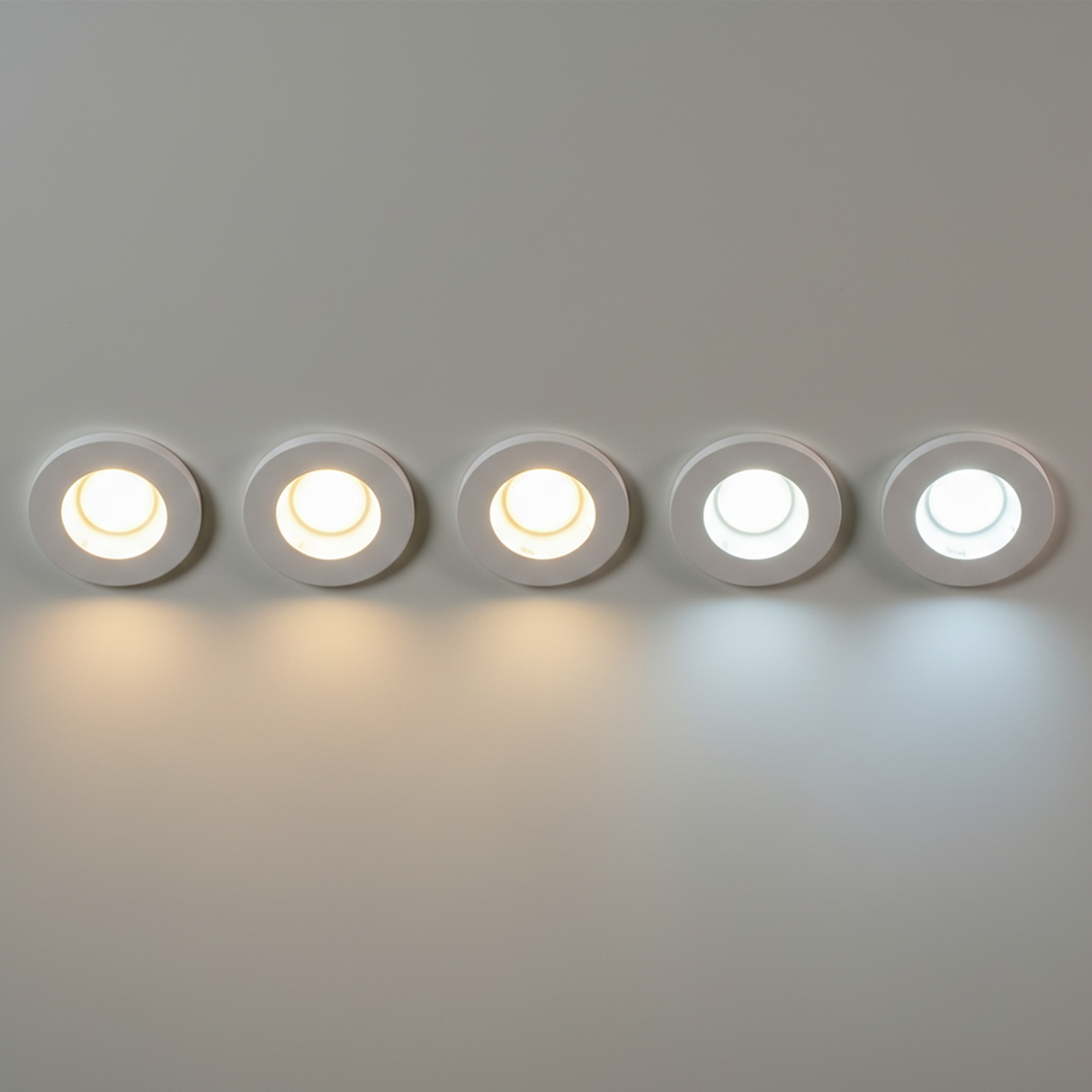

5CCT Selectable

Specifications
  • Wattage
    7W
  • Voltage
    120V AC
  • Lumens
    500 lmm
  • Beam Angle
    38°
  • CRI
    90Ra+
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for damp location
  • Grade of Protection
    IP54
  • Application

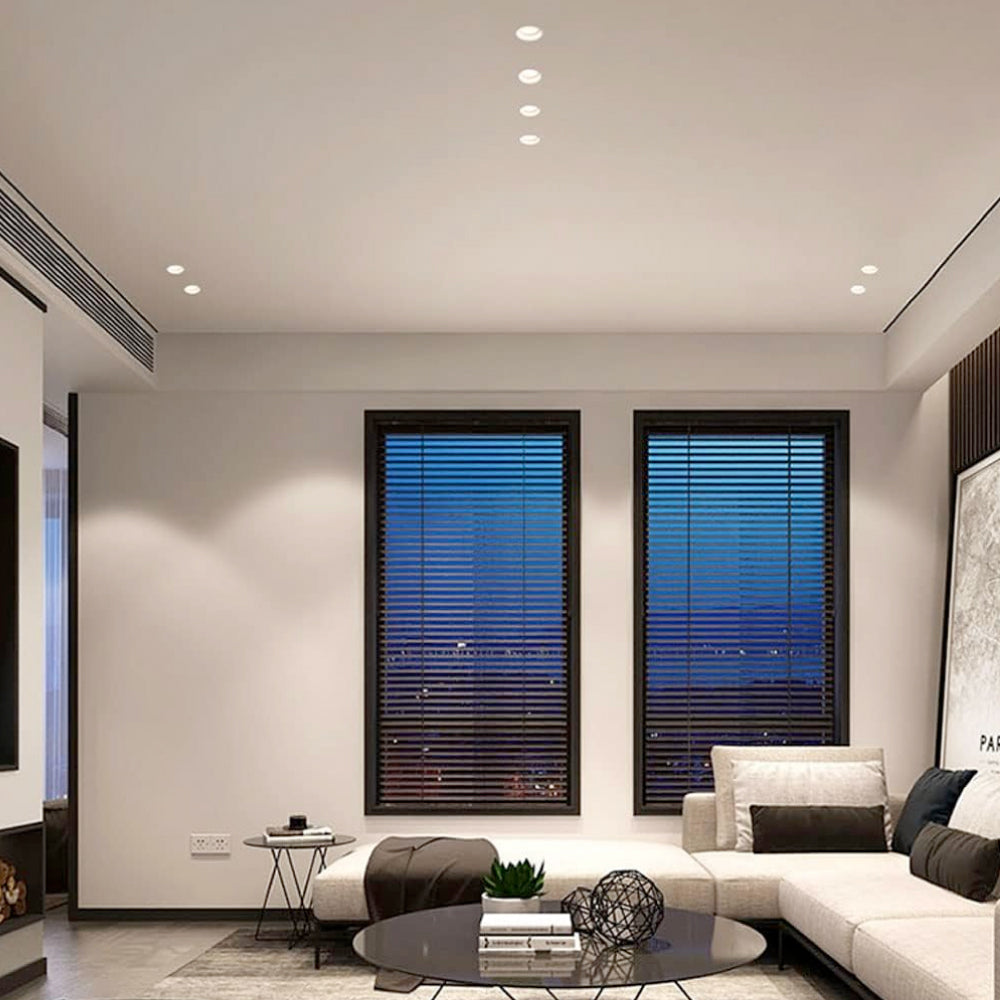

    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø2-1/8" (54mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Size
    1 inch
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 years

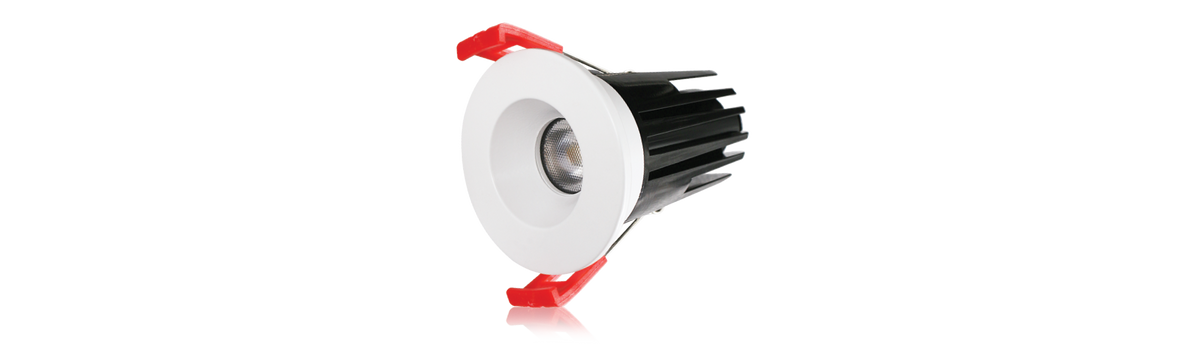

Product features

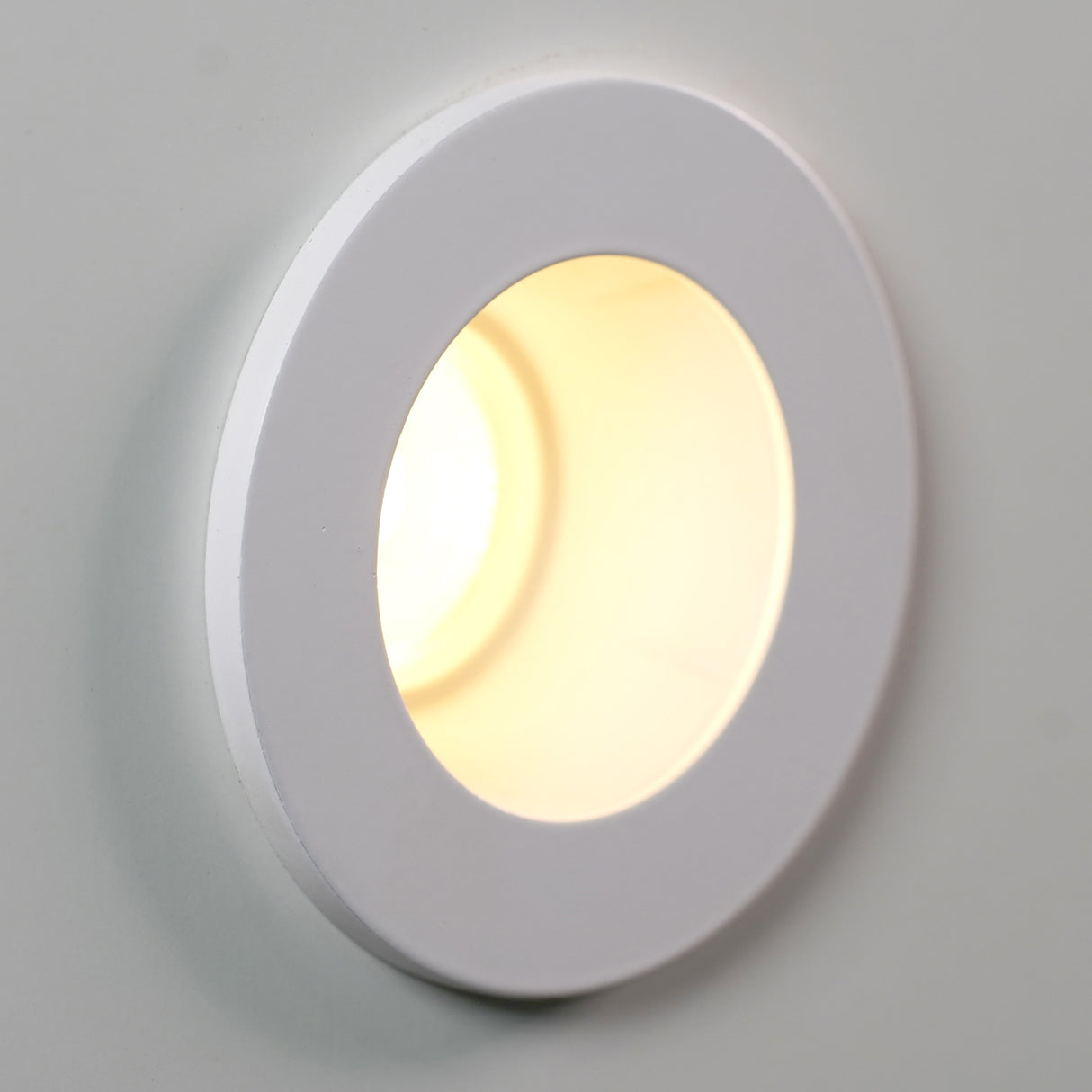

INTERCHANGEABLE TRIMS (sold separately)

SLIM-RG1-RINGSN
SLIM-RG1-RINGSN
(Satin Nickel)
SLIM-RG1-RINGBK
SLIM-RG1-RINGBK
(Black)

Accessories (sold separately)

PLATE13-1 | PLATE13-1-L | PLATE26-1 | PLATE26-1-L
PLATE13-1 | PLATE13-1-L | PLATE26-1 | PLATE26-1-L
(Construction plate made up of galvanized steel for recessed lighting)
CORD-12/24/60/120/240
CORD-12/24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)/div>
