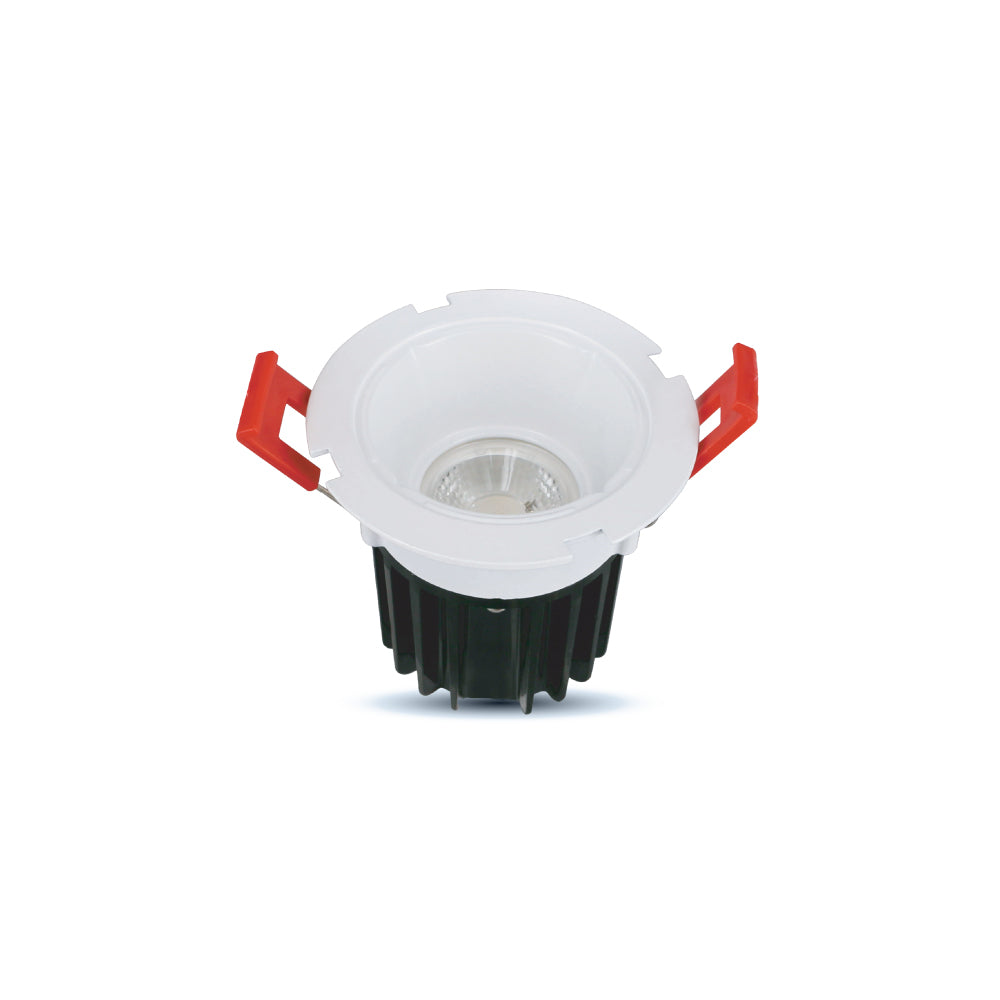

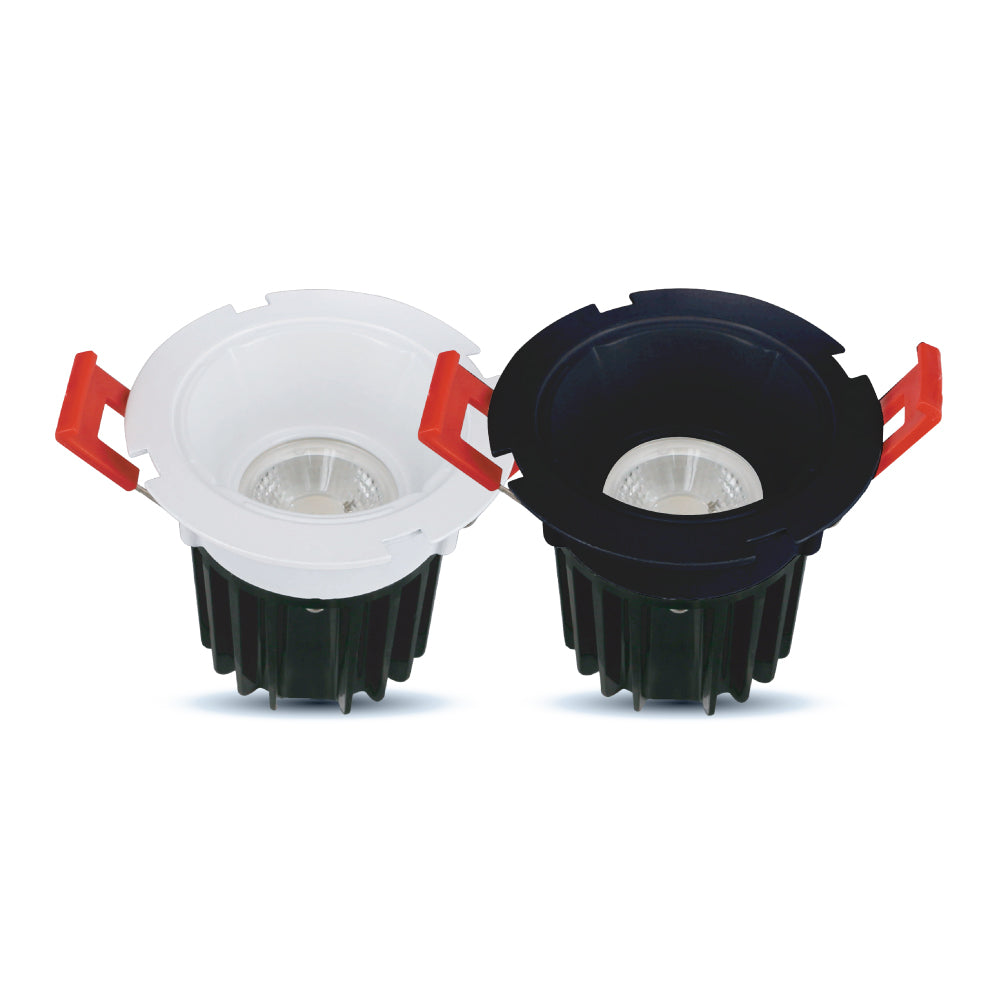

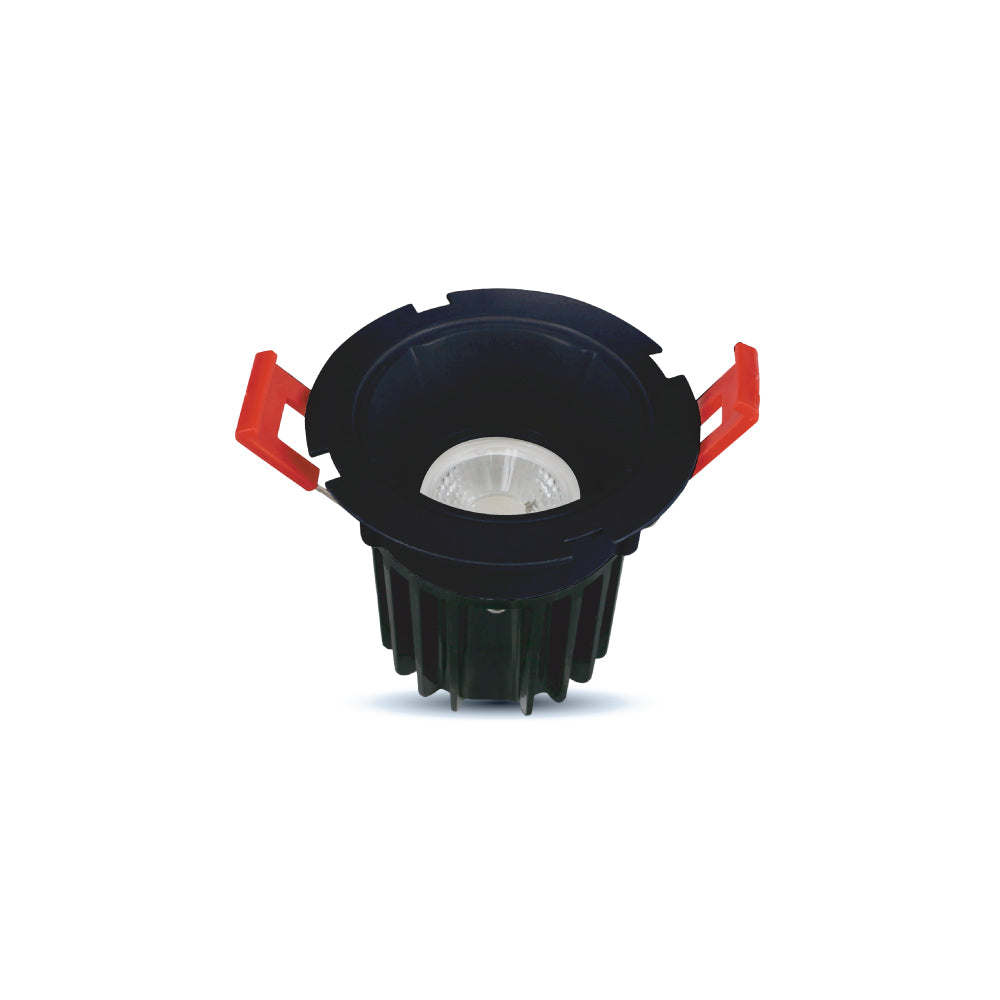

SLIM-RG2-5CCT

2" regressed downlight module with changeable trim and selectable CCTs for customizable lighting.

HIGHLIGHTS

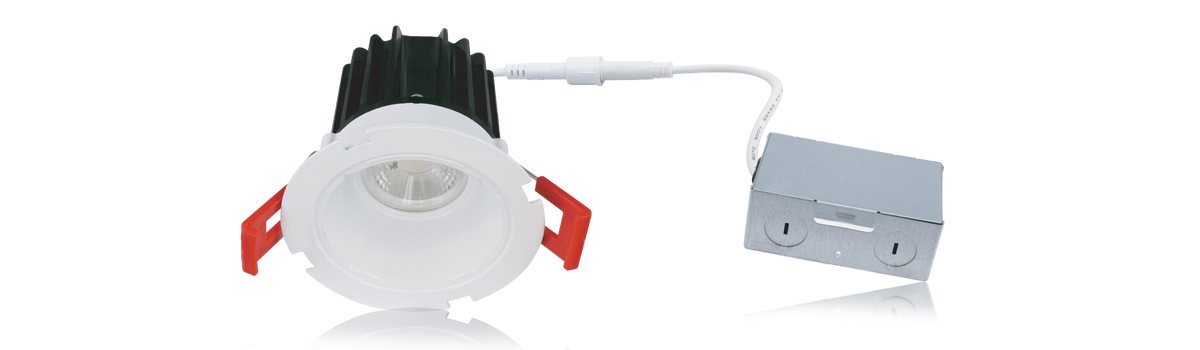

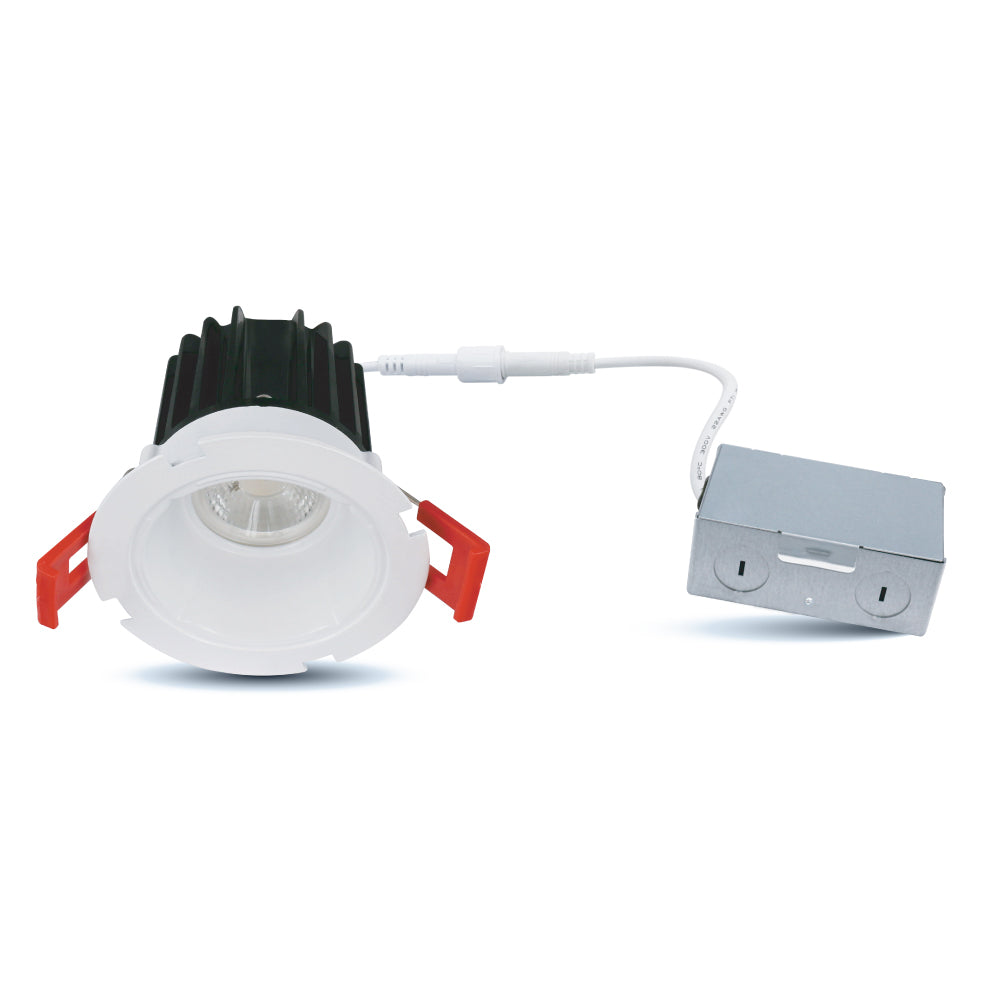

  • Class 2 Transformer Included – Comes pre-installed in junction box for safe operation
  • No Housing Required – Type IC rated, air tight, and suitable for damp locations
  • Quick Installation – Installs directly into ceiling using spring clips
  • Durable Construction – Aluminum die-cast body with 38° beam spread option

*NOT suitable for direct contact with water unless installed with shower trim

5CCT Selectable

Specifications
  • Wattage
    8W
  • Voltage
    120V AC
  • Lumens
    600 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Wet Location (NOT suitable for direct contact with water unless installed with shower trim)
  • Grade of Protection
    IP44
  • Application

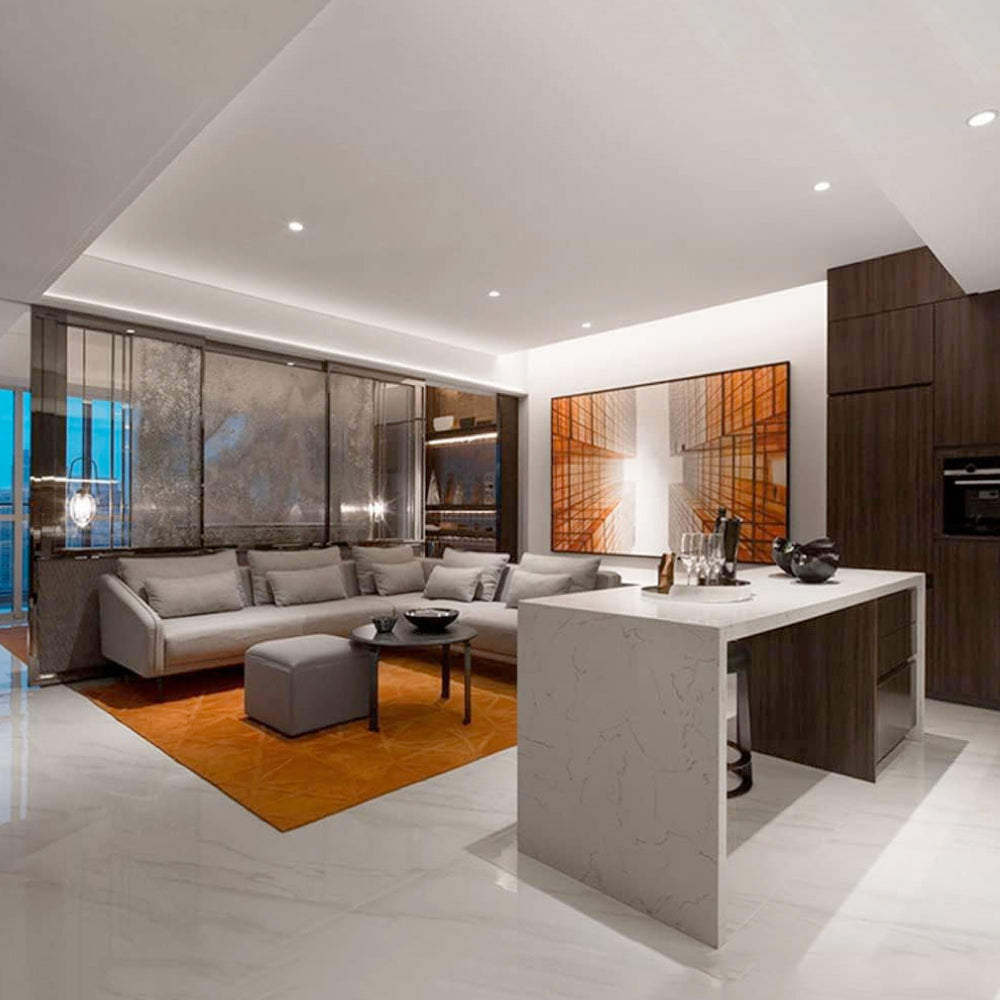

    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø2-7/8" (72mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

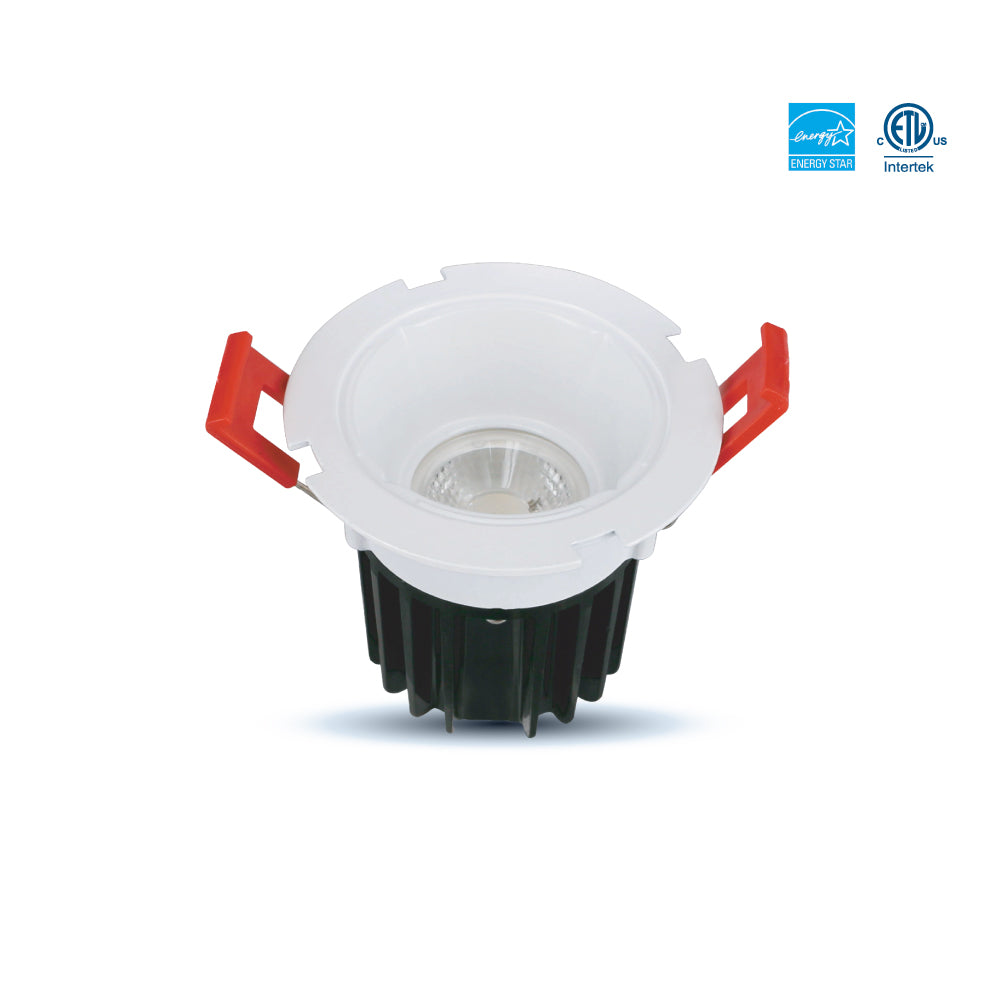

CERTIFICATIONS

Product features

INTERCHANGEABLE REFLECTORS (sold separately)

SLIM-RG2-RF-ALCH
SLIM-RG2-RF-ALCH
(Alzek Chrome)
SLIM-RG2-RF-ALHZ
SLIM-RG2-RF-ALHZ
(Alzek Haze)
SLIM-RG2-RF-BFSN
SLIM-RG2-RF-BFSN
(Satin Nickel Baffle)
SLIM-RG2-RF-BFWH
SLIM-RG2-RF-BFWH
(White Baffle)
SLIM-RG2-RF-BFBK
SLIM-RG2-RF-BFBK
(Black Baffle)

INTERCHANGEABLE RINGS (sold separately)

SLIM-RG2-RINGSH-WH
SLIM-RG2-RINGSH-WH
(Shower Ring White)
SLIM-RG2-RINGSH-BK
SLIM-RG2-RINGSH-BK
(Shower Ring Black)
SLIM-RG2-RINGOV-WH
SLIM-RG2-RINGOV-WH
(Oval Ring White)
SLIM-RG2-RINGOV-BK
SLIM-RG2-RINGOV-BK
(Oval Ring White)
SLIM-RG2-RINGRS-WH
SLIM-RG2-RINGRS-WH
(Small Round Ring White)
SLIM-RG2-RINGRS-BK
SLIM-RG2-RINGRS-BK
(Small Round Ring Black)
SLIM-RG2-RING-WH
SLIM-RG2-RING-WH
(Regular Ring White)
SLIM-RG2-RING-SN
SLIM-RG2-RING-SN
(Regular Ring Satin Nickel)
SLIM-RG2-RING-BK
SLIM-RG2-RING-BK
(Regular Ring Black)
SLIM-RG2-RINGSP-WH
SLIM-RG2-RINGSP-WH
(Scoop Ring White)
SLIM-RG2-RINGSP-BK
SLIM-RG2-RINGSP-BK
(Scoop Ring Black)

ACCESSORIES (sold separately)

PLATE13-2 | PLATE13-2-L | PLATE26-2 | PLATE26-2-L
PLATE13-2 | PLATE13-2-L | PLATE26-2 | PLATE26-2-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE2-HB
PLATE2-HB
(Galvanized steel mounting plate with hanger bars)
CORD-12/24/60/120/240
CORD-12/24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM-RG2-5CCT Spec Sheet

Instruction Manual

SLIM-RG2-5CCT Instruction Manual

Dimmer List

SLIM-RG2-5CCT Compatible Dimmer List

IES Files

SLIM-RG2-5CCT IES Files
