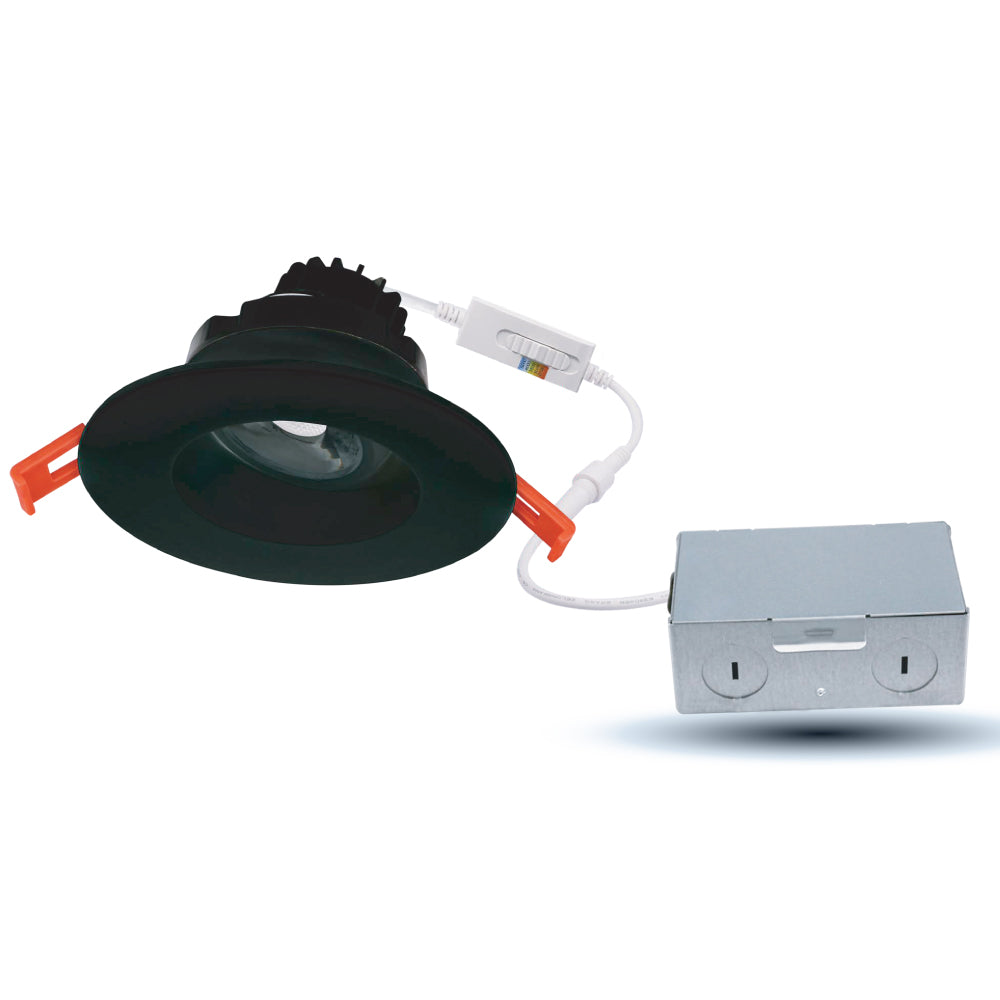

SLIM-RG3-5CCT

3" slim LED light with deep regressed, anti-glare design and selectable CCTs for refined illumination.

Color: White

HIGHLIGHTS

  • Class 2 Transformer Included – Pre-installed in junction box for safe, efficient operation
  • Quick Installation – Mounts directly into ceiling with spring clips for fast setup
  • No Housing Required – Type IC rated, air tight, and suitable for damp locations
  • Versatile Build Options – Durable aluminum body available in adjustable gimbal or fixed design

5CCT Selectable

Specifications
  • Wattage
    8W
  • Voltage
    120V AC
  • Lumens
    550 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Damp location
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø3-3/8" (86 mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

CERTIFICATIONS

Product features

ACCESSORIES (sold separately)

PLATE13-3A | PLATE13-3A-L | PLATE26-3A | PLATE26-3A-L
PLATE13-3A | PLATE13-3A-L | PLATE26-3A | PLATE26-3A-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE3A-HB
PLATE3A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-12/24/60/120/240
CORD-12/24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM-RG3-5CCT Spec Sheet

Instruction Manual

SLIM-RG3-5CCT Instruction Manual

Dimmer List

SLIM-RG3-5CCT Compatible Dimmer List

IES Files

SLIM-RG3-5CCT IES Files
