SLIM-TL2-5CCT

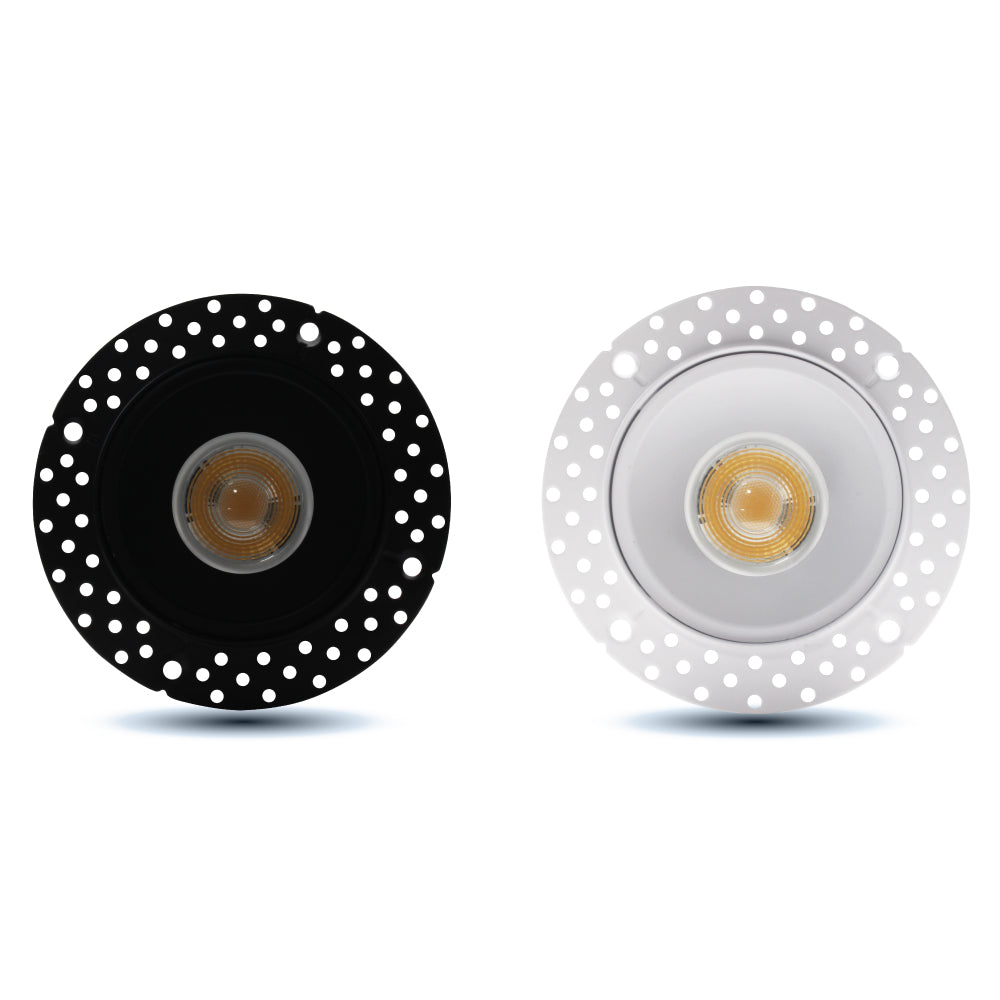

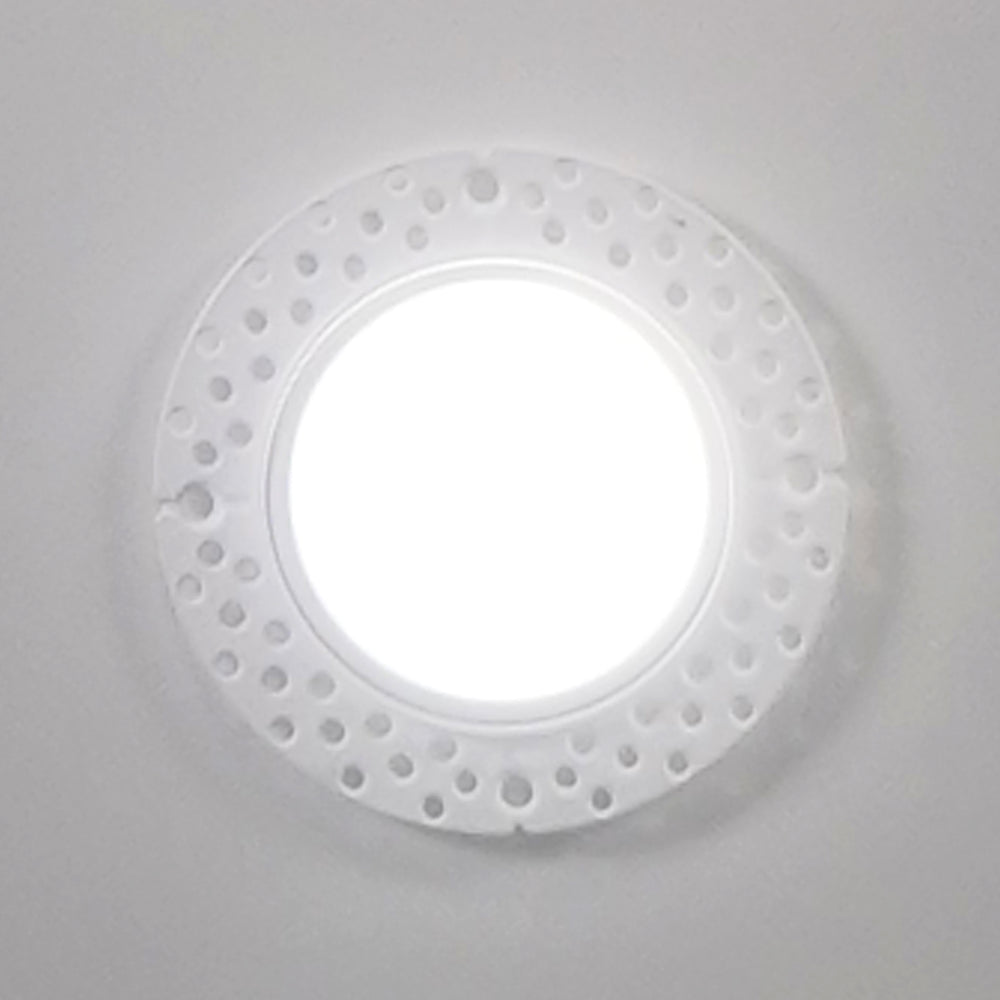

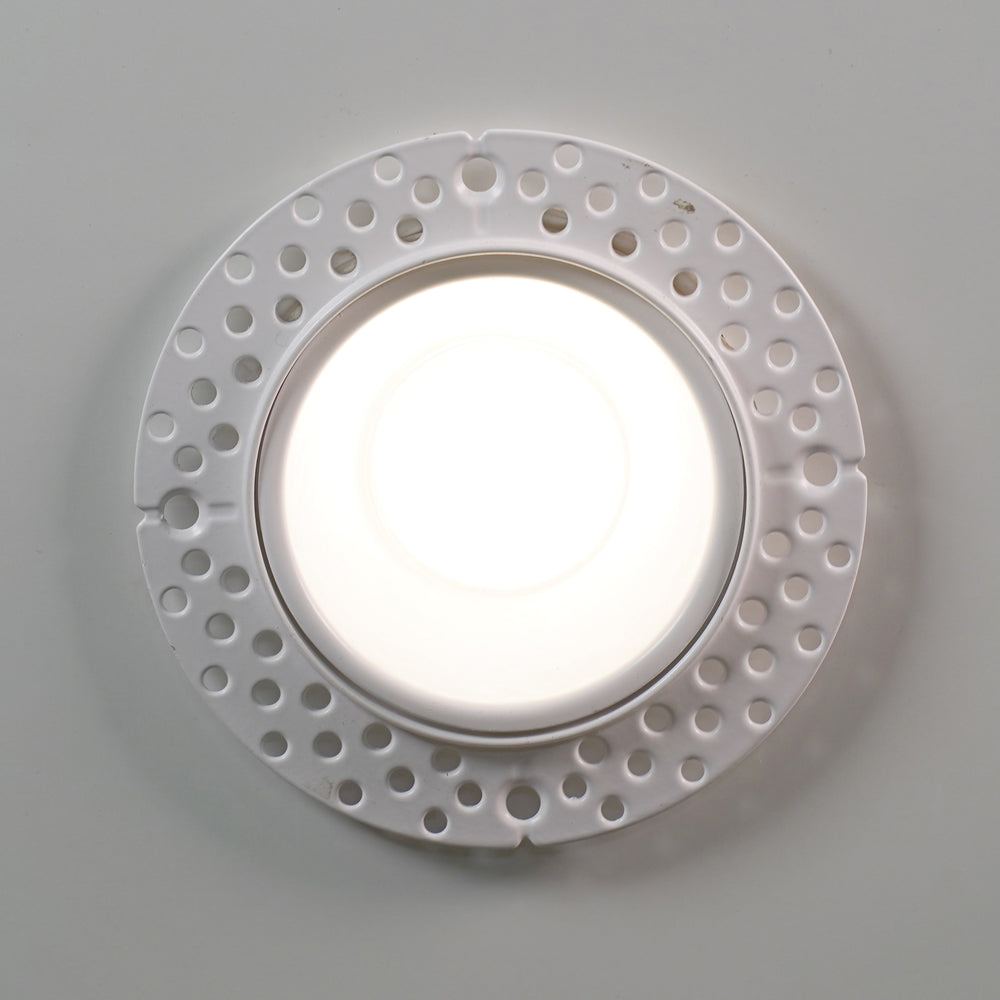

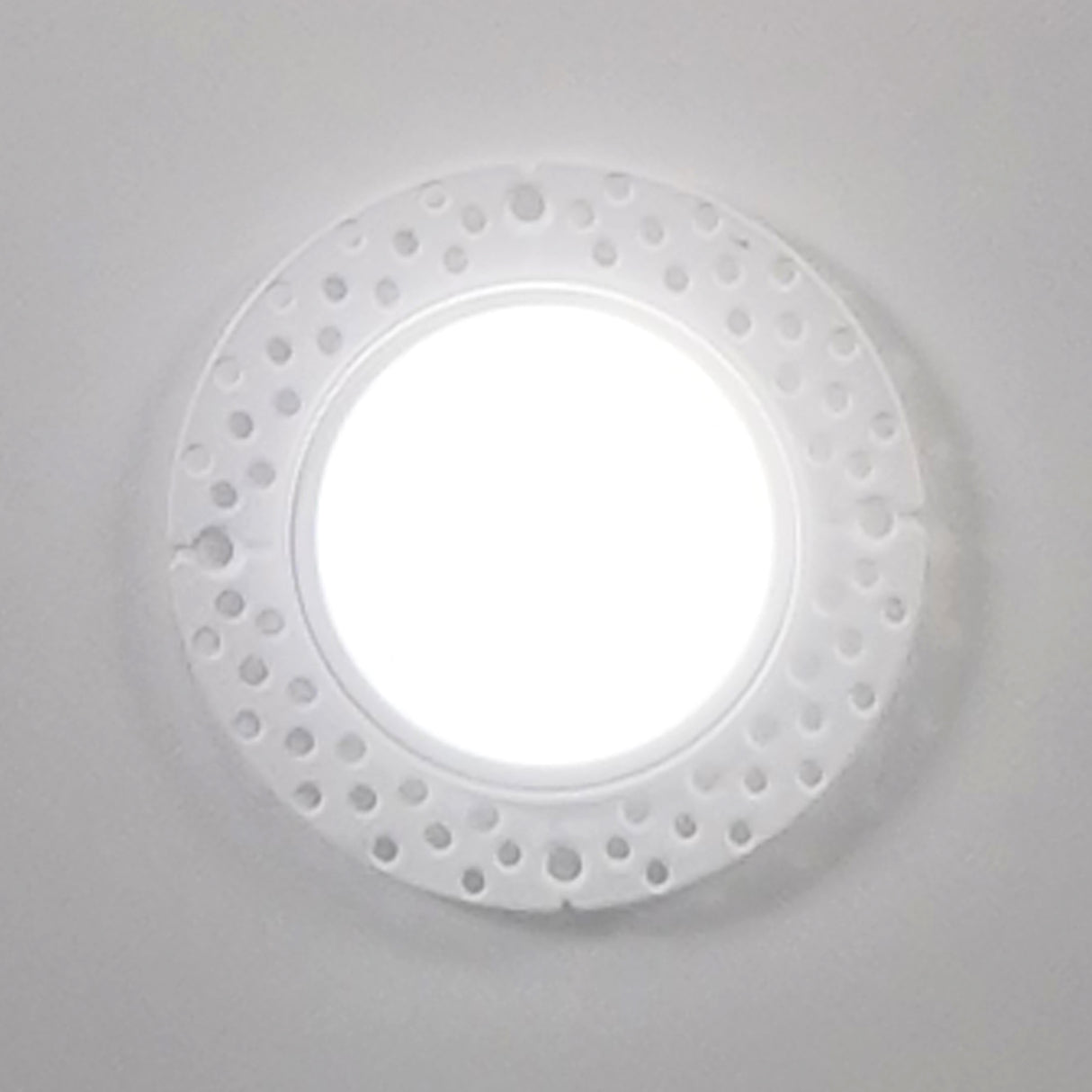

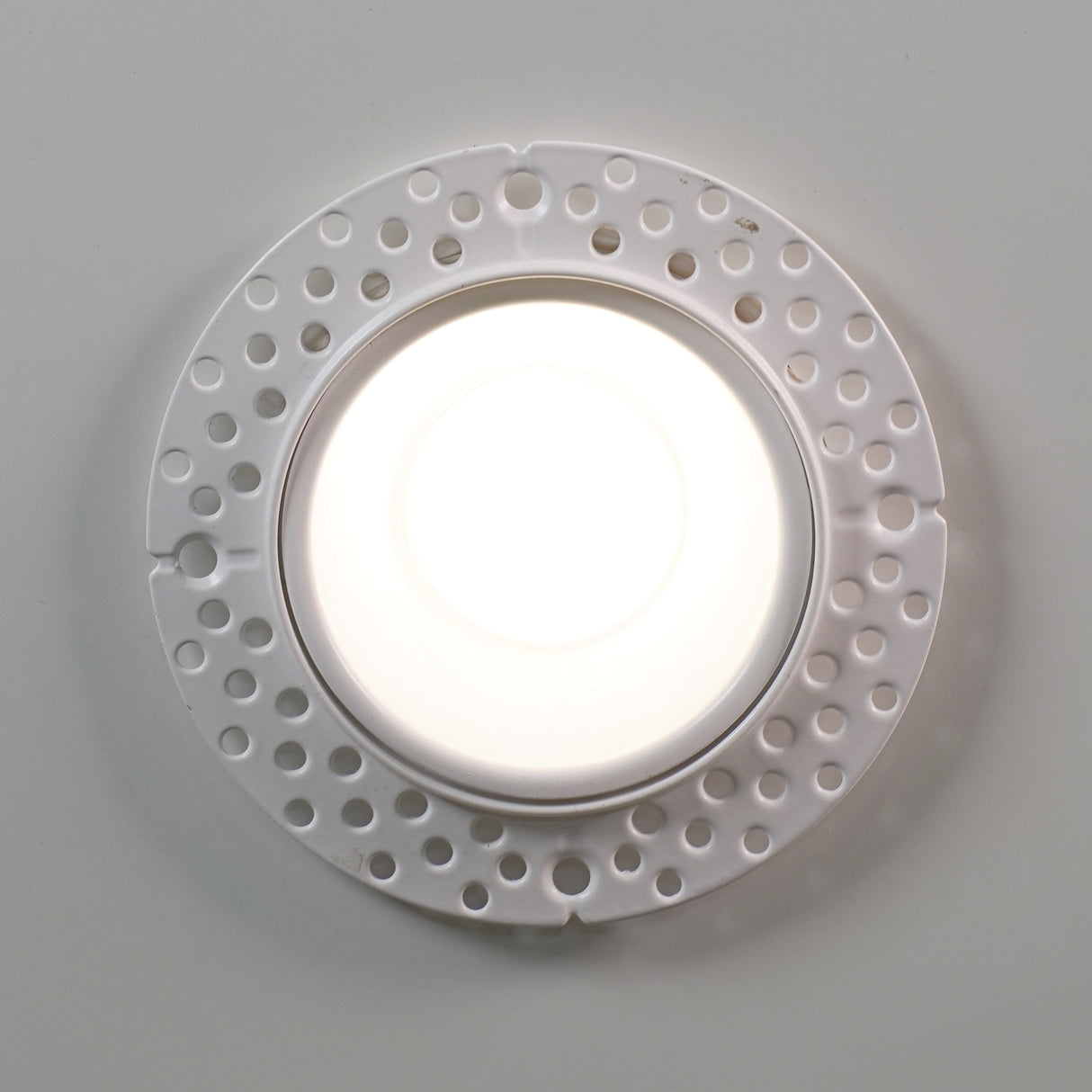

2" round trimless LED downlight with selectable CCTs for a sleek, modern finish.

Color: White

HIGHLIGHTS

  • Durable Airtight Build – Constructed from aluminum for longevity and sealed performance
  • Type IC & Air-Tight – No housing required; safe for insulated ceilings

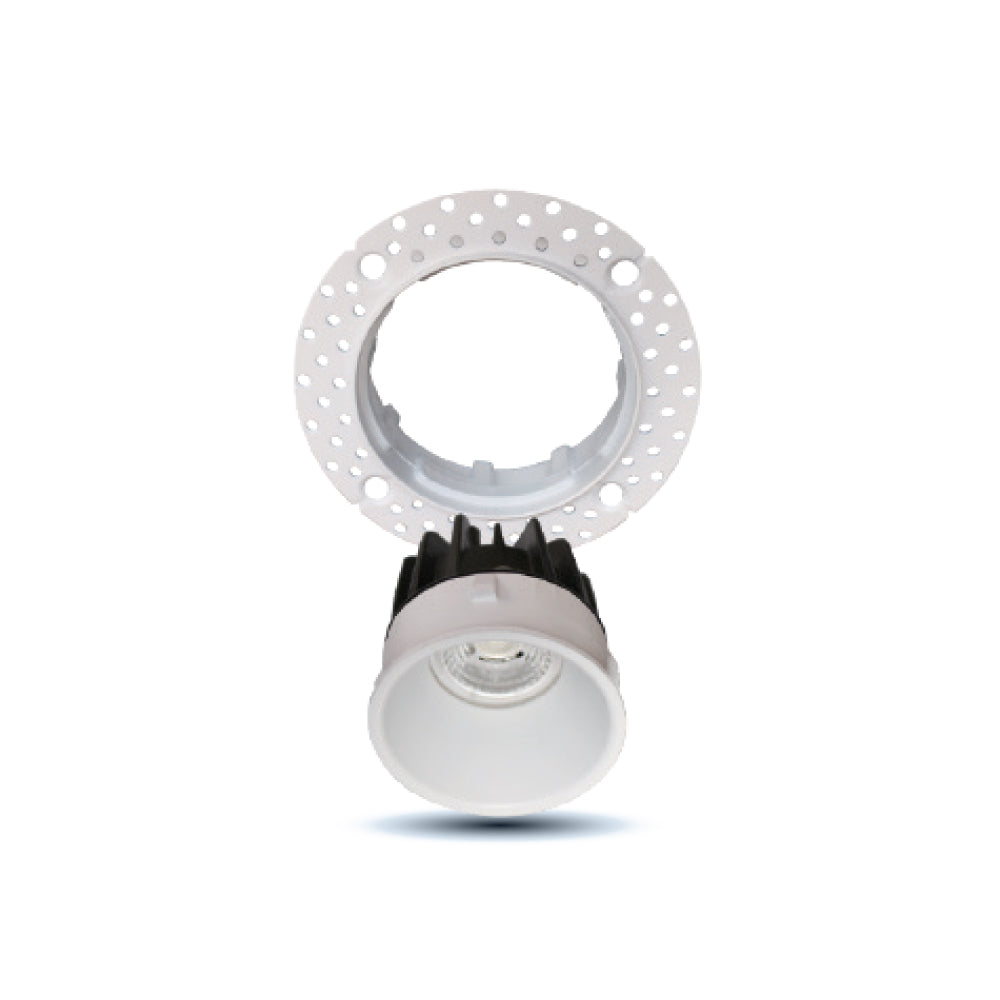

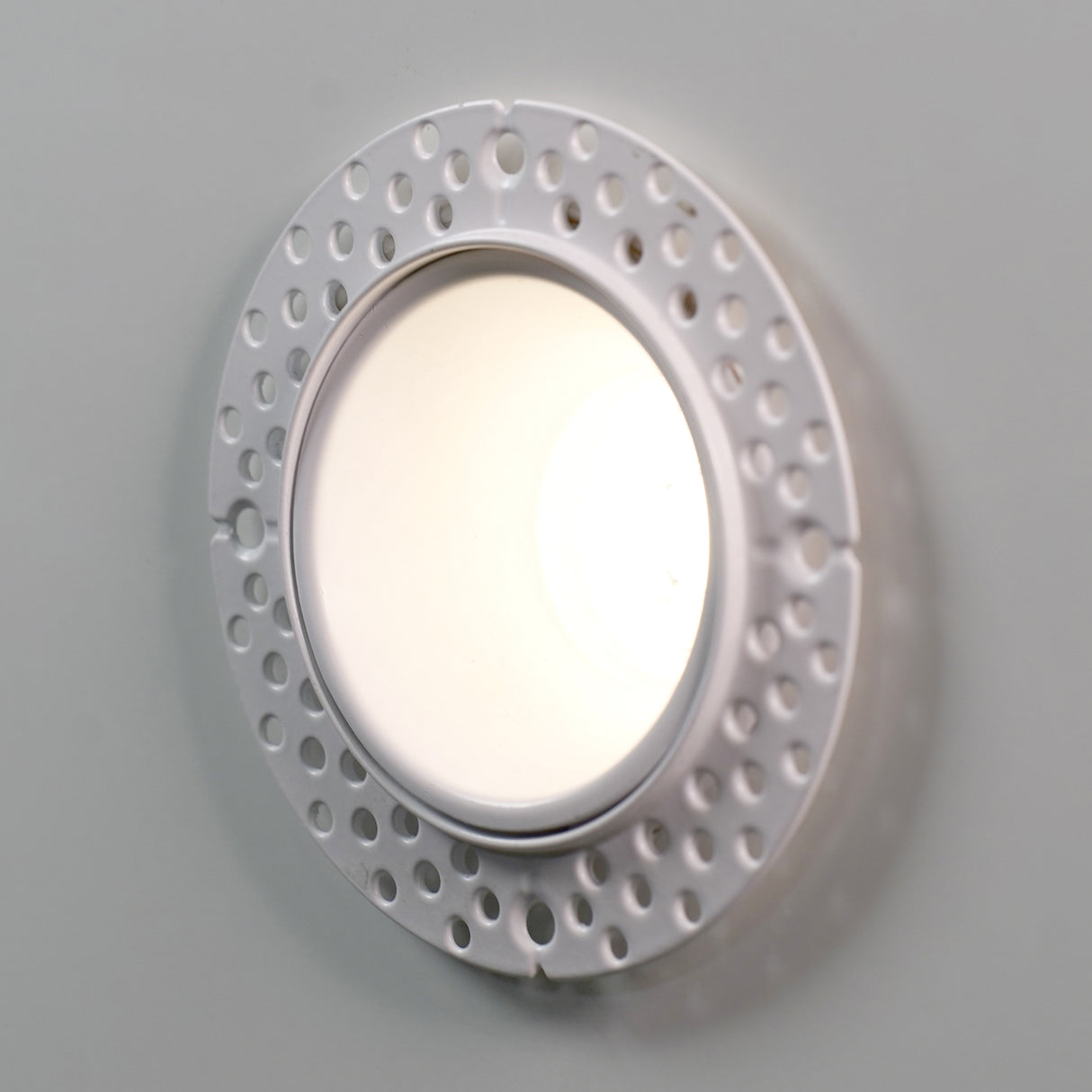

  • Flangeless Design – Trimless installation delivers a clean, upscale aesthetic

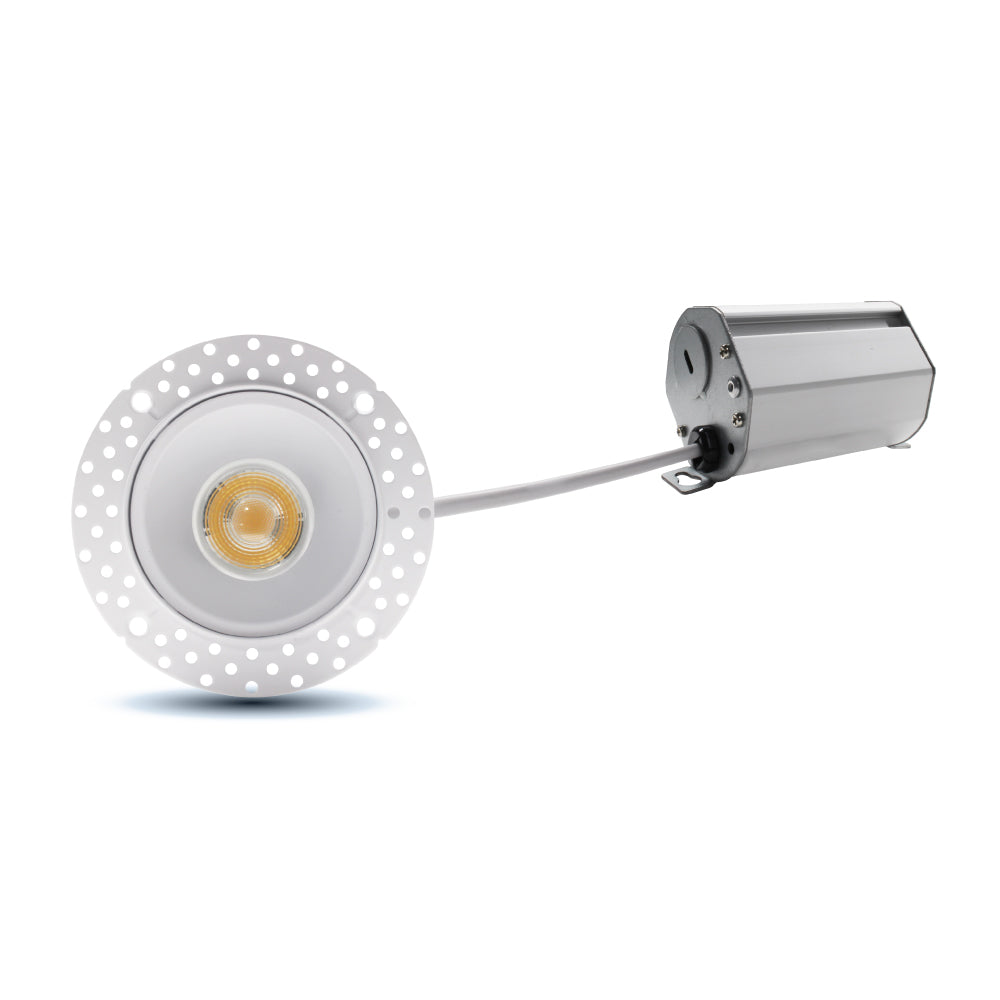

  • Quick Setup – Installs easily without a junction box
  • Wide Dimming Range – Compatible with forward-phase, reverse-phase, TRIAC, and ELV dimmers (100%–10%)
  • Extended Lifespan – Rated to last over 50,000 hours

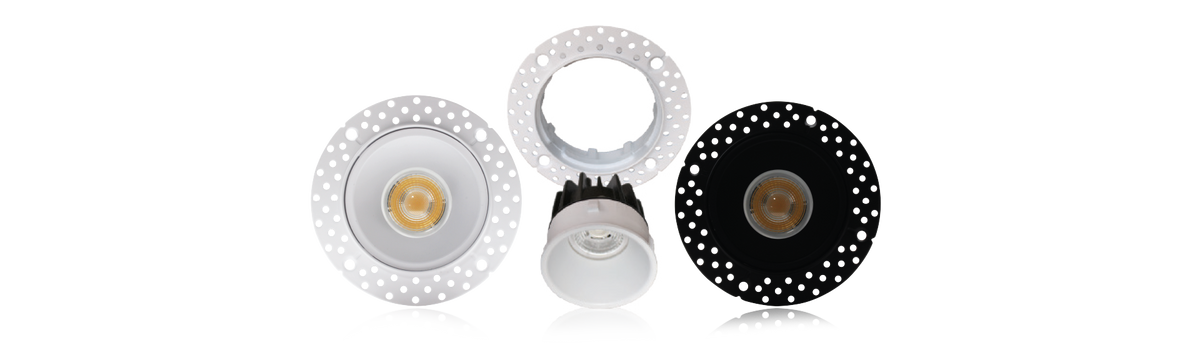

TRIMLESS AND 5CCT Selectable

Specifications
  • Wattage
    8W
  • Voltage
    120V AC
  • Lumens
    600 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Damp Location
  • Grade of Protection
    IP44
  • Application

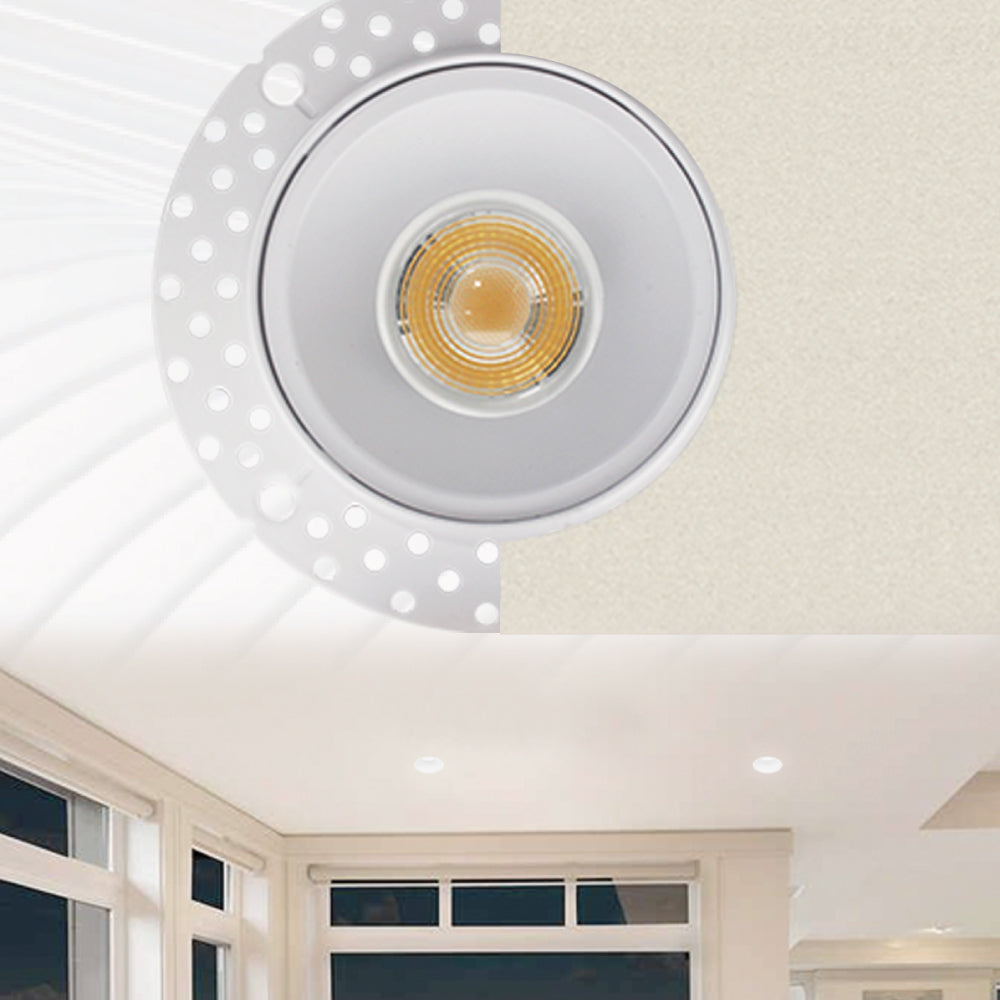

    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø2-3/5” (67mm)
  • Colour Temperature

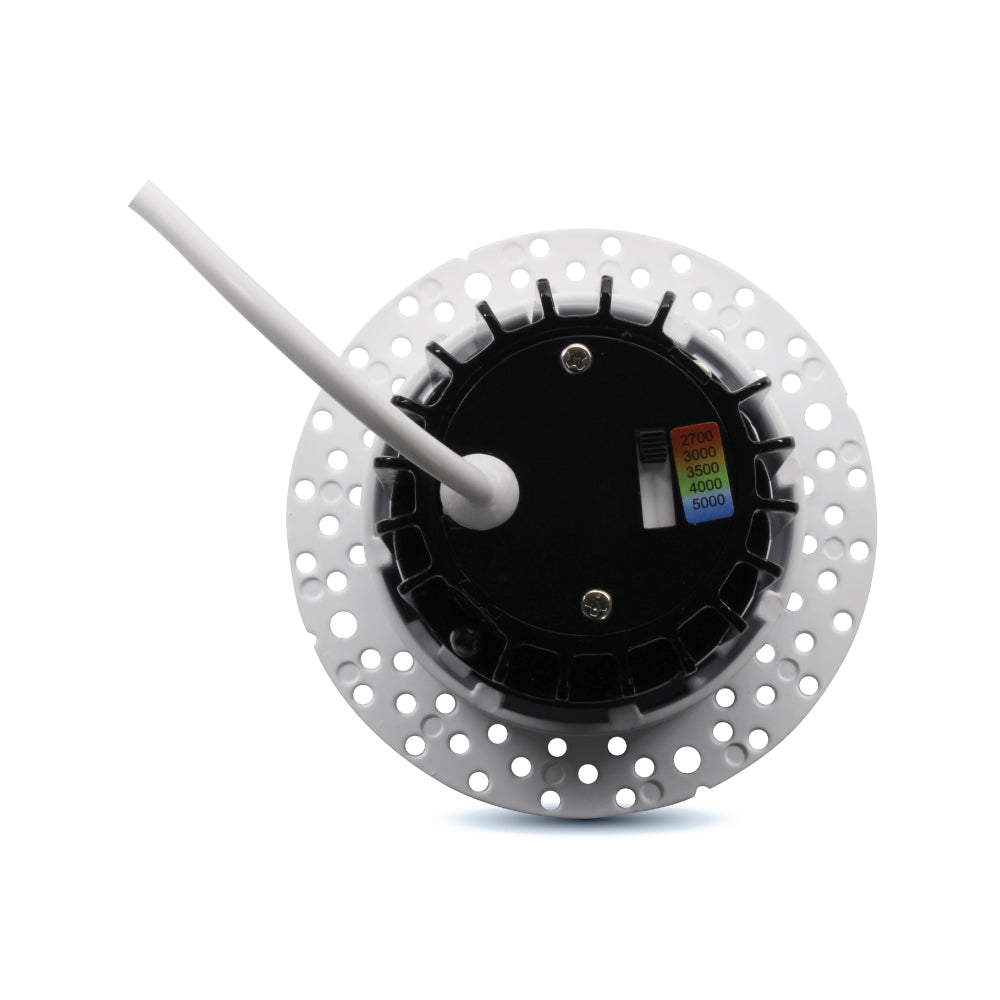

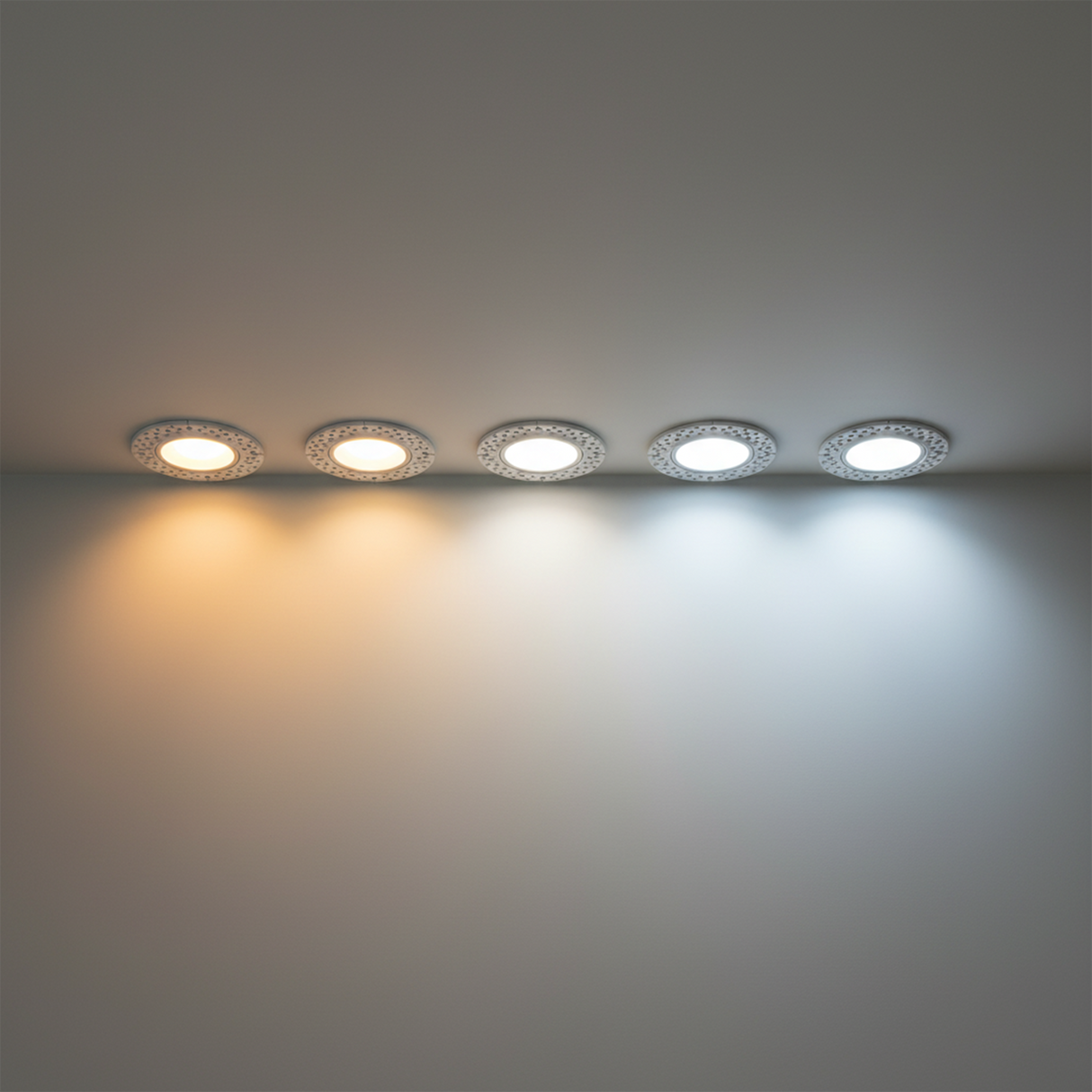

    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

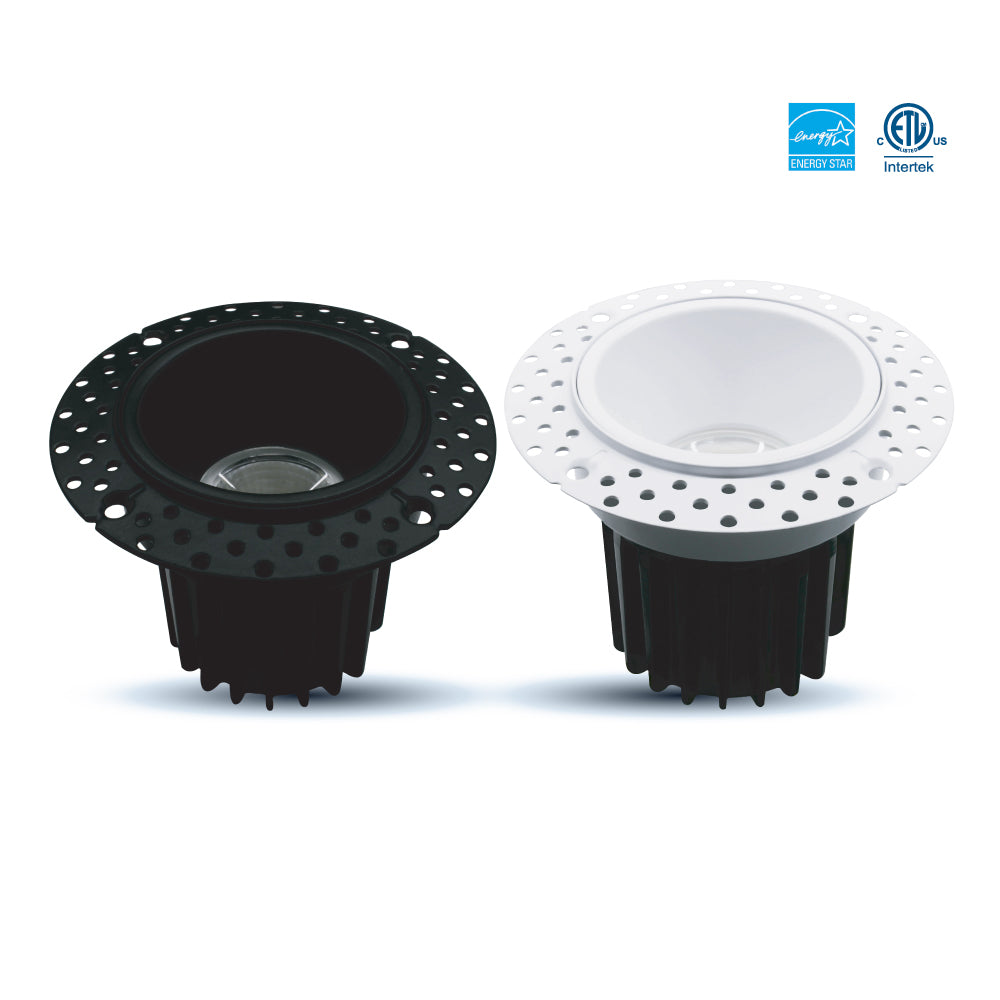

CERTIFICATIONS

Product features

ACCESSORIES (sold separately)

CORD-12/24/60/120/240
CORD-12/24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM-TL2-5CCT Spec Sheet

Instruction Manual

SLIM-TL2-5CCT Instruction Manual

Dimmer List

SLIM-TL2-5CCT Compatible Dimmer List

IES Files

NA
