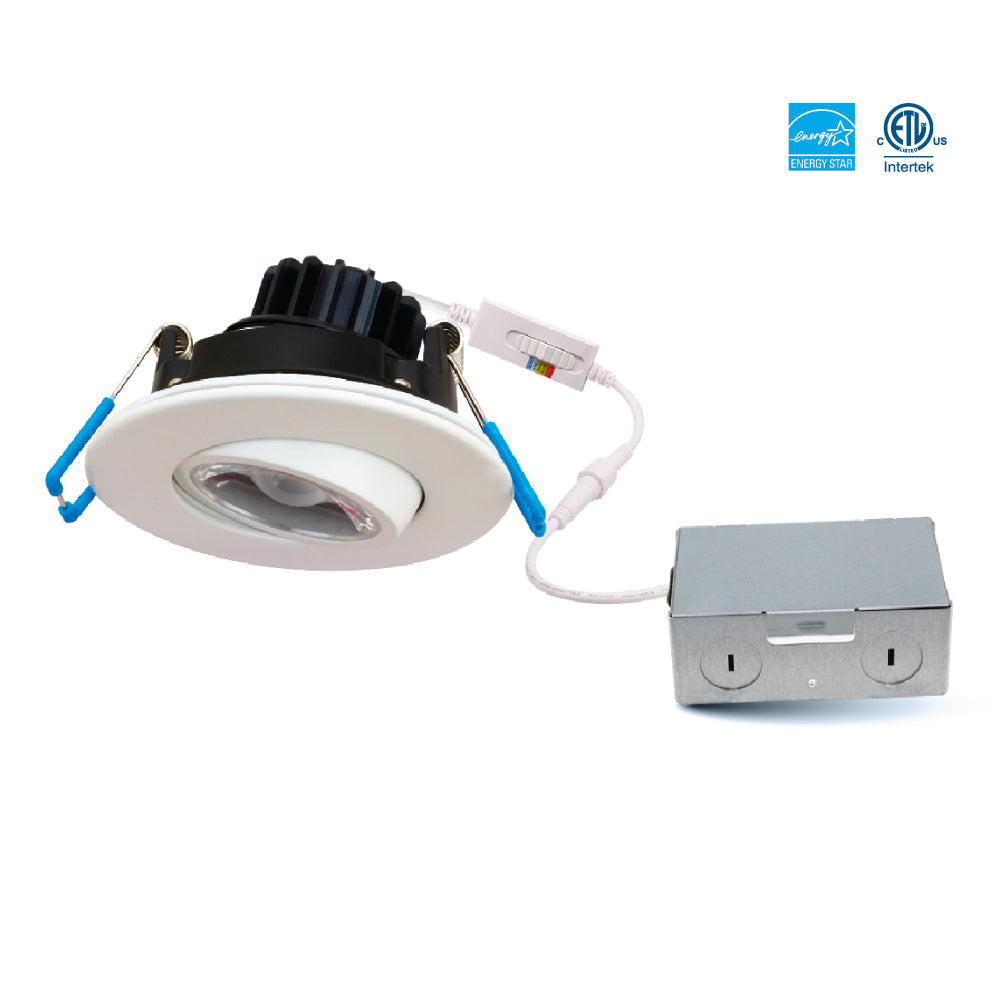

SLIM3GIM-5CCT

3" slim light with tilting gimbal light source for precise directional lighting in compact spaces.

Color: White

HIGHLIGHTS

  • Transformer: Class 2 transformer included in junction box
  • Body: Durable aluminum construction with adjustable gimbal
  • Installation: Easy, fast clip-in design for direct ceiling mounting
  • Housing: No housing required; Type IC, air tight, and damp location rated

5CCT Selectable

Specifications
  • Wattage
    8W
  • Voltage
    120V AC
  • Lumens
    550 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Damp location
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø2-13/16" (72 mm)
  • Colour Temperature

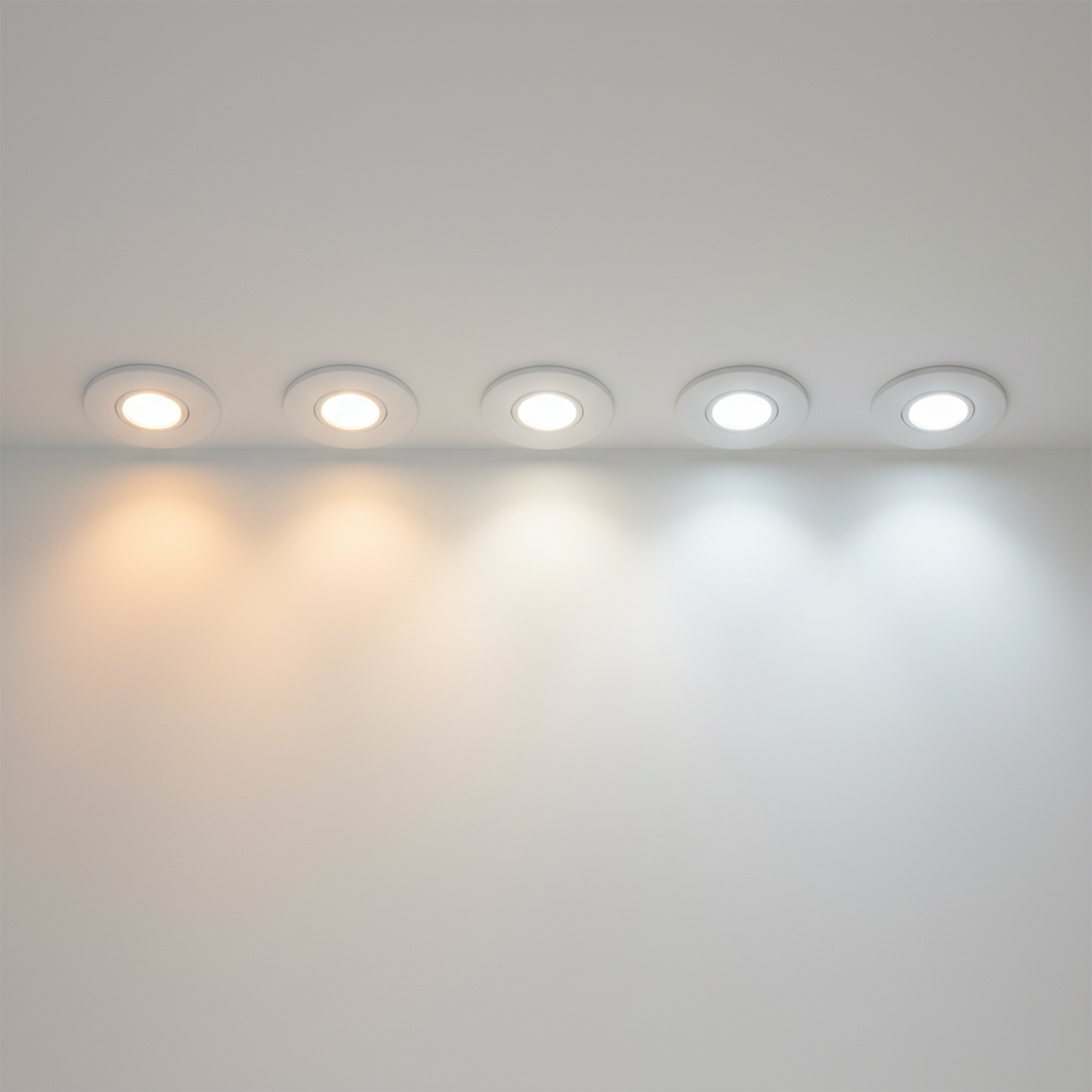

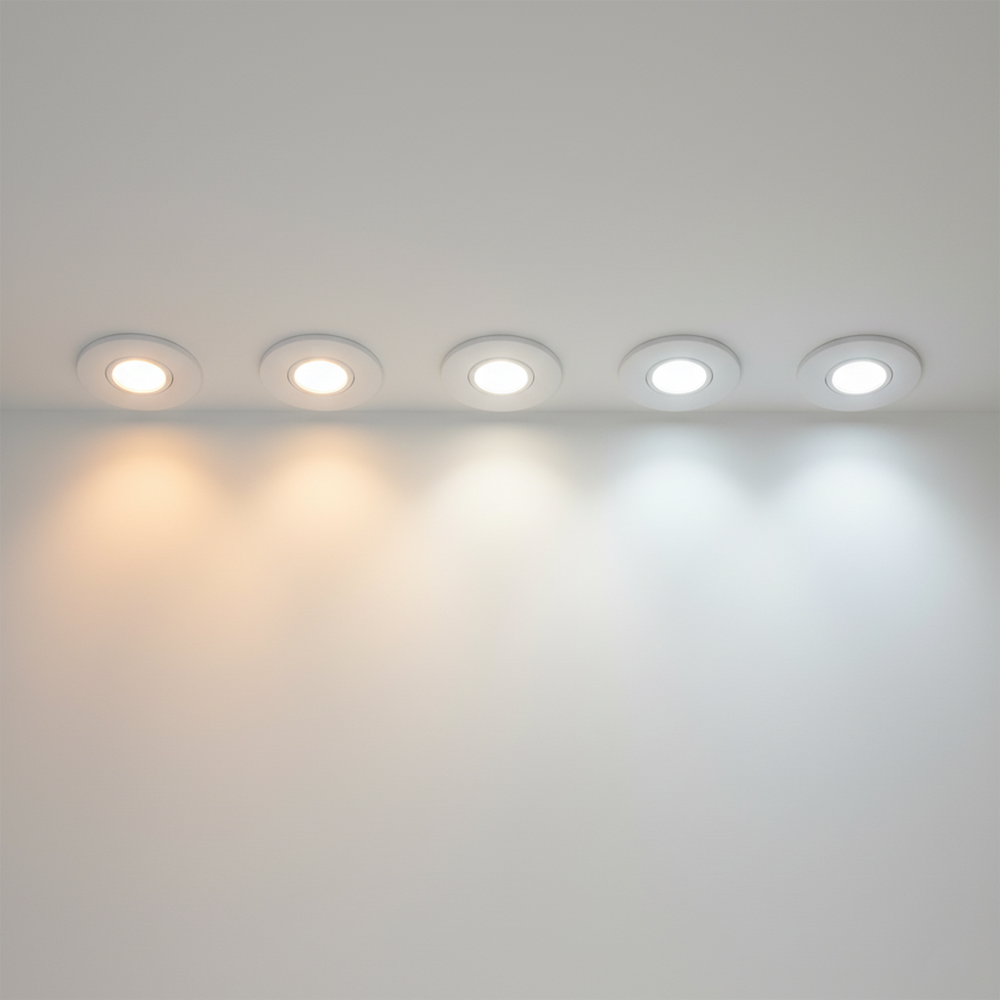

    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

CERTIFICATIONS

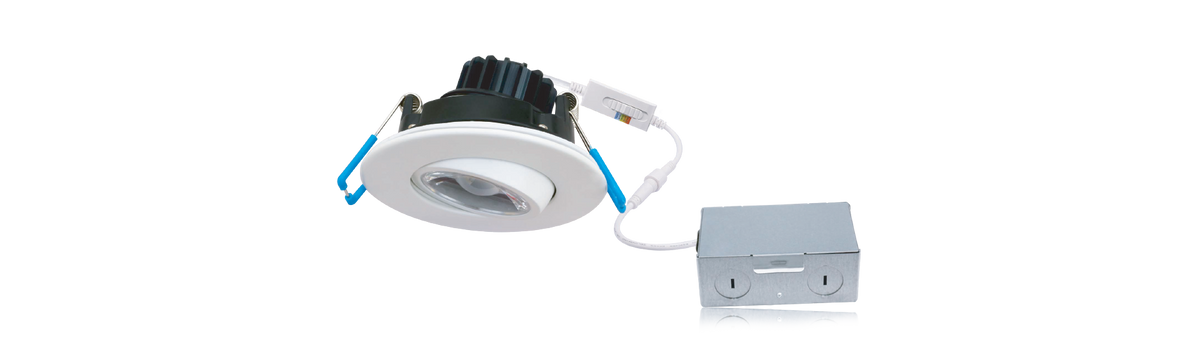

Product features

ACCESSORIES (sold separately)

PLATE13-3, PLATE13-3-L, PLATE26-3, PALTE26-3-L
PLATE13-3, PLATE13-3-L, PLATE26-3, PALTE26-3-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE3-HB
PLATE3-HB
(Galvanized steel mounting plate with hanger bars)
CORD-24/60/120/240
CORD-24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM3GIM-5CCT Spec Sheet

Instruction Manual

SLIM3GIM-5CCT Instruction Manual

Dimmer List

SLIM3GIM-5CCT Compatible Dimmer List

IES Files

SLIM3GIM-5CCT IES Files
