SLIM4CONT-5CCT

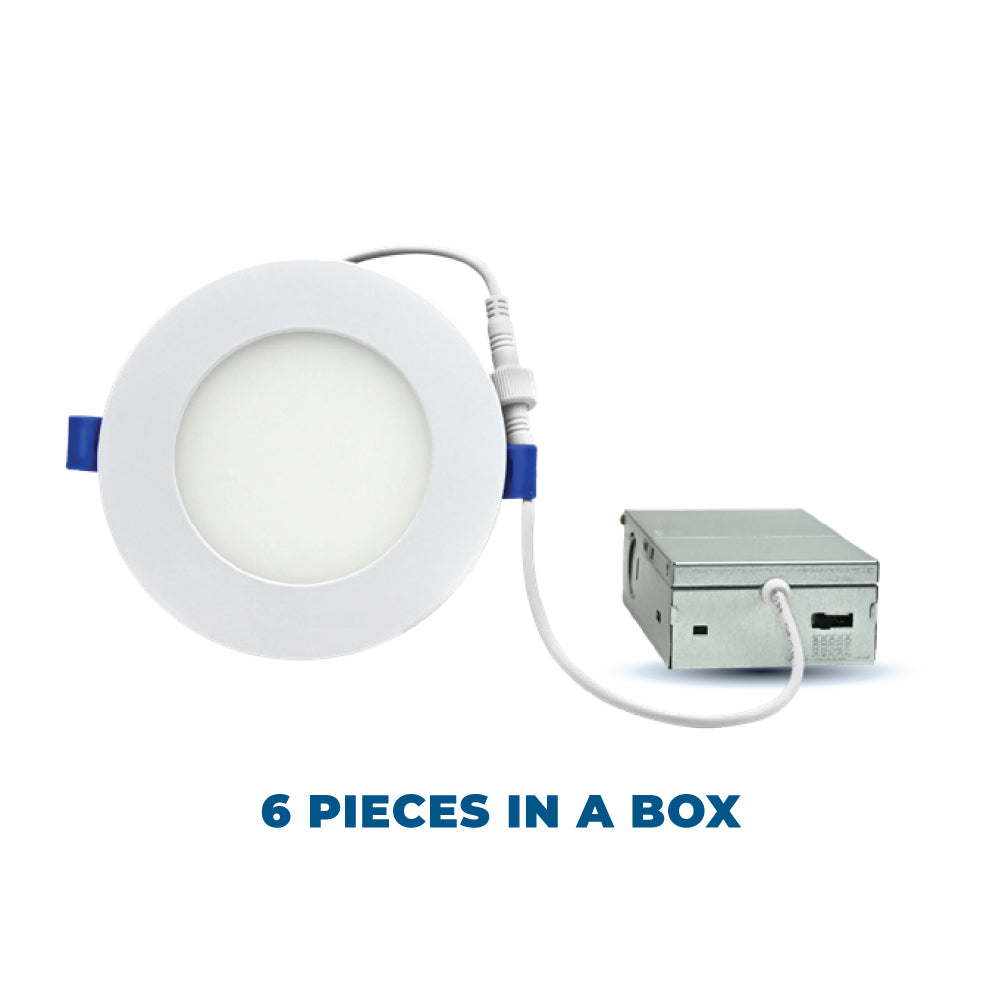

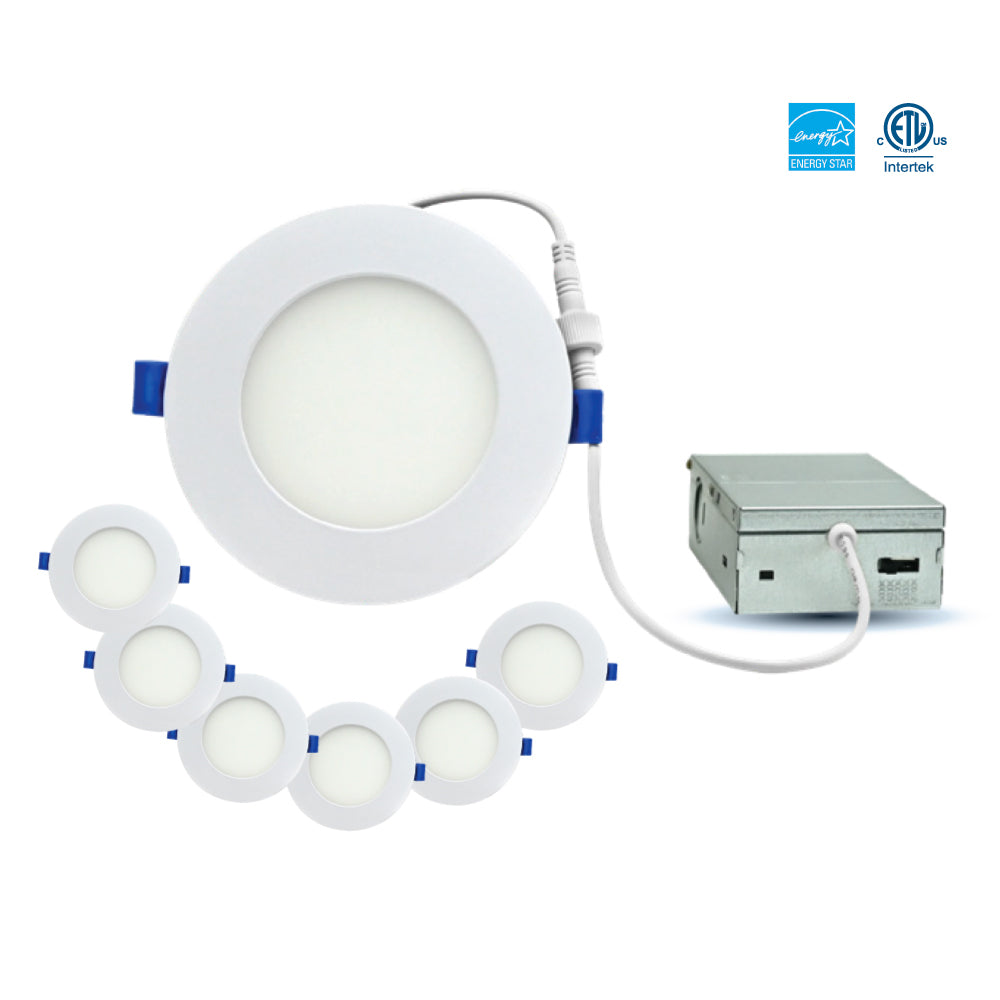

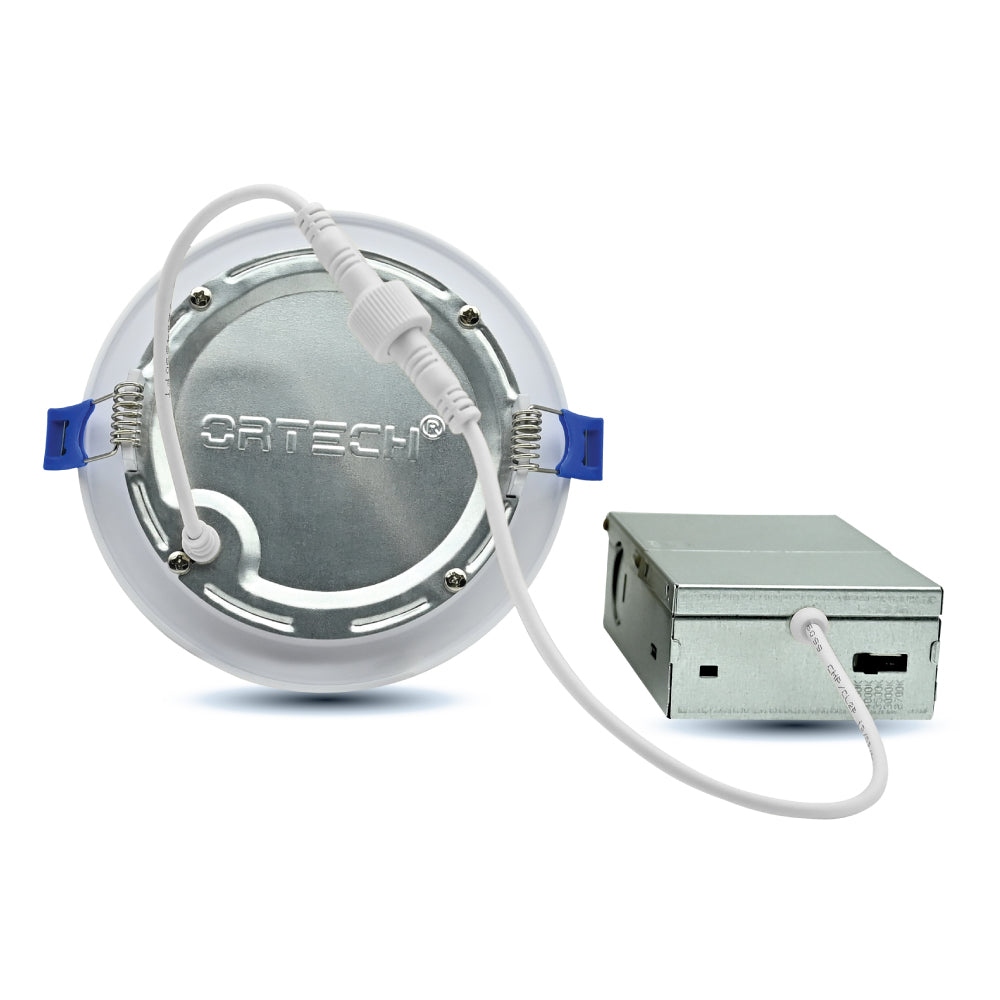

4" slim LED downlight contractor pack with selectable CCT, includes 6 pieces per box for streamlined installations.

HIGHLIGHTS

  • Optics: Edge-lit technology ensures no glare, no dark spots, and instant-on illumination
  • Housing: No recessed housing or junction box required
  • Dimming: TRIAC dimmable down to 10%
  • Insulation Rating: IC rated for direct contact with insulation (indoor only)
  • Wet Location: Suitable for wet locations (indoor only)
  • Lifespan: Rated for over 50,000 hours of operation
  • Cable: FT6 plenum-rated cable included

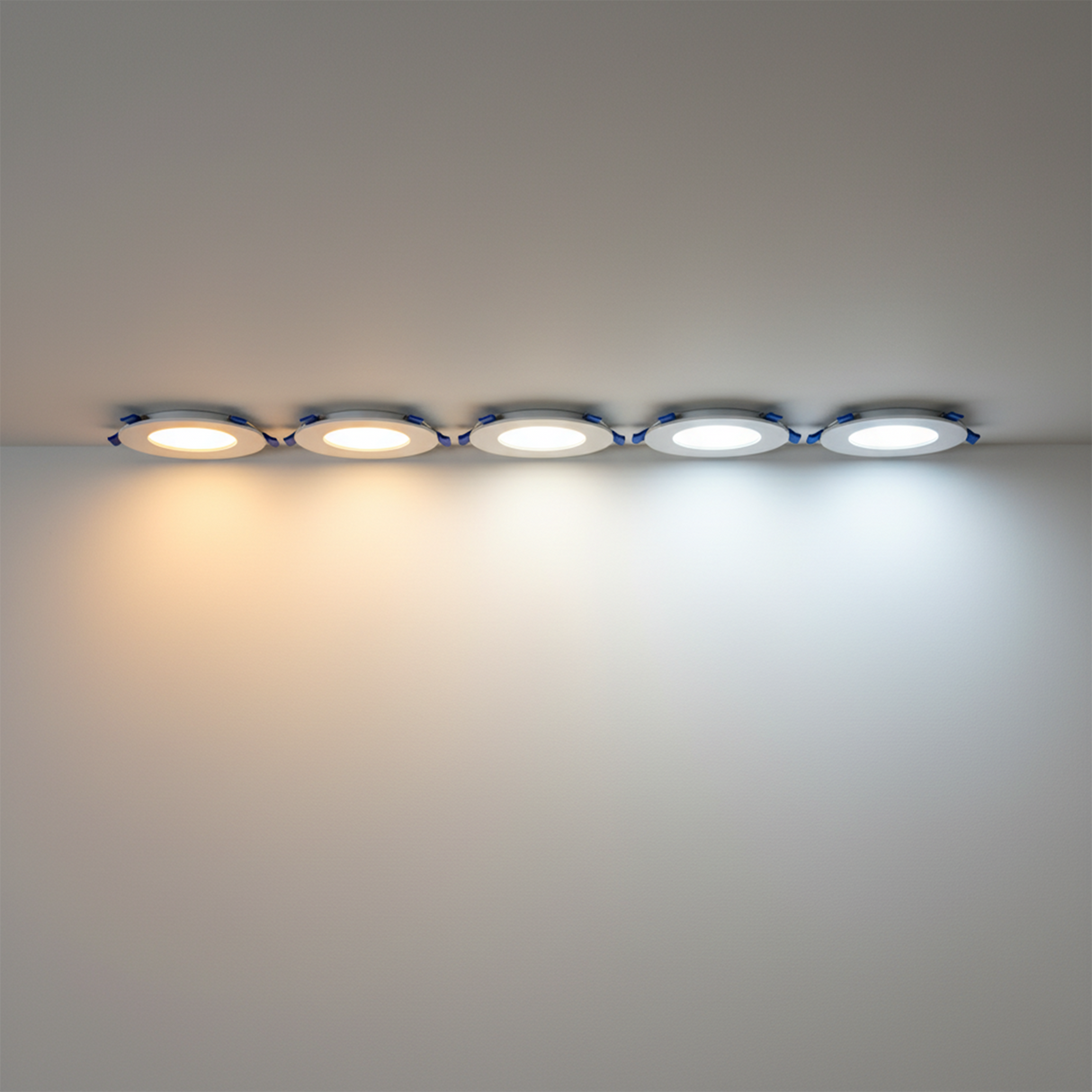

  • CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K

5CCT Selectable

Specifications
  • Wattage
    10W
  • Voltage
    120V AC
  • Lumens
    900 lmn
  • Beam Angle
    120°
  • CRI
    90Ra+
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Wet location (indoor only)
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø4-1/4" (108mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    24

CERTIFICATIONS

Product features

DECORATIVE TRIMS (sold separately)

Black
SLIM4-RINGBK
(Black)
Satin Nickel
SLIM4-RINGSN
(Satin Nickel)
Chrome
SLIM4-RINGCH
(Chrome)
Vintage Brass
SLIM4-RINGVB
(Vintage Brass)
Chrome Black
SLIM4-RINGCBK
(Chrome Black)
Copper
SLIM4-RINGCP
(Copper)
Brown
SLIM4-RINGBR
(Brown)

ACCESSORIES (sold separately)

PLATE13-4A, PLATE13-4A-L, PLATE26-4A, PALTE26-4A-L
PLATE13-4A, PLATE13-4A-L, PLATE26-4A, PALTE26-4A-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4A-HB
PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-FT6-24/FT6-120
CORD-FT6-24/FT6-120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
OT-010-SLIM4
OT-010-SLIM4
(0-10V Class 2 LED Drive)

PRODUCT SHEETS

Spec Sheet

SLIM4CONT-5CCT Spec Sheet

Instruction Manual

SLIM4CONT-5CCT Instruction Manual

Dimmer List

SLIM4CONT-5CCT Compatible Dimmer List

IES Files

SLIM4CONT-5CCT IES Files
