SLIM4CONT-ECON

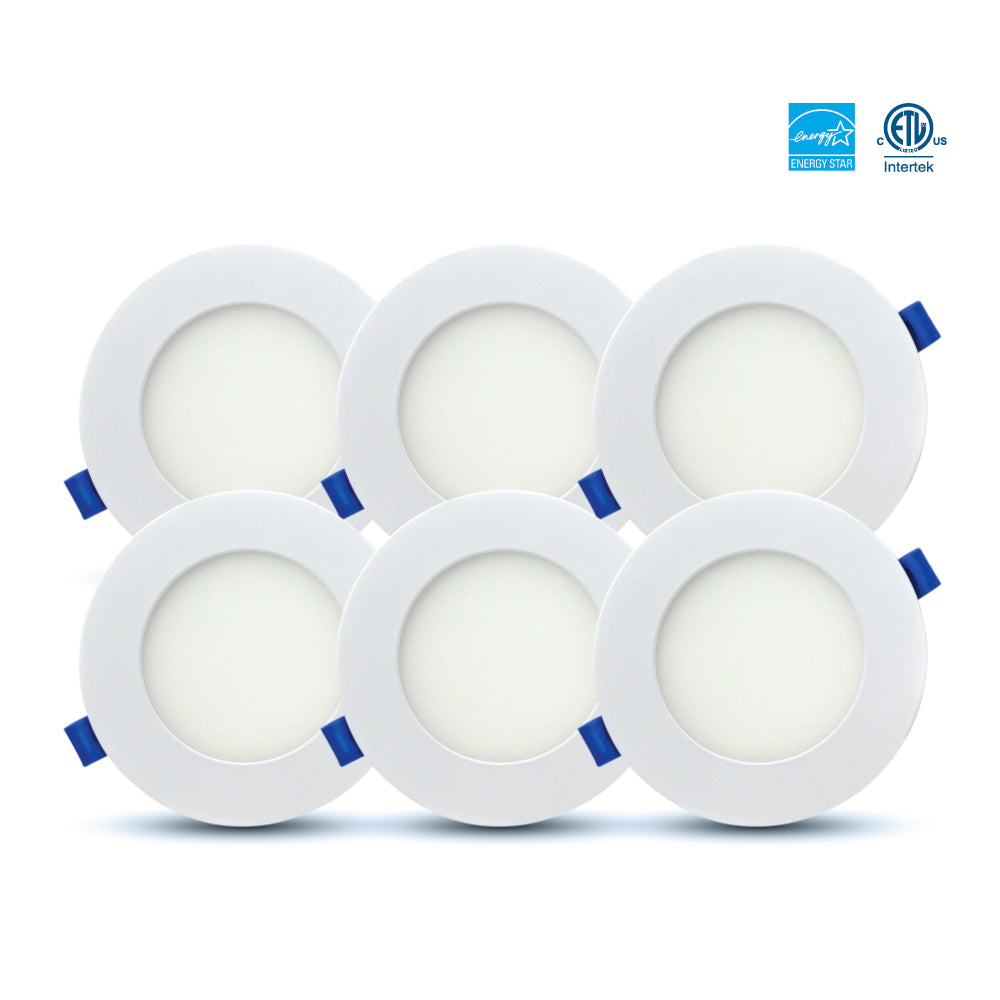

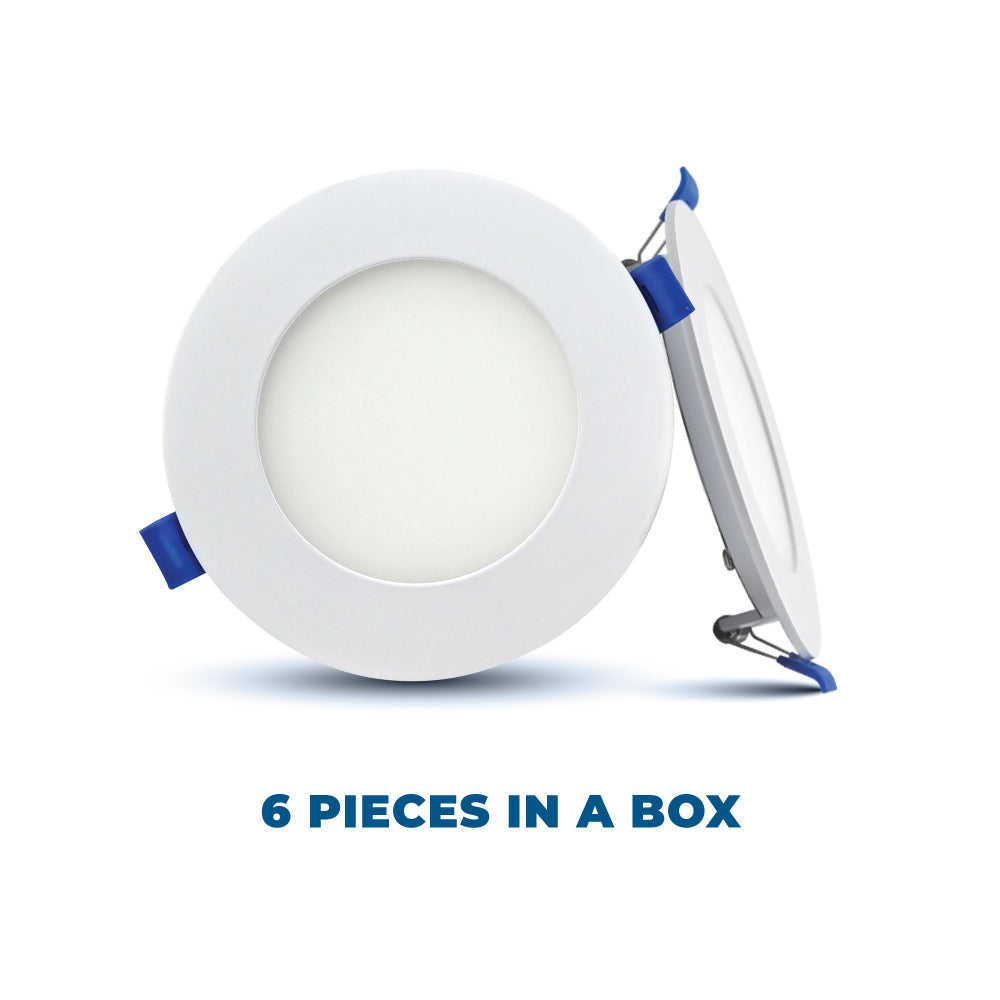

4" ultra slim Economy Series contractor pack with selectable CCT, includes 6 fixtures for cost-effective bulk installations.

HIGHLIGHTS

  • Profile: Ultra slim lamp thickness of only 0.39"
  • Transformer: Class 2 transformer included in box
  • Optics: Edge-lit technology for glare-free, uniform light and instant-on performance
  • Housing: No recessed housing or junction box required
  • Dimming: TRIAC dimmable down to 10%
  • Insulation Rating: IC rated for direct contact with insulation (indoor only)
  • Wet Location: Suitable for wet locations (indoor only)
  • Lifespan: Rated for over 50,000 hours of operation
  • CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K

PRODUCT SHEETS

Spec Sheet

SLIM4CONT-ECON Spec Sheet

Instruction Manual

SLIM4CONT-ECON Instruction Manual

Dimmer List

SLIM4CONT-ECON Compatible Dimmer List

IES Files

SLIM4CONT-ECON IES Files

ECONOMY SERIES

Specifications
  • Wattage
    9W
  • Voltage
    120V AC
  • Lumens
    700 lmn
  • Beam Angle
    120°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Wet location (indoor only)
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø4-1/4" (108mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +45°C
  • Warranty
    5 Years
  • Case Quantities
    24

Product features

DECORATIVE TRIMS (sold separately)

Black
SLIM4-RINGBK
(Black)
Satin Nickel
SLIM4-RINGSN
(Satin Nickel)
Chrome
SLIM4-RINGCH
(Chrome)
Vintage Brass
SLIM4-RINGVB
(Vintage Brass)
Chrome Black
SLIM4-RINGCBK
(Chrome Black)
Copper
SLIM4-RINGCP
(Copper)
Brown
SLIM4-RINGBR
(Brown)

ACCESSORIES (sold separately)

PLATE13-4A, PLATE13-4A-L, PLATE26-4A, PALTE26-4A-L
PLATE13-4A, PLATE13-4A-L, PLATE26-4A, PALTE26-4A-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4A-HB
PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-B24/B120
CORD-B24/B120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
