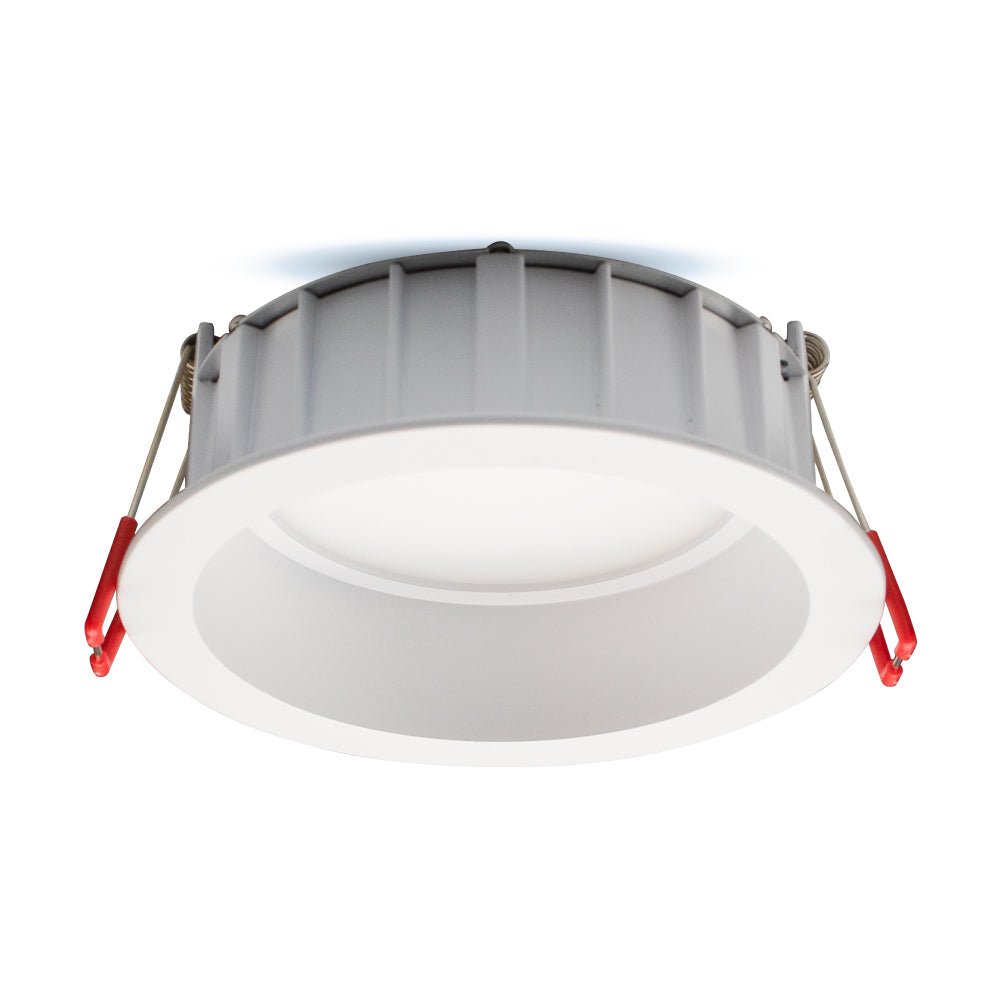

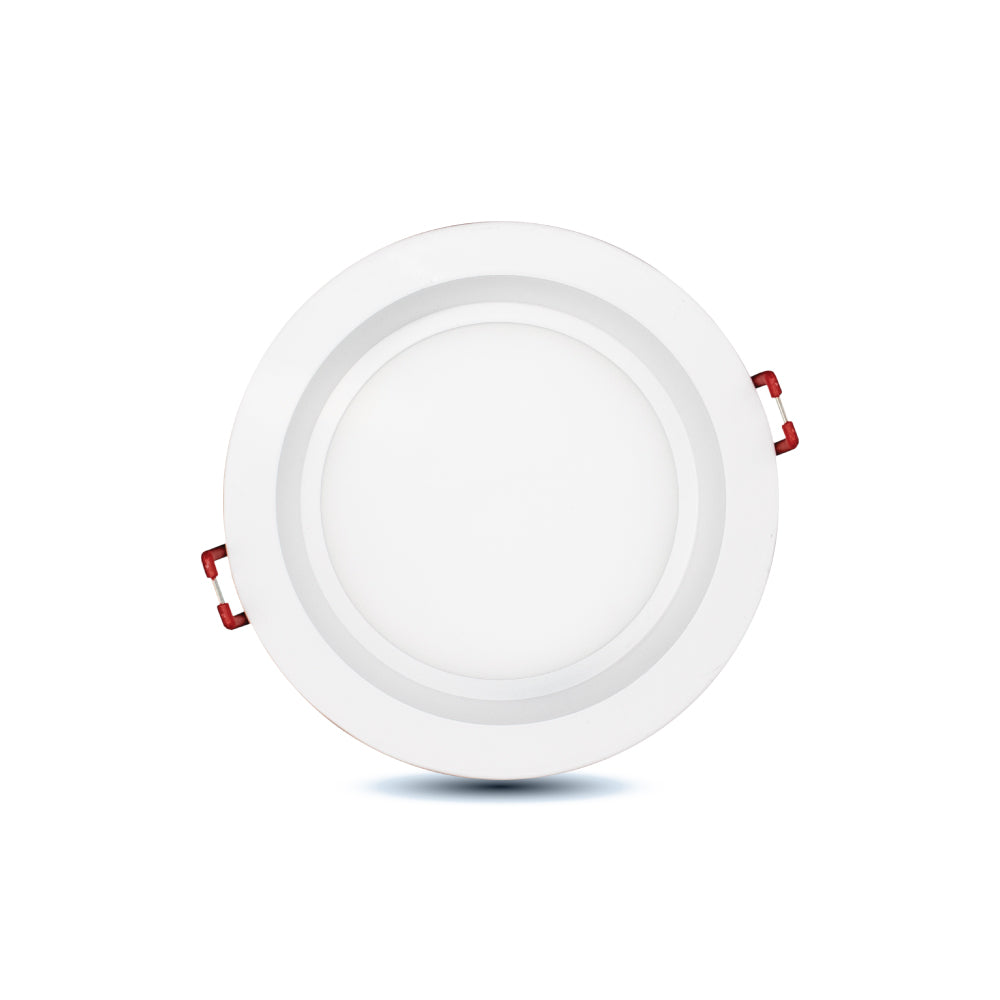

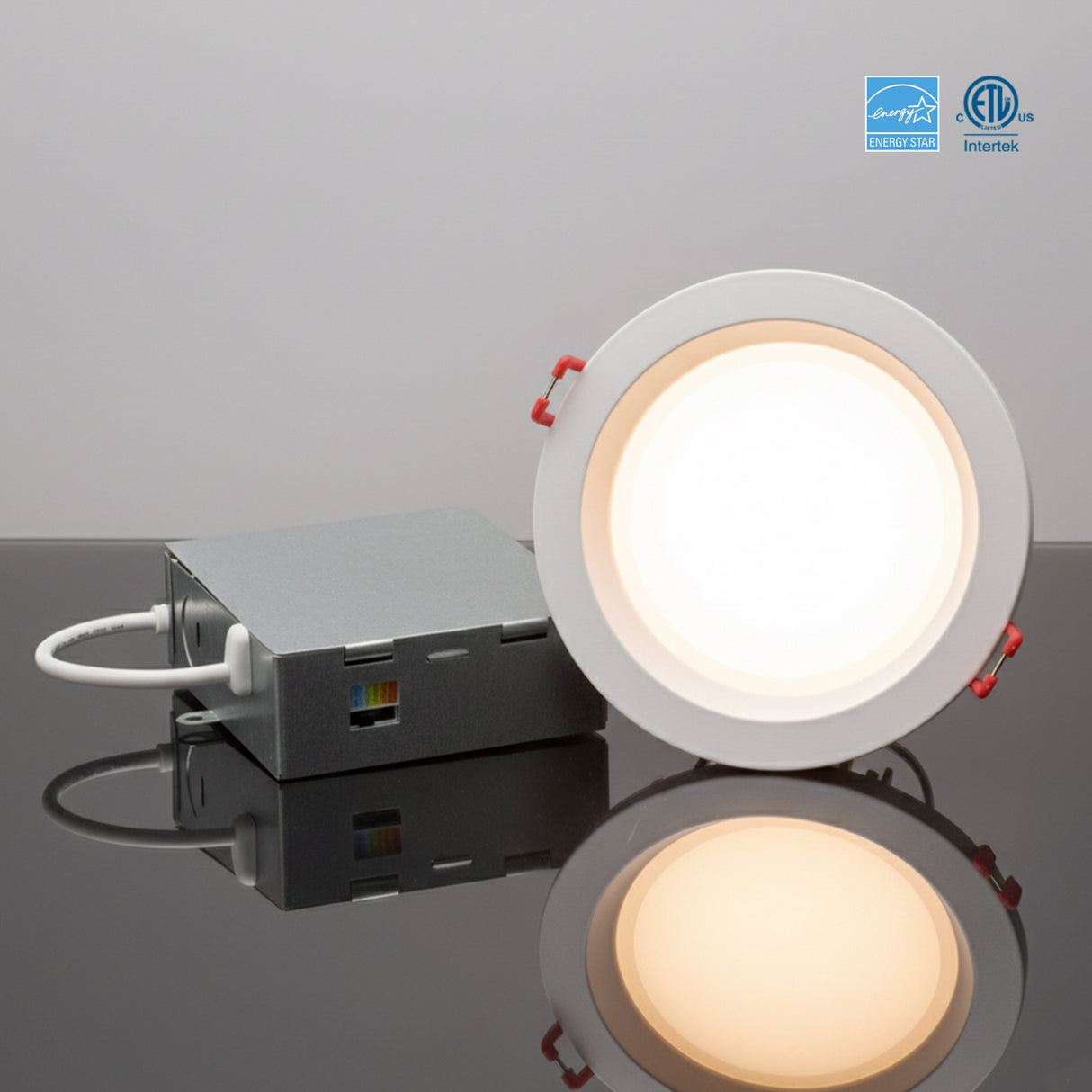

SLIM4DR-5CCT

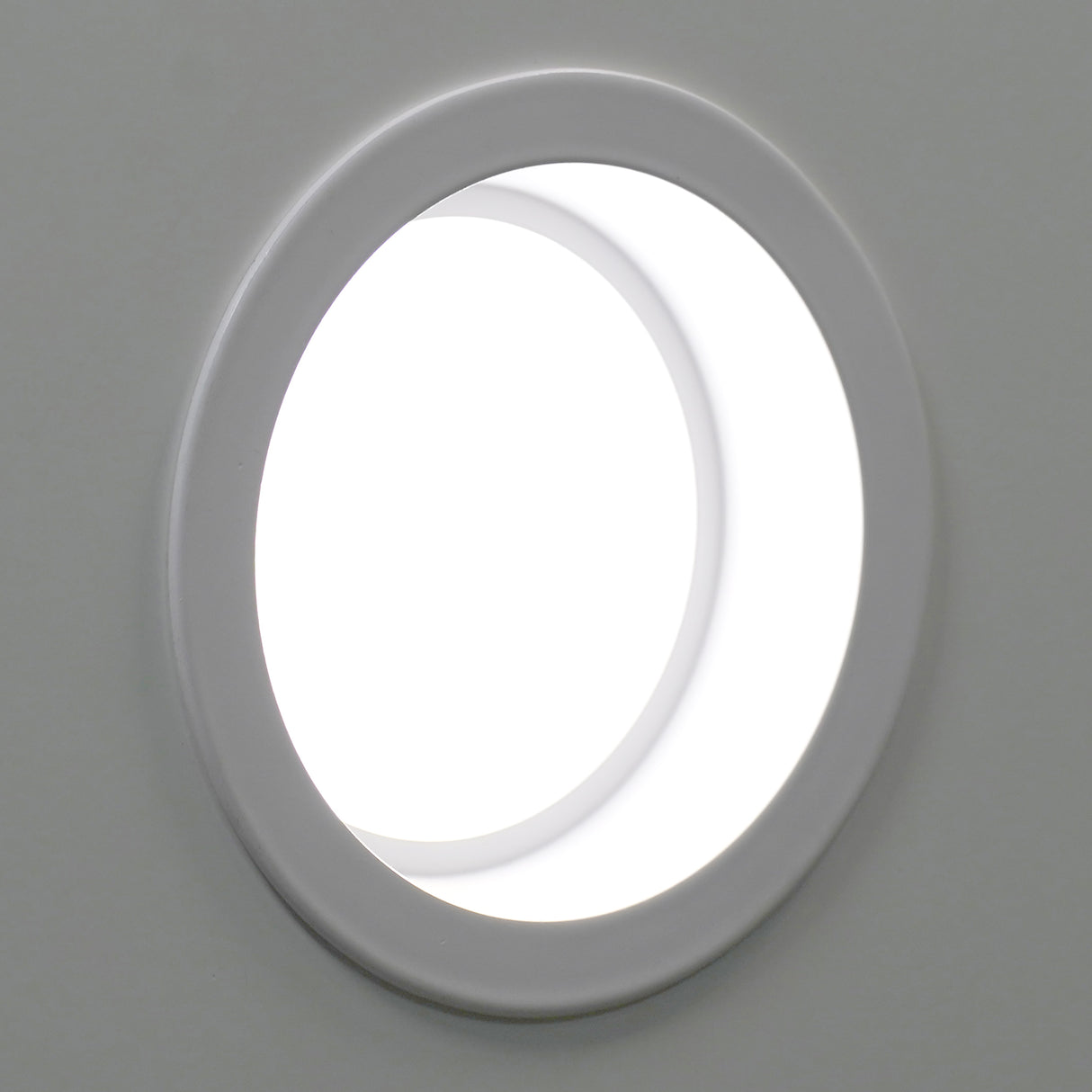

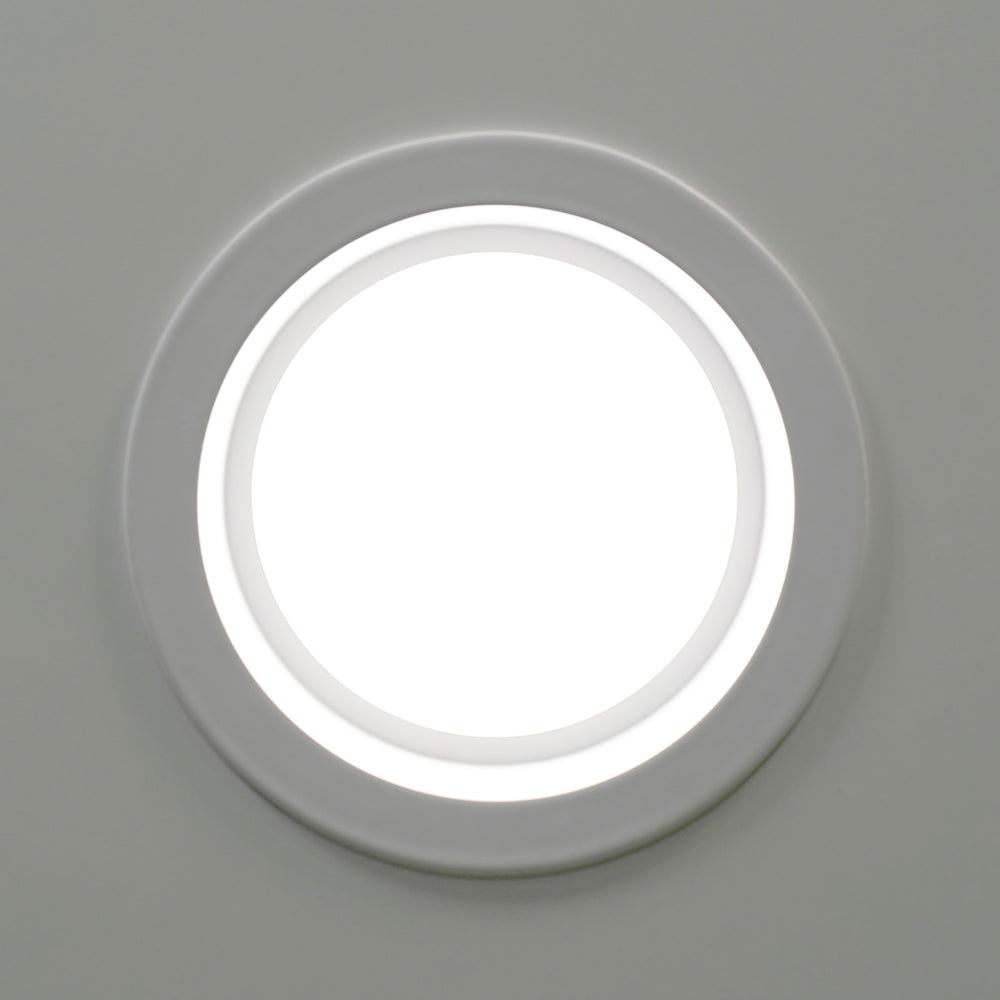

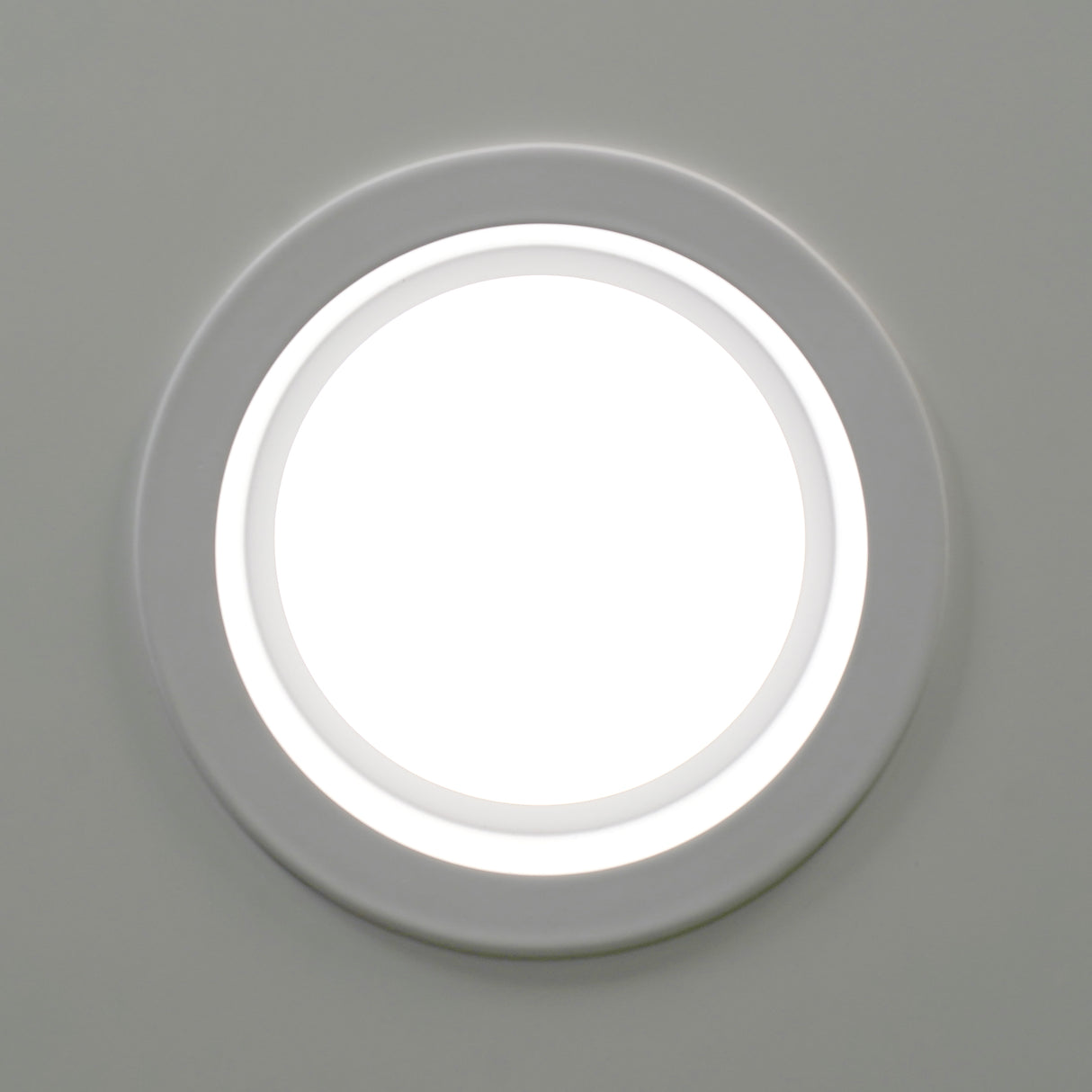

4" deep regressed slim panel light with selectable CCT for glare-free, modern illumination.

HIGHLIGHTS

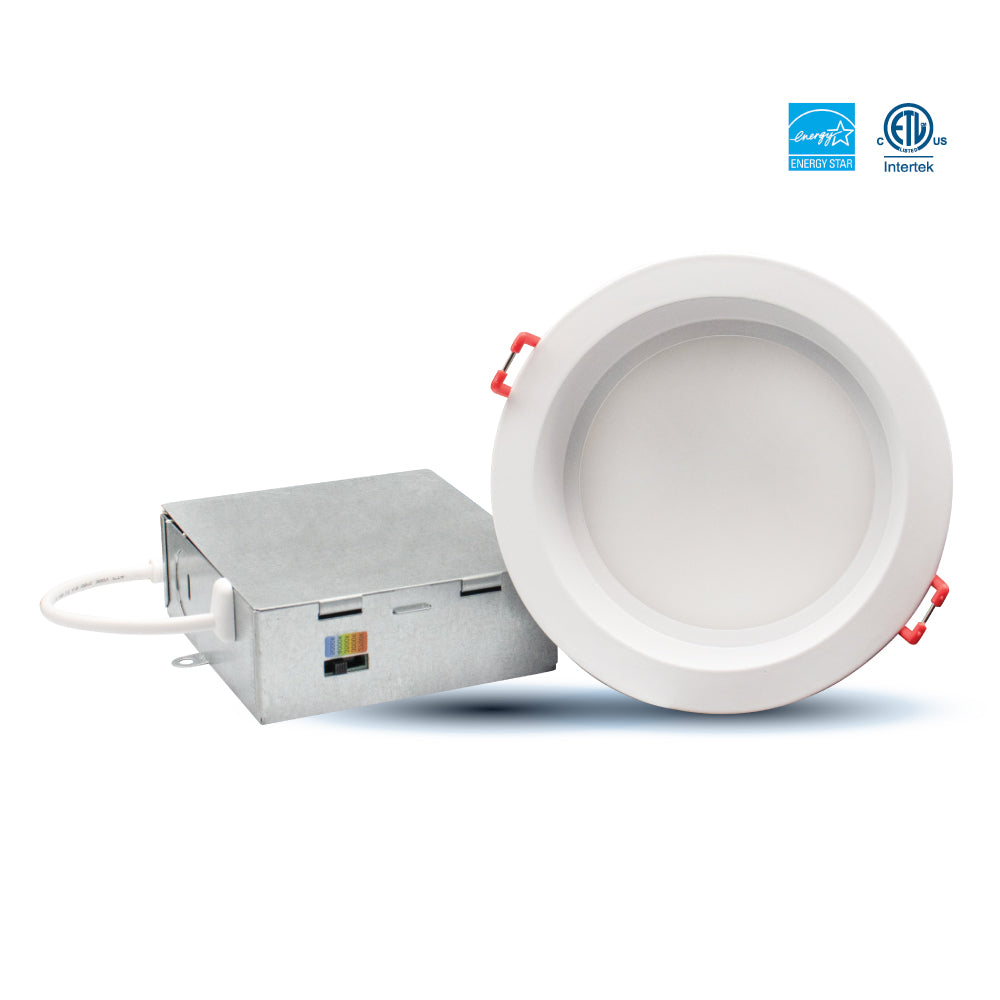

Driver: Comes with driver/transformer in packaging
Compatibility: Designed for use with 0–10V driver model OT-010-DR4
Optics: Edge-lit technology for no glare, no dark spots, and instant-on illumination
Dimming: TRIAC dimmable down to 10%
Insulation Rating: IC rated for direct contact with insulation
Location Rating: Suitable for damp locations
Lifespan: Rated for over 50,000 hours of operation
Features: Easy-access CCT switch and frosted lens for smooth light diffusion

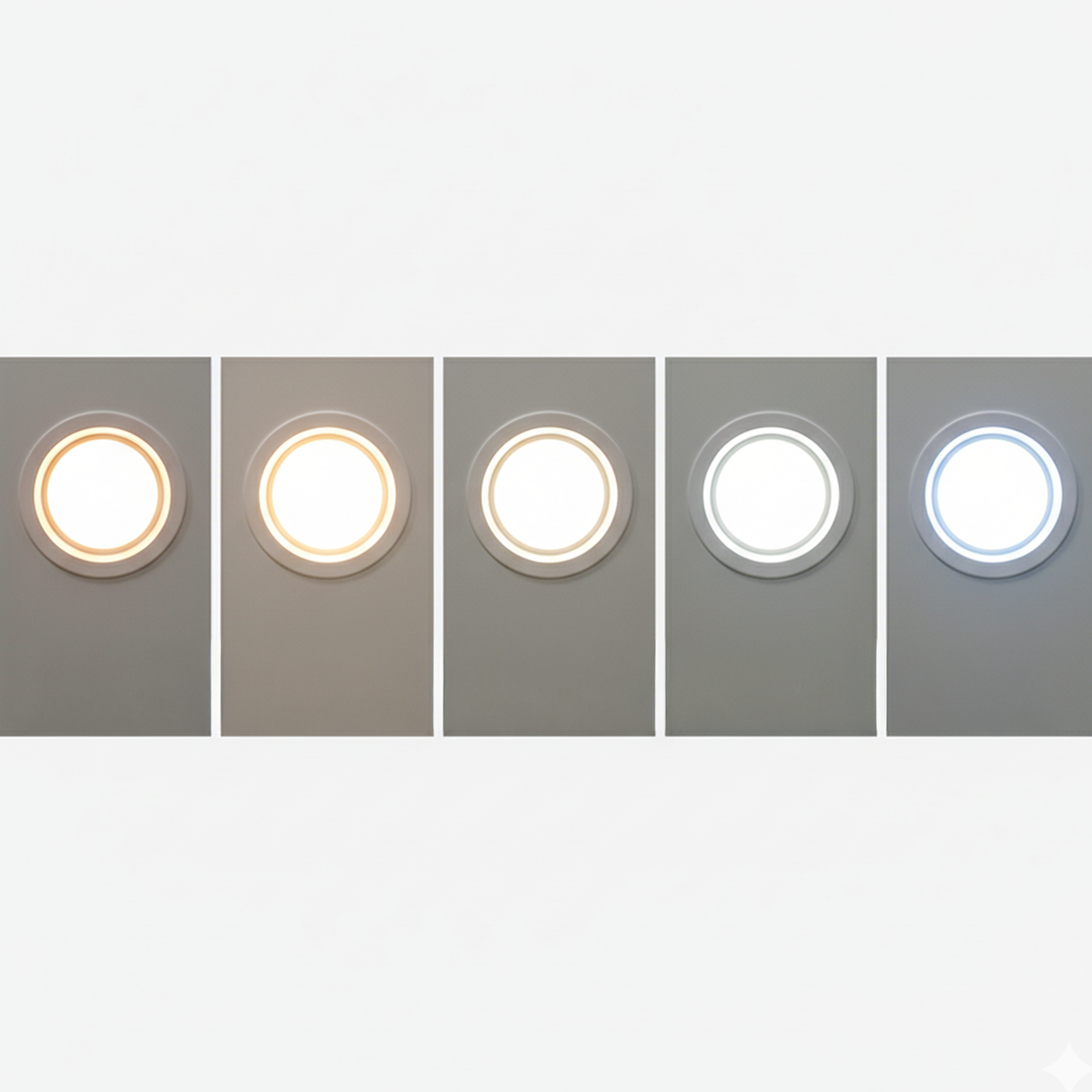

CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K

PRODUCT SHEETS

Spec Sheet

SLIM4DR-5CCT Spec Sheet

Instruction Manual

SLIM4DR-5CCT Instruction Manual

Dimmer List

SLIM4DR-5CCT Compatible Dimmer List

IES Files

SLIM4DR-5CCT IES Files

5CCT Selectable

Specifications

Wattage

12W
Voltage

120V AC
Lumens

750 lmn
Beam Angle

100°
CRI

80
Air Tight

Yes
Dimmable

Yes (TRIAC dimming)
Lifetime

50,000 hours
Rating

IC Rated / Damp Location
Grade of Protection

IP44
Application

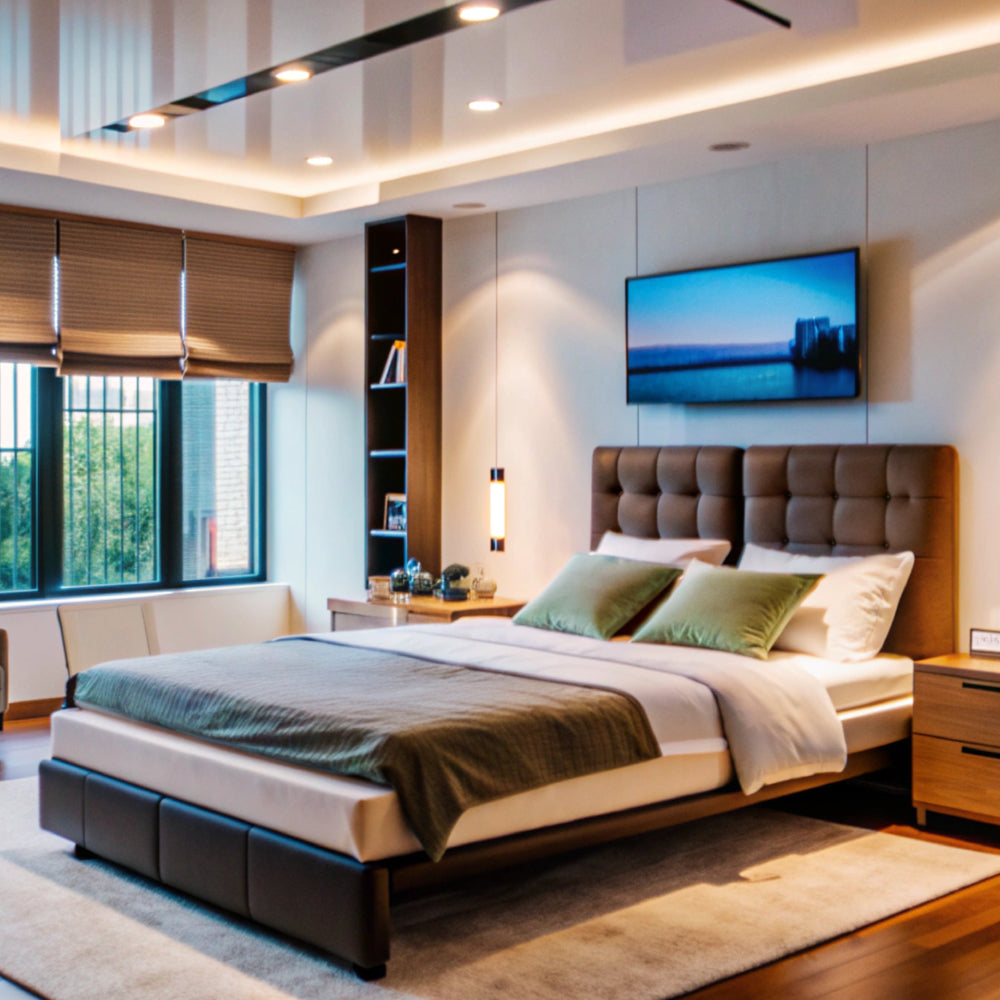

Recessed ceiling / Halls / Home / Office / Store / Cafe
Cutout

Ø4-1/8" (105mm)
Colour Temperature

5CCT [2700K/3000K/3500K/4000K/5000K]
Operating Temperature

-20°C ~ +40°C
Warranty

5 Years
Case Quantities

18

Product features

DECORATIVE TRIMS (sold separately)

Black

SLIM4DR-TRIM-BK
(Black)

Haze

SLIM4DR-TRIM-HZ
(Haze)

White Black

SLIM4DR-TR-WHBA
(White Black)

White Chrome

SLIM4DR-TR-WHCL
(White Chrome)

ACCESSORIES (sold separately)

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
(Construction plate made up of galvanized steel for recessed lighting)

PLATE4-HB

PLATE4-HB
(Galvanized steel mounting plate with hanger bars)

CORD-A24/A120

CORD-A24/A120
(Flexible Connector 2FT/10FT)

DMD-ELV

DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

OT-010-DR4

OT-010-DR4
(0-10V Class 2 LED Drive)
