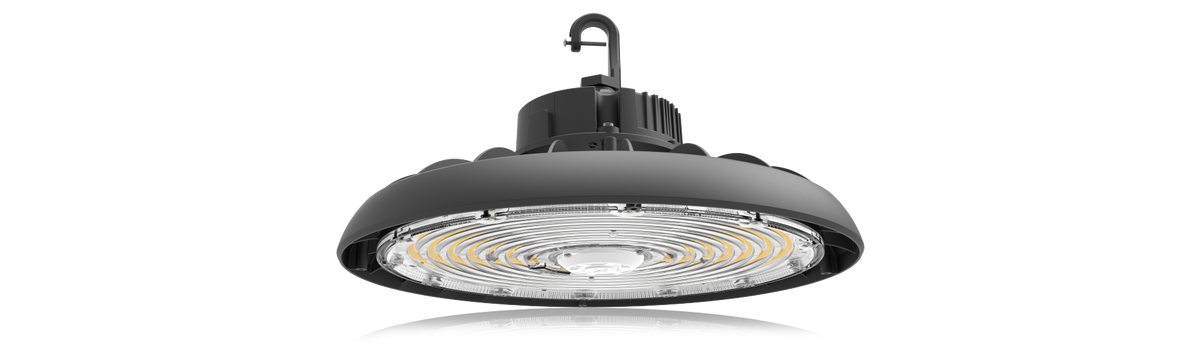

UFO-150-3CCT+W

Simple, stylish, small, and lightweight UFO high bays with selectable CCT and wattage.

HIGHLIGHTS

  • Excellent heat dissipation – Ensures long-lasting performance and reliability
  • DLC 5.1 Premium – Delivers high luminous efficacy with low UGR for visual comfort
  • PNP-SENSOR option – Sold separately for enhanced control
  • Round EM driver – Enables fast and efficient installation
  • Full accessory selection – Offers customization and flexibility
  • Mounting options included – Hook and chain provided in packaging

DLC No. / Product ID: S-JHK2E7

3CCT AND WATTAGE SELECTABLE

Specifications
  • Wattage
    100W|125W|150W
  • Voltage
    AC 120-347V
  • Lumens
    15,000 lmn | 18,750lmn | 22,500lmn
  • Beam Angle
    110°
  • CRI
    80Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 Hours
  • Rating
    Wet location
  • Grade of Protection
    IP 65 | IK 08
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    1

Certifications

Product features

Accessories (sold separately)

PNP-SENSOR
PNP-SENSOR
PNP-REMOTE
PNP-REMOTE
WIRE GUARD
WIRE GUARD
ALUMINUM REFLECTOR

PRODUCT SHEETS

Spec Sheet

UFO-150-3CCT+W Spec Sheet
PNP-SENSOR Spec Sheet

Instruction Manual

UFO-150-3CCT+W Instruction Manual
PNP-SENSOR Application Notice

Dimmer List

UFO-150-3CCT+W Dimmer Compatible List

IES Files

NA
