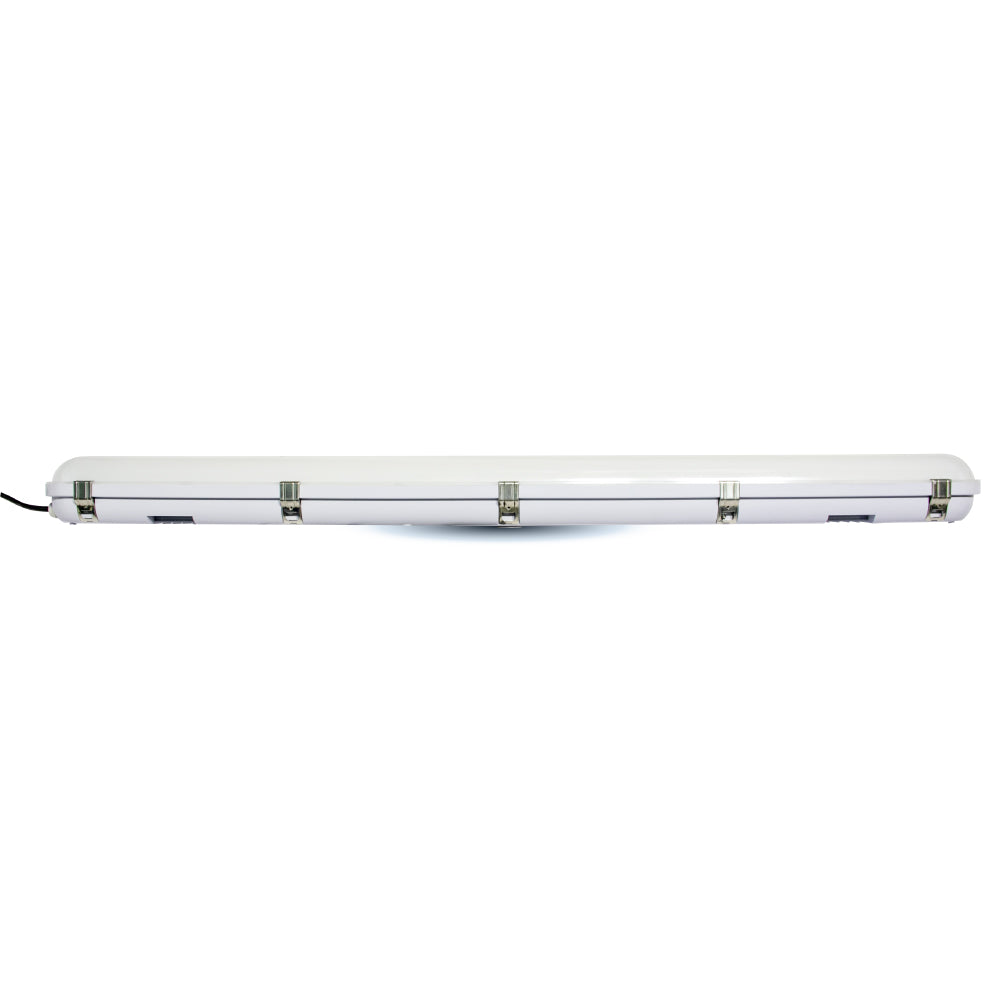

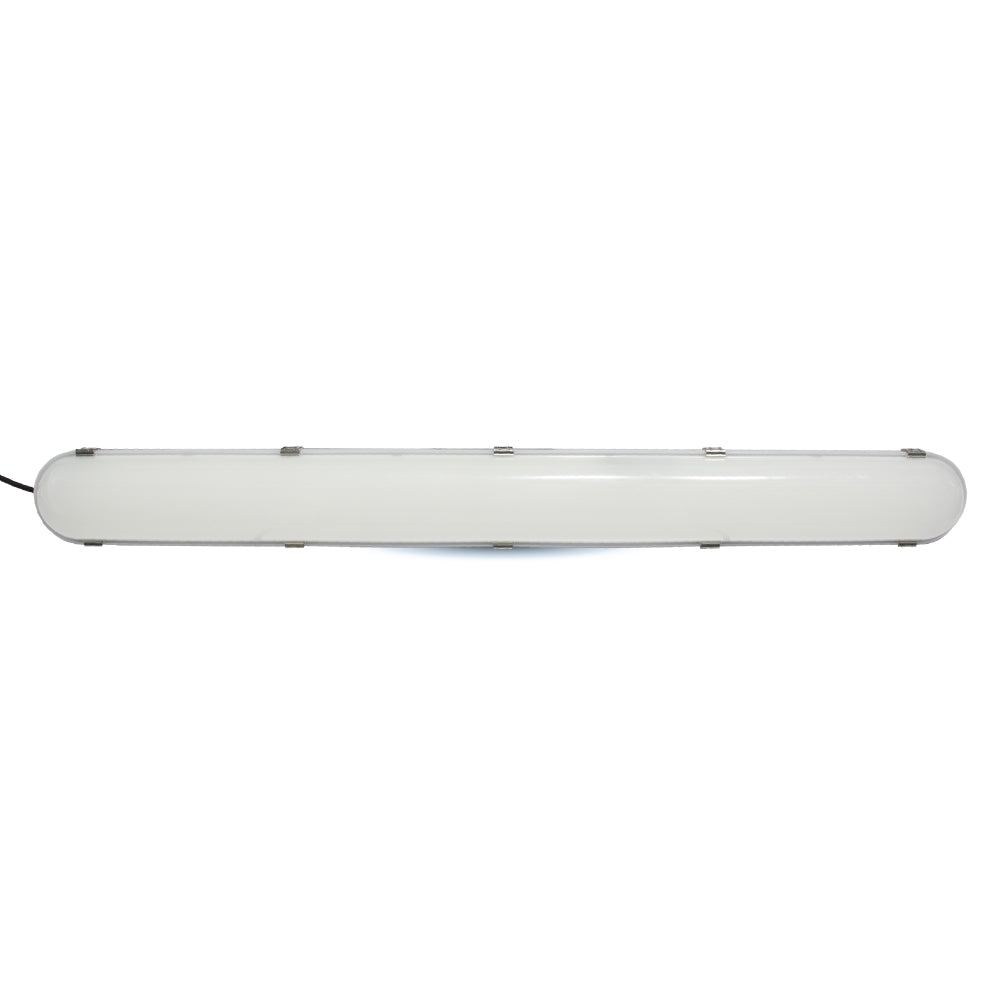

VT-W60MS-3CCT+W

NEMA 4X Wide Body Vapour Tight , With Selectable CCT & Wattage, Also Has Built-in Motion Sensor


HIGHLIGHTS

  • 4.92" wide body - fully covers most traditional junction boxes
  • Slotted iron Board, excellent heat dissipation
  • Modular installation, save labor cost
  • Suitable for all commercial needs
  • IP Rating 66 - rated for wet location
  • Comes with motion sensor with dip switch installed

DLC No. / Product ID: S-CP7PCF


3CCT AND WATTAGE SELECTABLE WITH BUILT-IN MOTION SENSOR

Specifications

  • Wattage
    40W/50W/60W
  • Voltage
    AC 120-347V
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Power Factor
    >0.9
  • Luminous Efficacy
    ≥130 lmn/W
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 Hours
  • Rating
    Wet Location
  • Grade of Protection
    IP66

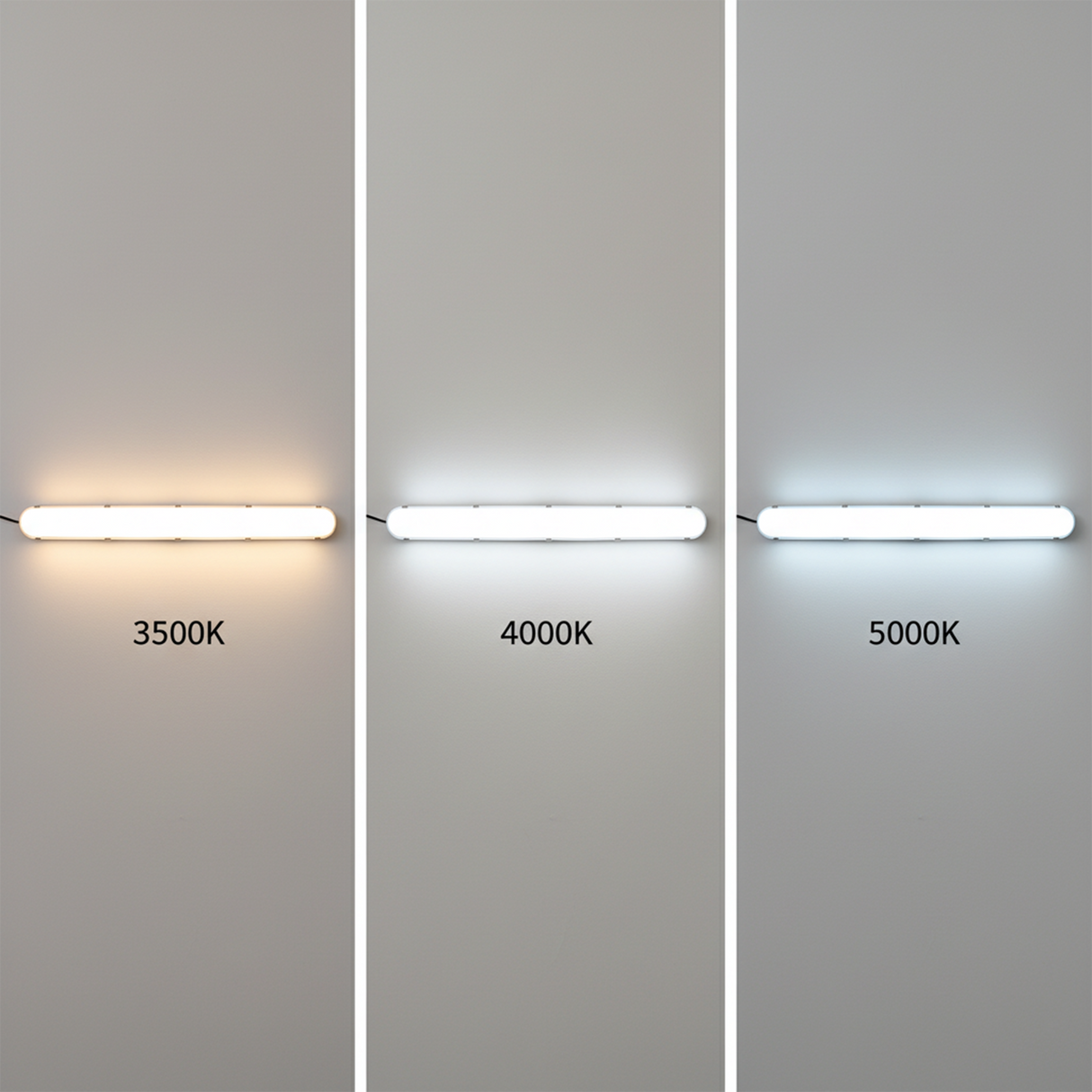

  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    8

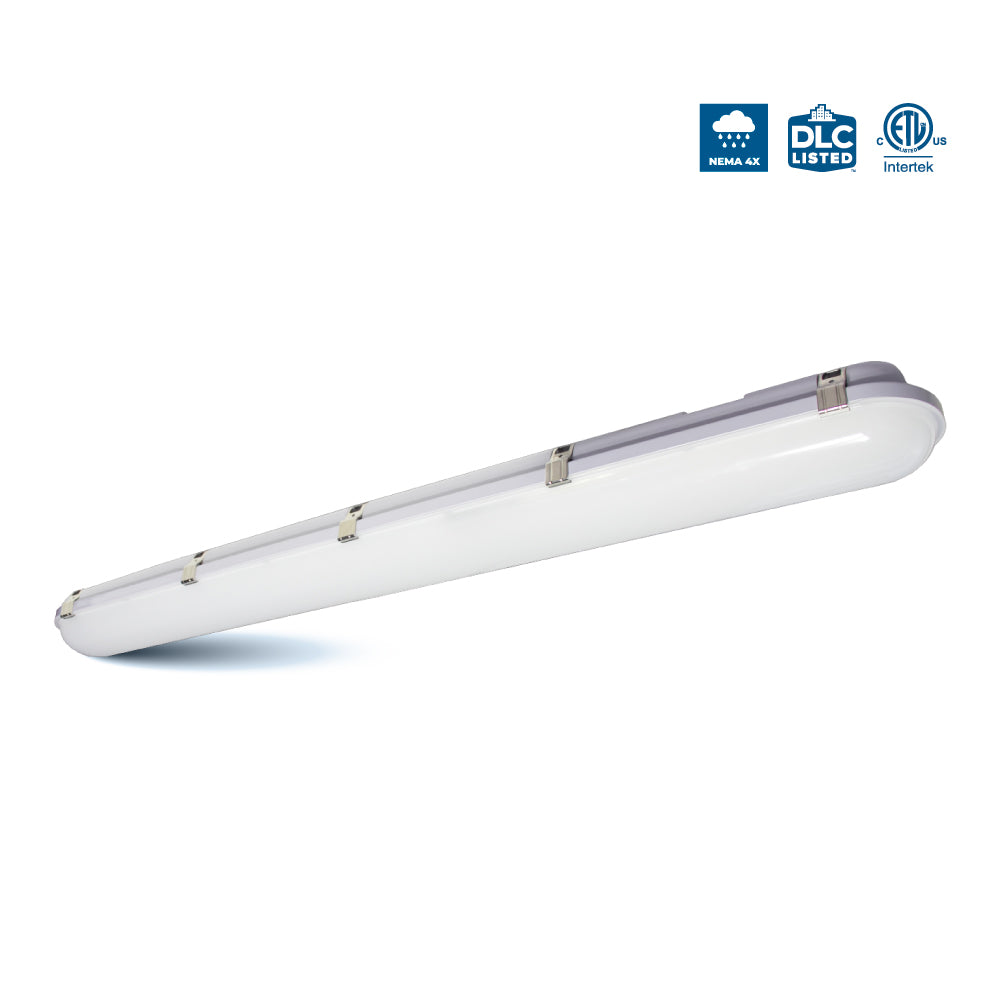

CERTIFICATIONS

Product features

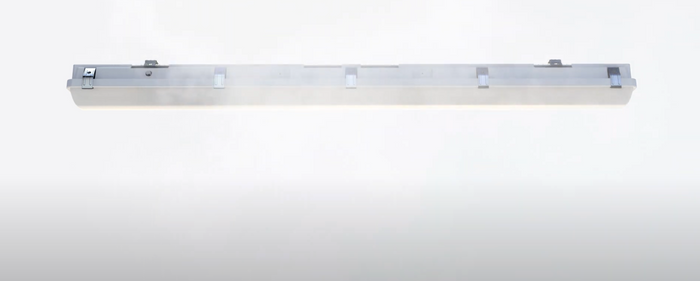

  • ANTI-CORROSION

    Built with corrosion-resistant materials, ORTECH’s LED Vapor Tight Lights withstand exposure to harsh chemicals, humidity, and salt spray. Their rugged construction prevents rust and deterioration, making them a reliable lighting solution for coastal areas, food processing plants, and chemical facilities.

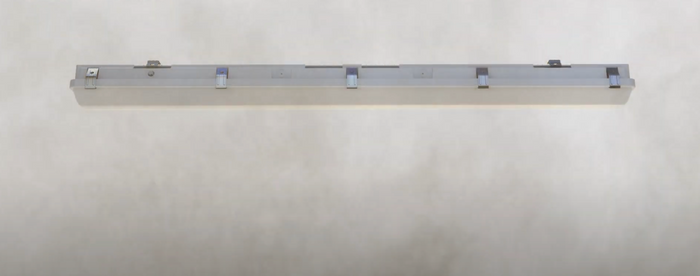

  • DUSTPROOF

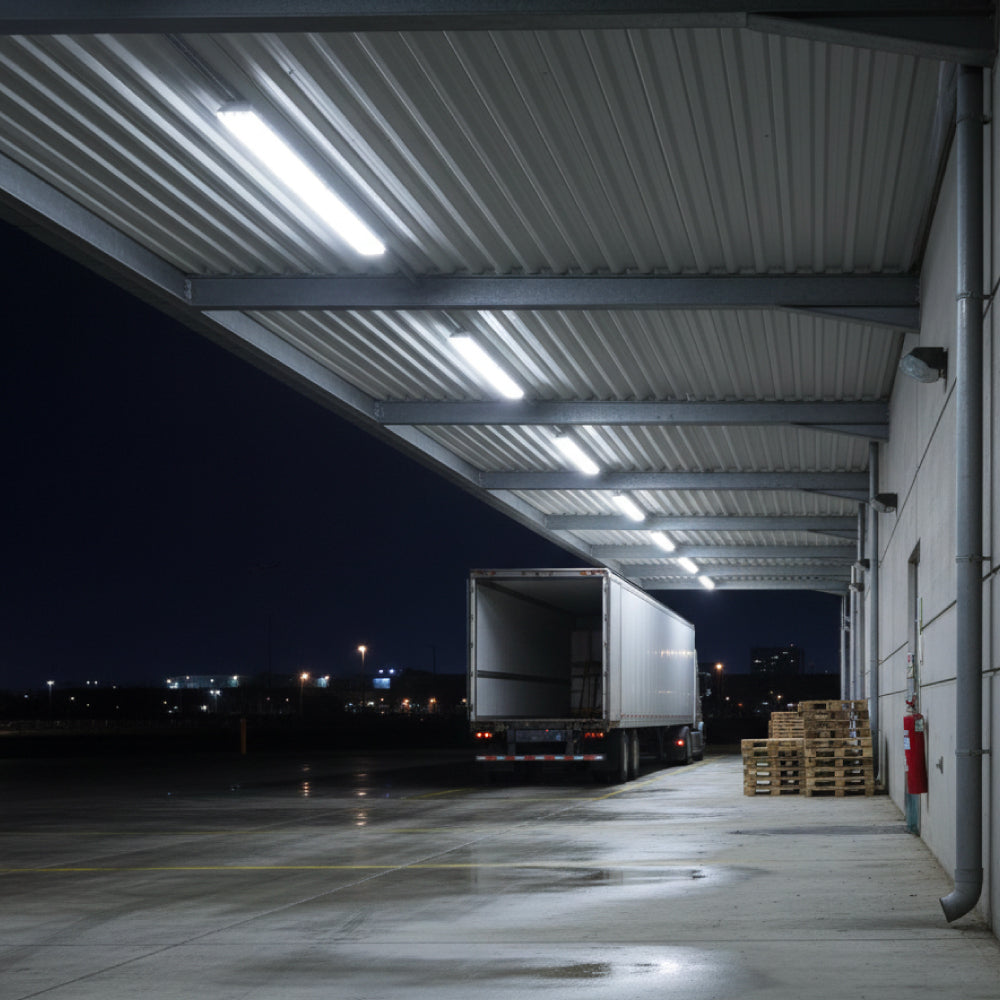

    ORTECH’s NEMA 4X-rated LED Vapor Tight Lights are designed to keep dust and debris out, ensuring consistent performance in the harshest environments. Their fully sealed enclosures prevent particle buildup, making them ideal for industrial facilities, warehouses, and workshops where cleanliness and visibility are critical.

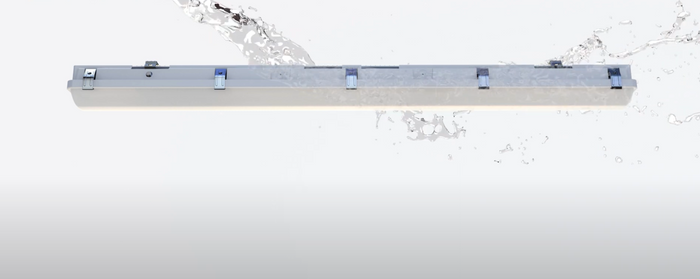

  • WATERPROOF

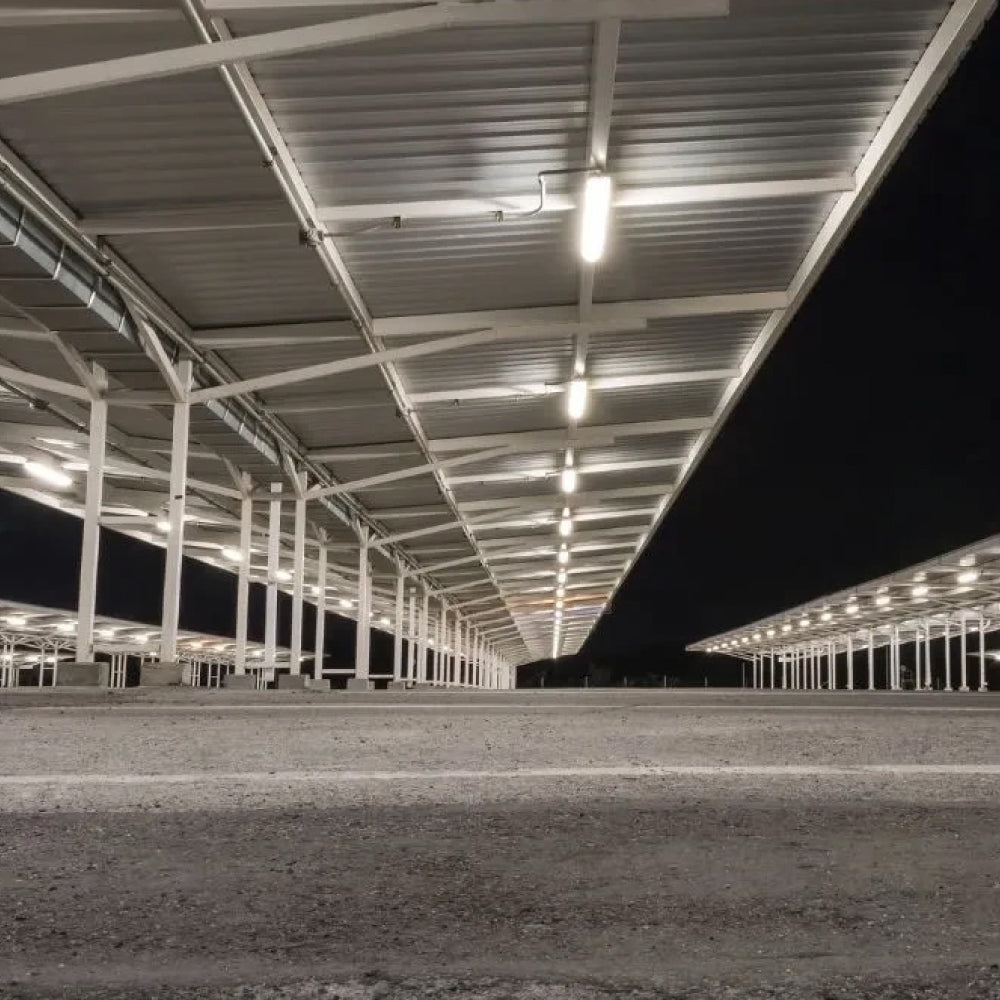

    Engineered with an IP66 waterproof rating, ORTECH’s LED Vapor Tight Lights are fully protected against powerful water jets and heavy rain. Suitable for wet and damp locations, these lights provide dependable illumination in parking garages, car washes, and outdoor walkways, ensuring performance in any weather condition.

Accessories (sold separately)

VT-SUS-KIT
VT-SUS-KIT
(aircraft cable length: 4.2ft.)

Check Out the Video for installation methods

PRODUCT SHEETS

Spec Sheet

Instruction Manual

Dimmer List

IES Files
