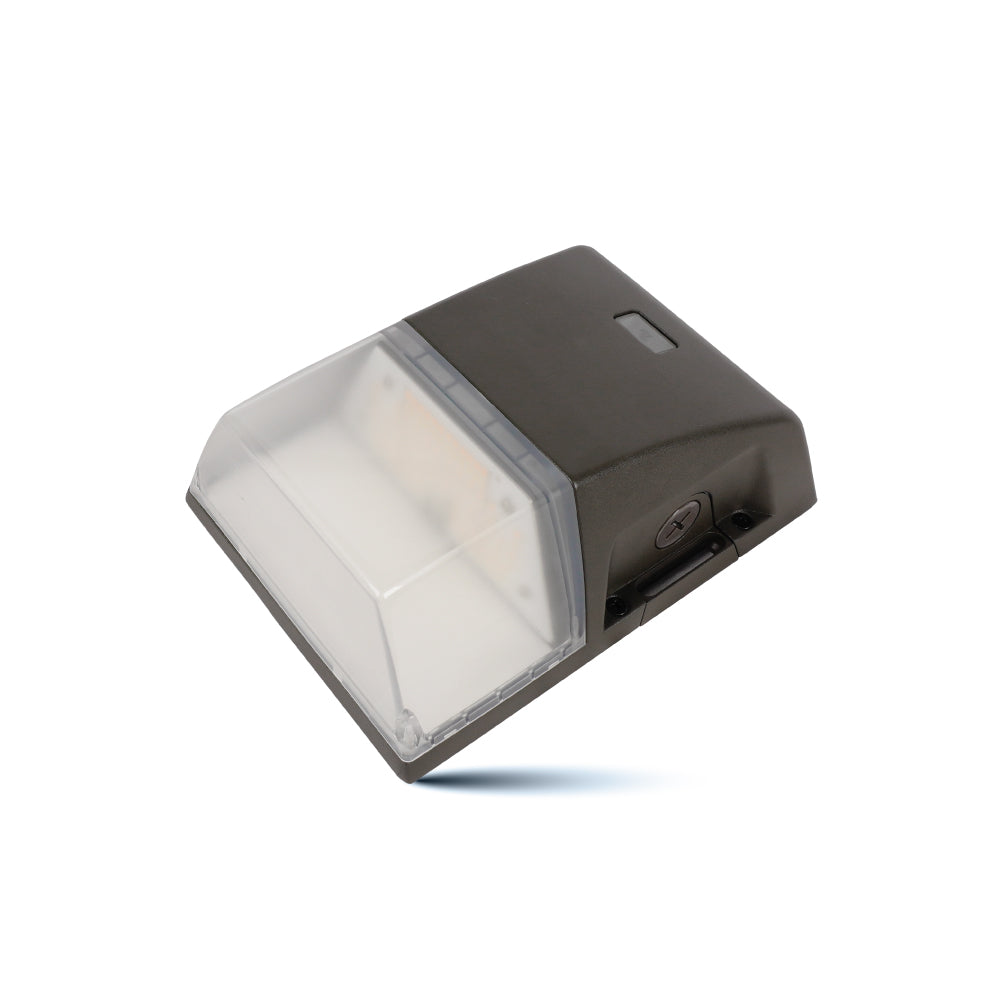

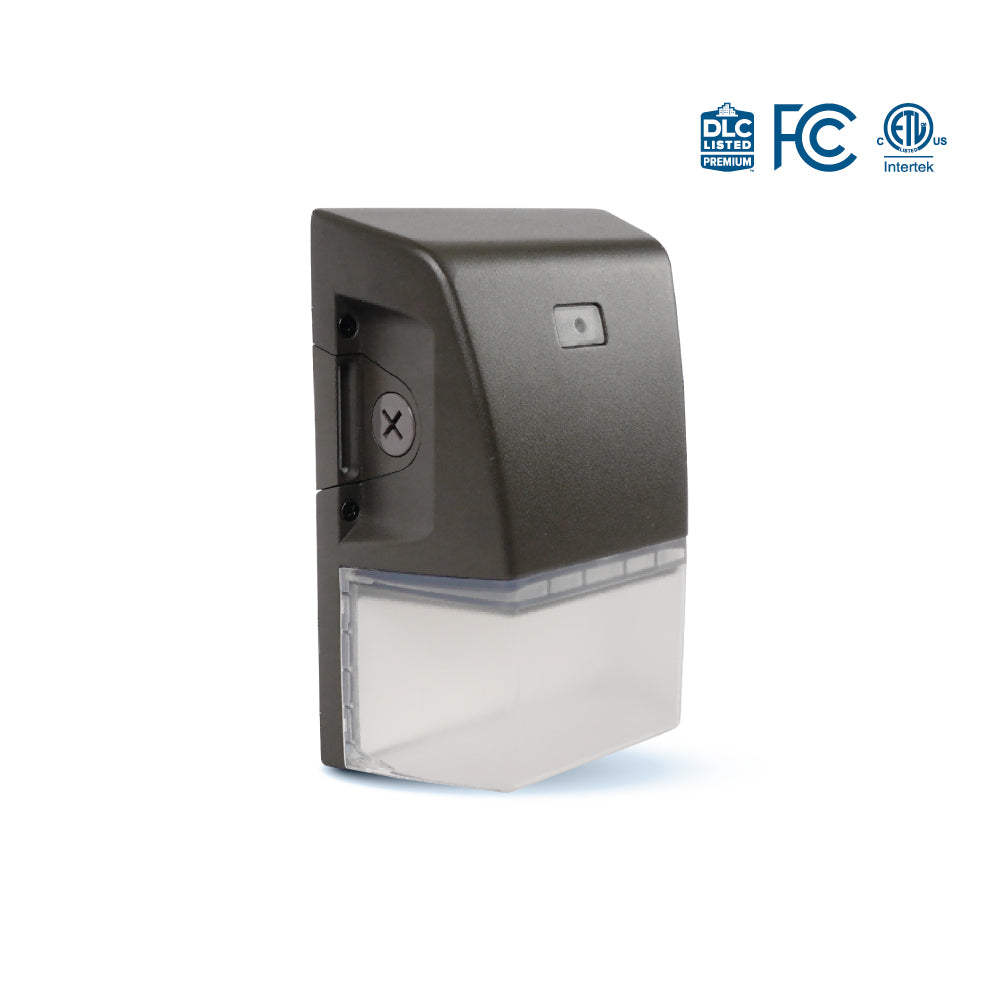

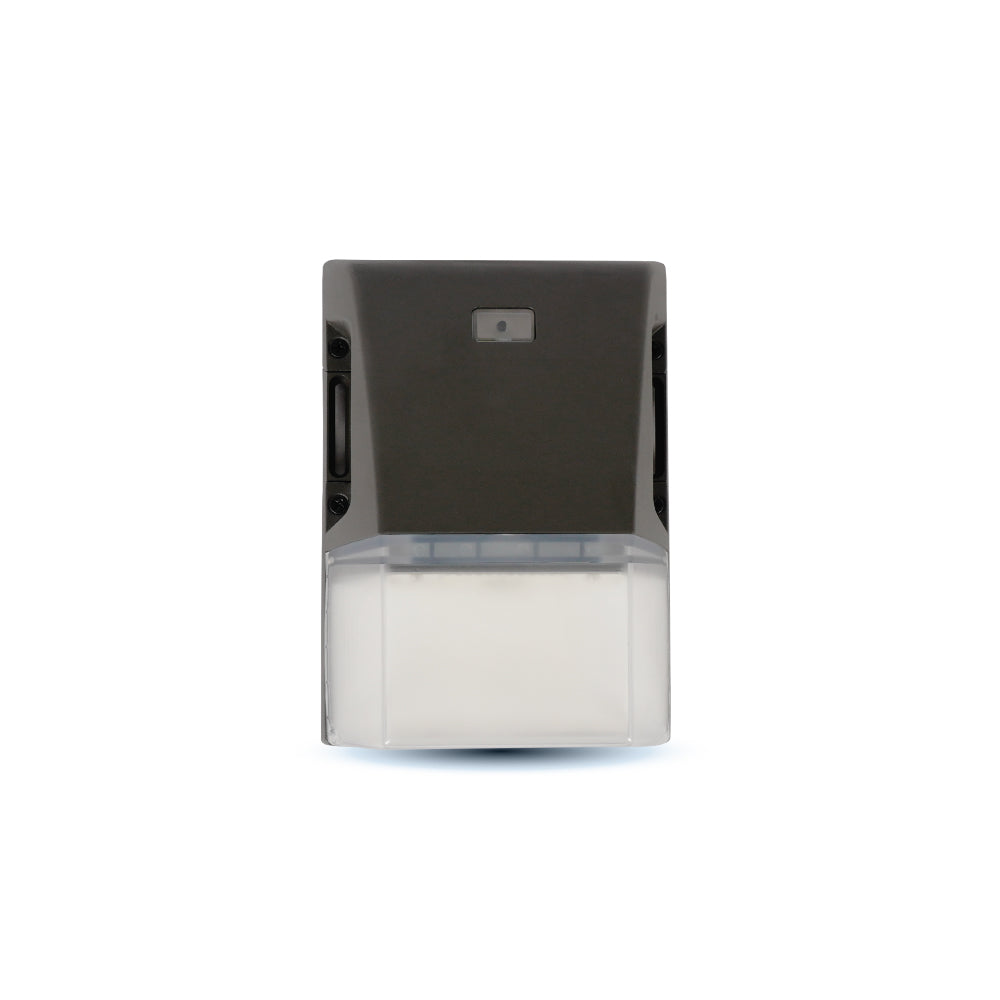

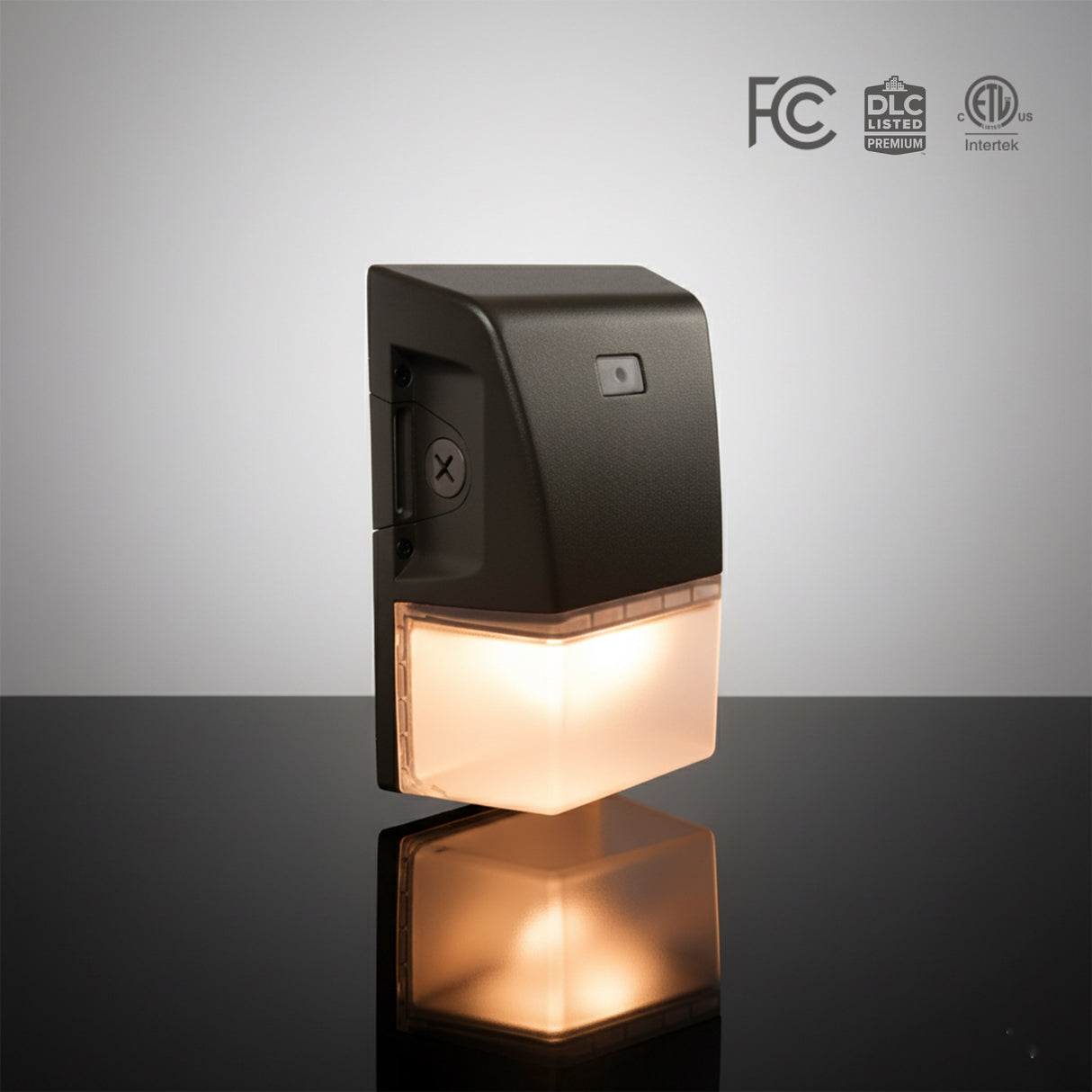

M-WP25-3CCT+W

LED mini wall pack with integrated photocell sensor, featuring selectable CCT and wattage.

HIGHLIGHTS

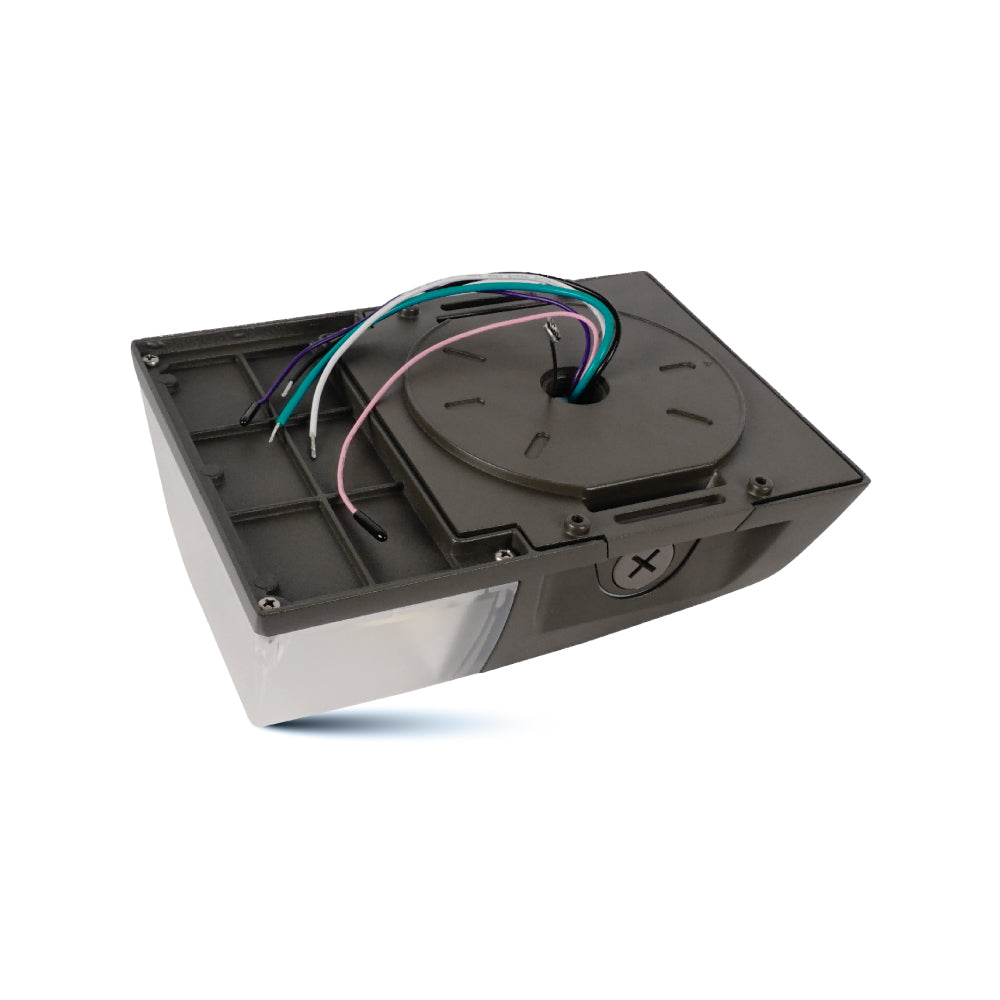

  • Easy installation – Includes surface-mounted kit in packaging
  • Compact structure – Reduces shipping and storage costs
  • Die-cast aluminum cooling – Enhances heat dissipation and durability
  • Optimized optics design – Improves light utilization and uniformity
  • Built-in photocell sensor – Automatically turns on at dusk and off at dawn for energy savings

DLC No. / Product ID: S-QTVBI5

Mini Wall Pack with Integrated Photocell Sensor

Specifications
  • Wattage
    15W/20W/25W
  • Voltage
    AC 100-277V
  • Lumens
    >125 lmn/W
  • Beam Angle
    90°x140°
  • CRI
    80Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 hours
  • Rating
    Wet location
  • Grade of Protection
    IP65

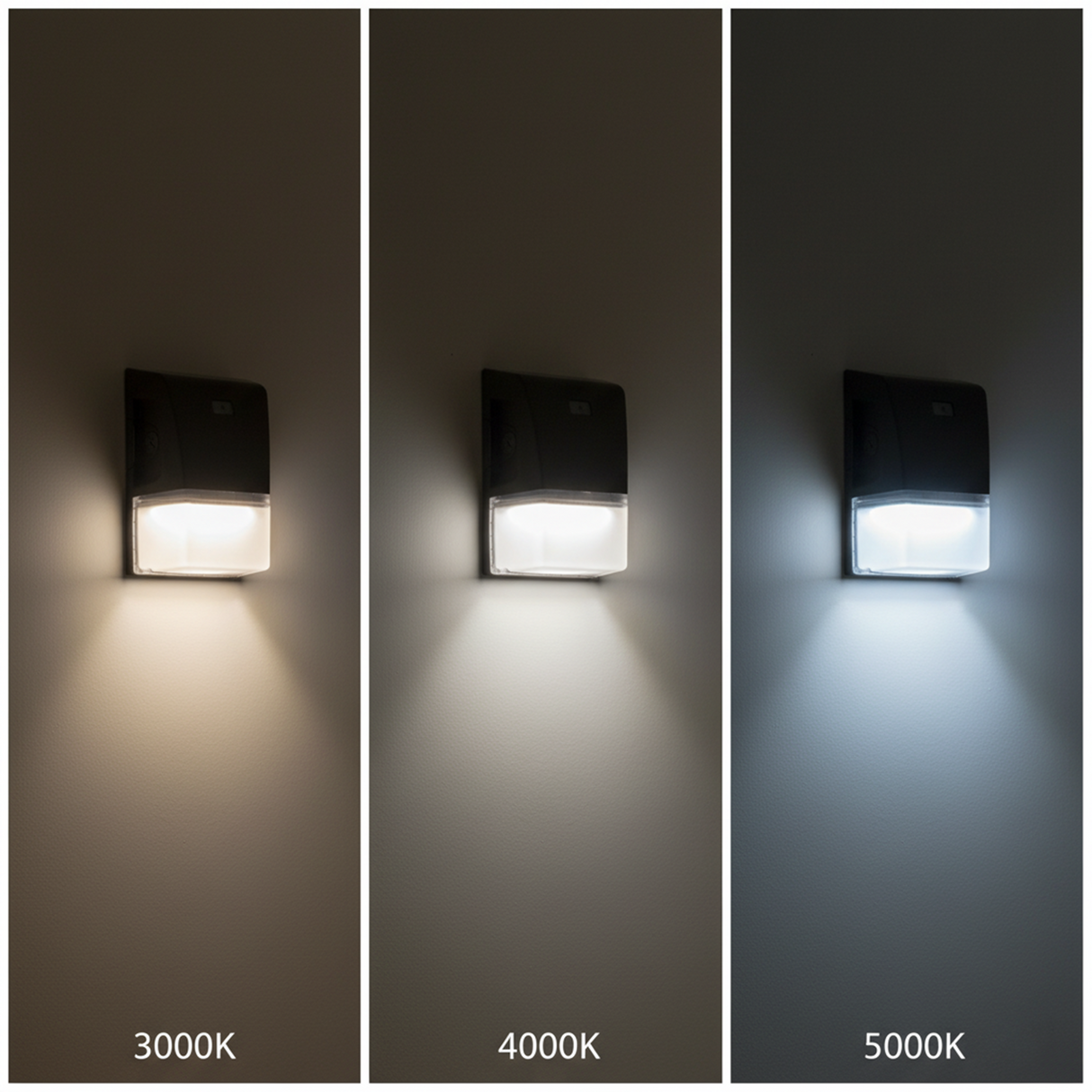

  • Colour Temperature
    3CCT [3000K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Material
    ADC12 | Bracket Fixed
  • Rated Current
    0.28A
  • Operating Temperature
    -40°C~45°C
  • Warranty
    5 Years
  • Case Quantities
    20

Certifications

PRODUCT SHEETS

Spec Sheet

M-WP25-3CCT+W Spec Sheet

Instruction Manual

M-WP25-3CCT+W Instruction Manual

Dimmer List

M-WP25-3CCT+W Dimmer Compatible List

IES Files

M-WP25-3CCT+W IES Files
