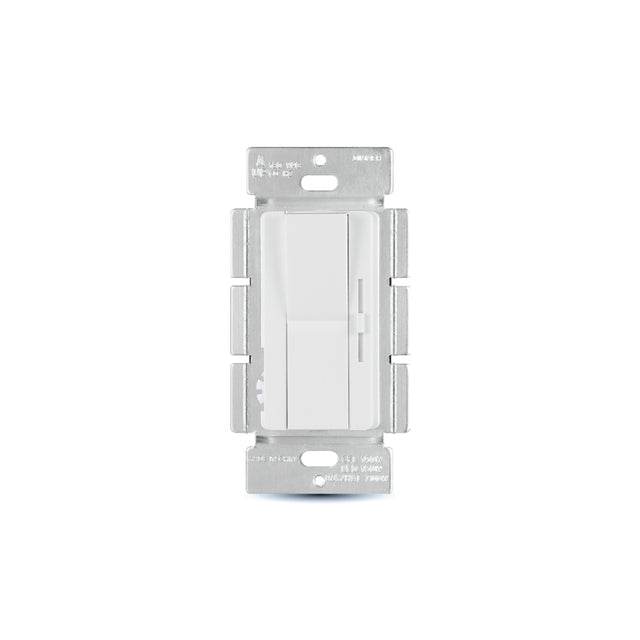

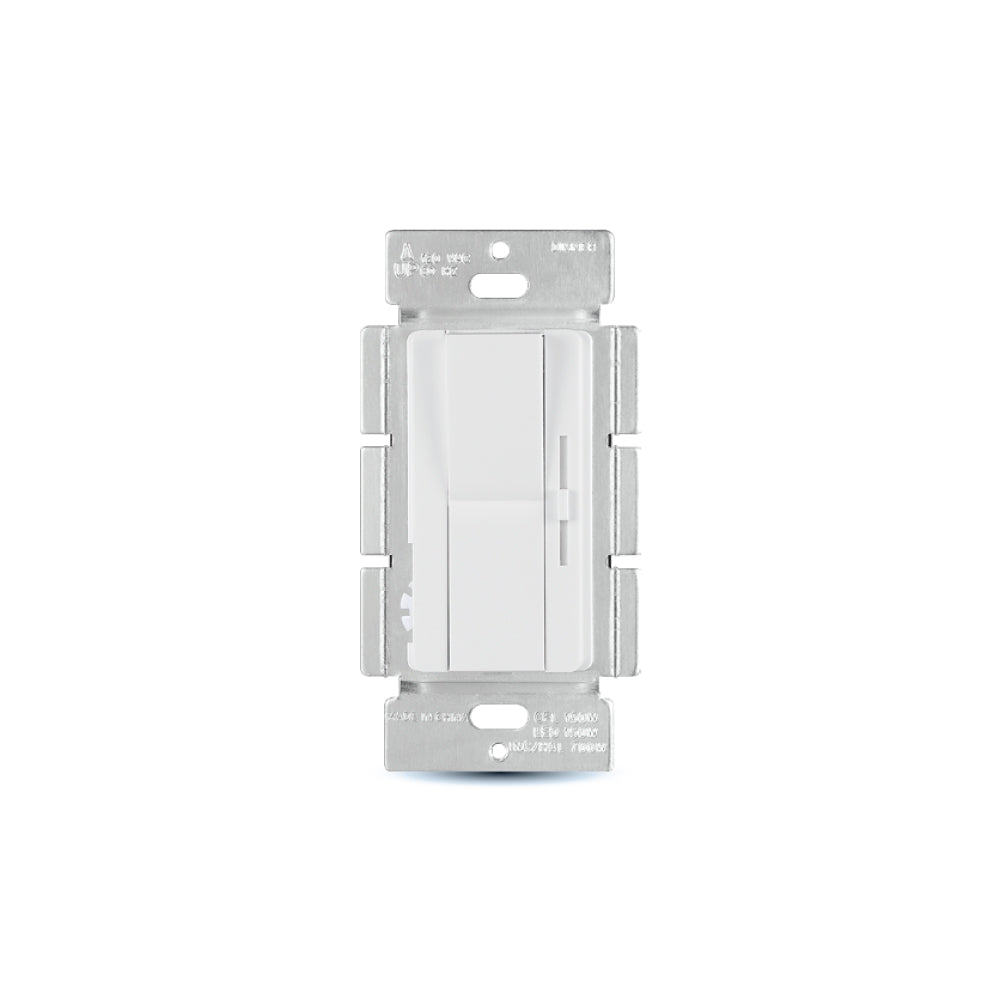

DMD-LED-3

LED/CFL 150W dimmable single pole three-way decorator dimmer switch, designed for compatibility with dimmable LED and CFL bulbs up to 150 watts, supports both single-location and three-way wiring configurations, and features a sleek decorator-style design for modern residential or commercial lighting control.

HIGHLIGHTS

  • 0-10V low-voltage lighting control
  • Minimum light level (low-end) shall be adjusted to optimize performance
  • Provides dimming control for 0-10V compatible LED drivers, fluorescent ballast & HID ballast

Three way Decorator Dimmer Switch

Specifications
  • Voltage
    0-10V AC
  • Relative Humidity
    95% RH, non-condensing
  • Frequency Range
    60Hz
  • LED/CFL
    150W Dimmable
  • Electronic Ballast/LED
    120V AC 6A 277V AC 3A
  • Incandescent
    600W
  • Operating Temperature
    0ºC ~ +55ºC
  • Case Quantities
    60

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

DMD-LED-3 Spec Sheet

Instruction Manual

DMD-LED-3 Instruction Manual
