EV-14-50-R

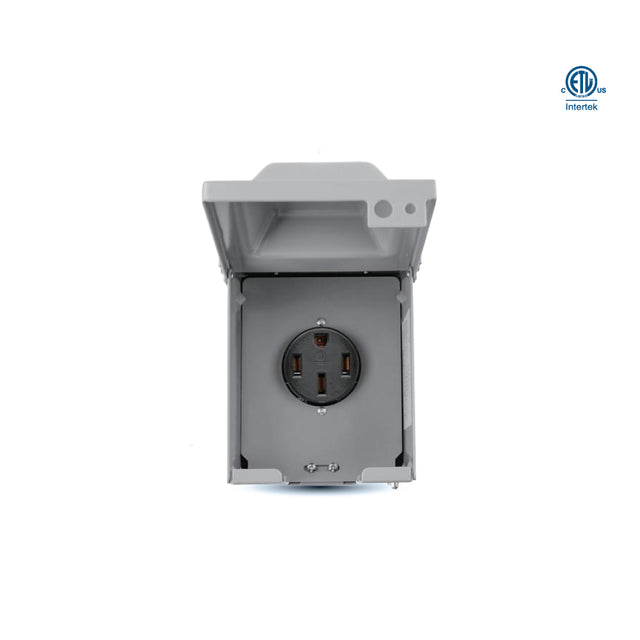

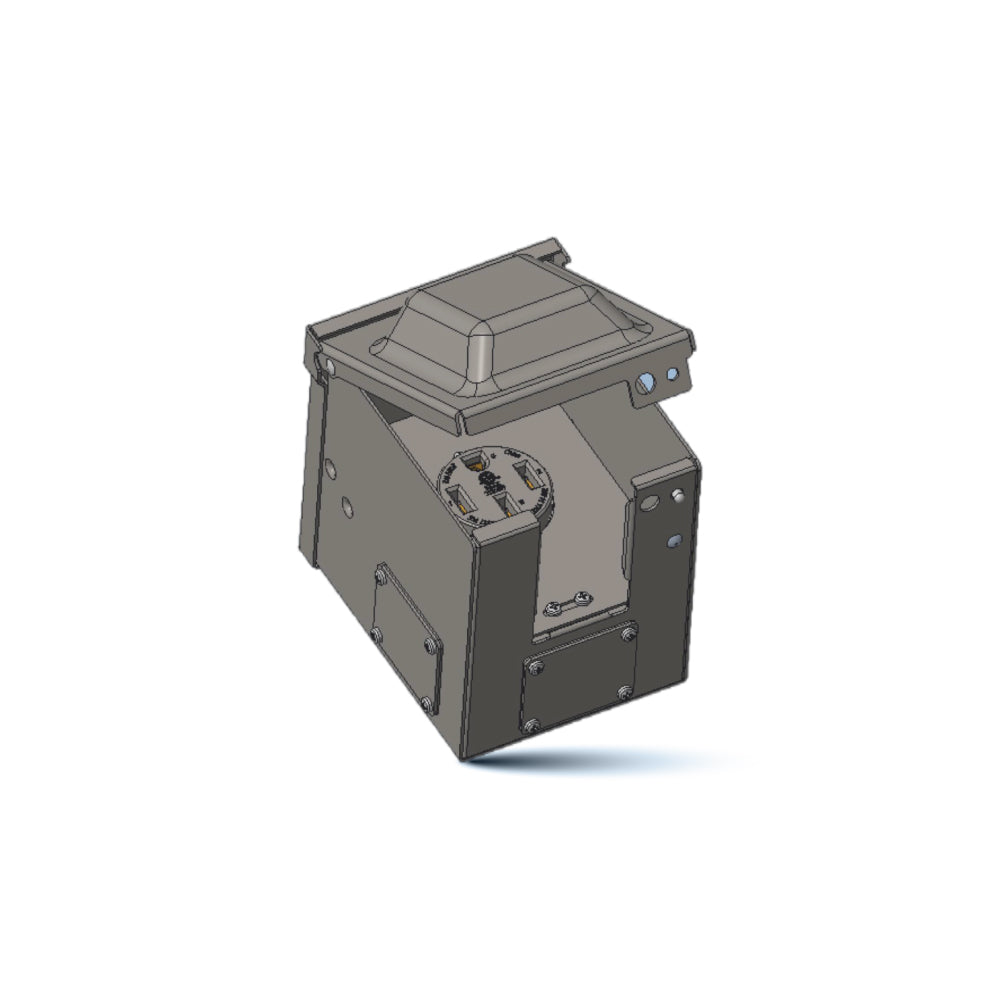

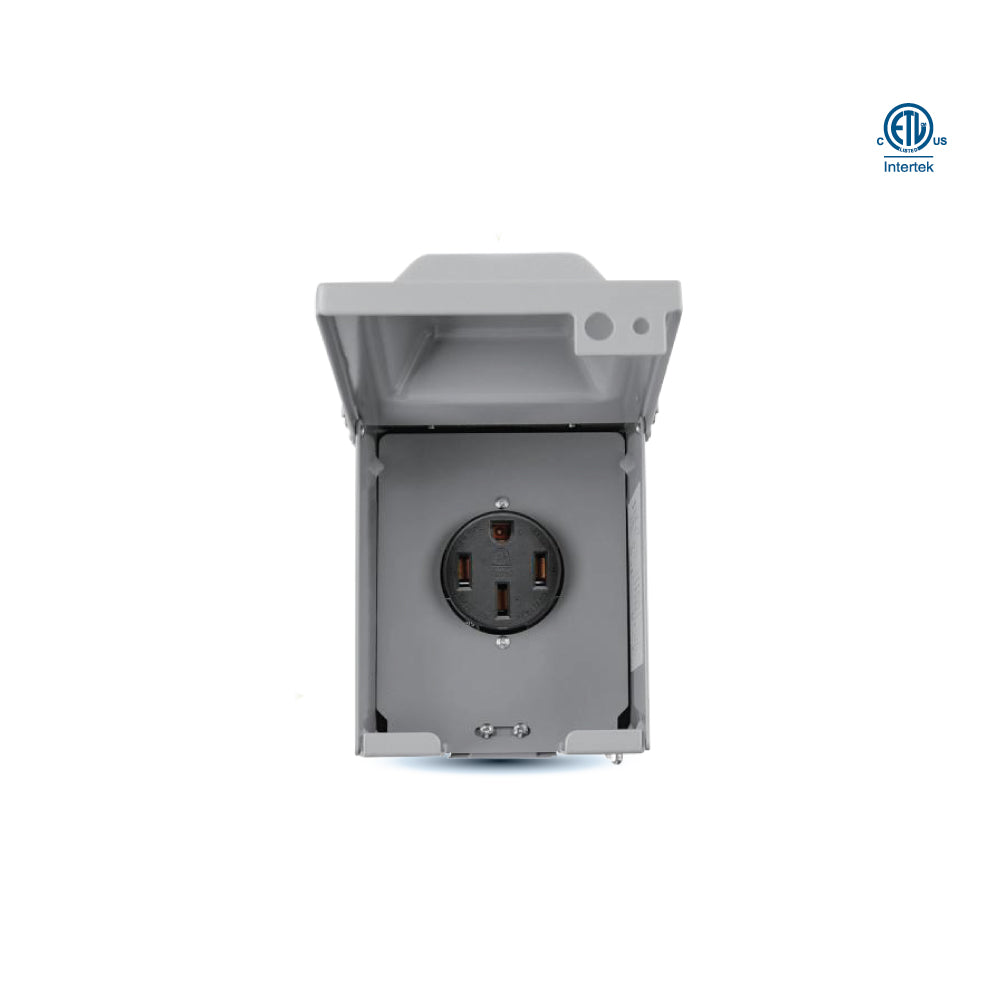

NEMA Type 14-50R, 50A 125/250V receptacle in metal enclosure, designed for high-power applications such as EV charging or RV hookups, features a durable metal housing for enhanced protection, supports 50-amp service at 125/250 volts, and meets NEMA standards for safe and reliable residential or commercial installations.

HIGHLIGHTS

  • Suitable for copper wires ONLY

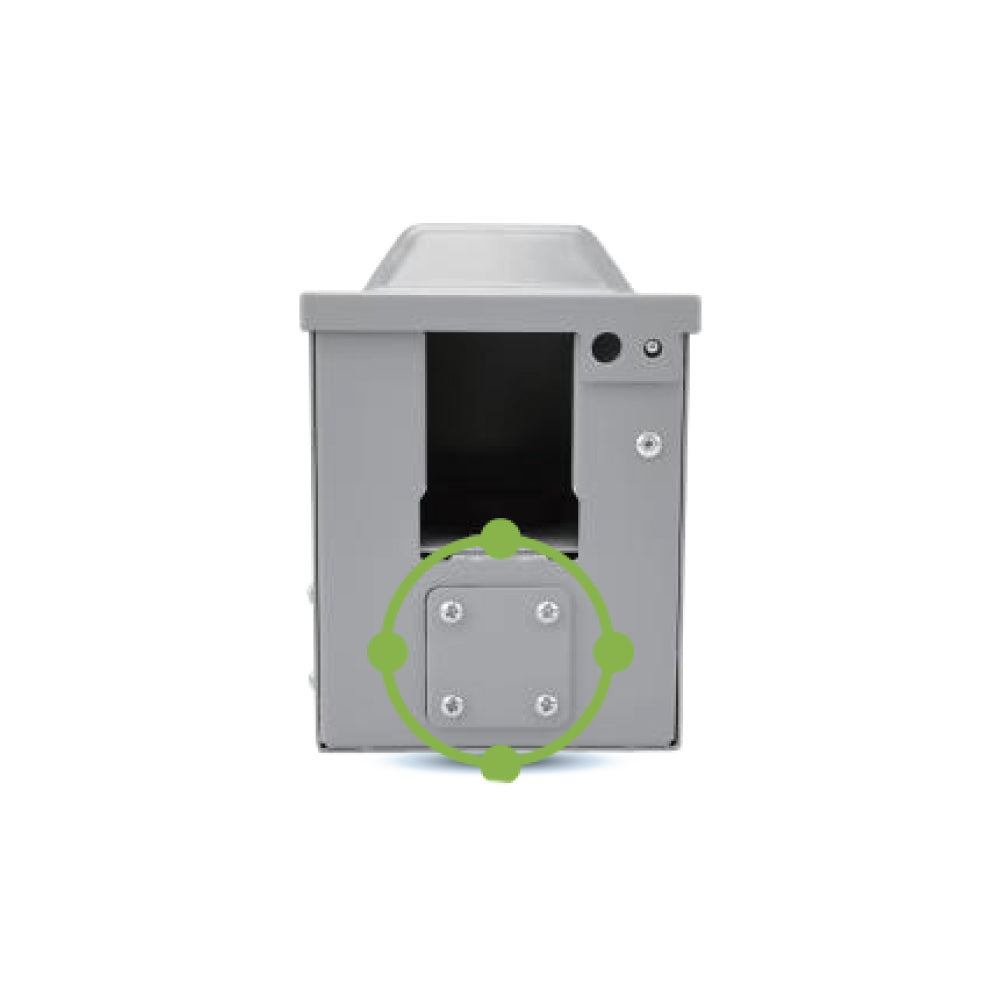

  • 4 pre-drilled holes to suit installation in any direction
  • Metal spring lock button to secure the outlet box cover in place
  • Anti-Theft - blank holes allow installation of pad lock for enhanced security
  • Power Plug Type: Type A-2Pin (North America)
  • No. of Poles: 3-Pole
  • Wire Guage: 4AWG ~ 8AWG

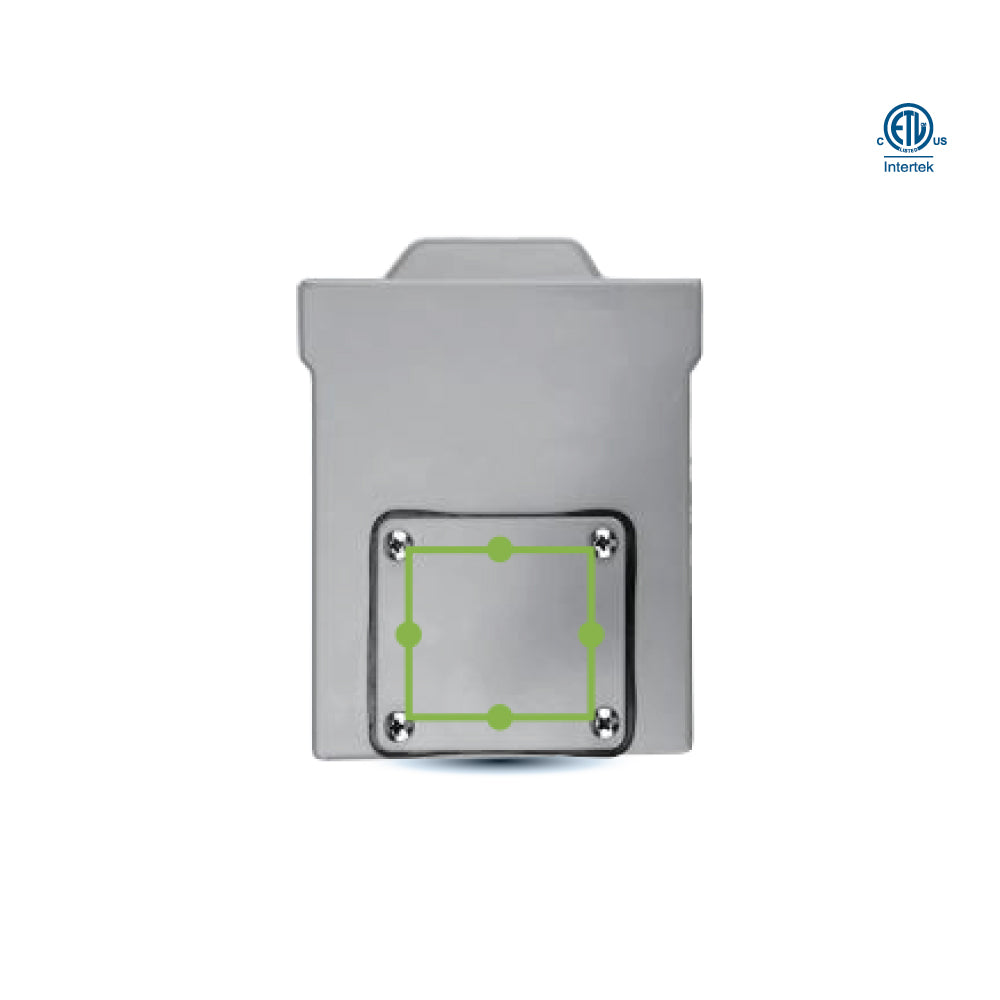

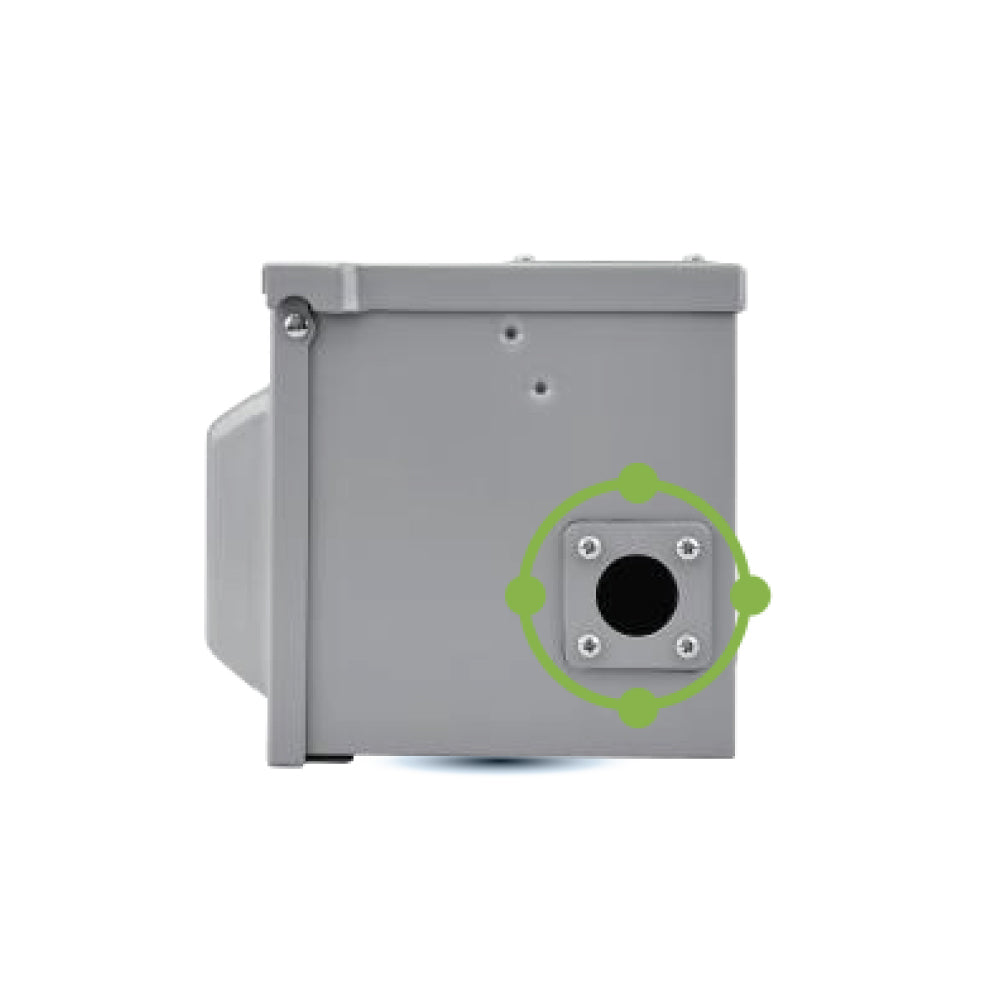

  • Packaging includes 3 covers with different sized holes (1/2", 3/4" and 1"), allowing you to choose from various thread sizes

NEMA 14-50R Receptacle

Specifications
  • Voltage
    125/250V
  • Rating
    Weatherproof
  • Application
    RV Chargers, EV Charging, Powering heavy duty appliances like electric ranges
  • Amps
    50A
  • Size
    17.5 x 13.5 x 15.5 cm
  • Material
    Steel
  • No. Of Wires
    4-WIRES: 2 wires - LOAD, 1 wire - NEUTRAL, 1 wire - GROUNDING
  • Operating Ambient
    -20°C ~ +85°C
  • Storage Temperature
    -20°C ~ +60°C
  • Base Socket
    NEMA 14-50R Receptacle
  • Type
    Recommended Cord Type: S, SO, SOO, ST, STO, STOO, SOW, SOOW, STW, STOW, STOOW
  • Case Quantities
    6

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

EV-14-50-R Spec Sheet

Instruction Manual

EV-14-50-R Instruction Manual
