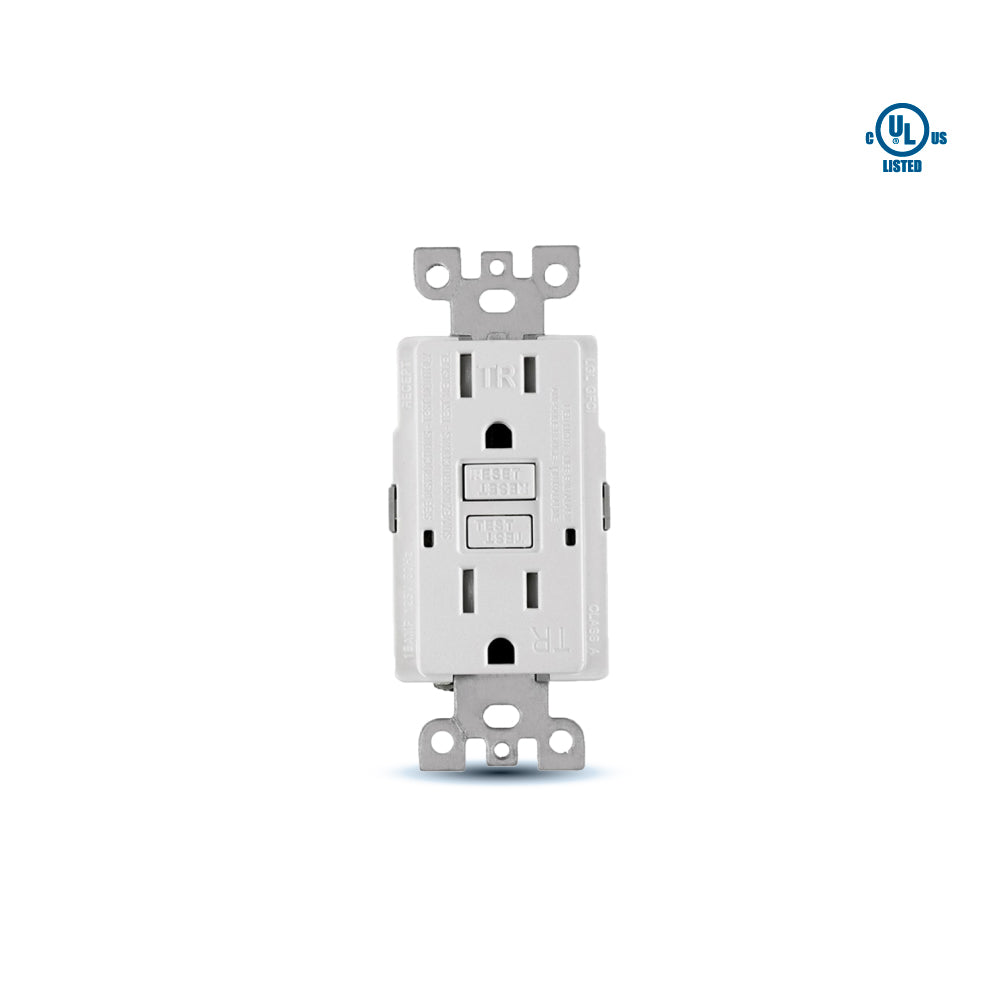

MH15-ST

15-amp self-testing tamper-resistant GFCI receptacle with wall plate, designed to enhance electrical safety by detecting ground faults and preventing unintended object insertion, features automatic self-testing functionality and includes a matching wall plate for a clean, code-compliant installation in residential or commercial settings.

HIGHLIGHTS

  • 2 pole 3 wires grounding duplex receptcle
  • Impact-resistant thermoplastic cover and body
  • Provides protection with periodic automatic testing
  • Further durability against electrical noise and moisture corrosion
  • Featuring a built-in safety shutter system to prevent insertion of foreign objects into openings

Self-testing Tamper Resistant GFCI Receptacle

Specifications
  • Wattage
    1800W
  • Voltage
    120V AC
  • Relative Humidity
    95% RH, non-condensing
  • Amps
    15A
  • Frequency Range
    60Hz
  • Trip Level
    4-6mA
  • Trip Time
    25ms
  • Operating Temperature
    -35ºC ~ +66ºC
  • Case Quantities
    60

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

MH15-ST Spec Sheet

Instruction Manual

MH15-ST Instruction Manual
