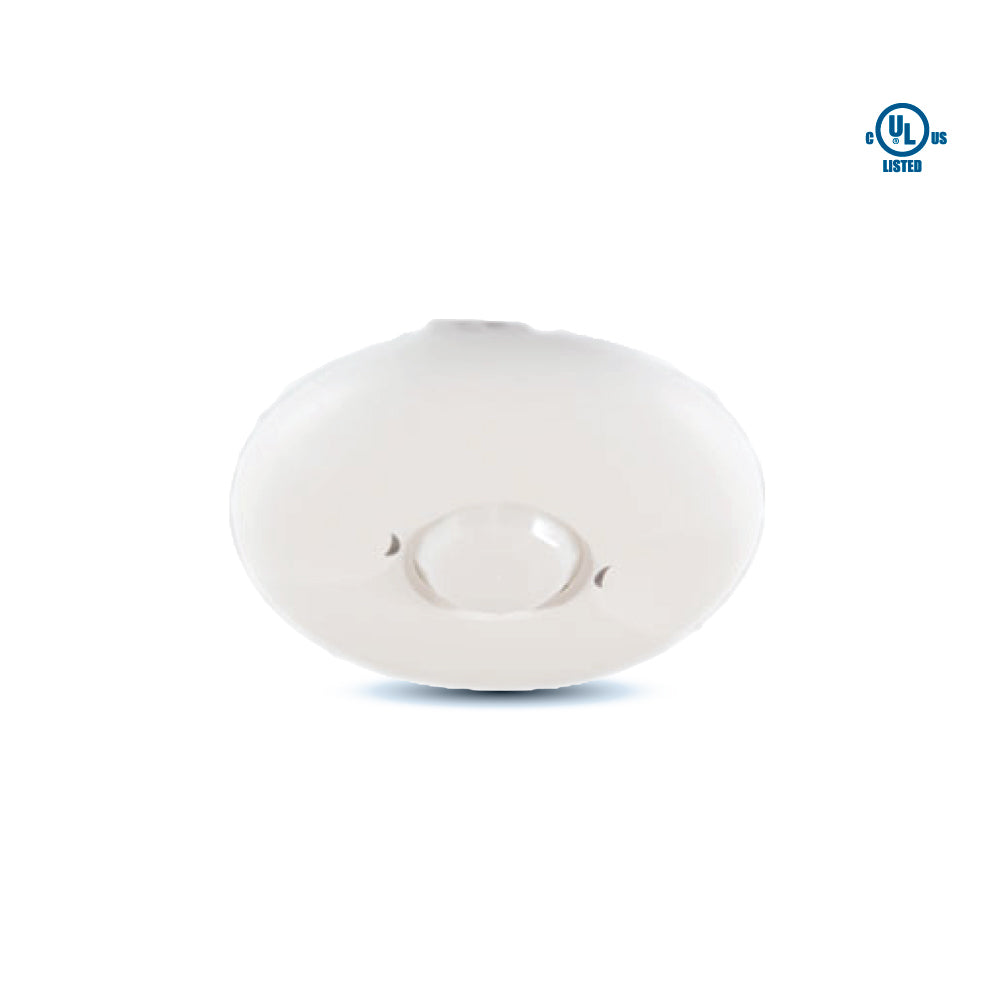

MPC-50V

10-amp line voltage PIR ceiling mount sensor, compatible with incandescent, CFL, and LED lighting, uses passive infrared technology to detect motion and automatically control lighting, supports up to 10 amps, and is ideal for energy-efficient occupancy sensing in residential or commercial ceiling-mounted applications.

HIGHLIGHTS

  • Simple, fast installation
  • Multi-level, 360° fresh lens for superior occupancy detection
  • Energy efficient, super bright LED with adjustable time delay

PIR Ceiling Mount Sensor

Specifications
  • Wattage
    800W
  • Input Voltage
    120-277V AC, 60HZ
  • Incandescent
    120V AC, 60Hz at 800W
  • Motor
    1/4HP, 120V AC, 60Hz
  • Time Delay
    15 sec ~ 30 min
  • Light Level
    10FC to 150FC
  • Ballast
    120V AC at 800VA | 277V AC at 1600VA, 60Hz
  • Resistive
    10A at 120V AC, 60Hz
  • Coverage
    360°, up to 1200 ft²
  • Operating Temperature
    0°C ~ +55°C
  • Case Quantities
    40

CERTIFICATIONS

PRODUCT SHEETS

Spec Sheet

MPC-50V Spec Sheet

Instruction Manual

MPC-50V Instruction Manual
