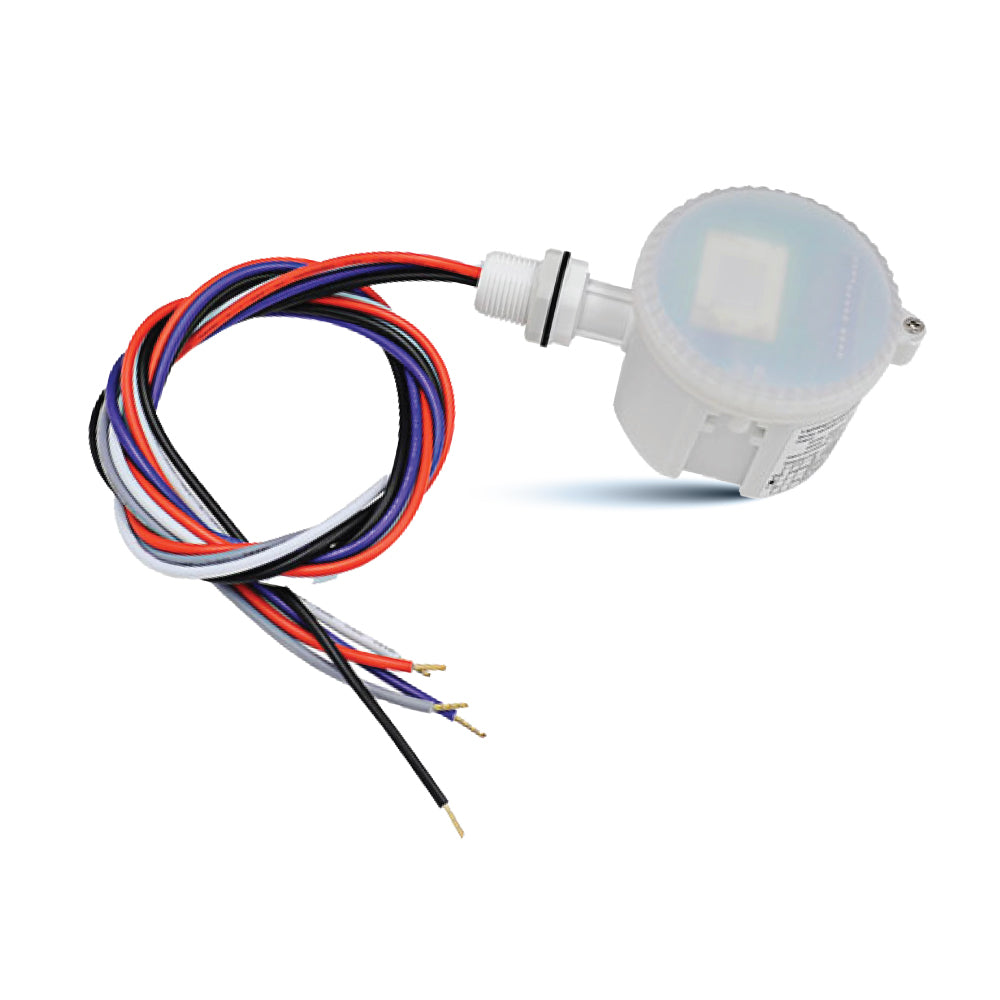

OD-MC609V RC D

120–347V waterproof indoor-use sensor, designed for vapor-tight fixtures, high bays, and LED panels, features a wide voltage range for versatile compatibility, moisture-resistant construction for reliable performance in demanding environments, and provides automated lighting control for energy efficiency in commercial or industrial settings.

HIGHLIGHTS

  • Mounting height is maximum 15m
  • Has patented microwave antenna
  • Functions with remote controller MH01, and is easy to adjust sensor parameters
  • Works with 1-10V dimmable LED driver and easy to achieve 2-step or 3-step dimming function

waterproof indoor use sensor

Specifications
  • Wattage
    0.5W Max. (transmitting power) | <1.5W (stand-by power)
  • Voltage
    120V AC / 277V AC / 347V AC, 50/60Hz
  • Lifetime
    50,000 hours
  • Grade of Protection
    IP65
  • Detection Angle
    150° (wall mounting) | 360° (ceiling mounting)
  • Wiring
    Input STW, 3*18AWG exposed line length: 810-830 mm | 1-10V DC: STJW, 2*18AWG exposed line length: 810-830 mm
  • Standby Period
    DIP switch: 0s / 1min / 3min / 10min / 30min and so forth | Remote control: 0s / 10s / 1min / 3min / 5min / 10min / 30min and so forth
  • Standby Dimming Level
    DIP switch & Remote control: 10% / 20% / 30% / 50%
  • Detection Area
    DIP switch: 100% / 50% | Remote control: 25% / 50% / 75% / 100%
  • Input Voltage
    NA
  • Frequency Range
    5.8 GHz ± 75MHz, ISM Band
  • Detection Range
    5-8m (mounting height 8m, maximum mounting height 15m)
  • Working Mode Output
    On/OFF function, 1-10V step dimming
  • Dim Interface
    <50mA (non-constant source) 10% (1.4-1.6V) / 20% (1.9-2.1V) / 30% (2.9-3.1V) / 50% (4.9-5.1V)
  • Protection Class
    Class II
  • Hold Time
    DIP switch: 5s / 30s / 1min / 3min / 20min / 30min | Remote control: 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min
  • Daylight Sensor
    DIP switch & Remote control:
    5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (ambient light diffusion)
  • Operating Temperature
    -35°C ~ +55°C
