4WA-PG-3CCT+W+S

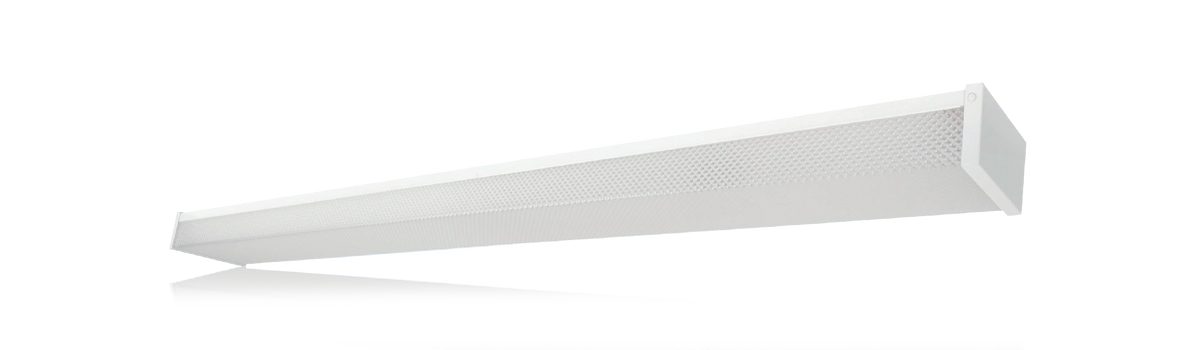

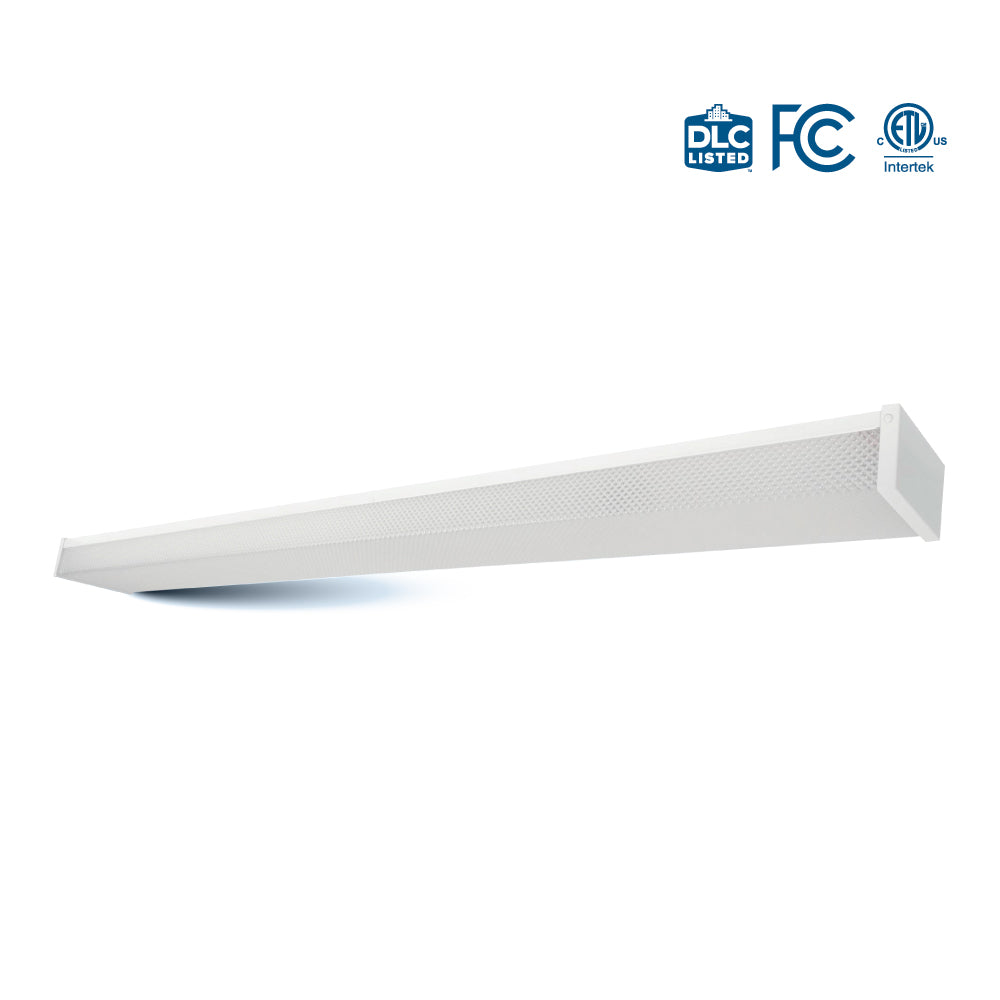

4FT wrap-around LED light with selectable CCT and wattage, perfect for setting the right ambiance in any space.

HIGHLIGHTS

  • Mounting Options: Available with suspending and surface-mounted installation

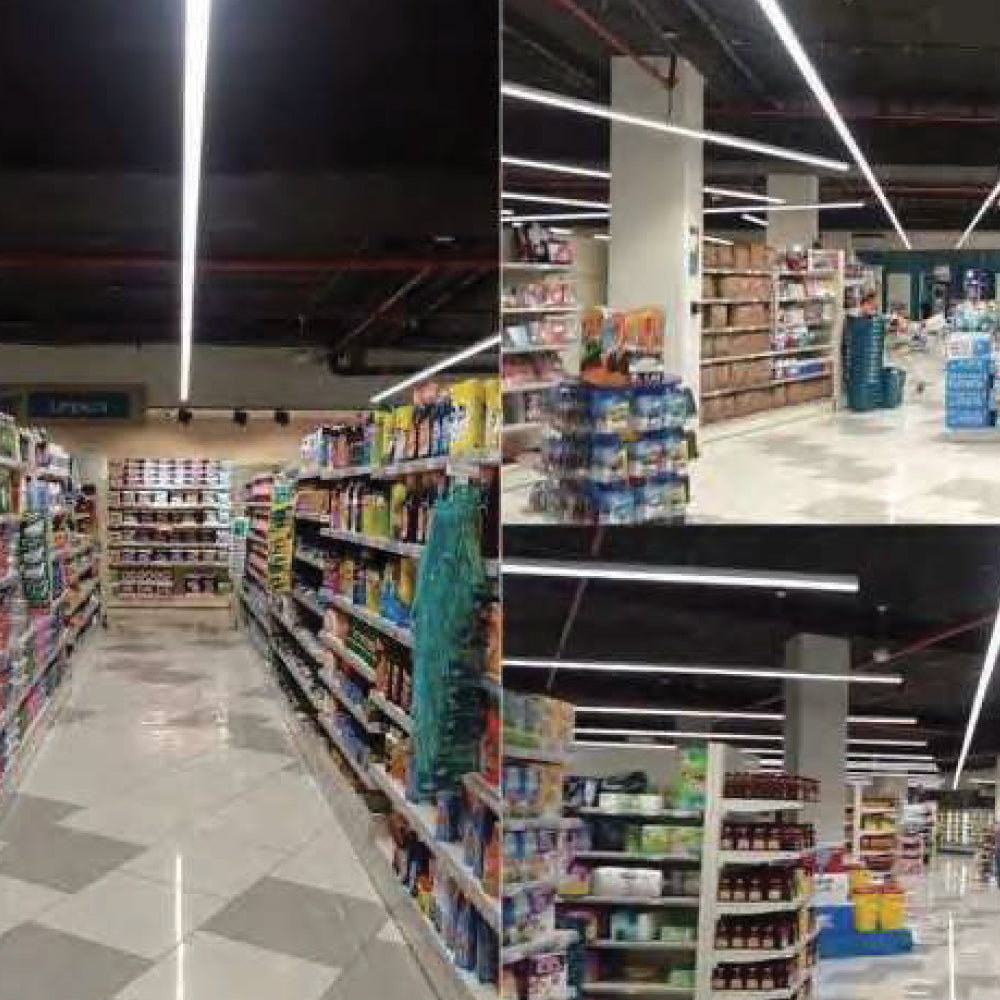

  • Versatile Applications: Suitable for schools, hospitals, supermarkets, offices, parking garages, and warehouses
  • Daisy Chain Capability: Connect up to 25 units (347V), 20 units (277V), or 9 units (120V)
  • Dimming Feature: Supports 0–10V dimming for customizable brightness
  • Smart Sensor: PNP-SENSOR-DS motion sensor with dimming, timing, and sensitivity settings

DLC No. / Product ID: ??

3CCT AND WATTAGE SELECTABLE

Specifications
  • Wattage
    30W/40W/50W
  • Voltage
    AC 120-347V
  • Lumens
    6500 lmn
  • Beam Angle
    120°
  • CRI
    80Ra+
  • Luminous Efficacy
    130 lmn/W
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 Hours
  • Rating
    Dry Location
  • Grade of Protection
    IP20
  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PMMA
  • Daisy Connection
    120V: 9pcs
    277V: 20pcs
    347V: 25pcs
  • Operating Temperature
    -20°C ~ +45°C
  • Warranty
    5 Years
  • Case Quantities
    6

Certifications

Product features

Accessories (sold separately)

PNP-SENSOR-DS
PNP-SENSOR-DS
(for motion activation)

PRODUCT SHEETS

Spec Sheet

4WA-PG-3CCT+W+S Spec Sheet

Instruction Manual

4WA-PG-3CCT+W+S Instruction Manual

Dimmer List

4WA-PG-3CCT+W+S Dimmer Compatible List

IES Files

NA
