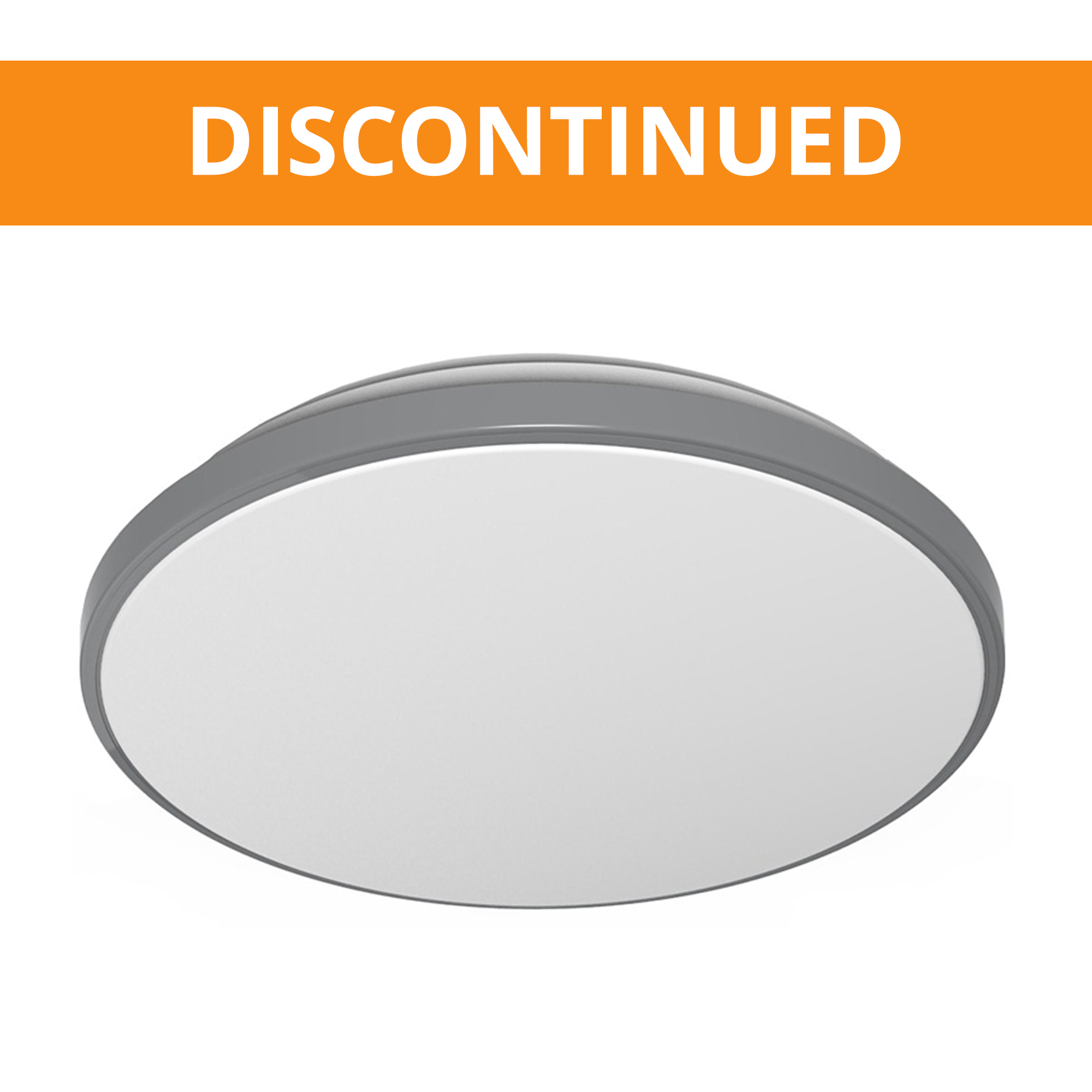

12" LED Ceiling Mount in 15W 120V with opal acrylic diffuser

Available Finishes:
  • Satin Nickel


  • Title 24 compliant
  • offers exceptional savings
  • Opal Acrylic Diffuser included
  • ~50% of energy saving for cost effective solution
  • The product's low profile keeps it out of the way of closet doors
  • Low profile LED ceiling mount is designed to enhance any decor
  • Even overall light through opal diffuser, you will not see any dark or hot spots
  • Professional grade PC material for even light distribution and max. light output
  • Provides abundant light in bedrooms, hallways, dens and other rooms requiring task lighting
  • High quality aluminum for PCB (printed circuit board) to achieve best heat dissipation solution

Compatible with ORTECH CFL LED Dimmer

Lutron C L Dimmer:

Wattage 15W
Voltage 120V AC
Lumens 1050 lmn
Beam Angle 115°
Lifetime 50000 hours
CRI ≥ 80
Dimmable Yes
Rating Non-IC Rated / Indoor use / for Damp locations
Grade of Protection IP 54
Application Living rooms / Hallways / Offices / Kitchens / Closets / Bedrooms / Stairways
Colour Temperature 3000K (Warm White) / 5000K (Cool White)
Operating Temperature -20°C to +40°C
Warranty 5 years
  1. Turn off the power
  2. Remove the cover lens from the fixture housing.
    Position your fixture over the junction box
  3. Pull the supply wires and ground wire out from the junction box
  4. Connect the ground wire to the junction box by ground screw.
    Connect the white supply wire to the white fixture wire.
    Connect black supply wire to the black fixture wire by using wire connectors.
    Carefully tuck all wires back into the junction box
  5. Locate the Fixture Housing over the function Box.
    Put the fixture screw through the long hole slot on the Fixture housing and thread into the junction box.
    Then secure the Fixture housing to the junction box by tightening the two Fixture Screws
  6. Secure the cover lens and the top ring to the fixture housing
