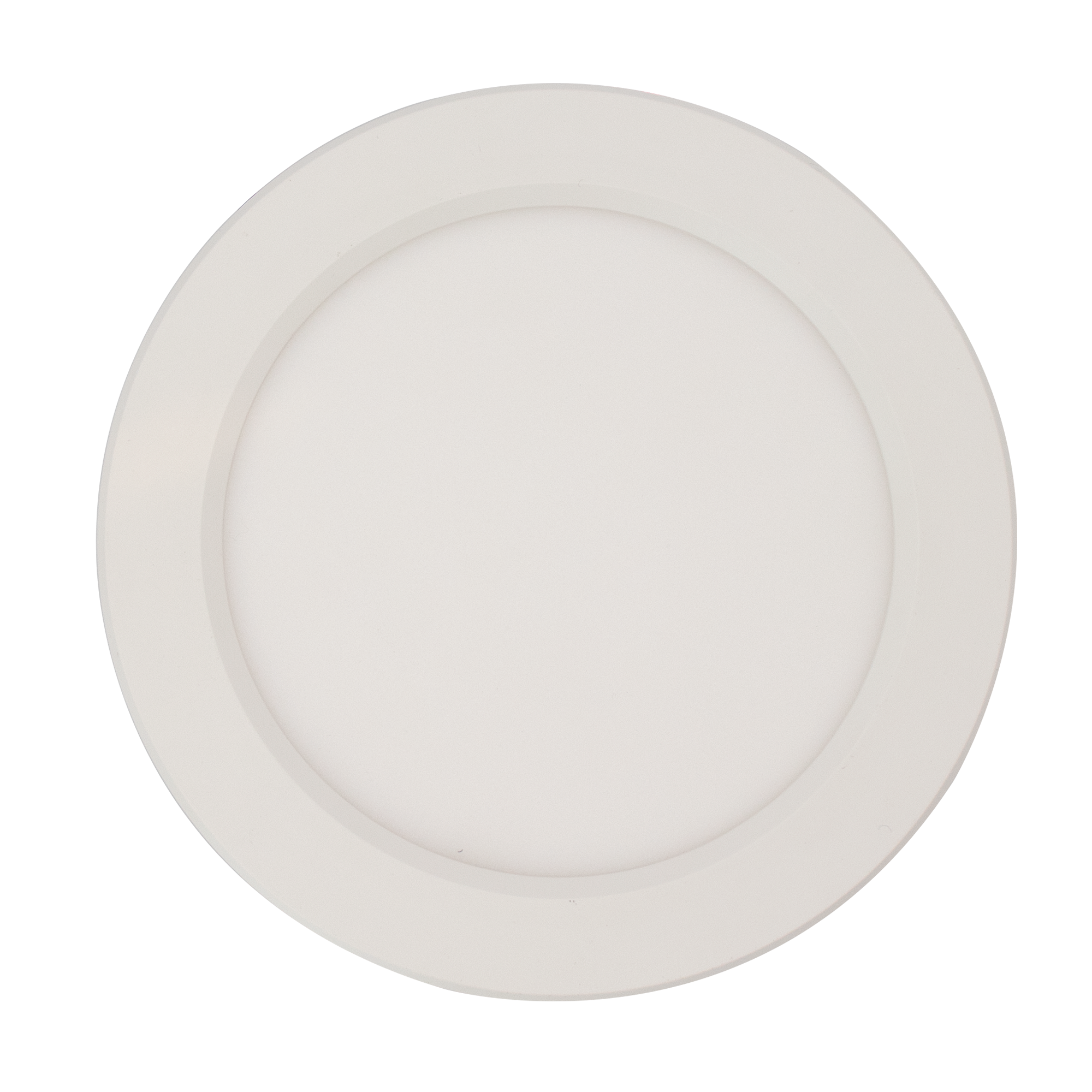

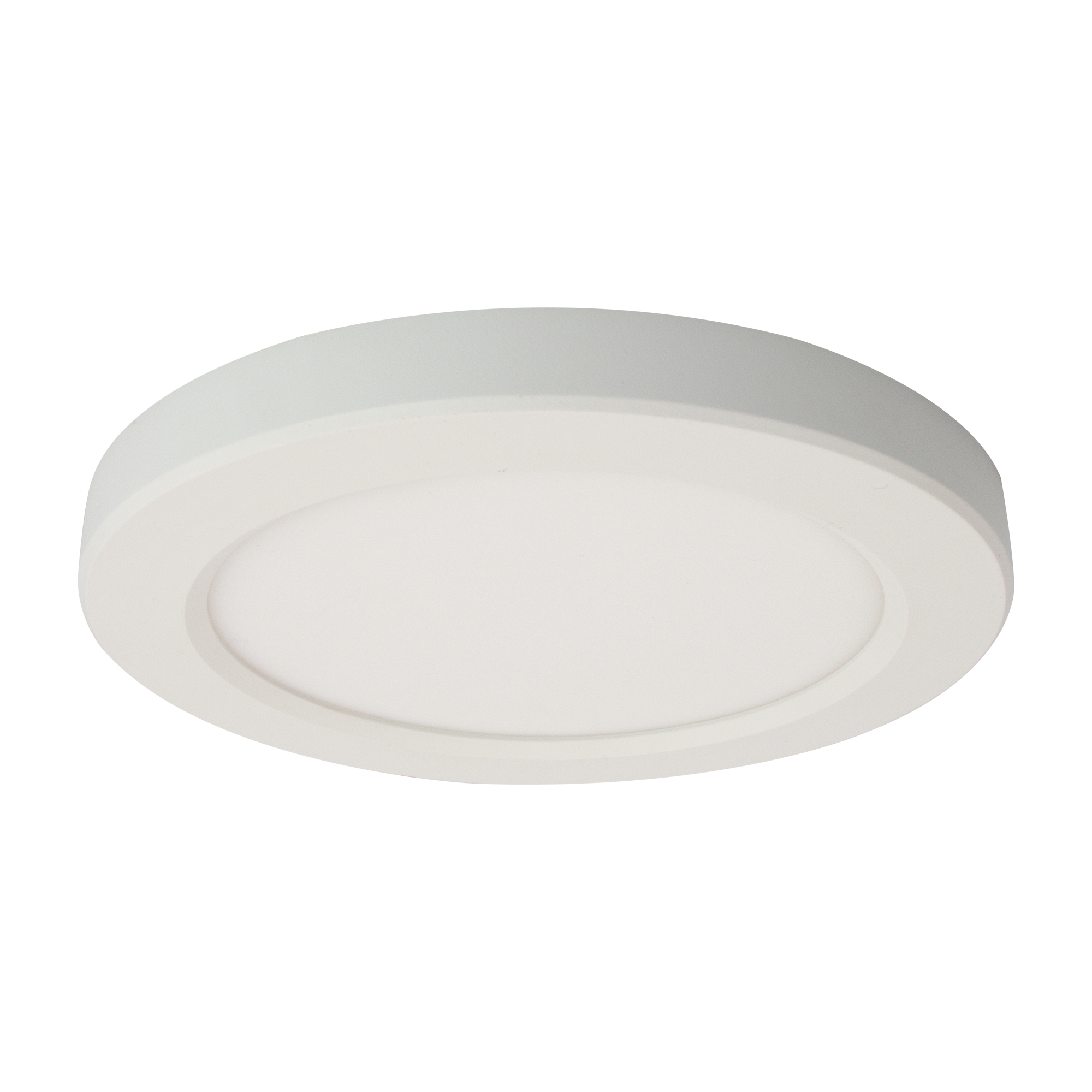

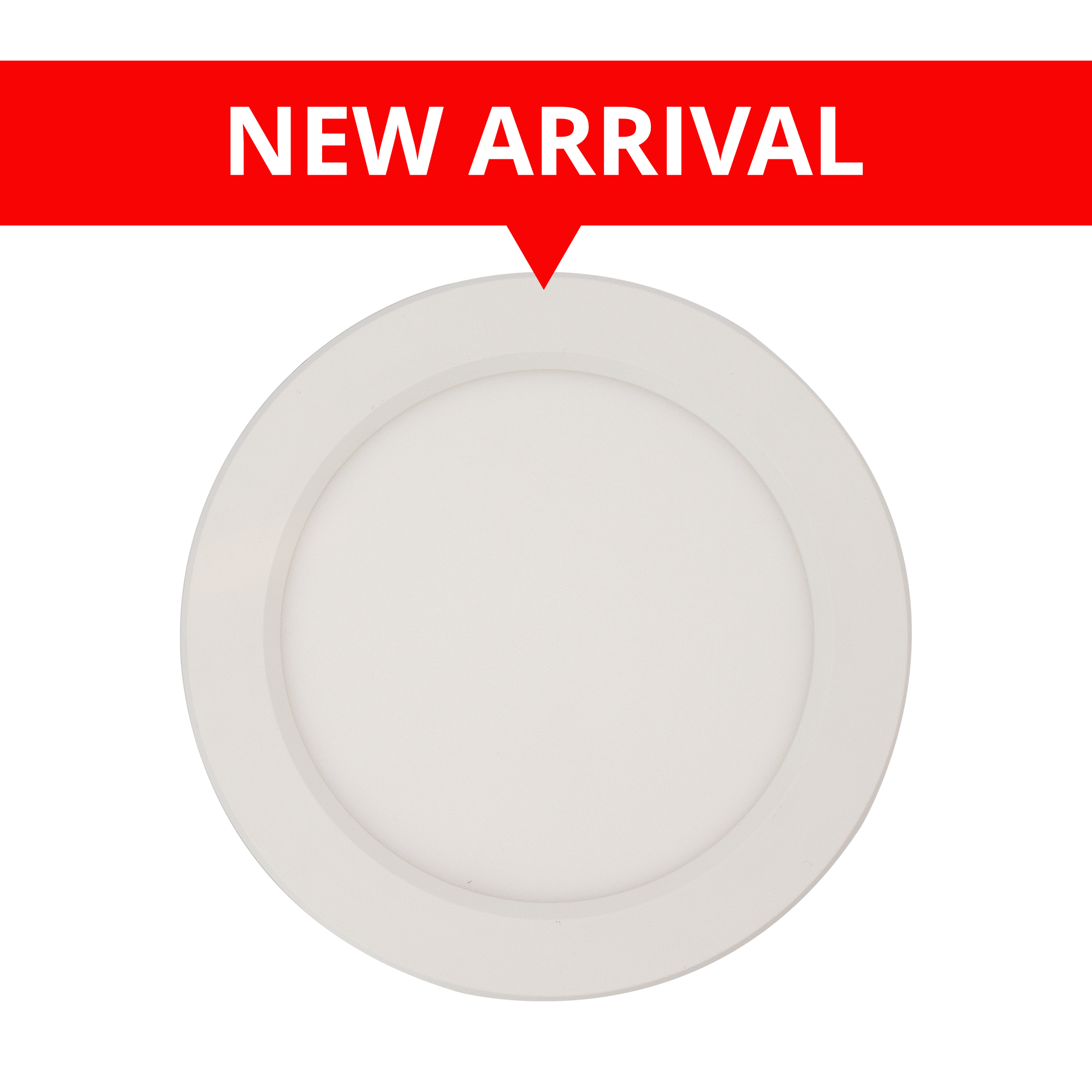

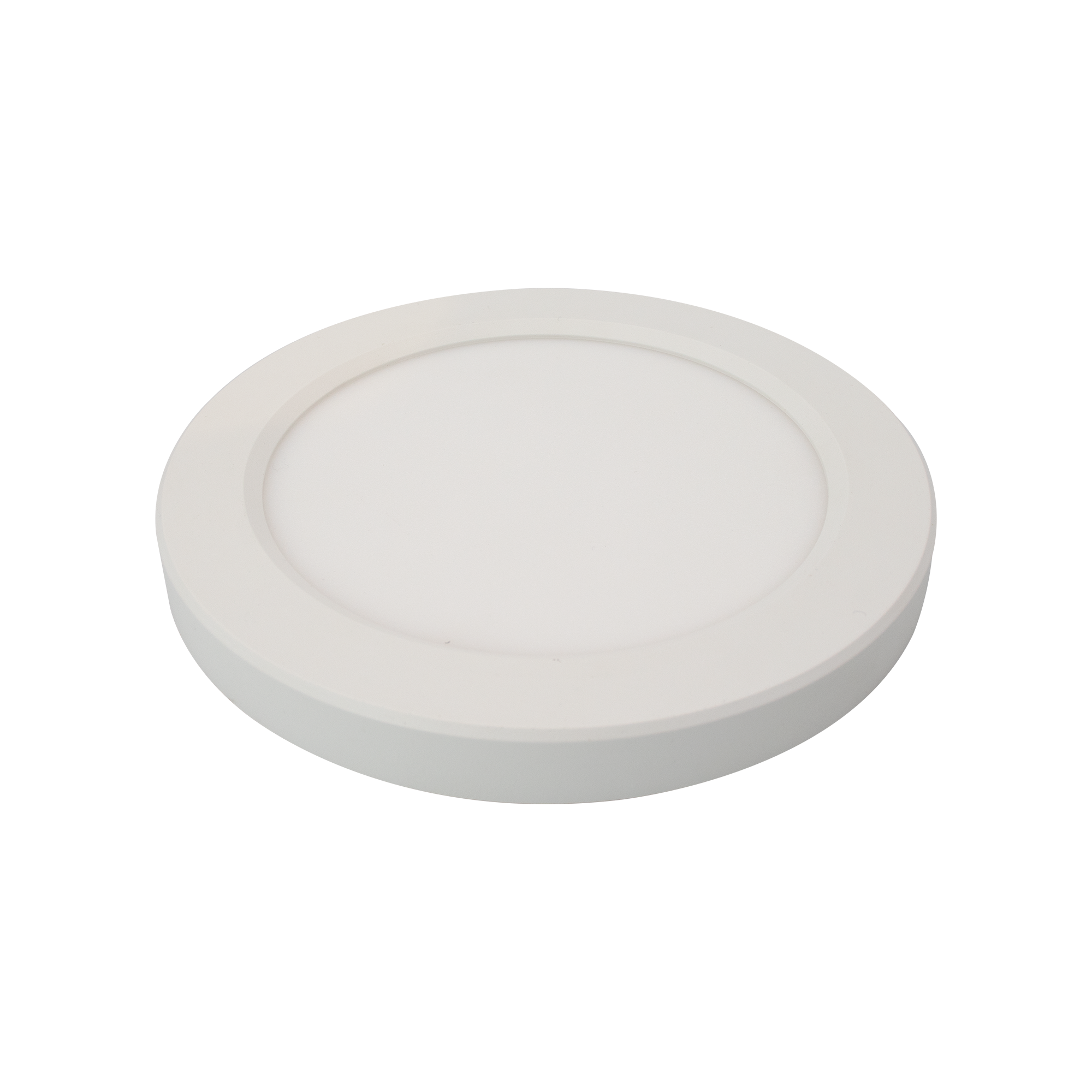

12" Flush Mounts With Adjustable CCT
Wattage | 24W |
Voltage | AC120V, 60Hz |
Lumens | 1950 lmn |
Beam Angle | 110° |
Lifetime | 50000 hours |
Rating | IC rated/ Wet location / Indoor use |
CRI | 80Ra+ |
Dimmable | TRIAC Dimming |
Grade Of Protection | IP54 |
Application | Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms |
Colour Temperature | 2700K / 3000K / 3500K / 4000K / 5000K |
Operating Temperature | -20°C ~ +40°C |
FLUSH MOUNT:

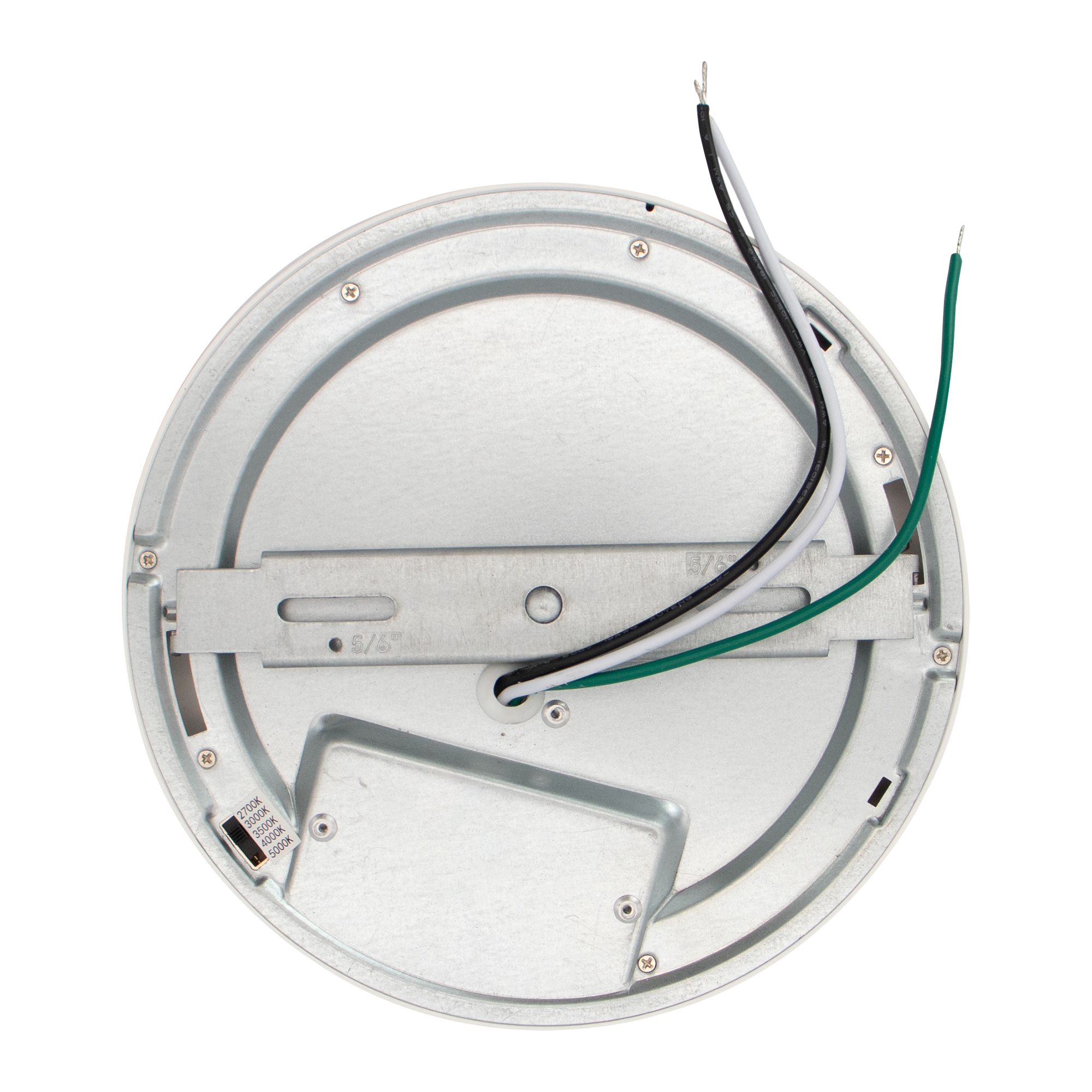

STEP 1: Prior to installation, install mounting plate into the electrical outlet box with mounting screws. Drive screws completely to the end of the junction box.
STEP 2: Connect supply wires to wires on fixture with wire nuts or push wires into Quick Connector. Connect white to white, black to black, and copper wire to copper wire as grounding connection.
STEP 3: Completing the installation by pushing the fixture into the mounting plate.
