OD-2X2-3CCT+3WT

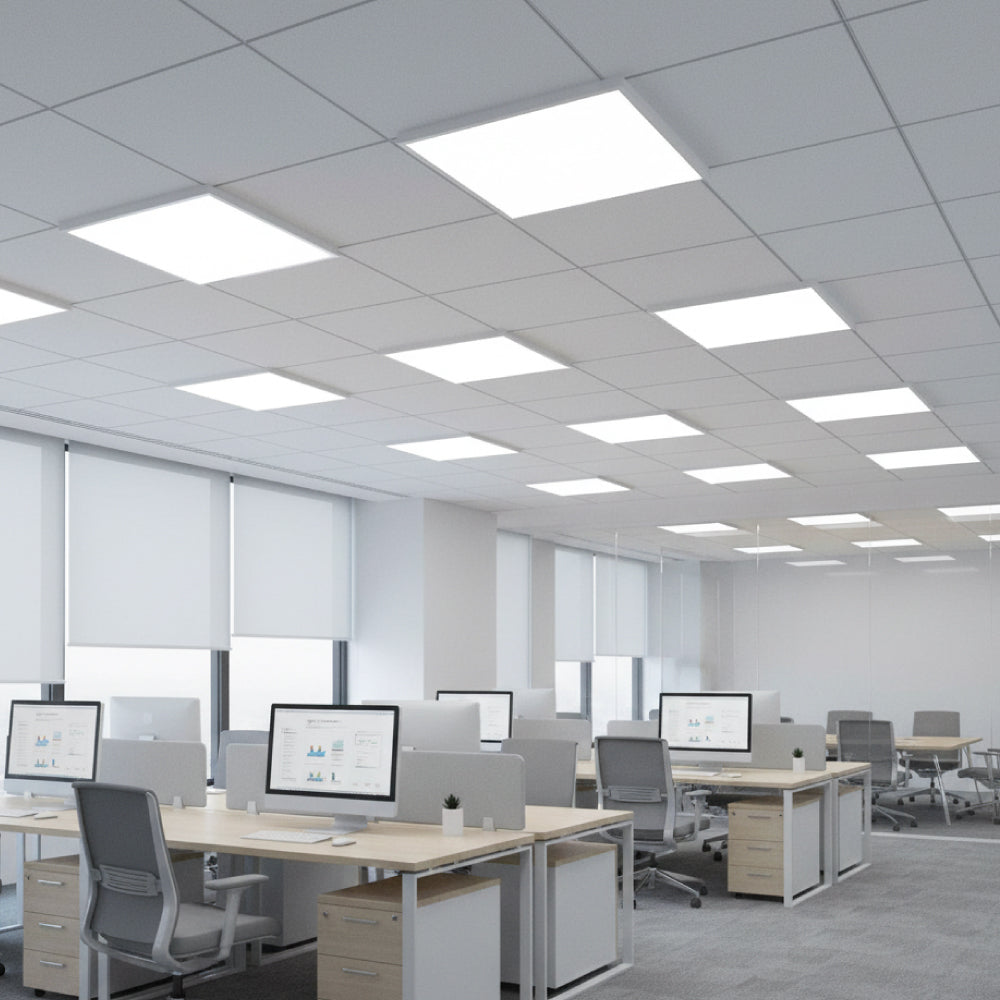

Mainly used in commercial lighting places, such as office, factory, supermarket.


Description:
  • The panel light has uniform and soft luminance, high luminous efficacy, saving energy and protecting environment.
  • Thickness of the frame is 0.38'', extremely slim and beautiful.
  • Using high quality aluminum frame with great heat dissipation and low light degradation.
  • Using high quality driver, efficiency>86%, PF>0.9.
  • Lifespan>50,000 hours.
  • 0-10V dimming can be compatible with all kinds of brand dimmers.

Optional Accessory (sold separately):

PANEL-SUS-KIT

Power 30/35/40W
Working Current 0.44A
Input Voltage AC120-347V
Luminous Efficacy 125lm/W

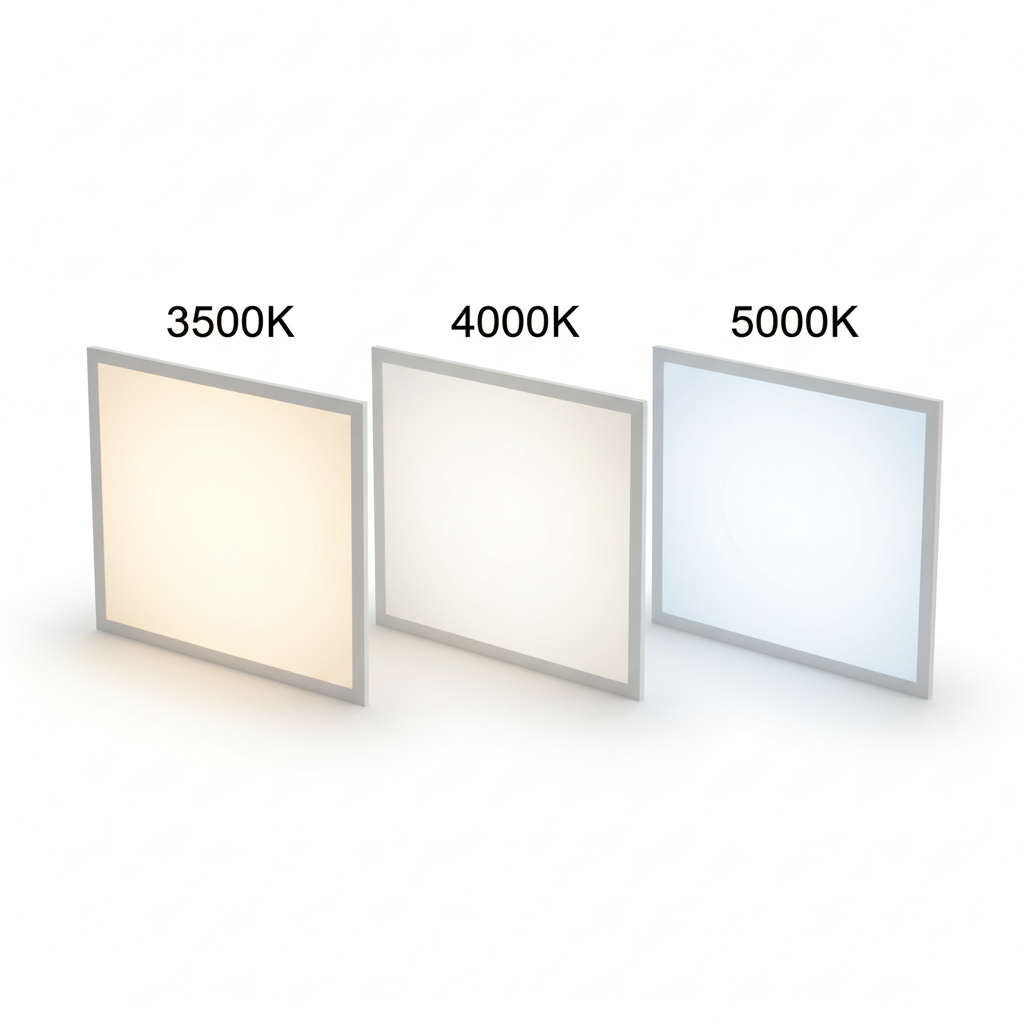

Color Temperature 3500K | 4000K | 5000K
Viewing Angle 120°
CRI ≥80
Dimmable Yes(only 0-10v dimming available)
IP Rating IP20
Warranty 5 years



Installation

  1. Unscrew the driver cover.
  2. Connect the conduit to the driver box.
  3. Connect other wires separately.
  4. Put back the driver cover and fix it by screw.
