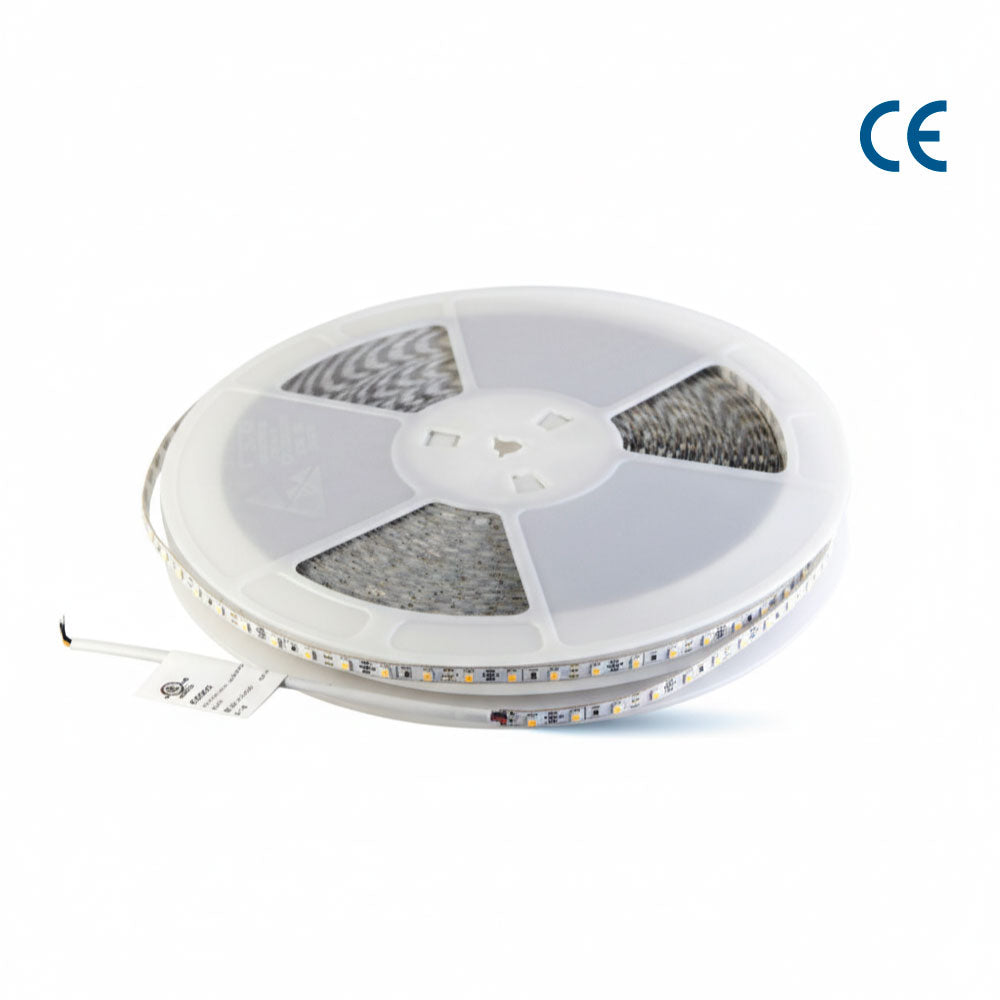

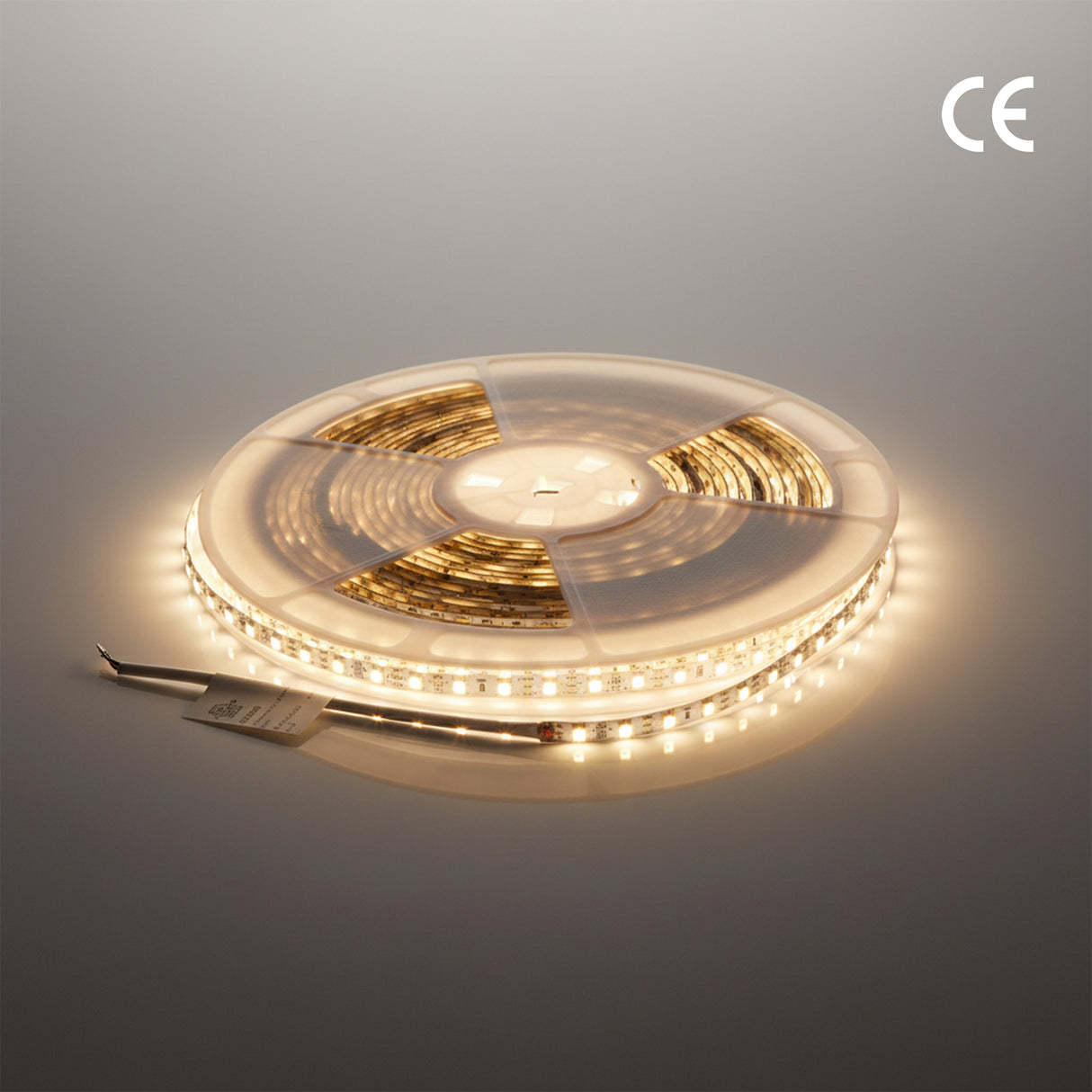

SL-25M

Ultra thin, flexible LED strip of 25 meters length, 60 LEDs per meter


Description:
  • Easy to install
  • Double sided 3M tape on back
  • 3528 SMD light source and high CRI > 90

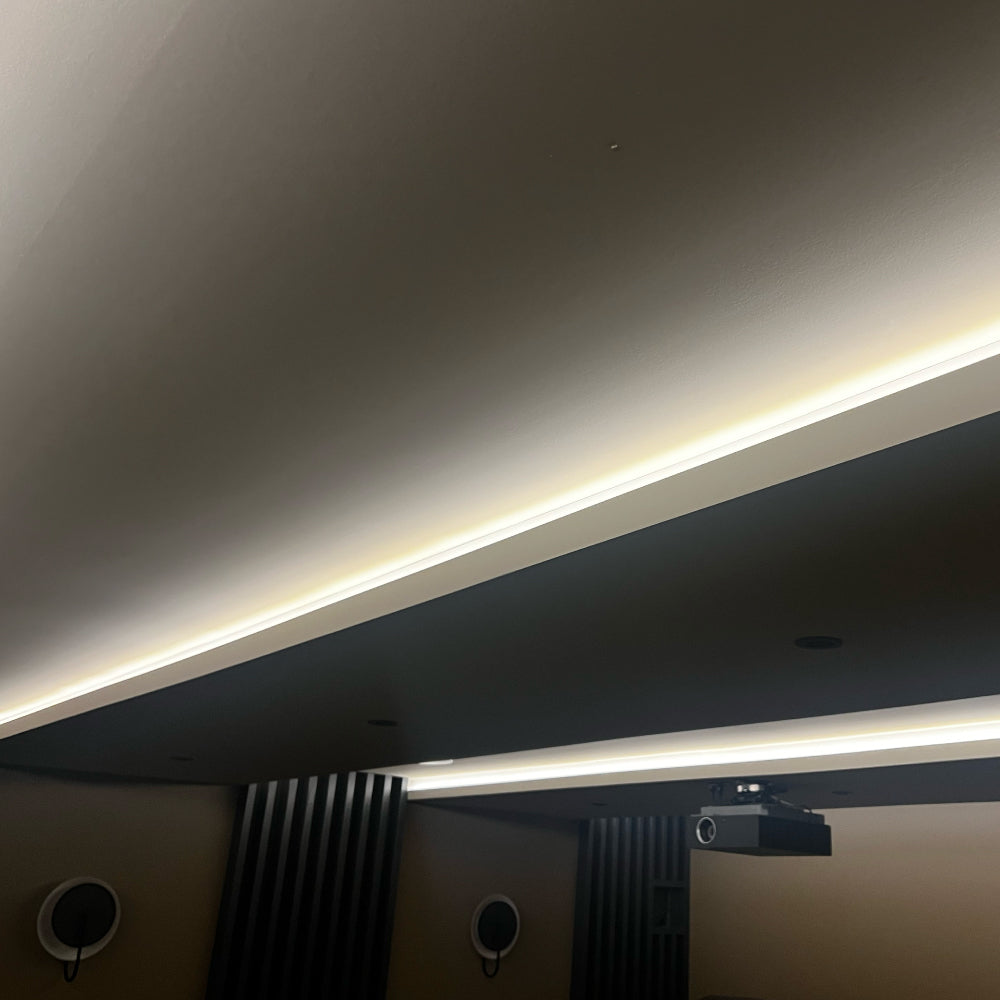

  • For cove / display / mood / under cabinet lighting



Accessories (sold separately):





Wattage 4.8W per meter
Voltage 12V DC
Lumens 475 lmn per meter
Beam Angle 120°
Lifetime 50000 hours
CRI > 90
Dimmable Yes
Number of LEDs 60 SMDs per meter
Cut Distance 3 LEDs — 50 mm
Rating Non-IC Rated / Indoor use / for Dry location
Grade of Protection IP 20
Application Cove lighting / Display lighting / Mood lighting / Under cabinet lighting
Colour Temperature 3000K (Warm White) / 5000K (Cool White) / Blue
Operating Temperature -25°C ~ +65°C
Warranty 5 years



  1. Requires 12V DC LED Power Supply
  2. When installing LED Strip Lighting, ensure that the positive (+) and negative (-) match from the power supply onto the LED Strip
  3. Recommended length with no voltage drop 5M
  4. If powering both sides, recommended length with no voltage drop is 10M


Solderless Connectors

  • You can cut the LED strip every 3 LEDs at the cut line
  • When cutting the strip, you can attach a solderless connector by opening the connector, sliding LED strip (follow + and -) and snapping the connector down
