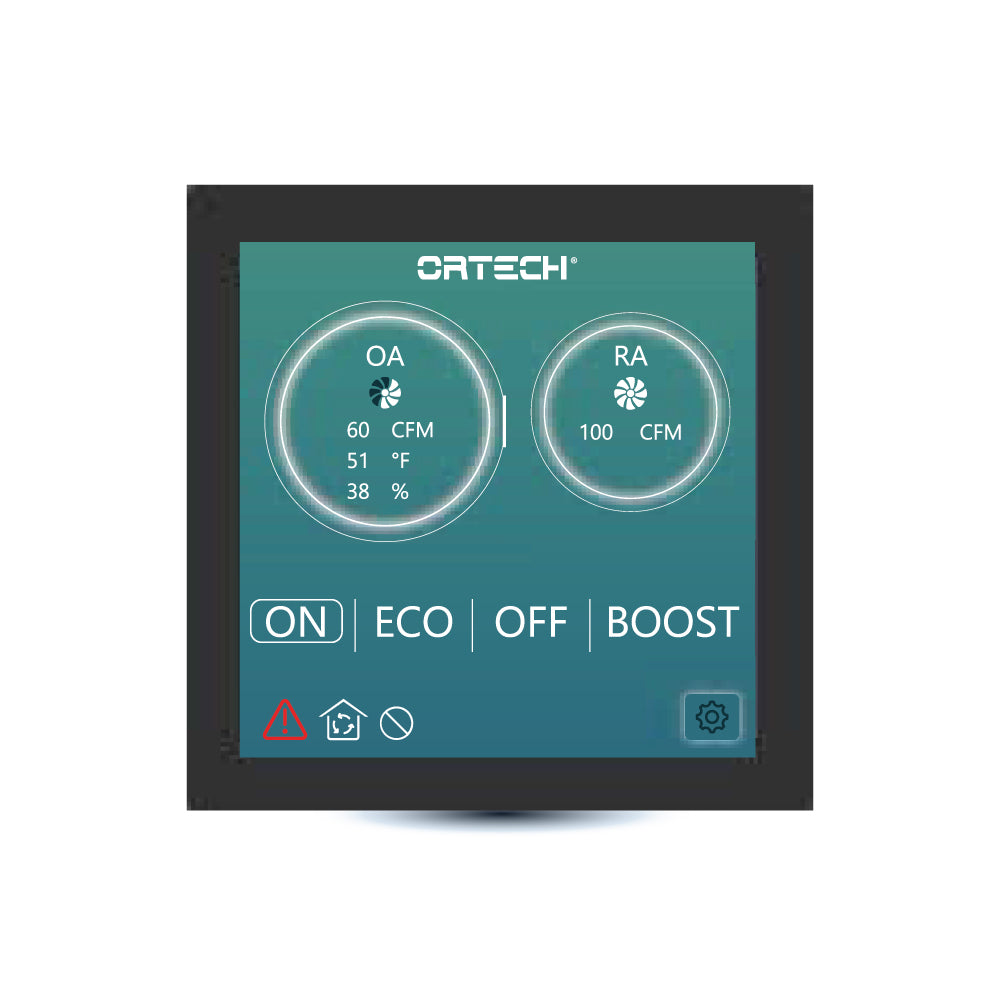

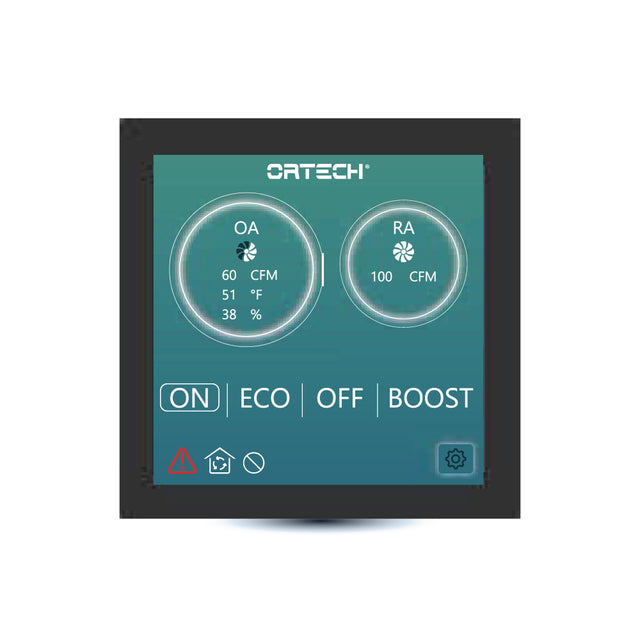

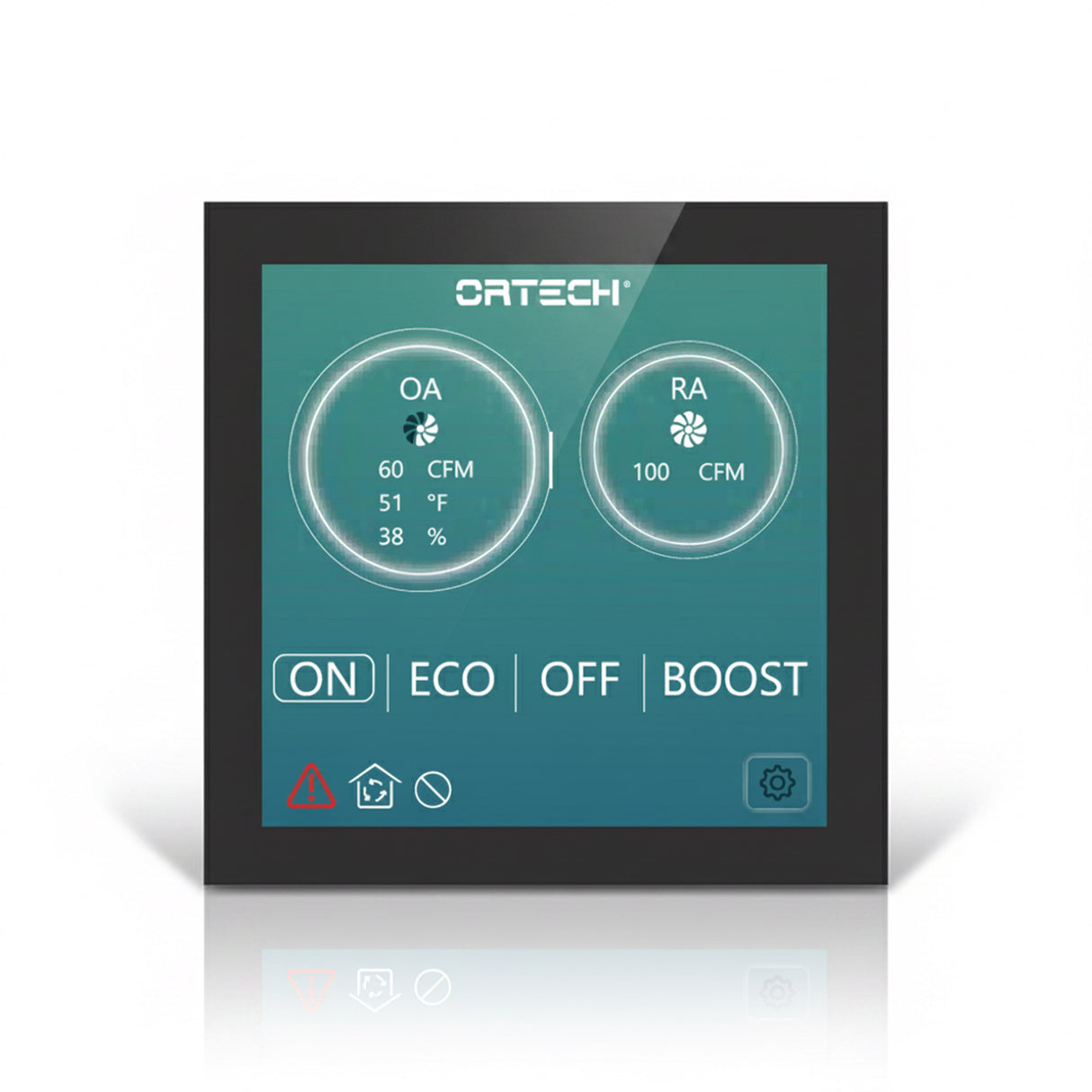

ERV-SC-1

Wall Mounted, Screen Controller for Energy Recovery Ventilators

HIGHLIGHTS

  • Ultra-Thin Design – Sleek, low-profile wired controller that blends seamlessly with any interior.
  • Capacitive Touch Screen – OCA bonded display for smooth, responsive, and accurate touch control.
  • Quick Installation – Simple setup process saves time and ensures hassle-free installation.
  • Powered by ERV – Operates directly from the ERV unit with no batteries required.
  • Adjustable Brightness – Screen brightness can be customized for comfort in any lighting condition.
  • Wide Viewing Angle – Clear visibility from multiple angles for easy operation anywhere in the room.

Precision Airflow at Your Fingertips

Specifications
  • Wattage
    <5W
  • Modes
    Two operation modes including Boost mode
  • Battery
    No battery required
  • Operating Voltage
    6-36V, Typical value of 12V
  • Operating Current
    190mA: VCC=12V, max backlight | 80mA: VCC=12V, backlight Off
  • Power Supply
    12V 0.5A DC
  • Brightness
    250nit
  • Backlight
    LED

PRODUCT SHEETS

Spec Sheet

ERV-SC-1 Spec Sheet

Instruction Manual

ERV-SC-1 Instruction Manual
