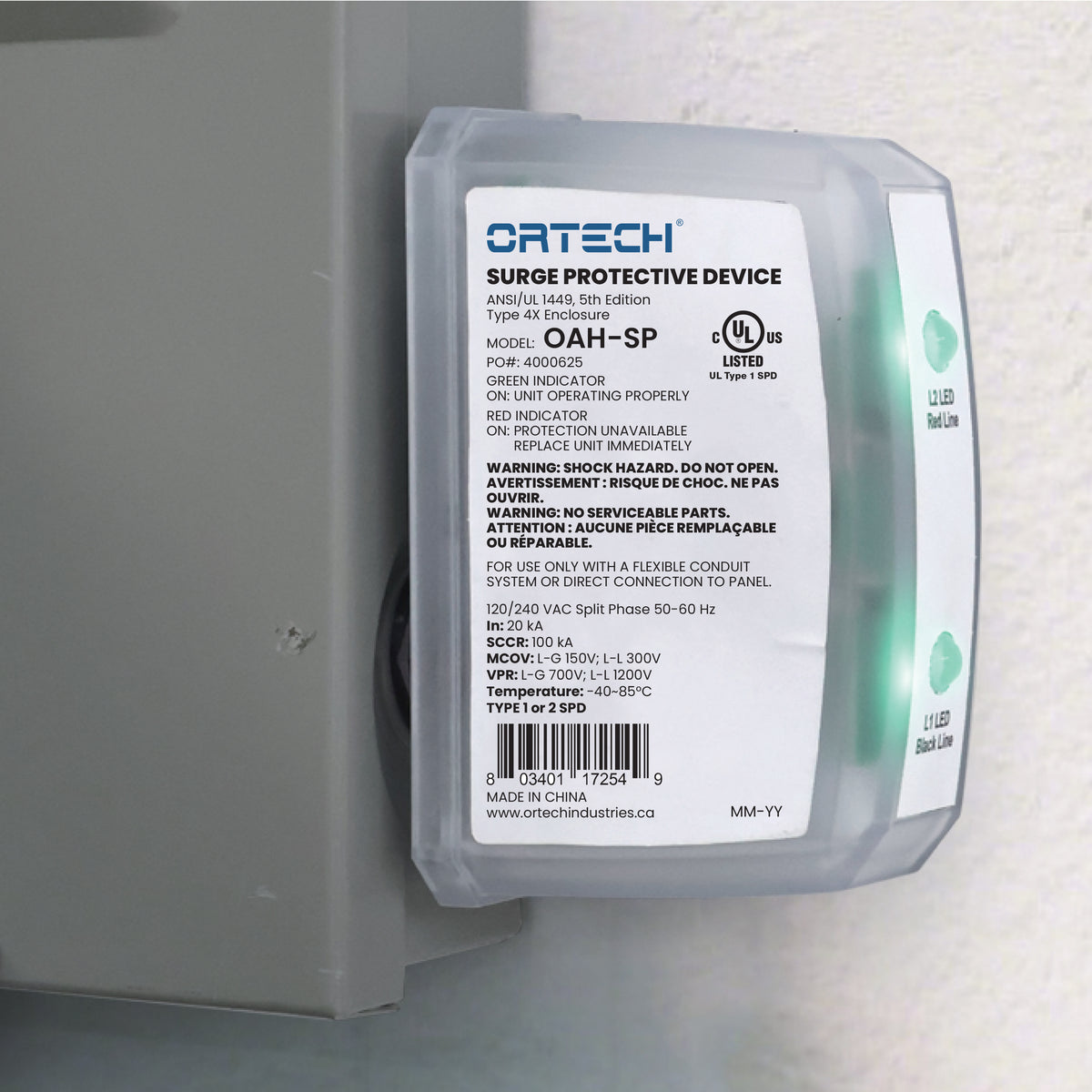

OAH-SP

Surge Protective Device designed to safegaurd your home’s electrical system with advanced protection and long lasting performance.

HIGHLIGHTS

Comprehensive Protection Modes: Protects across L1-N, L2-N, and L1-L2 to ensure full electrical coverage.
Easy Installation: Designed for quick setup in disconnect boxes or junction boxes.
Durable Weatherproof Enclosure: NEMA 4X rated housing ensures protection against harsh environments.
Advanced TPMOV® Technology: Enhances safety and reliability by reducing risk of failure under surge conditions.
LED Status Indicators: Green light confirms proper operation; red indicates reduced protection and need for replacement.
Stable Mounting Design: Includes mounting feet for secure and steady installation.
Certified Safety Standards: Meets ANSI/UL 1449 5th Edition requirements for trusted performance.
High Voltage Protection Ratings: Handles up to 150V (L-N) and 300V (L-L) continuous overvoltage with strong protection ratings.

PRODUCT SHEETS

Spec Sheet

OAH-SP Spec Sheet

Instruction Manual

OAH-SP Instruction Manual

Specifications

Dimensions

110 × 95.5 × 45.5 mm / 4.33 × 3.76 × 1.79 in.
Input Voltage

120/240V AC
Frequency Range

50-60Hz
Short Circuit

100 kA
Discharge Current

40 kA (Maximum Discharge Current)
Material

PC (fl)
Phase

1
Discharge

20 kA (Nominal Discharge Rating)
Operating Temperature

-40°C to 70°C
Warranty

3 years

Protects Following Products (sold separately)

CENTRAL DUCTED SYSTEM - CRYOHEAT SERIES

CENTRAL DUCTED SYSTEM - CRYOHEAT SERIES

CENTRAL DUCTED SYSTEM - PRIME SERIES

CENTRAL DUCTED SYSTEM - PRIME SERIES

MULTI ZONE - INDOOR UNIT (PRIME AND CRYOHEAT SERIES)

MULTI ZONE - INDOOR UNIT (PRIME AND CRYOHEAT SERIES)

MULTI ZONE - OUTDOOR UNIT (CRYOHEAT SERIES)

MULTI ZONE - OUTDOOR UNIT (CRYOHEAT SERIES)

MULTI ZONE - OUTDOOR UNIT (PRIME SERIES)

MULTI ZONE - OUTDOOR UNIT (PRIME SERIES)

SINGLE ZONE - PACKAGE (PRIME SERIES)

SINGLE ZONE - PACKAGE (PRIME SERIES)

SOLO 12

SOLO 7

SOLO VERTICAL
