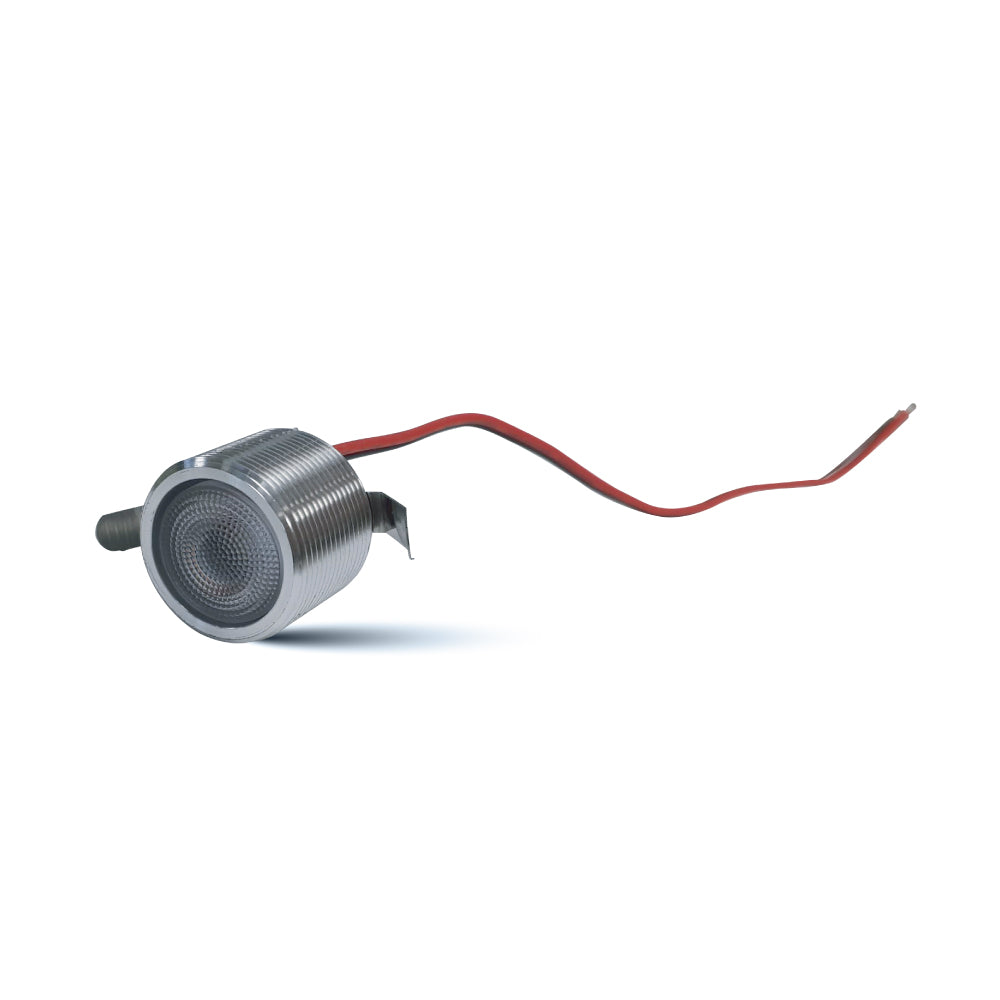

RD12-6LED

Low voltage mini LED step/deck light engine in 0.17W, 12V DC for subtle, energy-efficient accent lighting.

HIGHLIGHTS

  • Recess mounted – Designed for flush installation into surfaces
  • Spring clips – Allow simple pressure-fit installation without tools

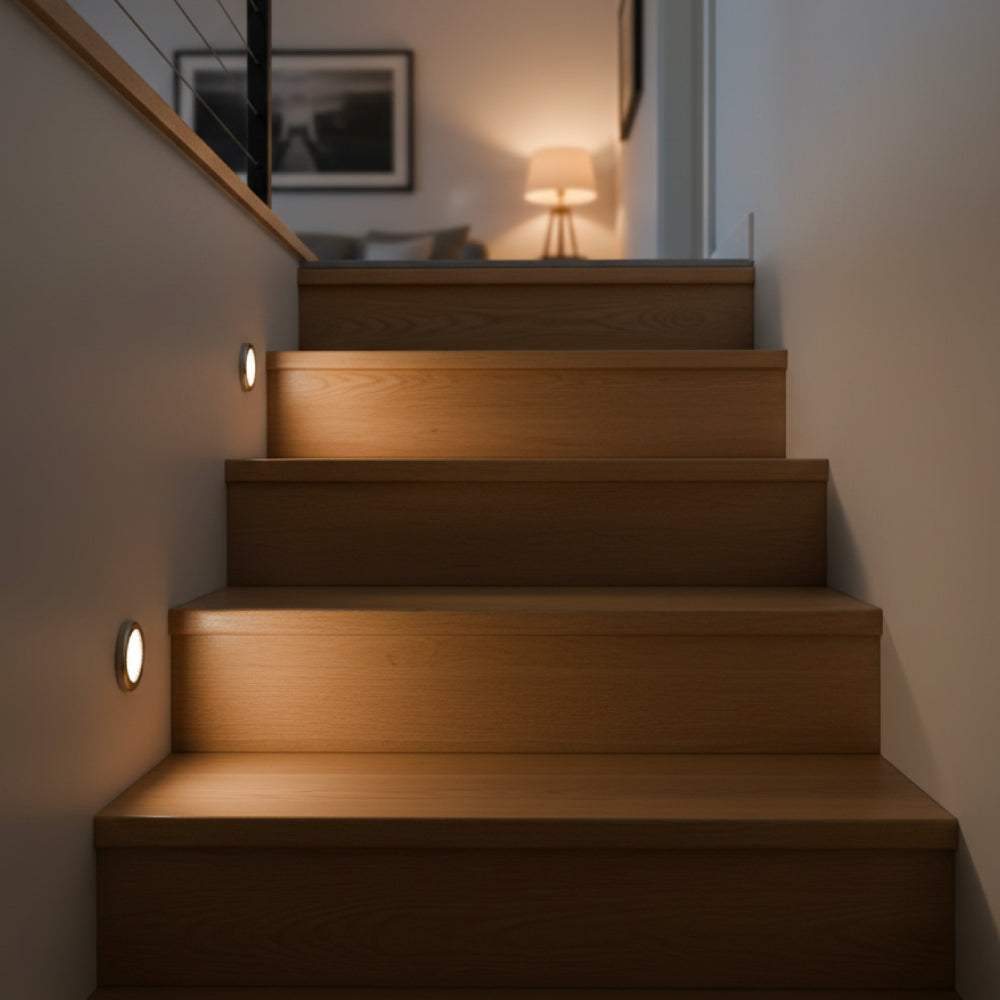

  • Versatile application – Suitable for step lighting, wall lighting, path lighting, or cabinet lighting
  • Square Trim Rings available – Sold separately for a clean, modern finish
  • Round Trim Scoop Rings available – Sold separately for a soft, recessed look

Mini LED Step / Deck Light

Specifications
  • Wattage
    0.17W
  • Voltage
    12V DC
  • Lumens
    10 lmn
  • Beam Angle
    60°
  • CRI
    80Ra+
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    Non-IC Rated / Indoor use / For damp locations
  • Grade of Protection
    IP66
  • Application
    Under cabinet / Home / Office / Kitchen

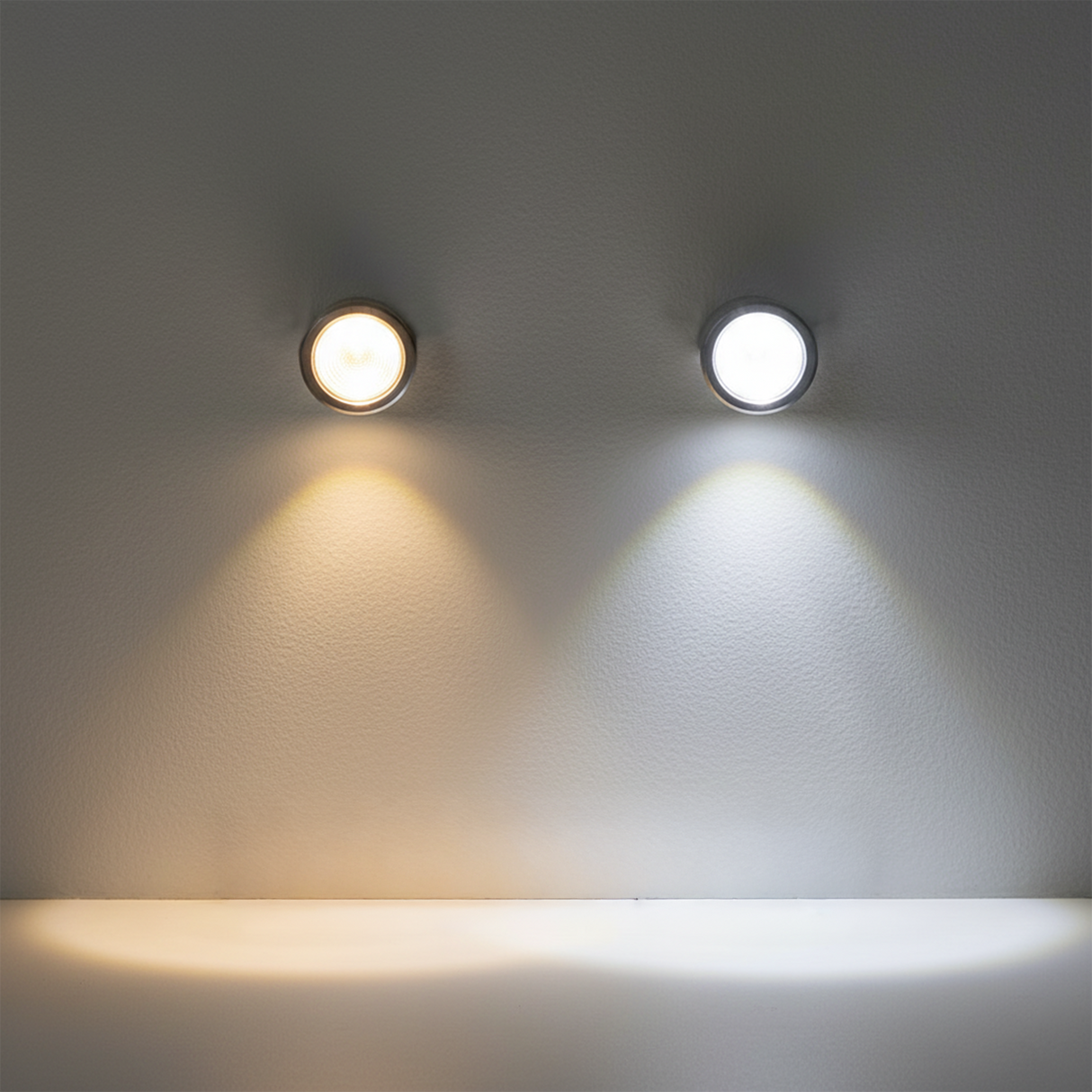

  • Colour Temperature
    3000K/5000K
  • Diffuser/Lens Material
    Frosted
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 years

Certifications

TRIMS (Sold Separately)

Black Square Trim Ring
RDT12-3-BK
(Black Square Trim Ring)
Satin Nickel Square Trim Ring
RDT12-3-SN
(Satin Nickel Square Trim Ring)
White Square Trim Ring
RDT12-3-WH
(White Square Trim Ring)
Black Round Scoop Ring
RDT12-4-BK
(Black Round Scoop Ring)
Satin Nickel Round Scoop Ring
RDT12-4-SN
(Satin Nickel Round Scoop Ring)
White Round Scoop Ring
RDT12-4-WH
(White Round Scoop Ring)

Compatible Drivers (sold separately)

OT-08D
OT-08D
(Max. 8W class 2 driver)
OT-15D
OT-15D
(Max. 15W class 2 driver)
OT-24D
OT-24D
(Max. 24W class 2 driver)
OT-48D
OT-48D
(Max. 48W class 2 driver)
OT-60D
OT-60D
(Max. 60W class 2 driver)
OT-96D
OT-96D
(Max. 95W class 2 driver)

PRODUCT SHEETS

Spec Sheet

RD12-6LED Spec Sheet

Instruction Manual

RD12-6LED Instruction Manual

Dimmer List

NA

IES Files

NA
