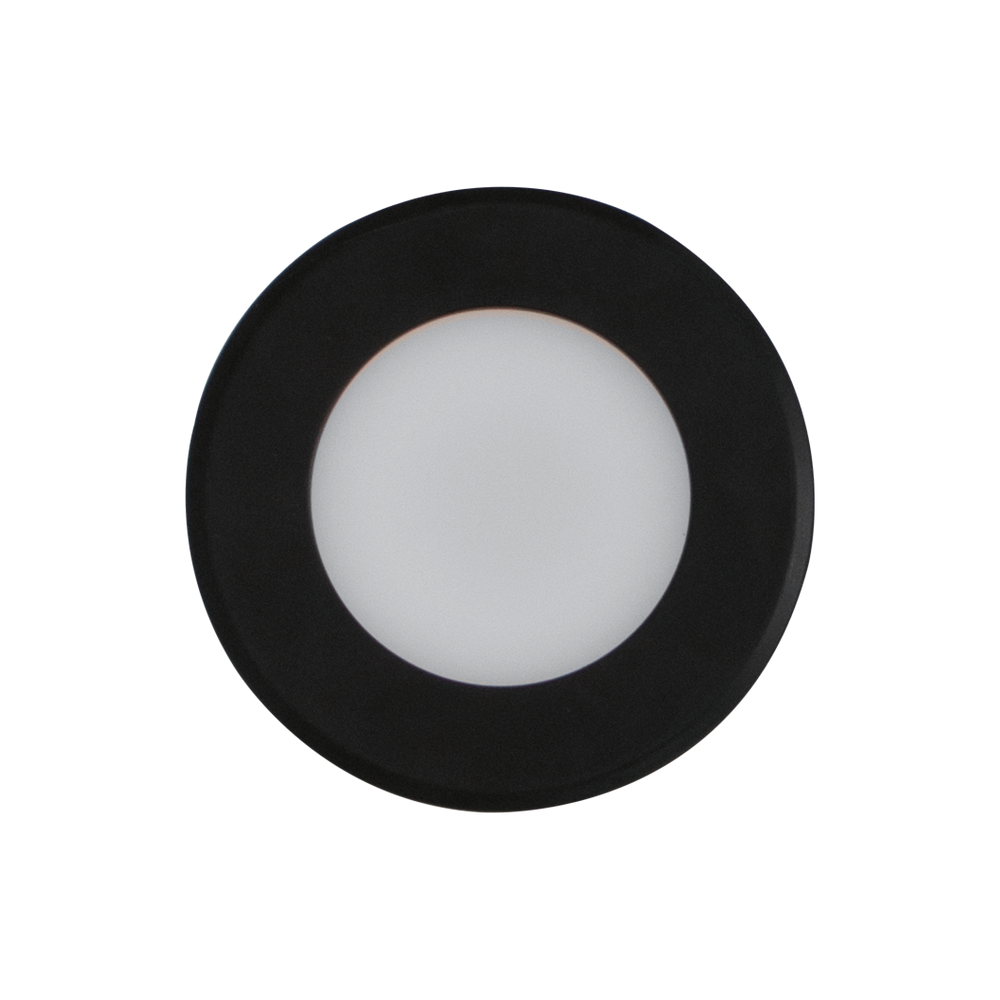

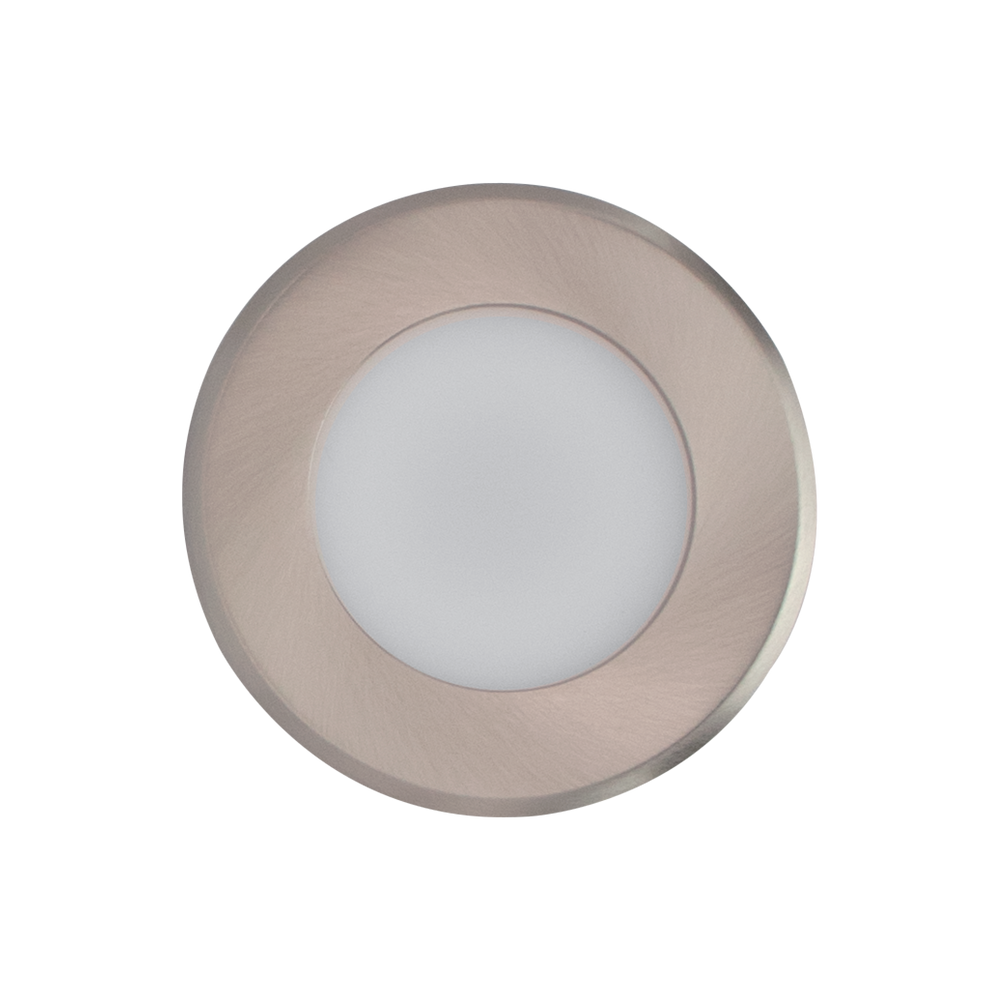

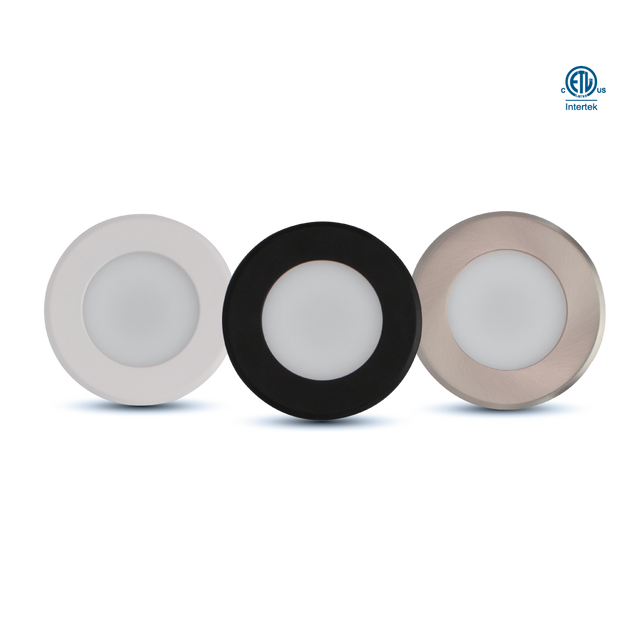

PUK 1.5-3CCT

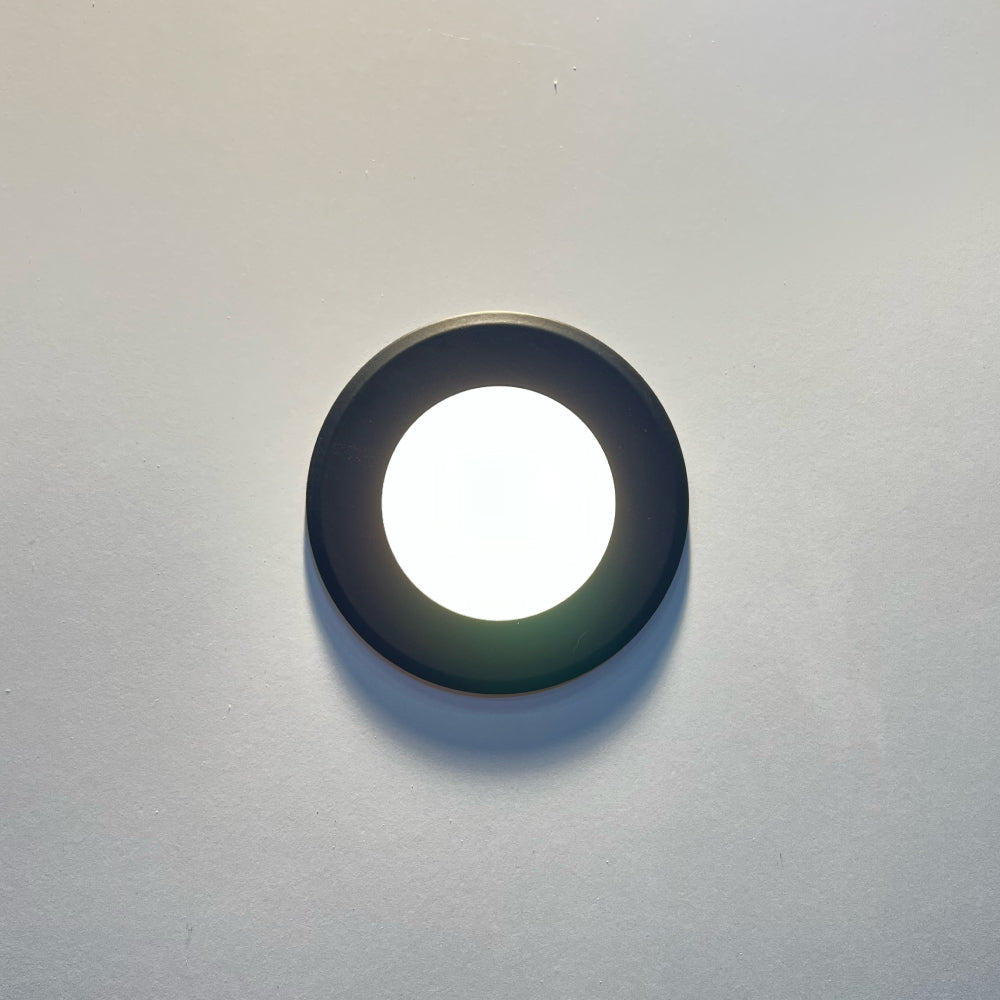

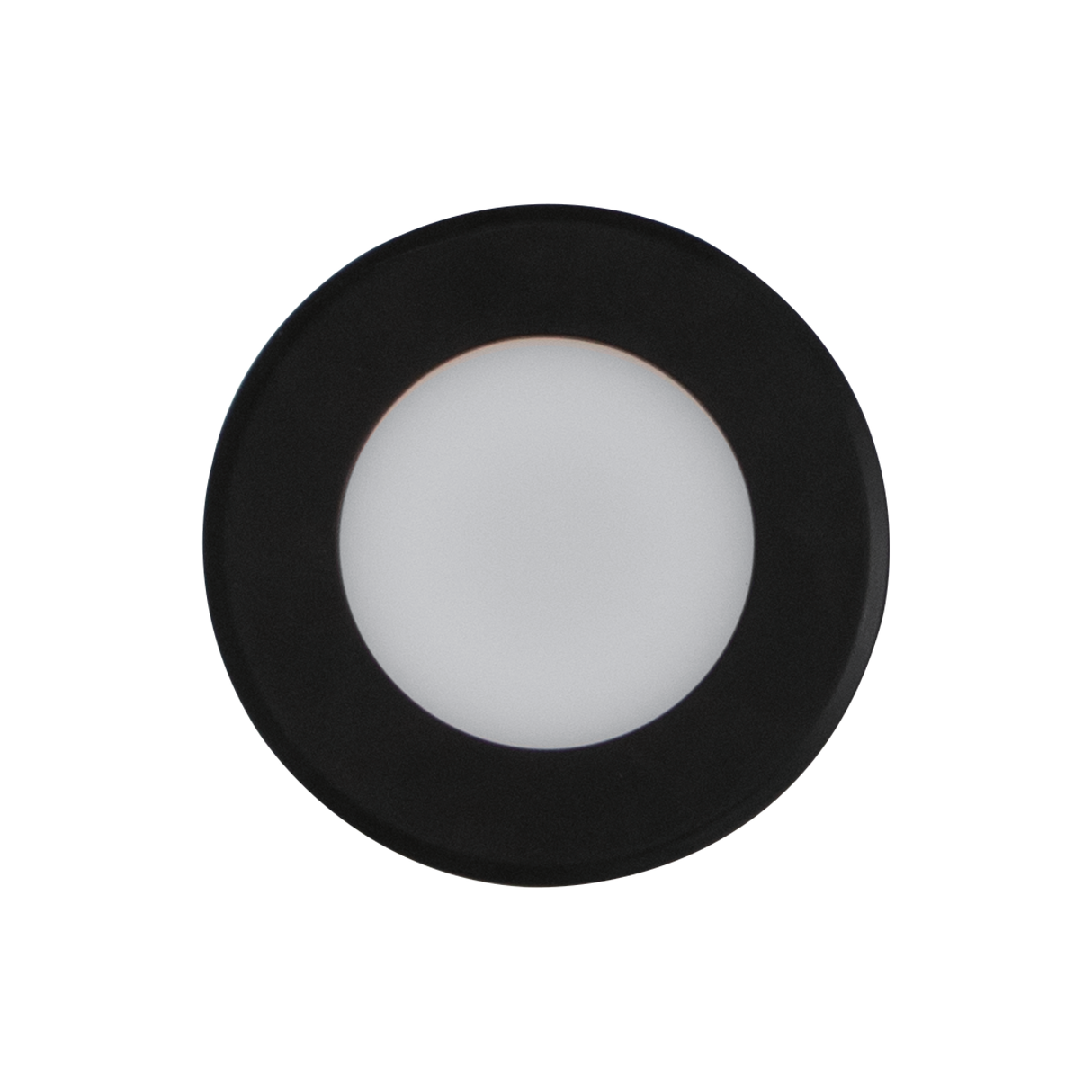

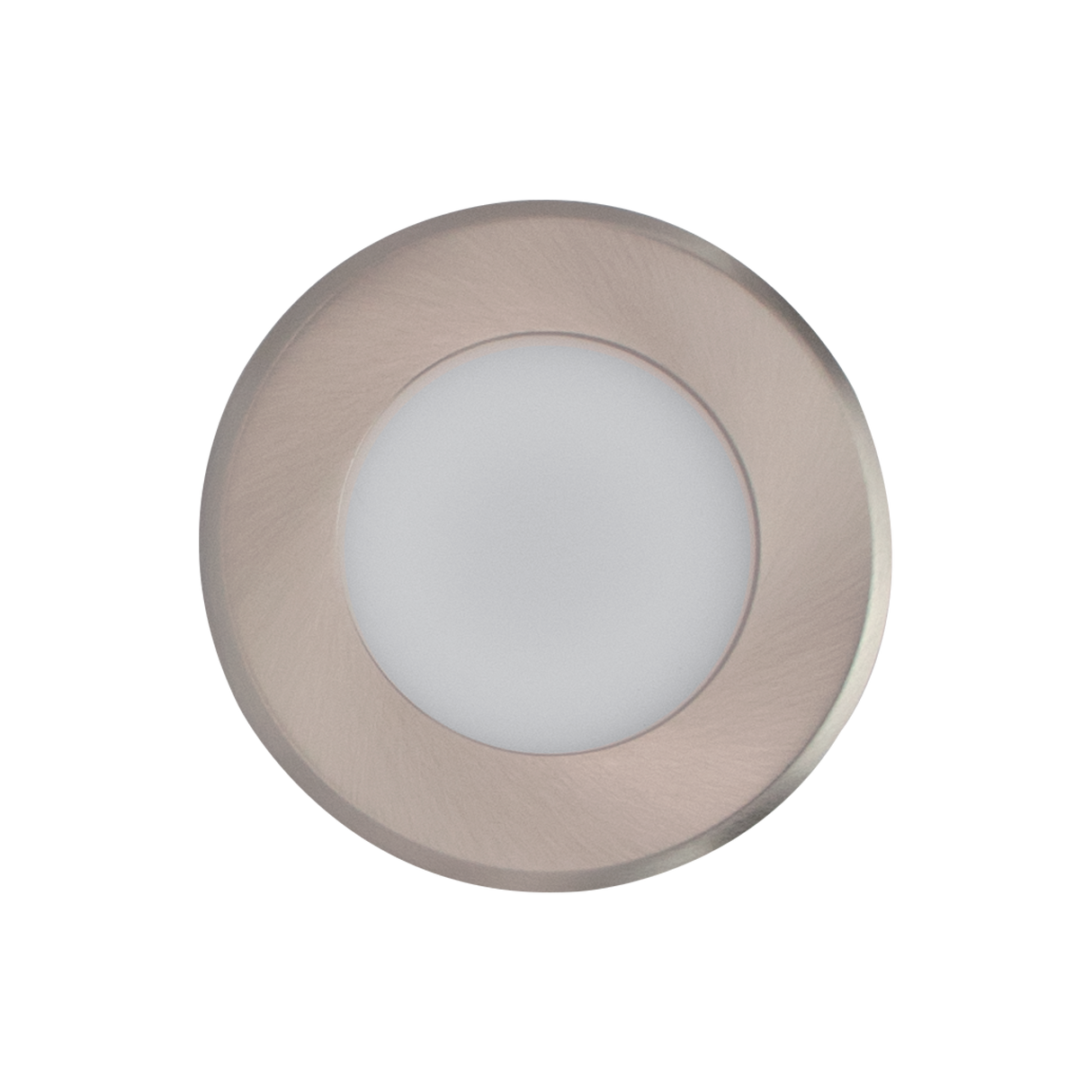

Mini 1.5W LED puck downlight for indoor use with 90+ CRI and selectable color temperature for vibrant, customizable lighting.

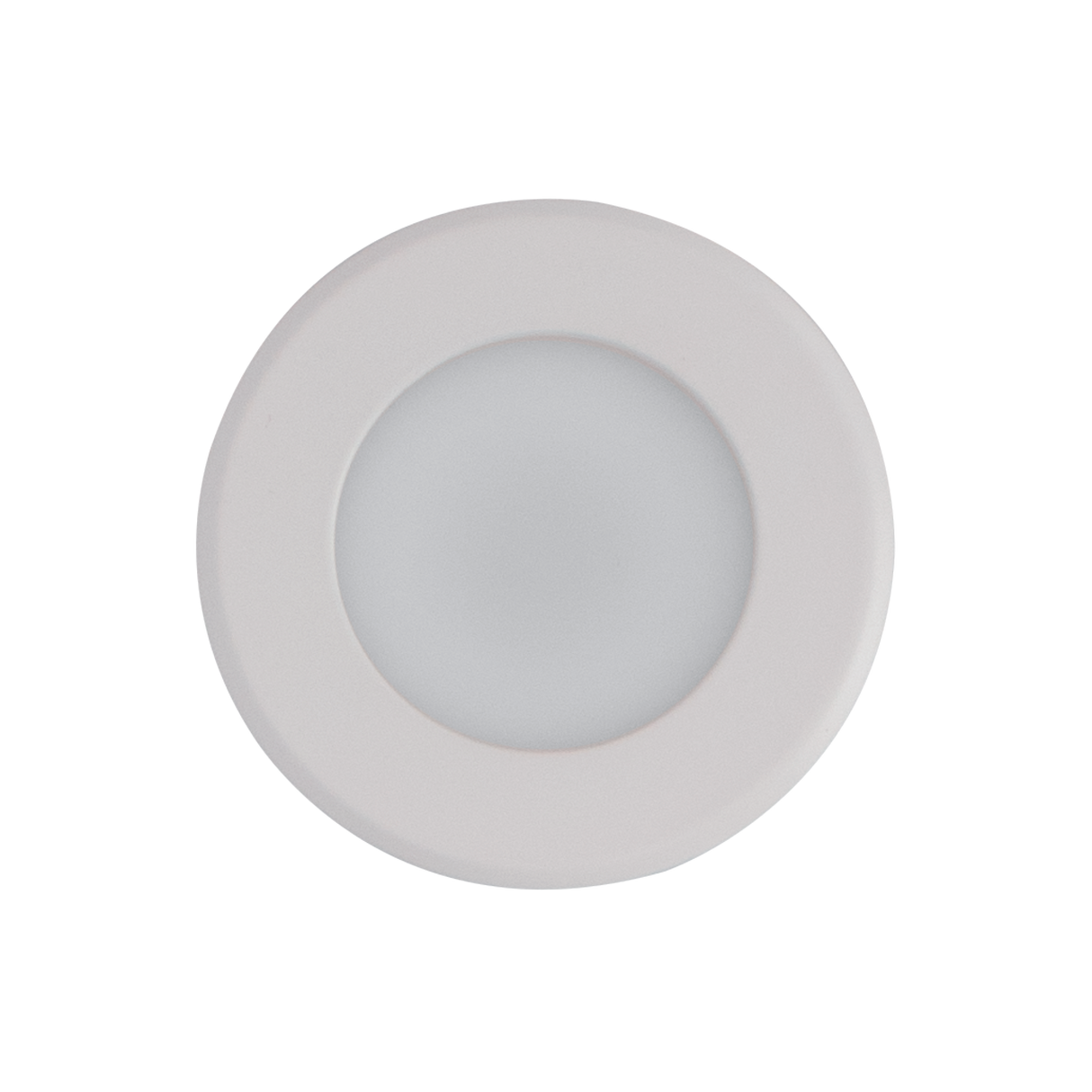

Color: White

HIGHLGIHTS

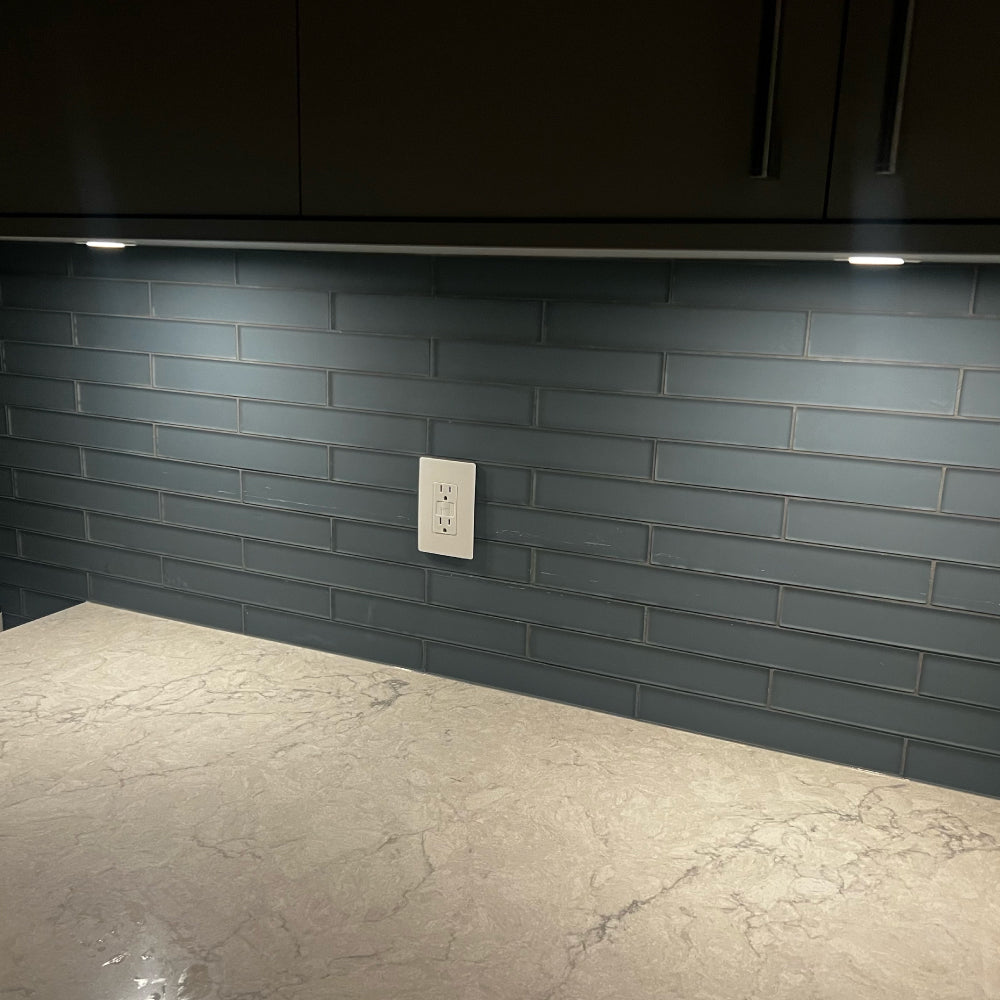

  • Versatile Lighting Applications: Ideal for cabinets, closets, shelves, corridors, and even wine bars.
  • Durable Construction: Made from aluminum and PMMA for longevity and a sleek finish.
  • Flexible Installation: Easily daisy-chained for consistent illumination wherever light is needed.

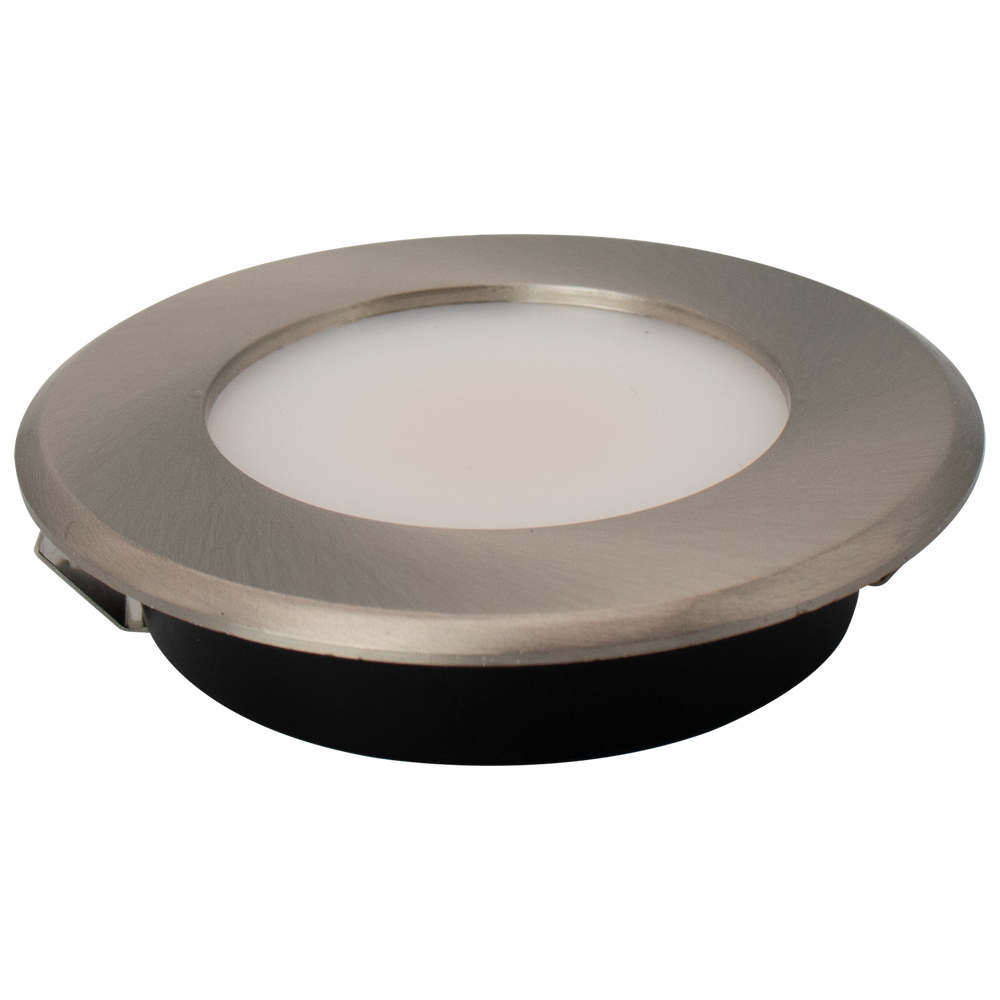

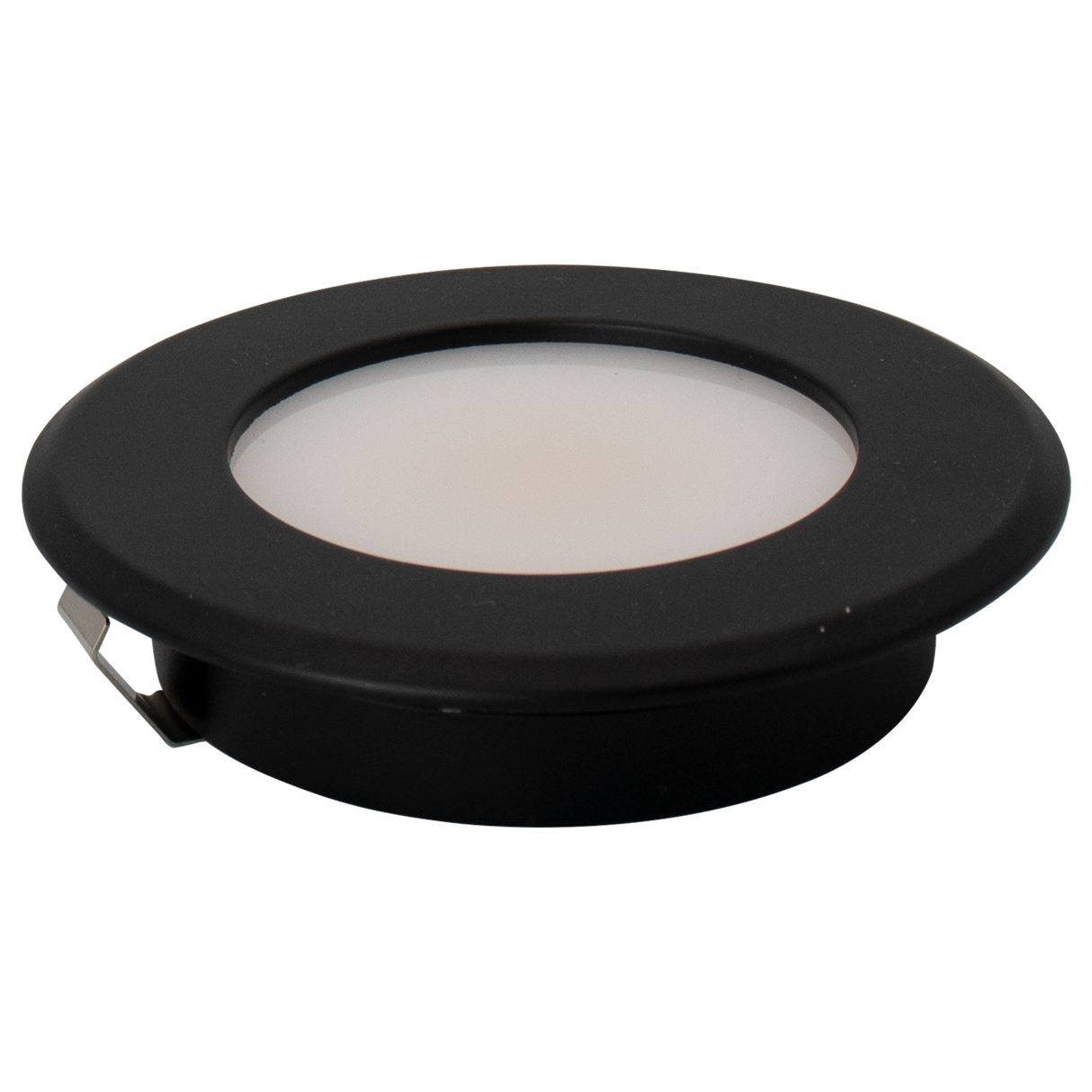

  • Simple Recessed Mounting: Designed for quick and clean recessed installation.
  • Indoor Use Rated: Suitable for dry and damp indoor locations only.

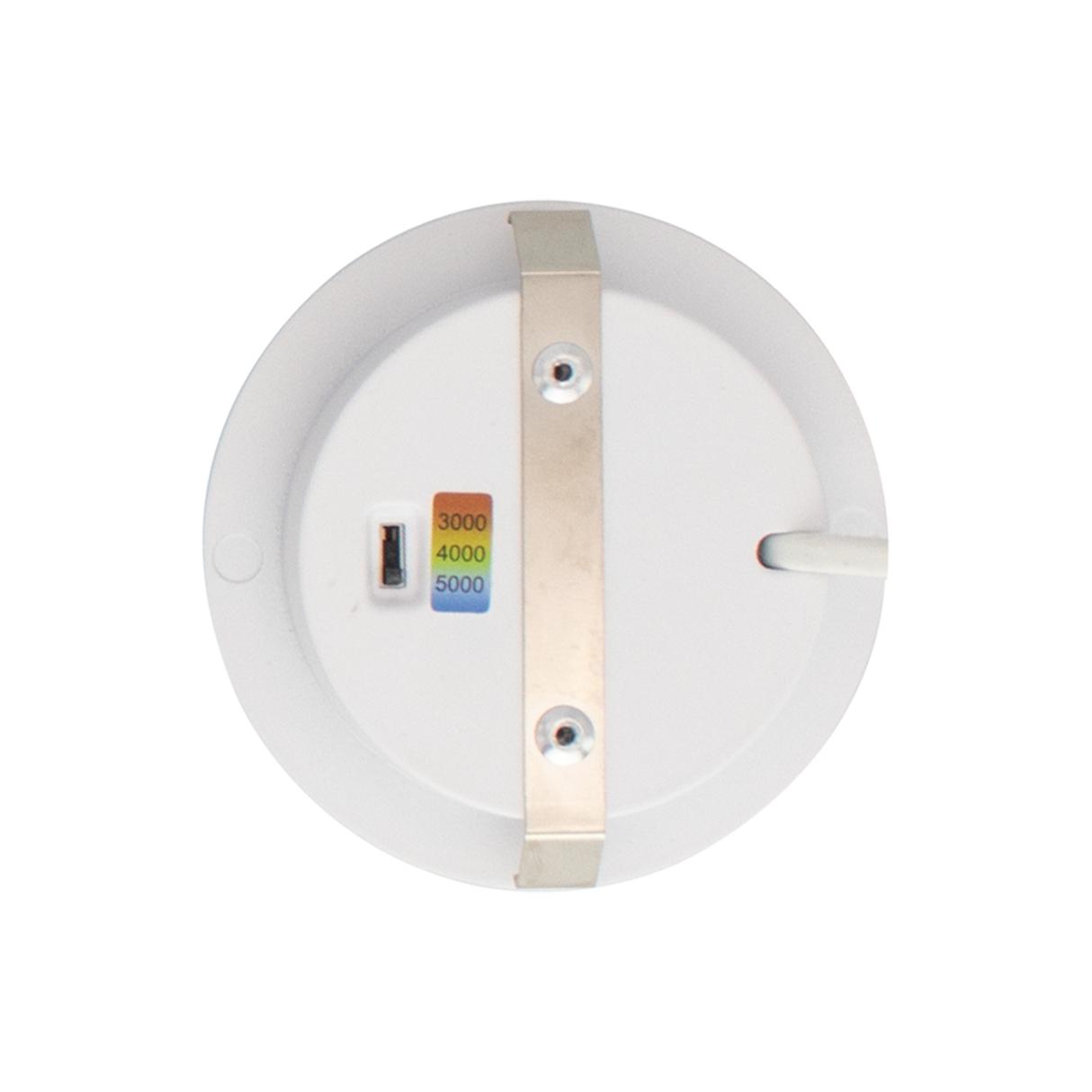

  • Selectable Color Temperature: Offers three field-selectable CCT options: 3000K, 4000K, and 5000K.

3CCT Selectable

Specifications
  • Wattage
    1.5W
  • Voltage
    12V DC
  • Lumens
    120 lmn
  • Beam Angle
    120°
  • CRI
    90Ra+
  • Dimmable
    Yes (if with dimmable driver)
  • Lifetime
    50,000 hours
  • Rating
    Indoor use / For Dry and Damp location
  • Grade of Protection
    IP42
  • Application
    Under cabinet / Home / Office / Kitchen / Workshop / Stairs etc.
  • Cutout
    Ø2-3/8” (60mm)
  • Colour Temperature
    3CCT [3000K/4000K/5000K]
  • Operating Temperature
    -10°C ~ +40°C
  • Warranty
    5 years
  • Case Quantities
    100

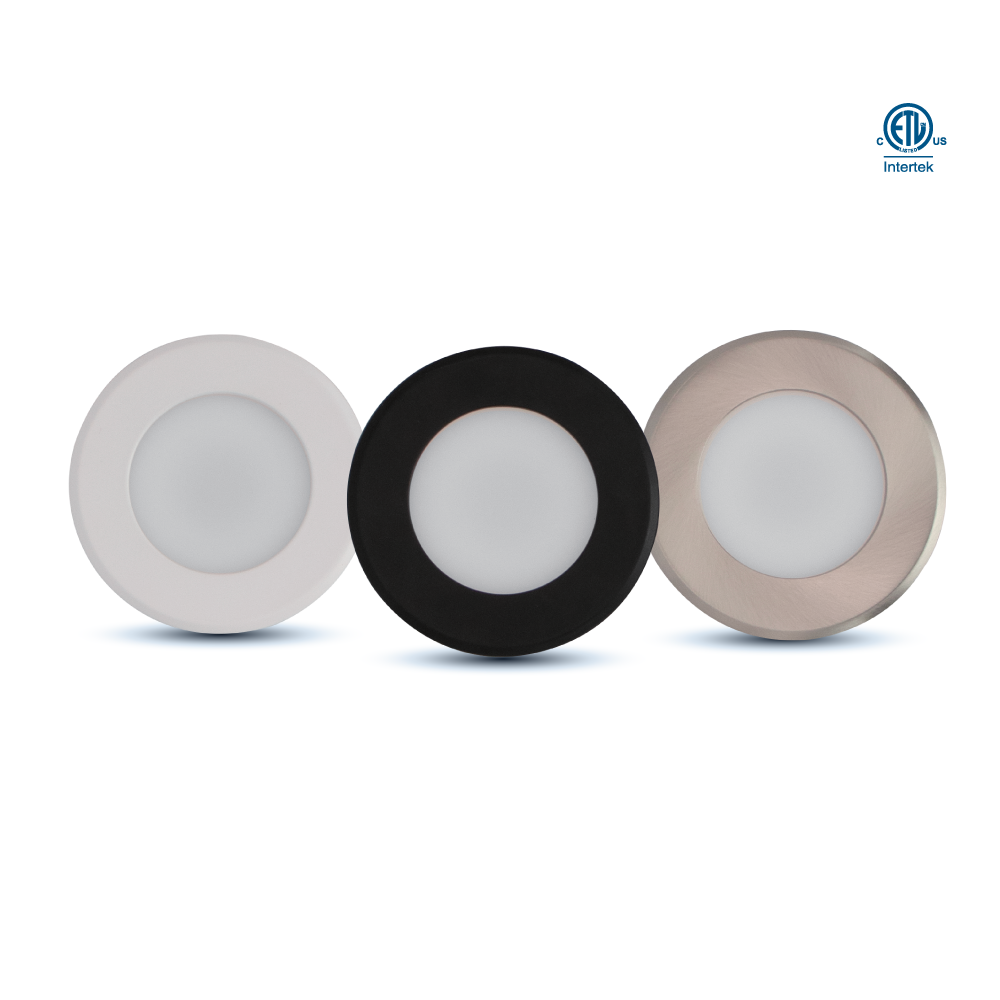

Certifications

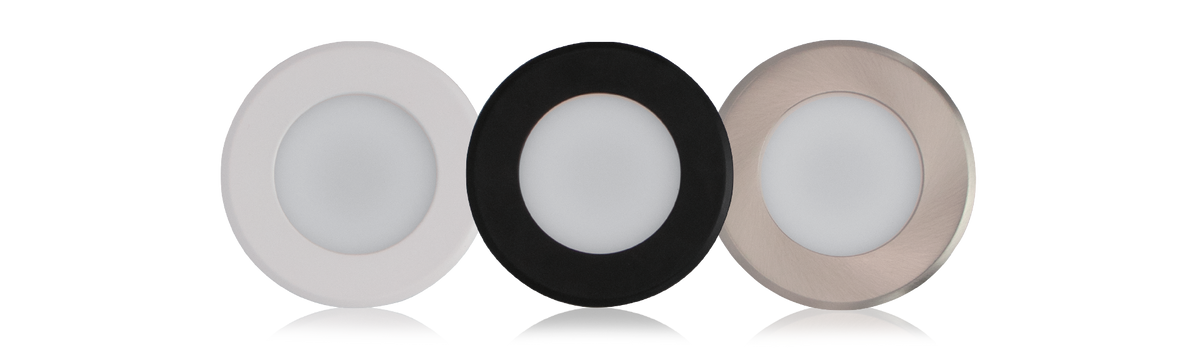

Product features

Accessories (sold separately)

PUK-EXT
PUK-EXT
Extension Cord
PUK 021-SM
PUK 021-SM
Surface Mounting Kit

Compatible Drivers (sold separately)

OT-08D
OT-08D
Max. 8W class 2 driver
OT-15D
OT-15D
Max.15W class 2 driver
OT-24D
OT-24D
Max. 24W class 2 driver
OT-48D
OT-48D
Max. 48W class 2 driver
OT-60D
OT-60D
Max.60W class 2 driver
OT-96D
OT-96D
Max. 96W class 2 driver

PRODUCT SHEETS

Spec Sheet

PUK 1.5-3CCT Spec Sheet

Instruction Manual

PUK 1.5-3CCT Instruction Manual

Dimmer List

NA

IES Files

PUK 1.5-3CCT IES Files
