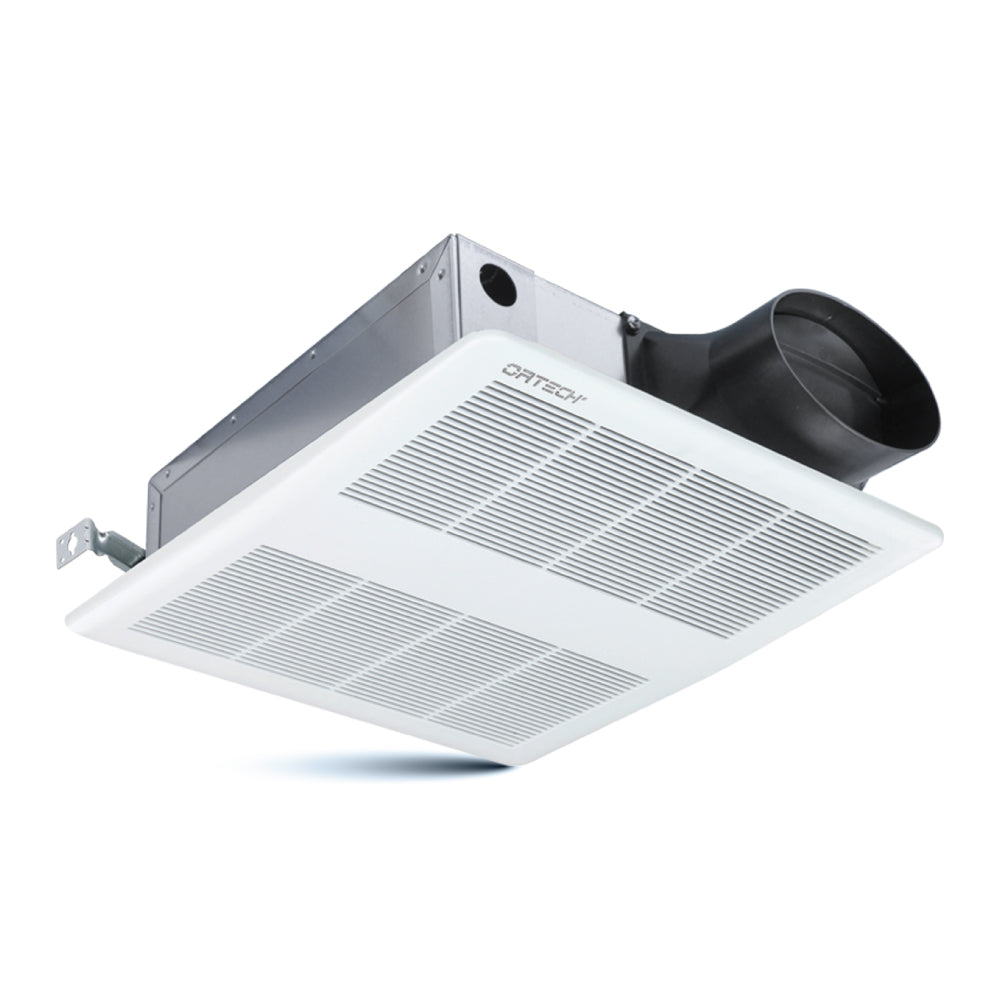

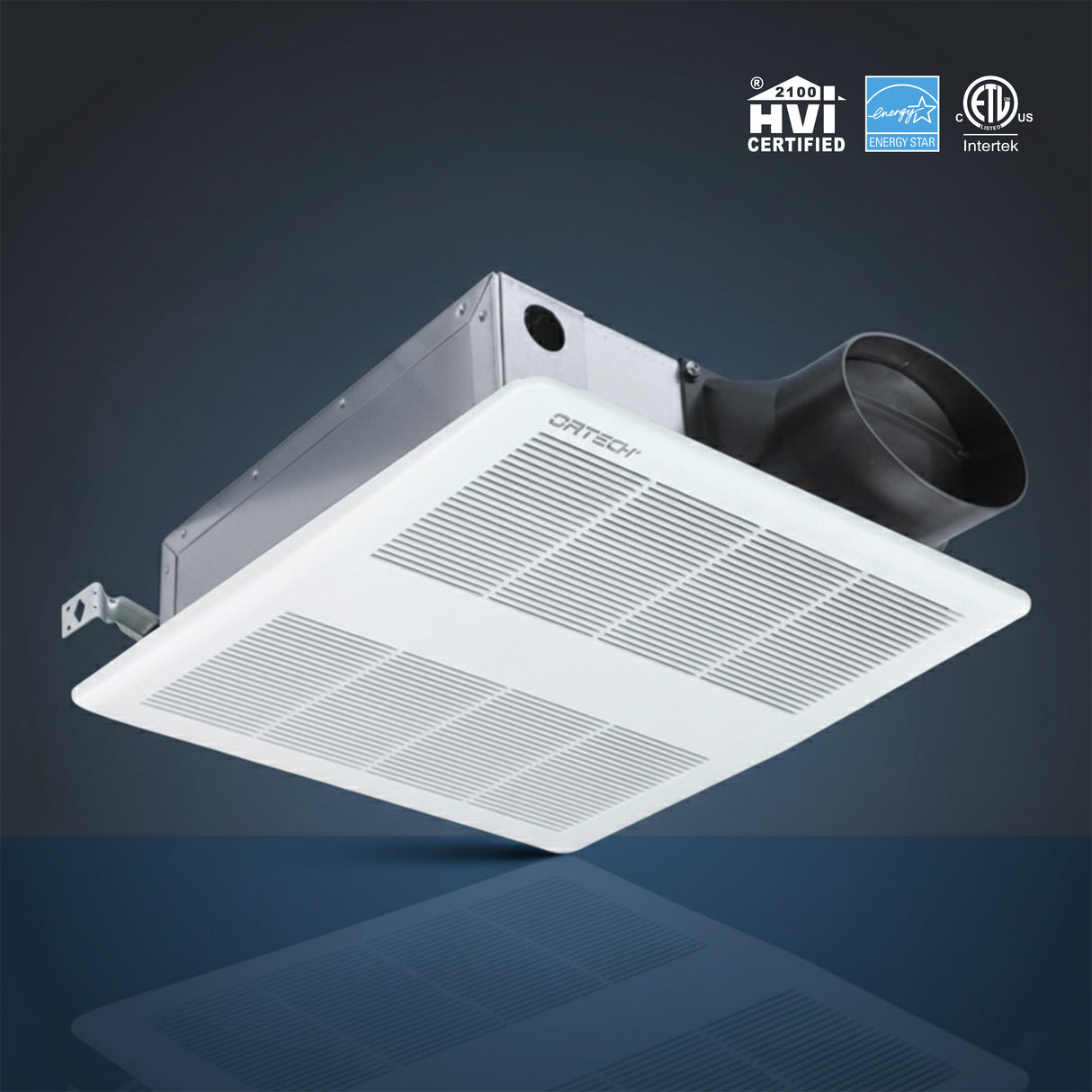

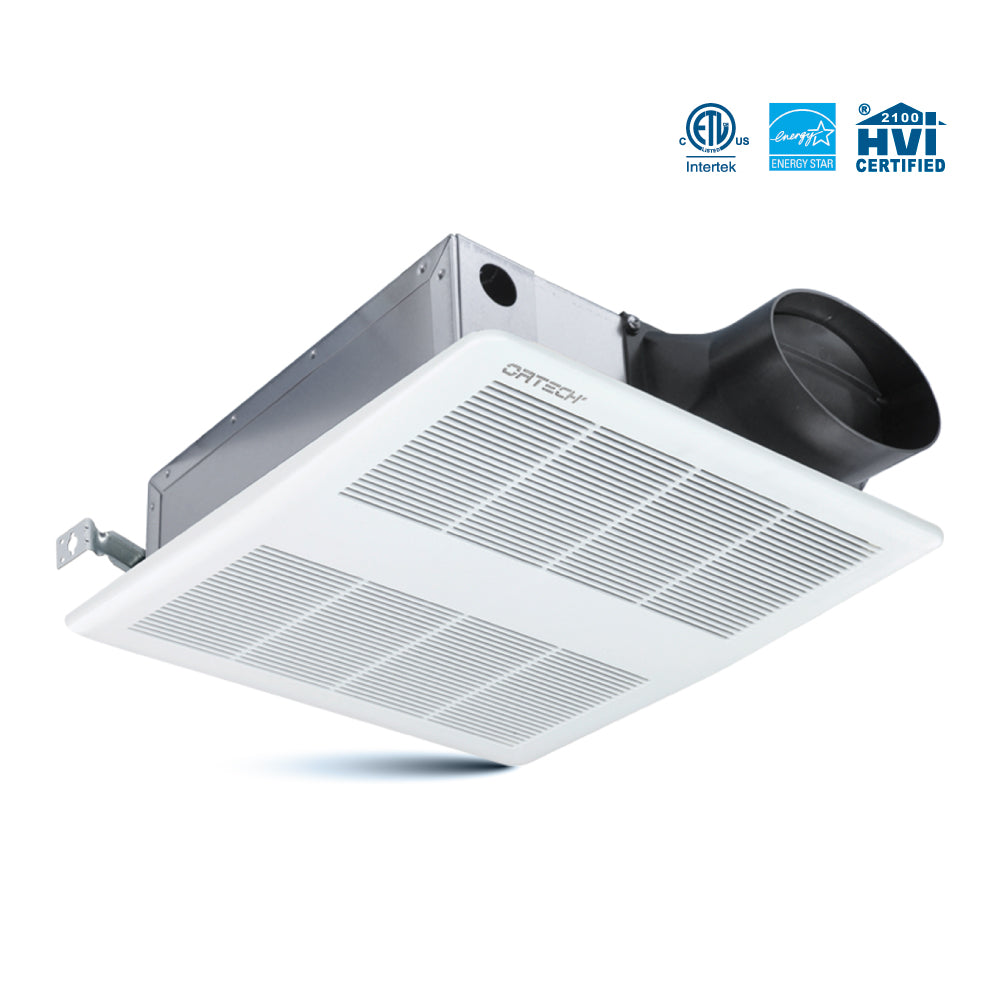

ODDSS-100-3

Three speeds DC Motor Super Slim Series Fan with 4" polymeric collar

Description:
  • Low speed (30 CFM) is optional
  • Built-in delay up to 30 minutes timer
  • Made of rugged 26 GA galvanized steel
  • ETL evaluated and conforms to UL and cUL safety standards
  • Low speed runs continuously (adjustable from 30 CFM to max CFM)

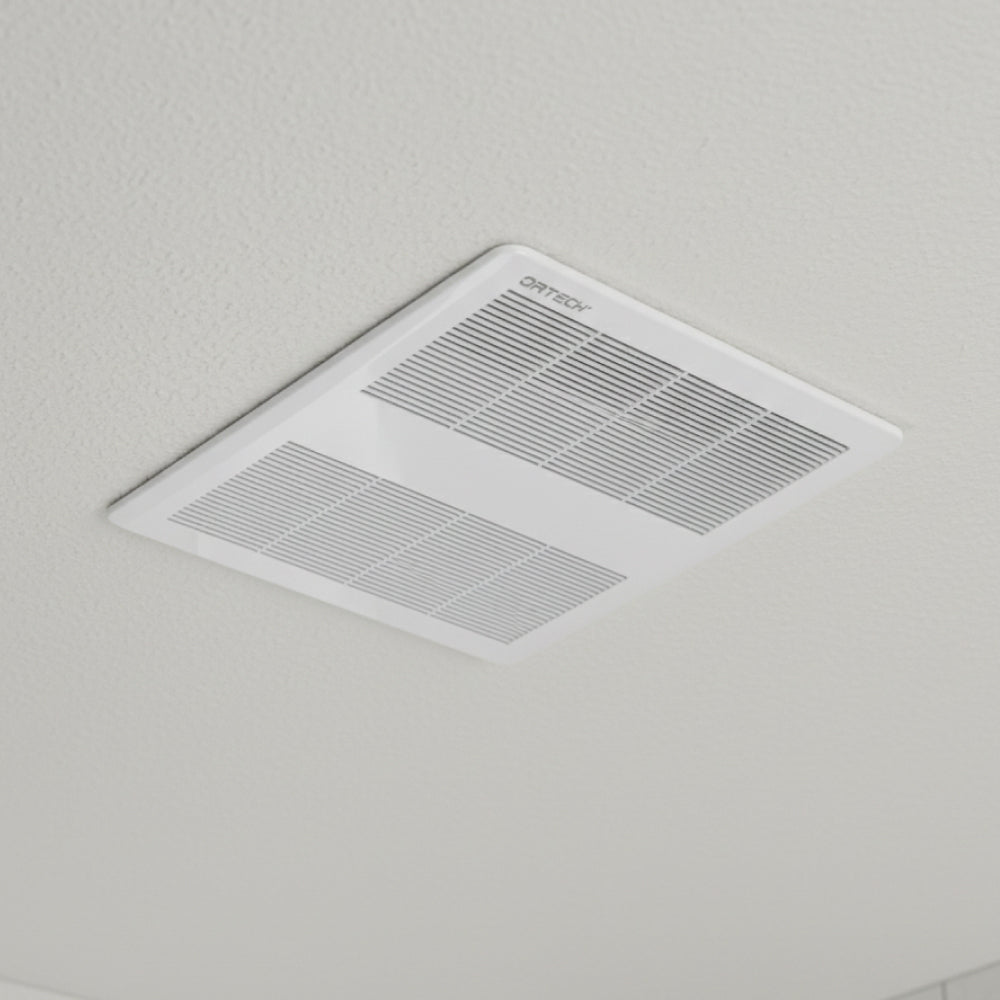

  • Very quiet three speeds DC motor fan for ceiling or wall mounted hold

100CFM

Static Pressure (SP)
0.001 SP 0.068 SP 0.098 SP 0.179 SP 0.249 SP 0.301 SP 0.374 SP 0.418 SP 0.471 SP 0.546 SP
106.7 CFM 103.7 CFM 104.7 CFM 106.7 CFM 106.5 CFM 106.4 CFM 110.8 CFM 101.0 CFM 76.1 CFM 0.00 CFM









80CFM

Static Pressure (SP)
0.000 SP 0.063 SP 0.097 SP 0.188 SP 0.248 SP 0.324 SP 0.394 SP 0.451 SP 0.493 SP 0.547 SP
85.0 CFM 86.4 CFM 82.9 CFM 82.7 CFM 84.9 CFM 83.5 CFM 83.7 CFM 86.2 CFM 52.4 CFM 0.00 CFM









50CFM

Static Pressure (SP)
0.000 SP 0.046 SP 0.100 SP 0.139 SP 0.191 SP 0.252 SP 0.295 SP 0.337 SP 0.431 SP 0.441 SP
53.5 CFM 56.2 CFM 54.6 CFM 54.0 CFM 58.9 CFM 55.4 CFM 55.0 CFM 57.3 CFM 55.9 CFM 0.00 CFM
Air Volume (CFM) 50 / 80 / 100
Noise (sones) 0.8 / 1.0 / 1.5
Fan Watts 3.7W / 6.7W / 10.2W
Duct Diameter 4"
Power Rating 120V /60Hz
Housing Size 10-1/4" x 10-1/4" x 3-3/8"
Grille Dimensions 13-3/4" x 13"
Case Quantities 1



Assembly Instructions

  1. Mount with mounting holes
  2. Mount to I-joist
  3. When the product is installed on the wall, the adapter shall be faced upward
  4. Slide hanger bar into the channel on the housing
  5. Install round ductwork
