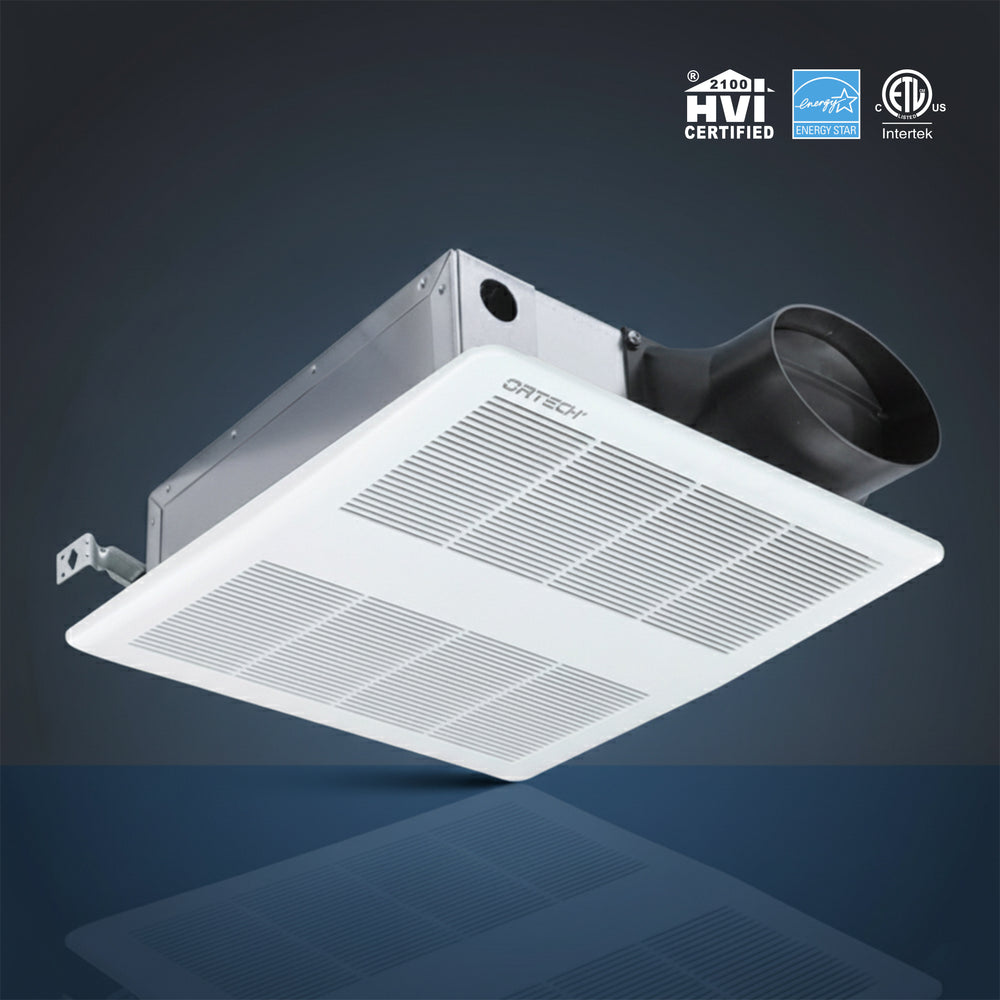

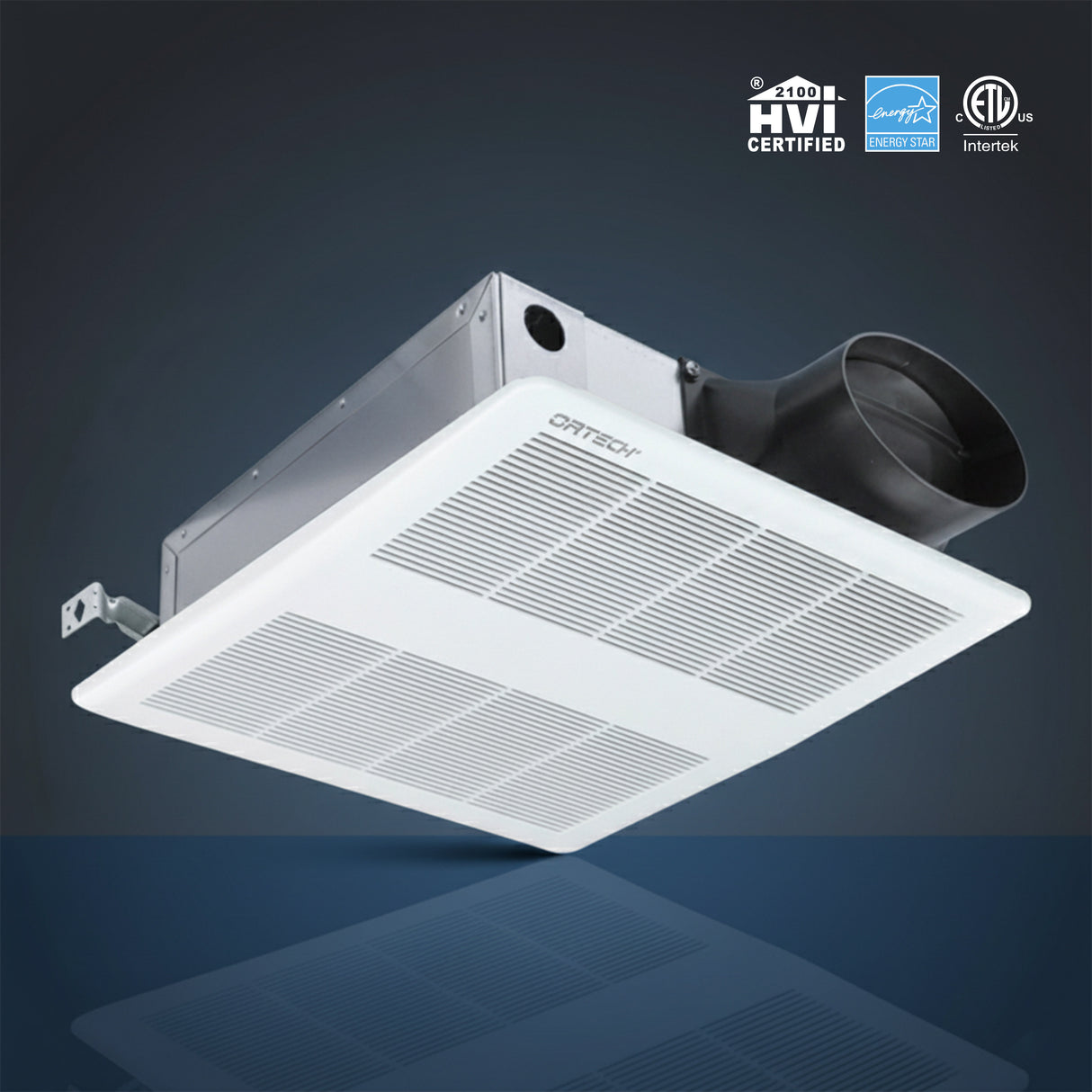

ODDSS-100-3

The Super Slim Series fan features three speed settings and a compact design, equipped with a 4" polymeric collar for easy duct connection and efficient airflow.

HIGHLIGHTS

  • Adjustable Low-Speed Operation Runs continuously with airflow settings from 30 CFM to maximum CFM
  • Built-In Delay Timer Programmable delay of up to 30 minutes for automatic shutoff
  • Durable Construction Made from rugged 26-gauge galvanized steel for long-lasting performance
  • ETL Evaluated and UL/cUL Compliant Meets recognized safety standards for residential and commercial use
  • Quiet Three-Speed DC Motor Fan Designed for ceiling or wall mounting with ultra-silent operation

PRODUCT SHEETS

Spec Sheet

ODDSS-100-3 Spec Sheet

Instruction Manual

ODDSS-100-3 Instruction Manual

Revit Files

NA

SUPER SLIM SERIES

Specifications
  • Air Volume (CFM)
    50 / 80 / 100
  • Noise (sones)
    0.8 / 1.0 / 1.5
  • Fan Watts
    3.7W / 6.7W / 10.2W
  • Duct Diameter
    4"
  • Power Rating
    120V/60Hz
  • Housing Size
    10-1/4" x 10-1/4" x 3-3/8"
  • Grille Dimensions
    13-3/4" x 13"
  • Fan Weight
    6.5 lbs
  • Warranty
    5 Years
  • Case Quantities
    1

100 CFM
Static Pressure Table

0.001 SP 0.068 SP 0.098 SP 0.179 SP 0.249 SP 0.301 SP 0.374 SP 0.418 SP 0.471 SP 0.546 SP
106.7 CFM 103.7 CFM 104.7 CFM 106.7 CFM 106.5 CFM 106.4 CFM 110.8 CFM 101.0 CFM 76.1 CFM 0.00 CFM

80 CFM
Static Pressure Table

0.000 SP 0.063 SP 0.097 SP 0.188 SP 0.248 SP 0.324 SP 0.394 SP 0.451 SP 0.493 SP 0.547 SP
85.0 CFM 86.4 CFM 82.9 CFM 82.7 CFM 84.9 CFM 83.5 CFM 83.7 CFM 86.2 CFM 52.4 CFM 0.00 CFM

50 CFM
Static Pressure Table

0.000 SP 0.046 SP 0.100 SP 0.139 SP 0.191 SP 0.252 SP 0.295 SP 0.337 SP 0.431 SP 0.441 SP
53.5 CFM 56.2 CFM 54.6 CFM 54.0 CFM 58.9 CFM 55.4 CFM 55.0 CFM 57.3 CFM 55.9 CFM 0.00 CFM
