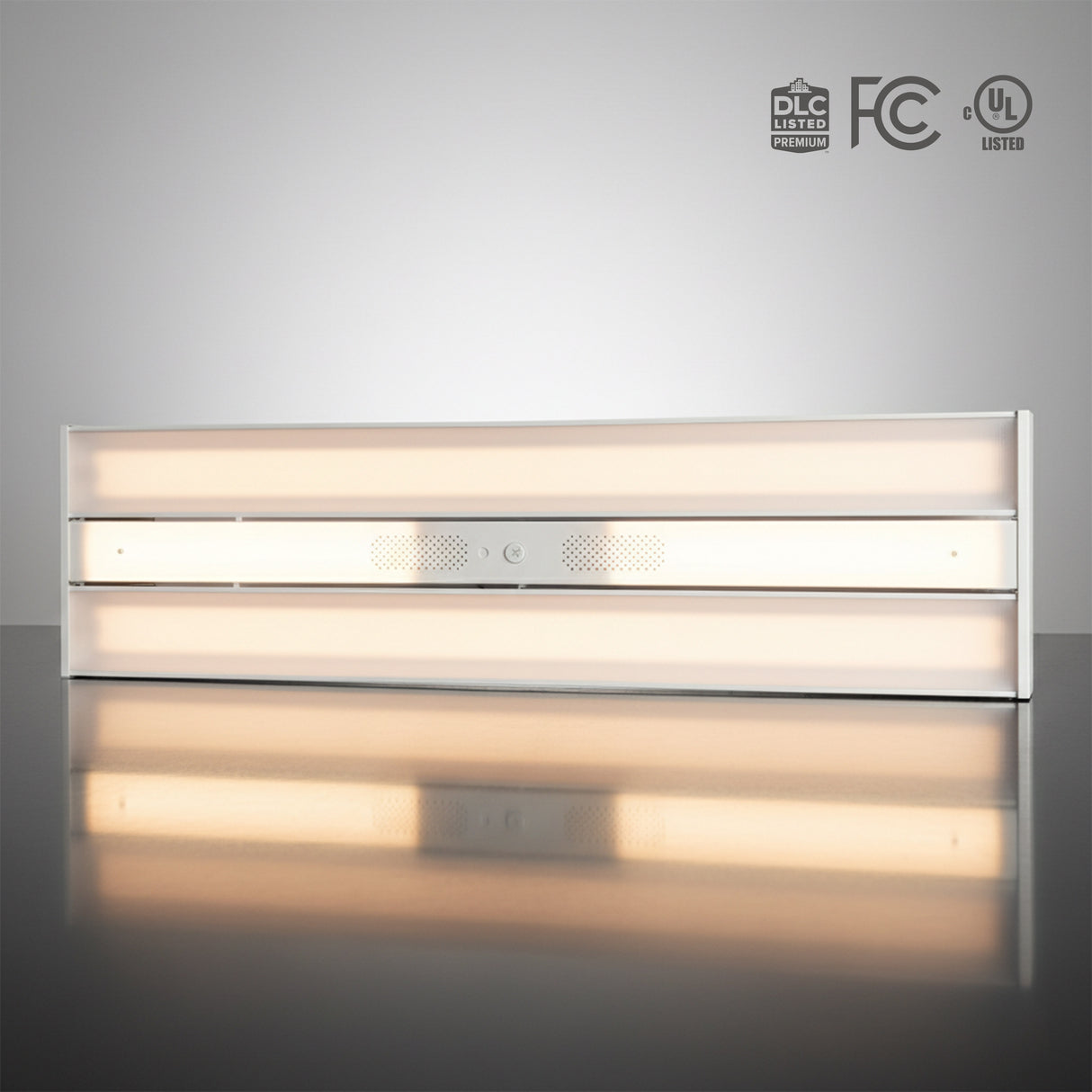

2HB165-3CCT+W+S

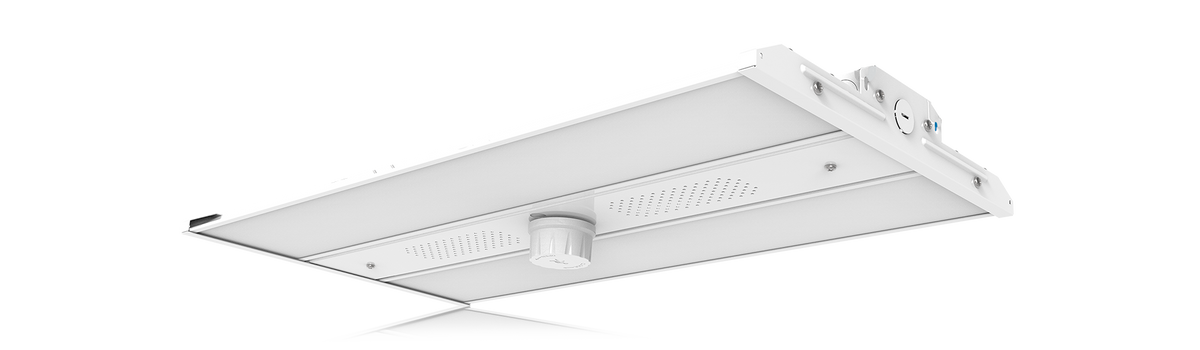

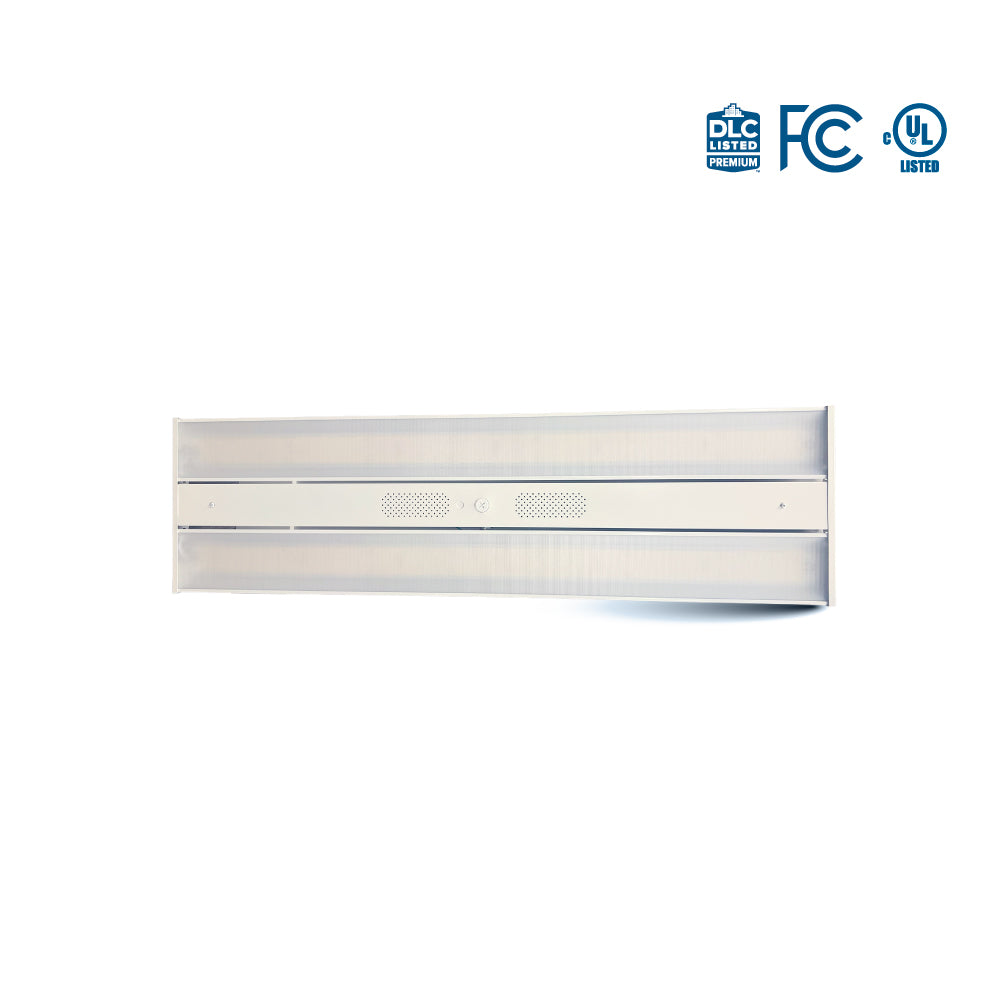

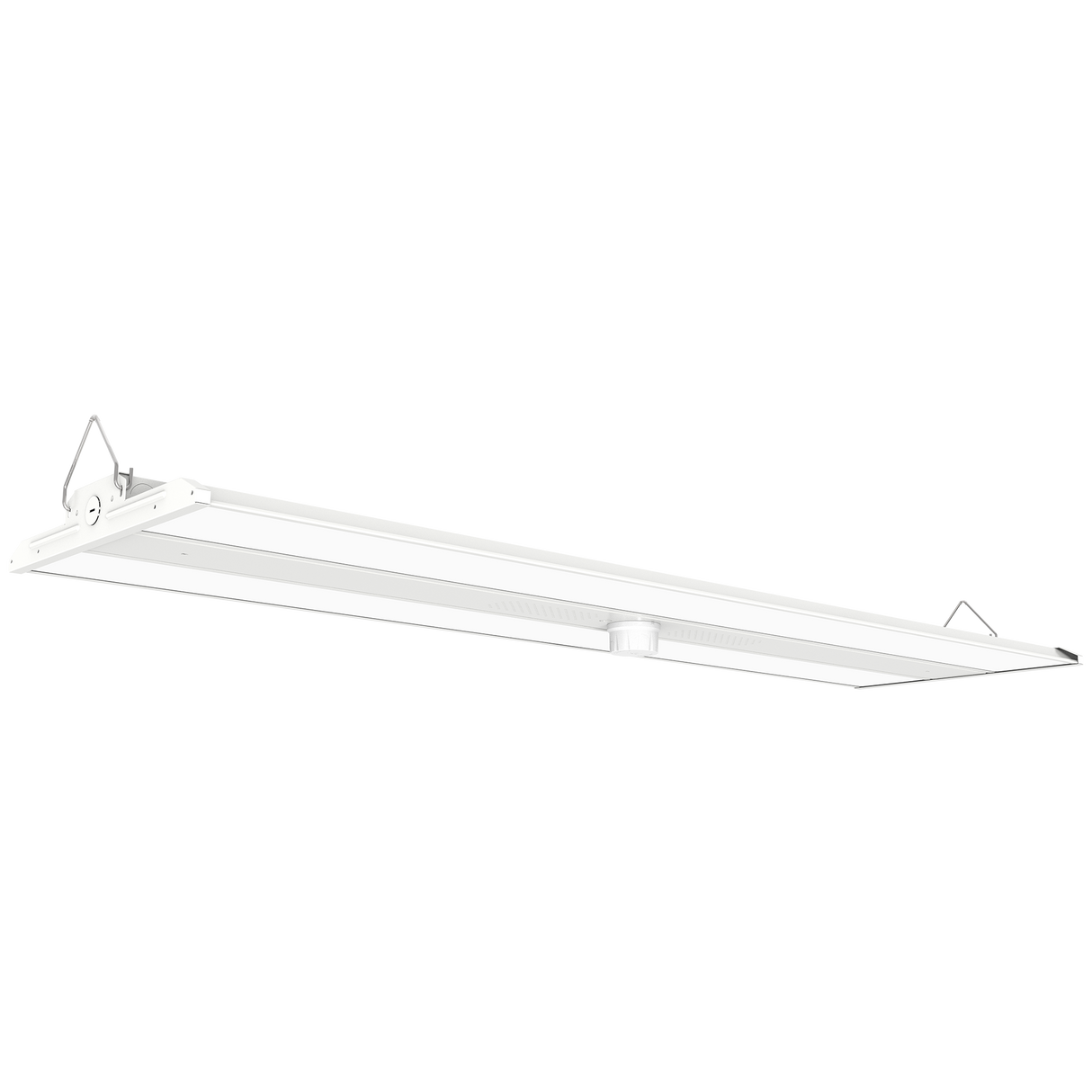

2 FT. Commercial-Grade LED Linear High Bay - Equipped with a built-in sensor, selectable color temperature (CCT), and adjustable wattage for efficient, customizable performance in high-ceiling spaces.

HIGHLIGHTS

  • Adjustable Power & CCT: Offers three selectable levels for both wattage and color temperature.

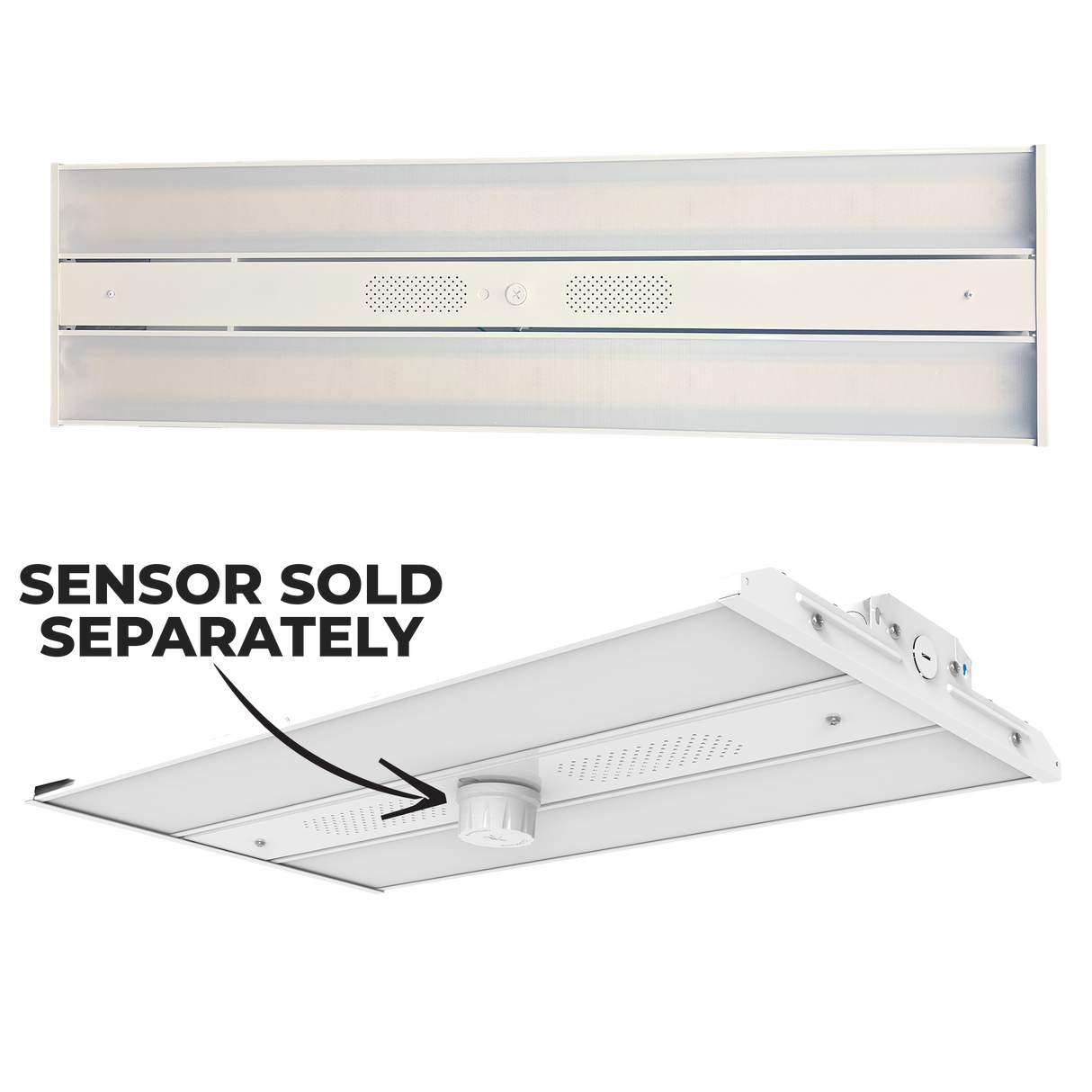

  • Sensor Compatibility: Plug & play design supports optional sensor integration (sold separately).
  • Premium Driver Performance: Features 1–10V dimming, flicker-free operation, and high-quality components.
  • Efficient & Reliable: Power factor >0.90, driver efficiency >90%, and THD <20% for optimal energy use.
  • Dry Location Rated: Designed for safe and effective use in dry indoor environments.
  • Installation Accessories Included: Comes with two 1-meter chains for easy suspension mounting.

DLC No. / Product ID: S-HM9VCY

3CCT AND WATTAGE SELECTABLE WITH SENSOR

Specifications
  • Wattage
    90W/120W/165W
  • Voltage
    AC 120-347V
  • Lumens
    135 lmn/w
  • Beam Angle
    90°
  • CRI
    70Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 Hours
  • Rating
    Dry Location
  • Grade of Protection
    IP20
  • Application

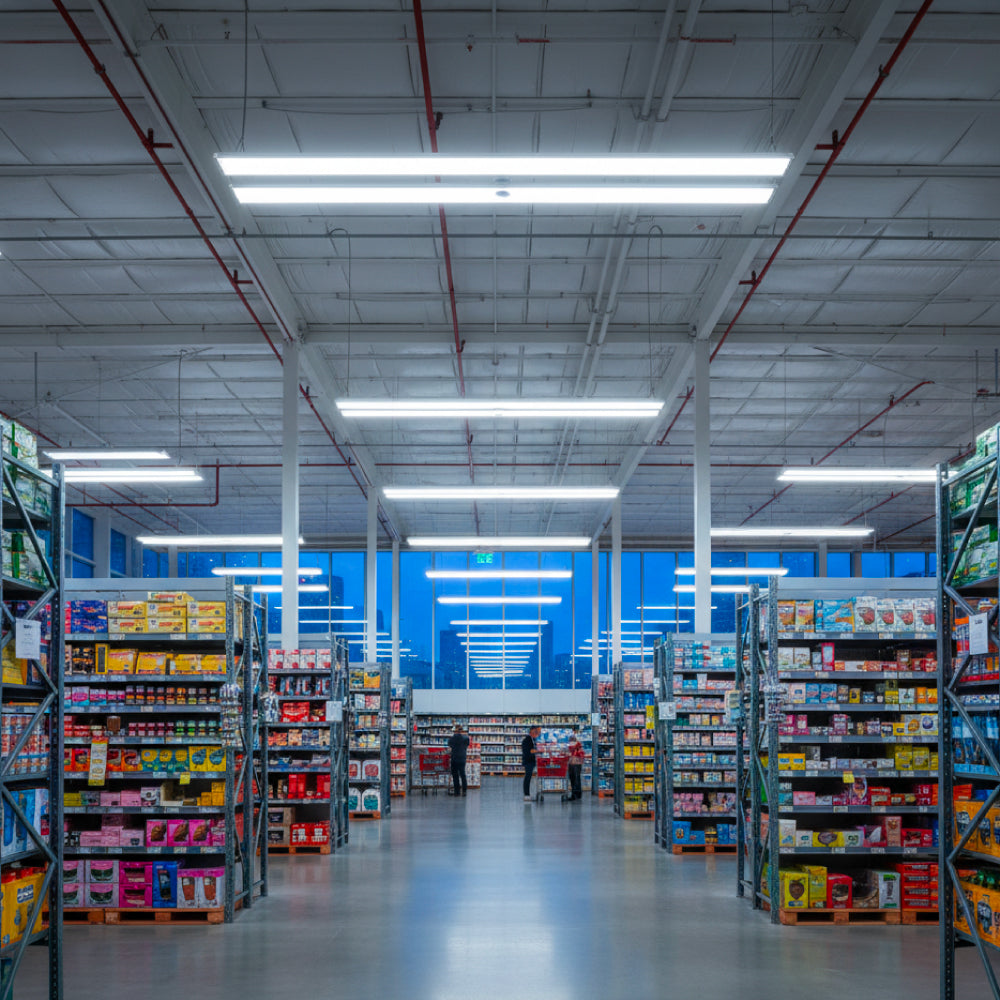

    Warehouses / Gymnasiums / Industrial spaces, etc.

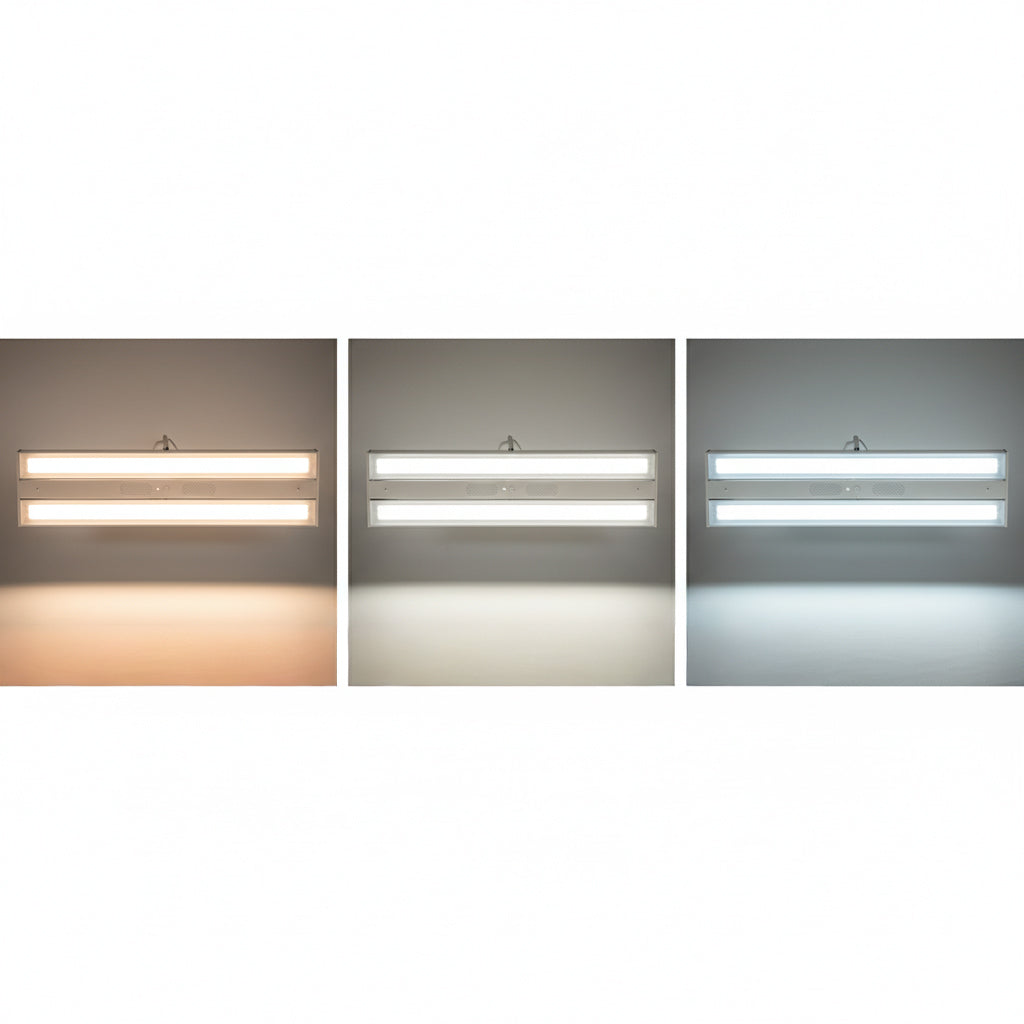

  • Colour Temperature
    3CCT [3500K/4000K/5000K]
  • Diffuser/Lens Material
    PC
  • Daisy Connection
    2 pieces, 1 meter in length
  • Frequency Range
    50/60Hz
  • Operating Temperature
    -40°C~45°C
  • Warranty
    5 Years
  • Case Quantities
    4

CERTIFICATIONS

Product features

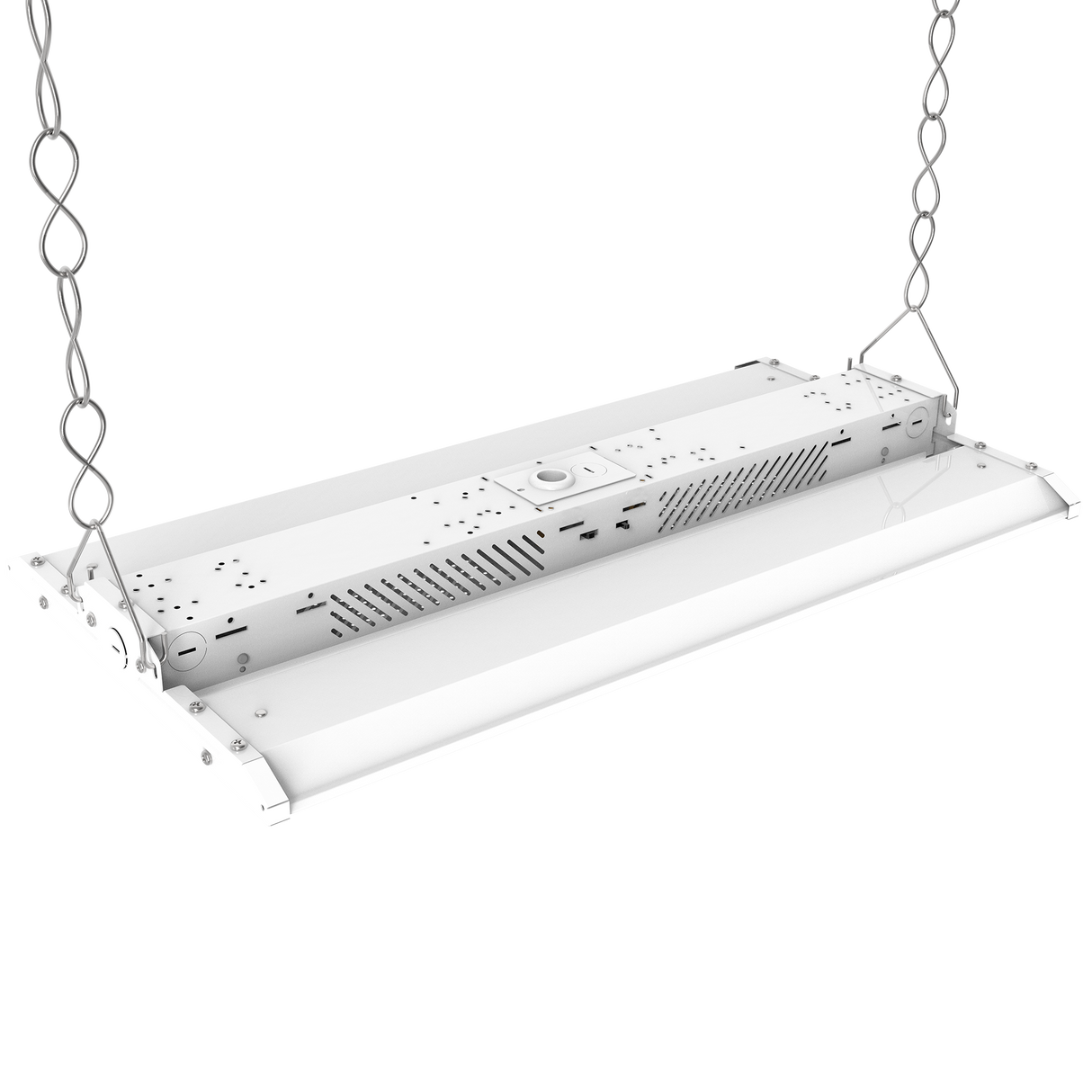

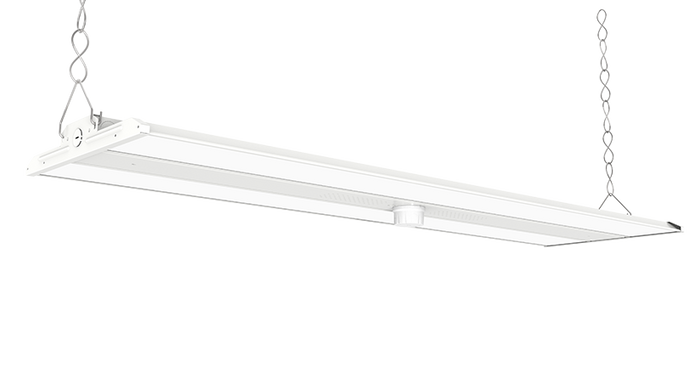

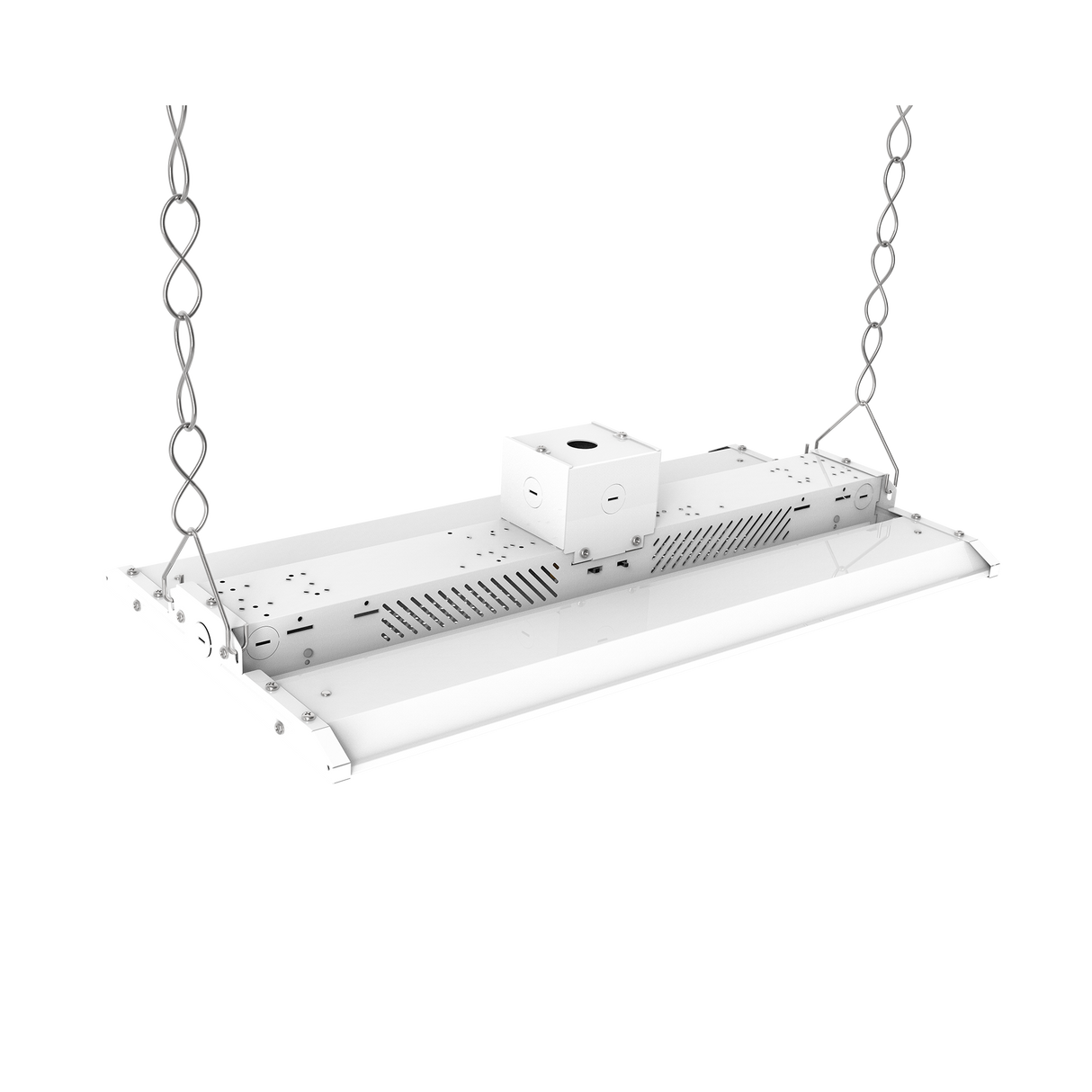

  • CHAIN INSTALLATION

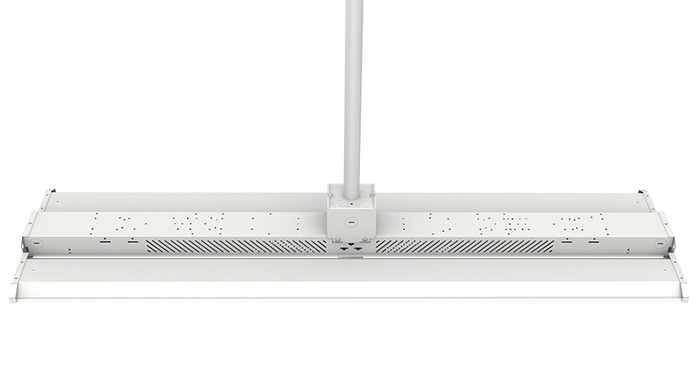

  • CONDUIT POLE INSTALLATION

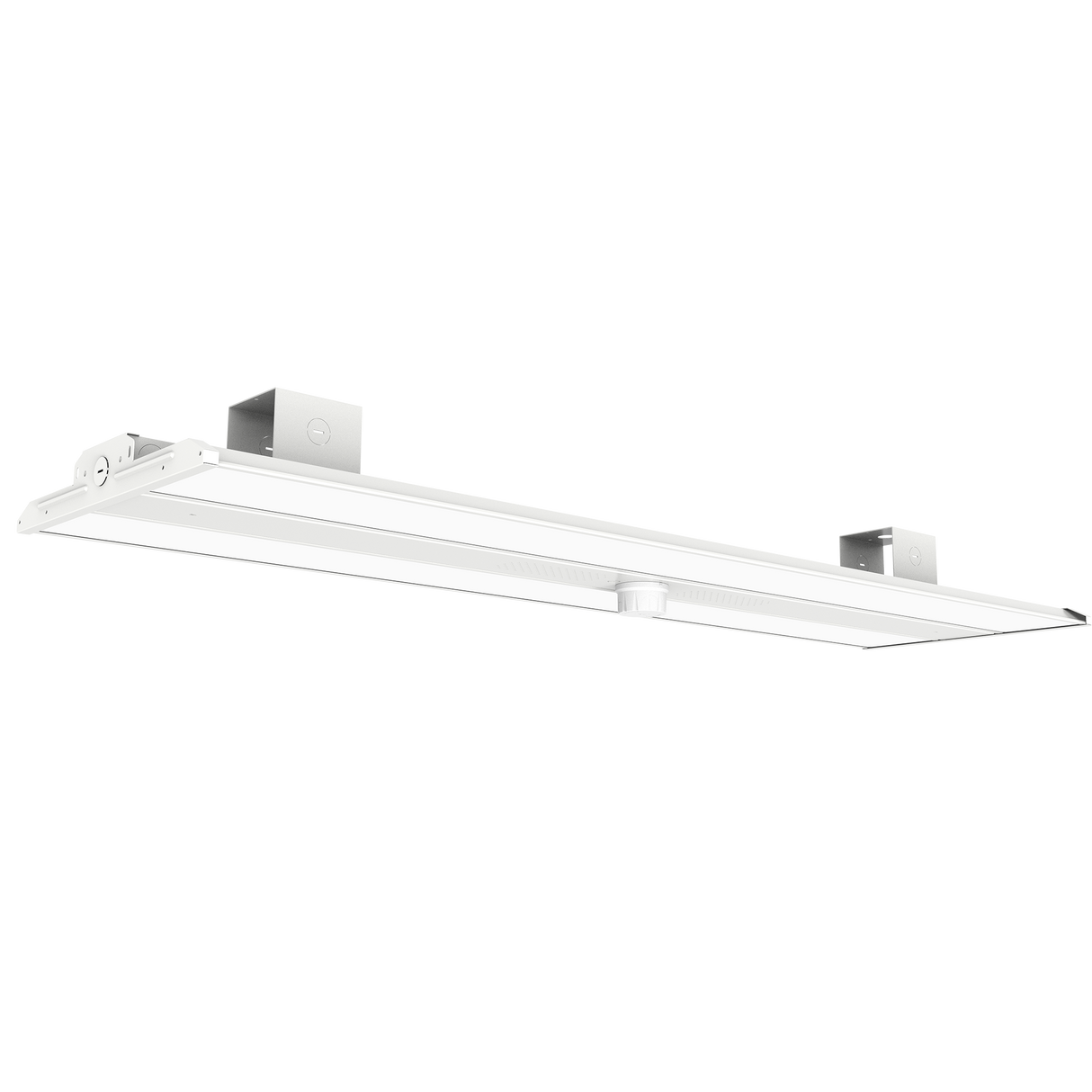

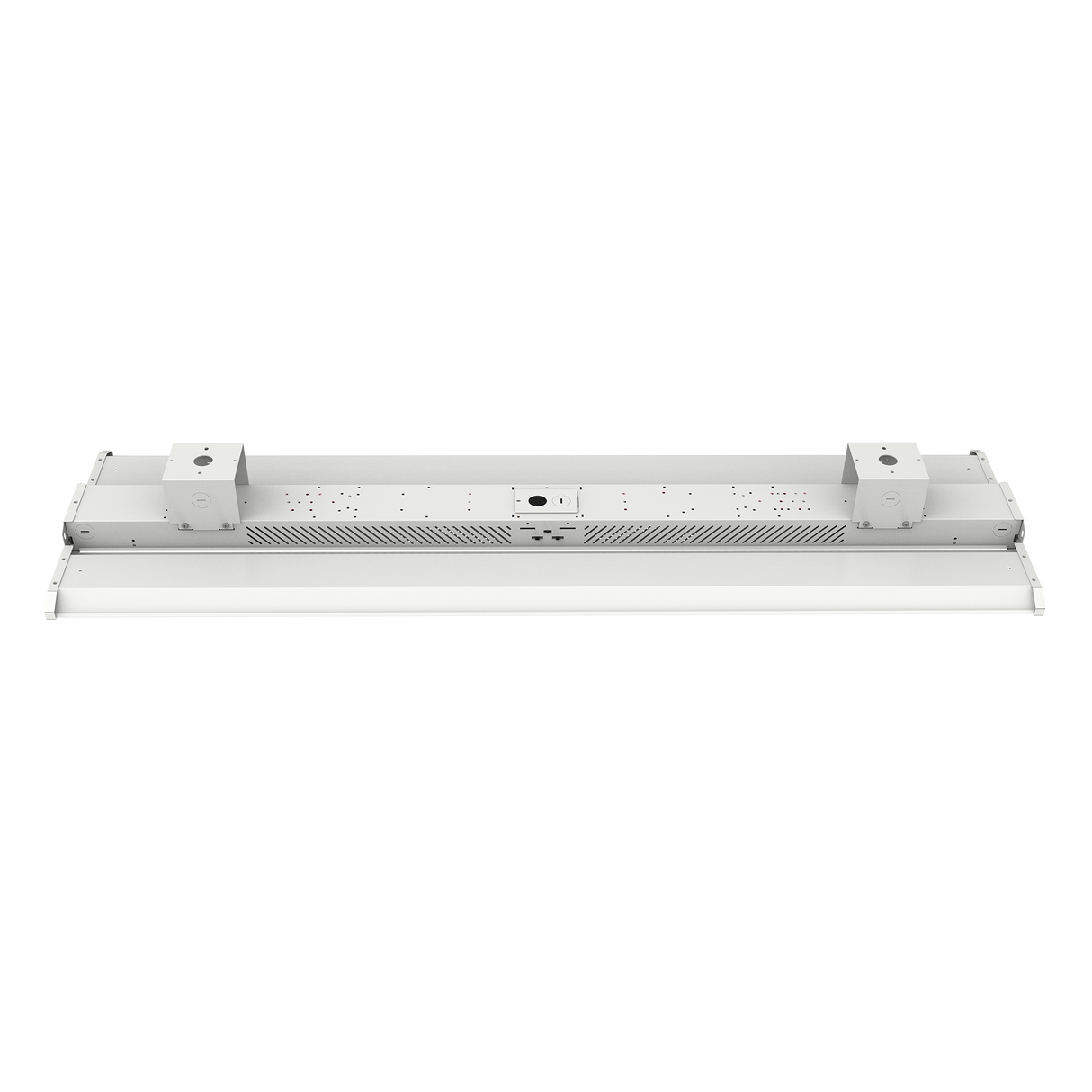

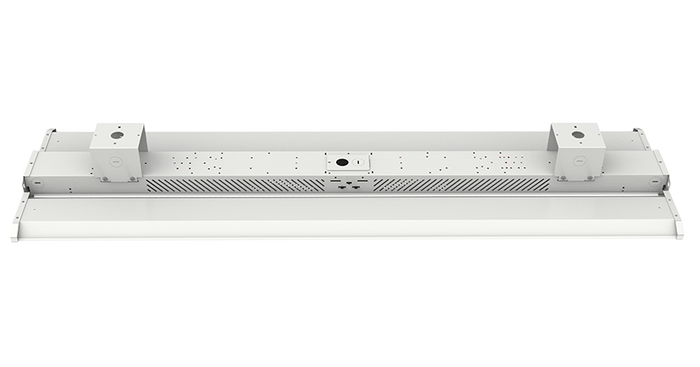

  • SURFACE MOUNTED INSTALLATION

Accessories (sold separately)

HB-POLE-M1
HB-POLE-M1
PNP-SENSOR
PNP-SENSOR
PNP-REMOTE
PNP-REMOTE

PRODUCT SHEETS

Spec Sheet

2HB165-3CCT+W+S Spec Sheet
PNP-SENSOR Spec Sheet

Instruction Manual

2HB165-3CCT+W+S Instruction Manual
PNP-SENSOR Application Notice

Dimmer List

2HB165-3CCT+W+S Dimmer Compatible List

IES Files

NA
