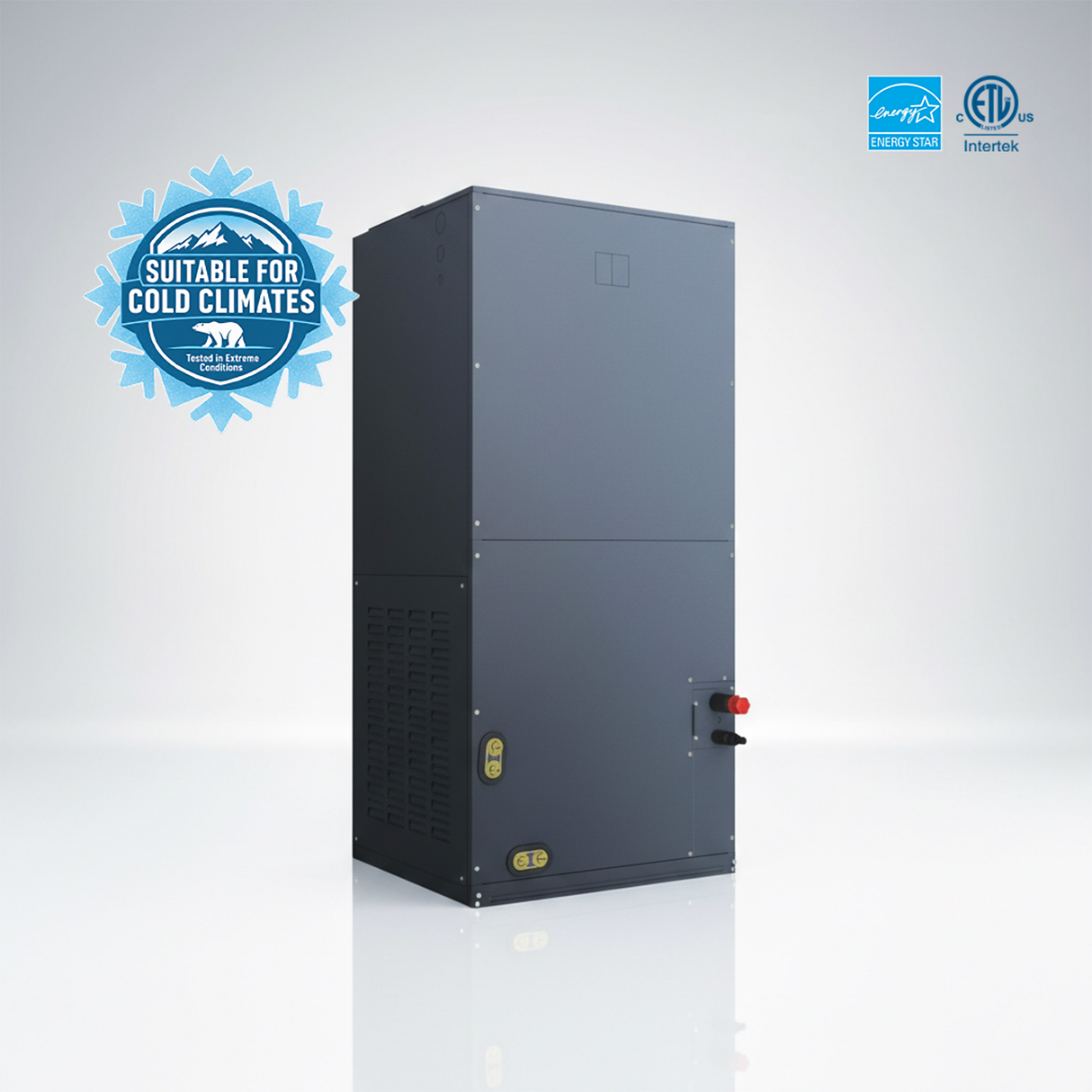

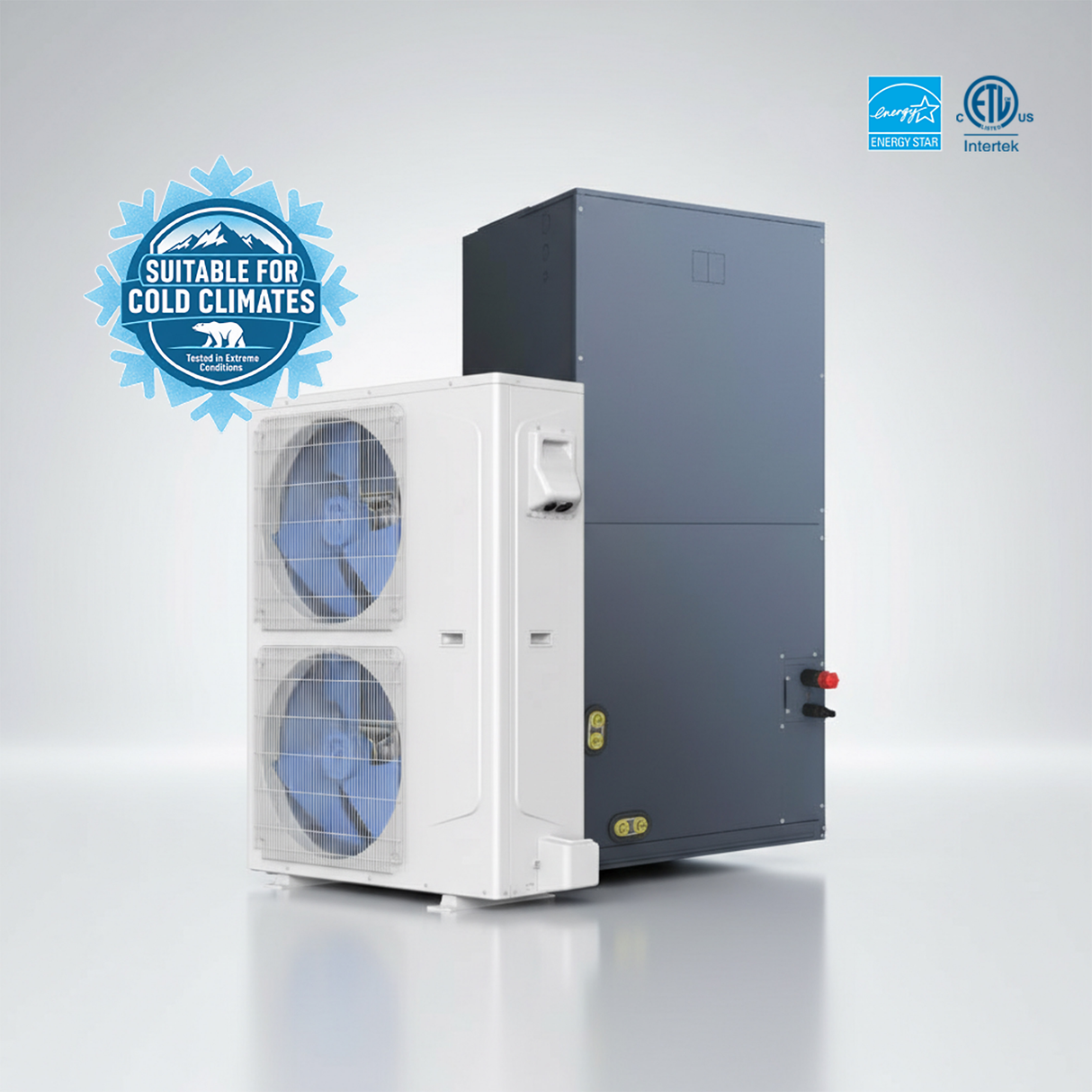

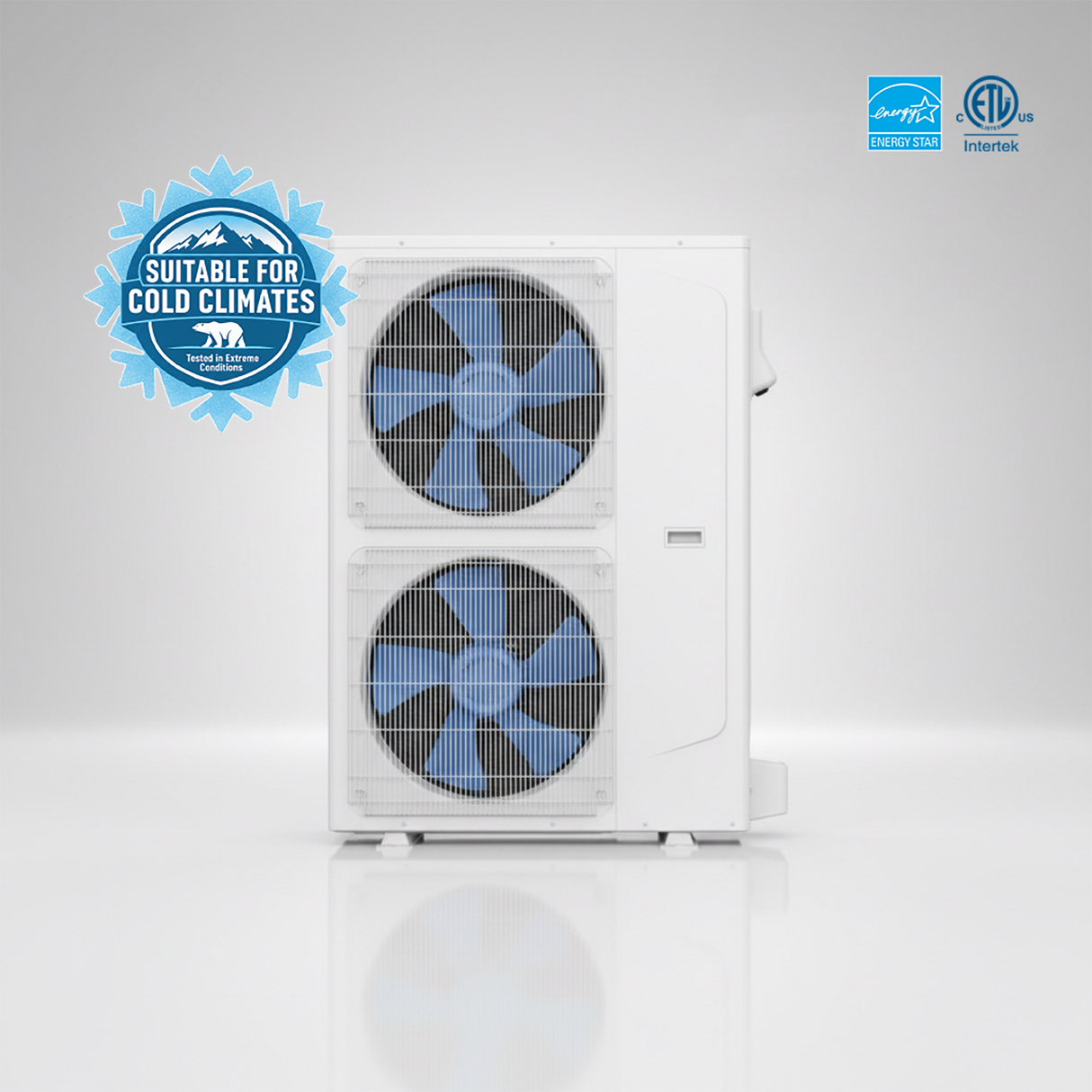

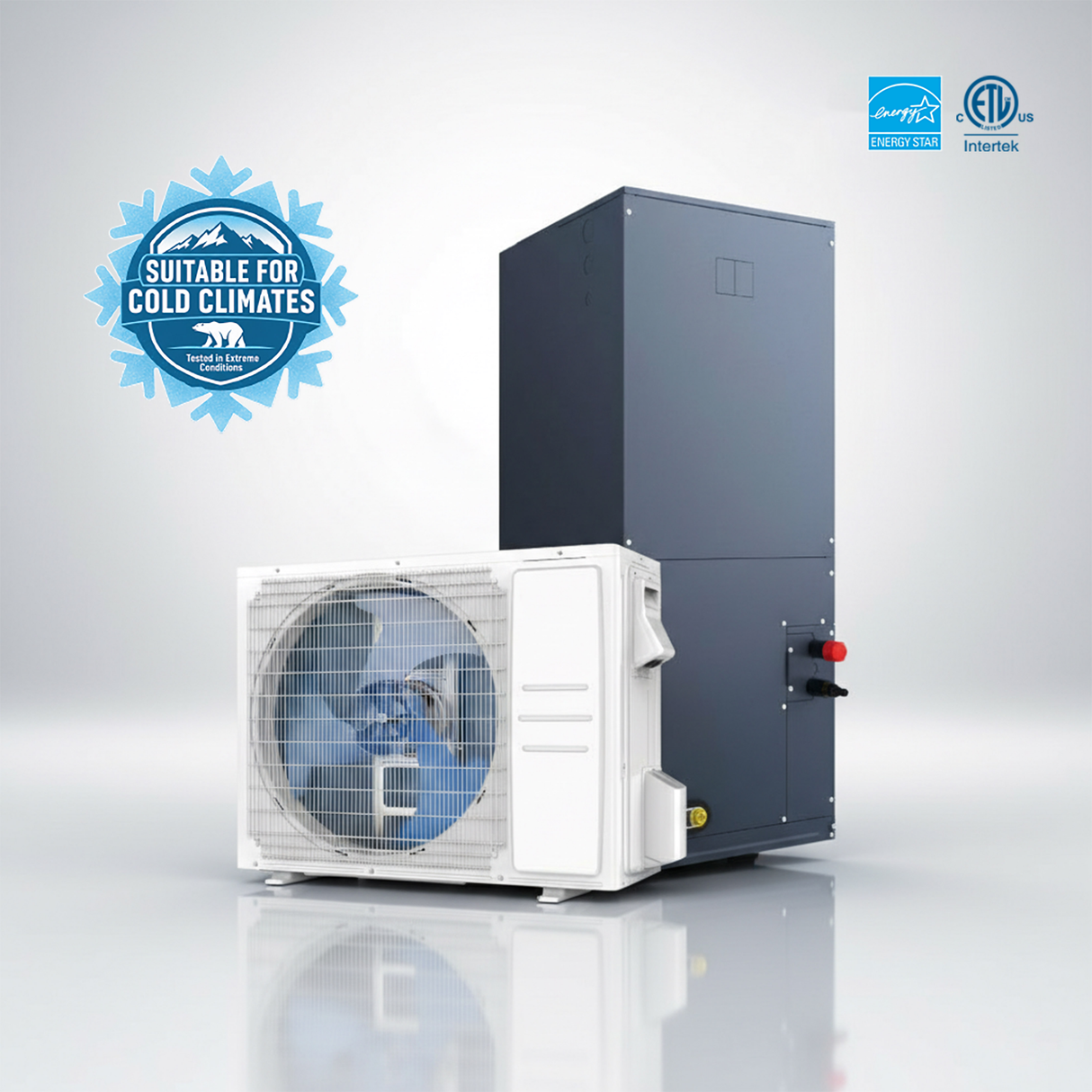

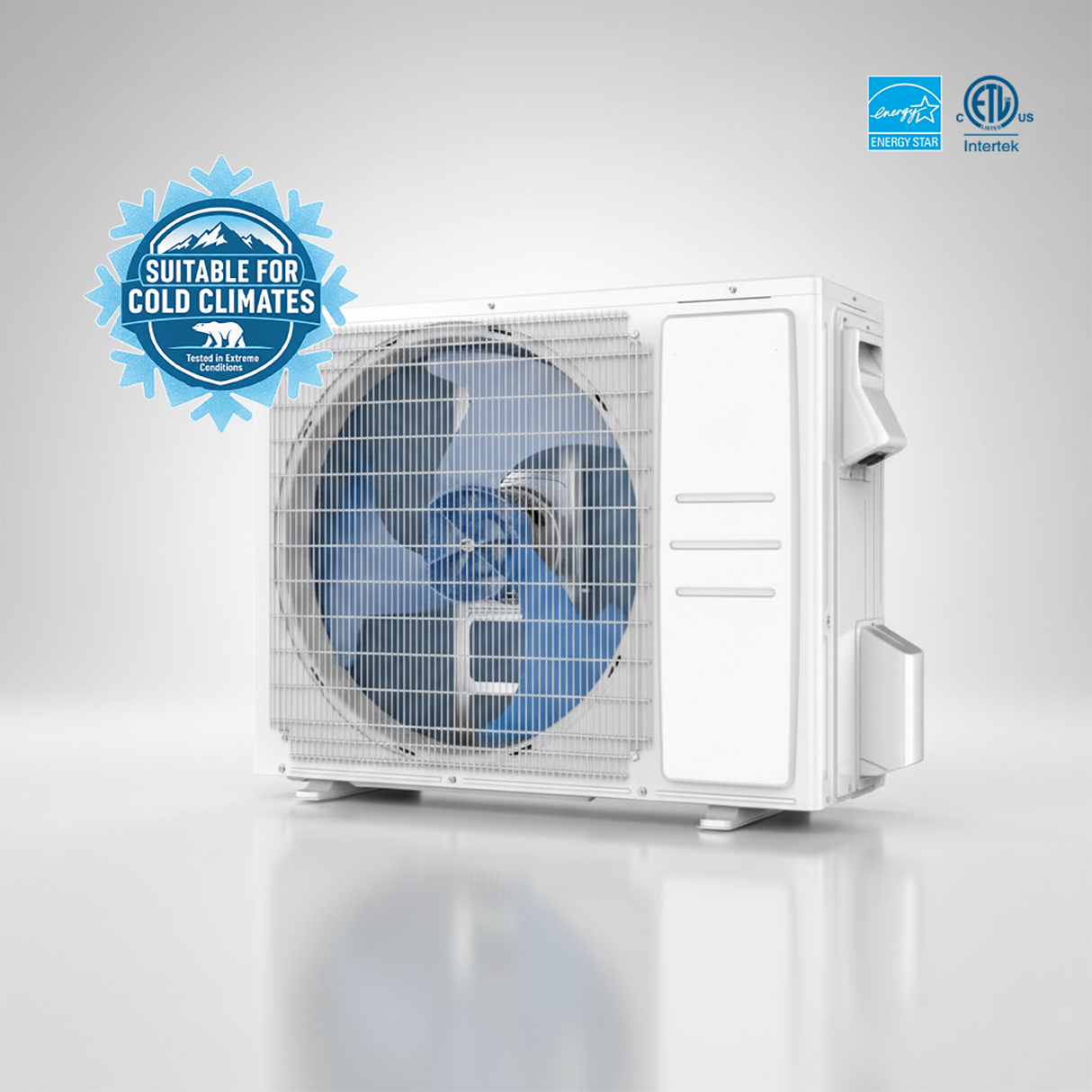

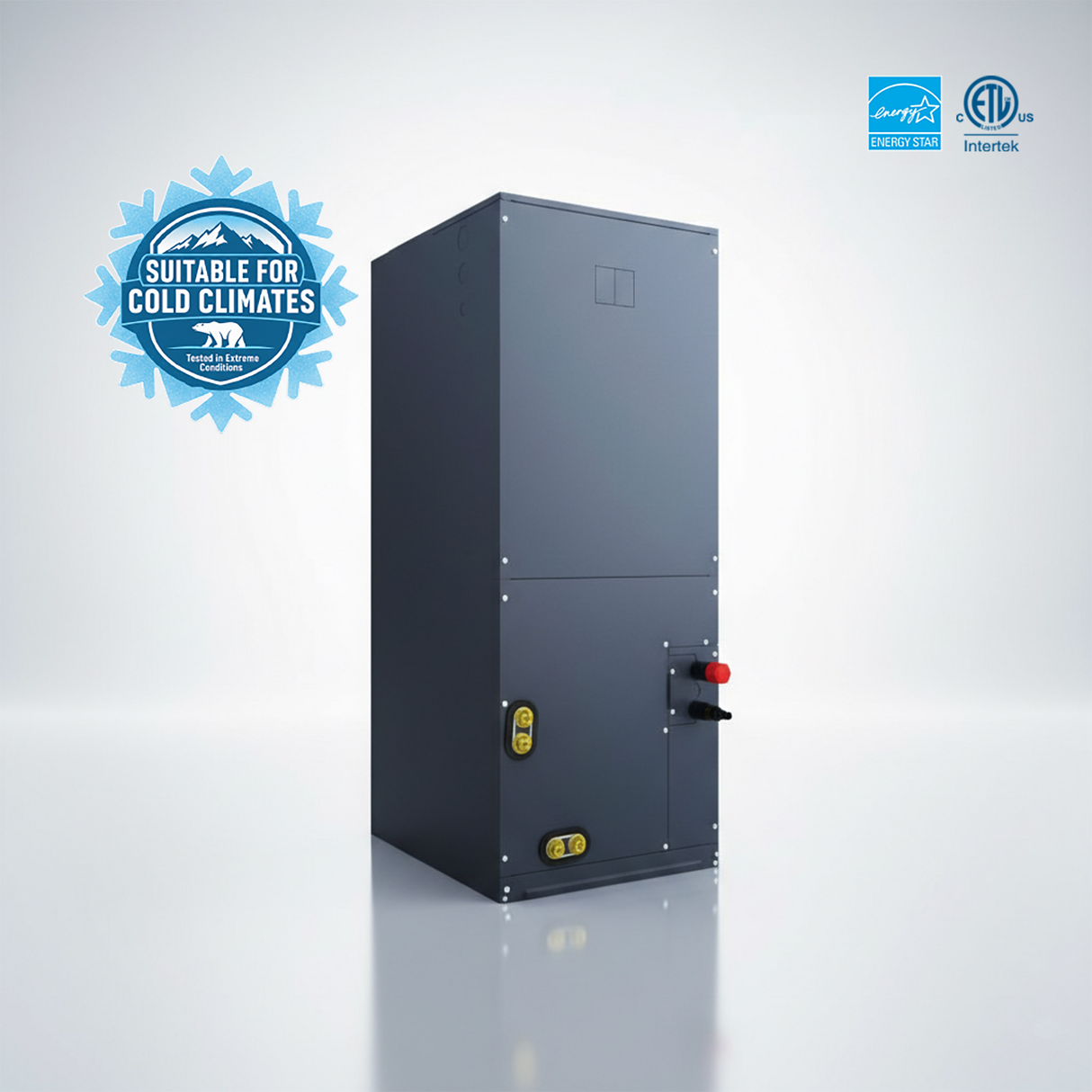

Central Ducted System - CRYOHEAT SERIES

CRYOHEAT Series Central Ducted System delivers whole‑home comfort with high efficiency, flexible installation options, and advanced air‑handling technology. Built for extreme climates, it maintains powerful heating and cooling from -22°F to 125°F, ensuring reliable year‑round performance with quiet operation and seamless integration into traditional ductwork.

Capacity

HIGHLIGHTS

  • Whole‑Home Airflow: Consistent, balanced air circulation ensures every room receives reliable heating and cooling.
  • Advanced Filtration: Built‑in filtration reduces dust, allergens, and contaminants for cleaner indoor air.
  • High‑Efficiency Performance: Engineered with R32 refrigerant, optimized airflow, and strong SEER2/HSPF2 ratings for energy savings.
  • Quiet Operation: Low‑noise indoor and outdoor units maintain a peaceful environment without sacrificing performance.
  • Flexible Installation: Supports vertical, horizontal, and inverted configurations to fit tight spaces and diverse layouts.
  • Extreme Climate Suitability: Reliable heating down to -22°F and cooling up to 125°F for dependable year‑round comfort.
  • Dual Communication Control: Compatible with both 24V thermostats and RS‑485 systems for easy integration and smart control options.
  • Auto‑Restart Protection: Automatically resumes operation with previous settings after a power outage.
  • Durable, Weather‑Resistant Build: Outdoor units are designed to withstand harsh climates while maintaining long-term performance.

PRODUCT SHEETS

Spec Sheet

Central Ducted System - Cryoheat Series Spec Sheet

Instruction Manual

Central Ducted System - Cryoheat Series (Indoor Unit) Instructional Manual
Central Ducted System - Cryoheat Series (Outdoor Unit) Instructional Manual

DELIVER CLEANER, HEALTHIER AND MORE EFFICIENT COMFORT TO EVERY ROOM

Specifications
  • Cooling Capacity (Btu/h)
    null
  • Heating Capacity (Btu/h)
    null
  • Heating Capacity at 5°C
    75%
  • SEER2
    Upto 19.2
  • EER2
    Upto 11.60
  • HSPF2 (Region IV)
    Upto 9
  • COP
    Upto 3.3
  • MCA
    3.7A
  • MOCP
    6A
  • Refrigerant
    R32
  • Operating Temp. (Cooling)
    5~125°F (-15~52°C)
  • Operating Temp. (Heating)
    -22~75°F (-30~24°C)
  • Airflow
    AHU: 600/530/440CFM | Outdoor unit: 2059CFM
  • Noise level
    AHU: 42/40/38 db(A) | Outdoor unit: 56 db(A)
  • Rated Current Cooling / Heating
    6.88A / 8.67A
  • Dimensions
    AHU: 45x17.5x21 inches
    Outdoor Unit: 27.56x38.56x15.25 inches
  • Net Weight
    AHU: 51kg (112.4lb) | Outdoor unit: 48kg (105.8 lb)

REFRIGERANT COOLING

The outdoor unit features refrigerant‑assisted cooling that helps lower the PCB’s operating temperature. This keeps the control board within an optimal thermal range during operation.

By preventing excessive heat buildup, the system reduces stress on electronic components. This leads to more consistent performance, especially during extended heating or cooling cycles.

The result is a smoother‑running PCB that supports long‑term reliability and helps the entire system operate more efficiently.

Product features

AUTO-RESTART FUNCTION

The system is designed to automatically restore operation after a power outage. When electricity returns, it resumes using the exact same settings that were active before the interruption.

This eliminates the need for manual adjustments or restarting the unit. Users can rely on the system to pick up right where it left off without any extra steps.

This feature ensures uninterrupted comfort and convenience, especially in areas where power fluctuations are common.
