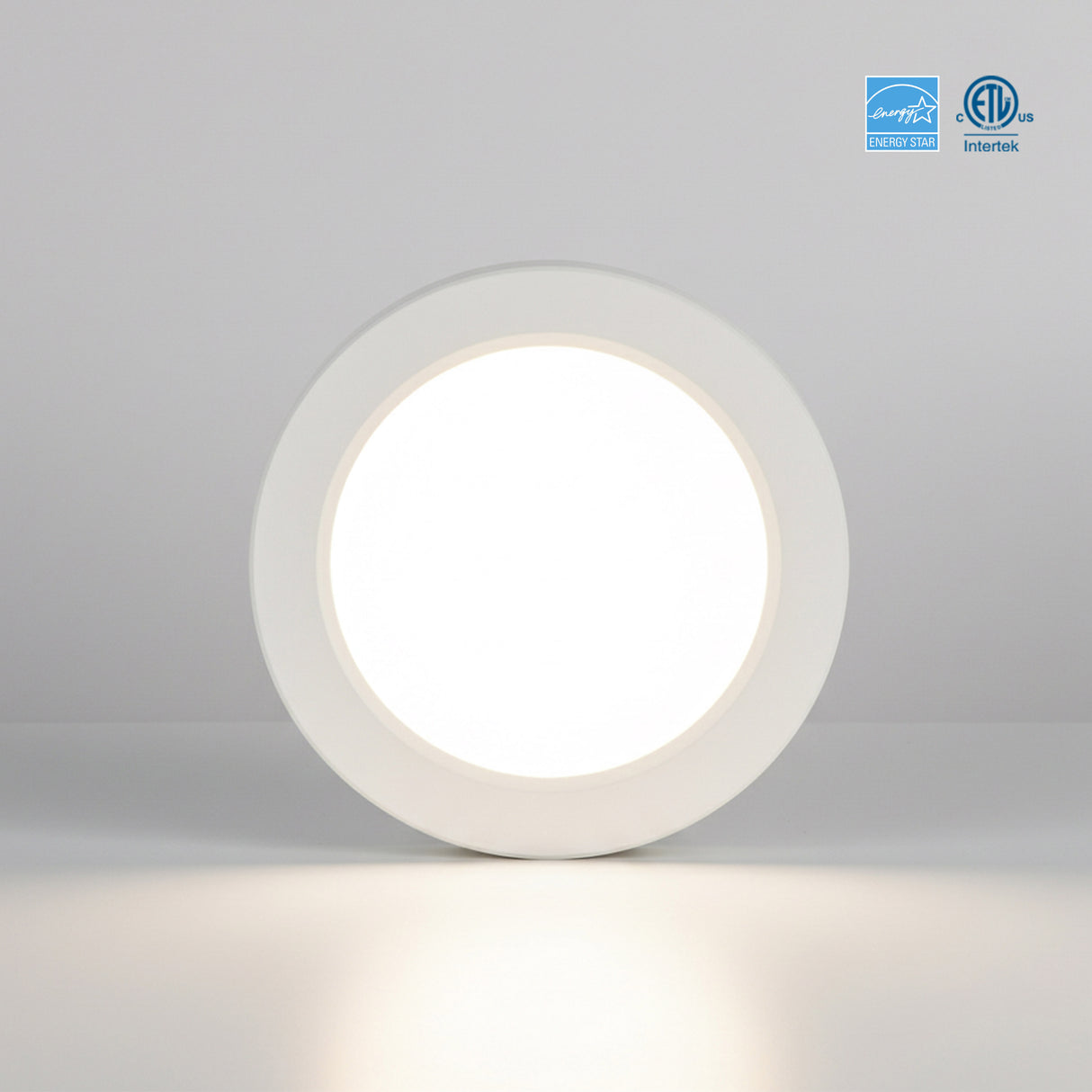

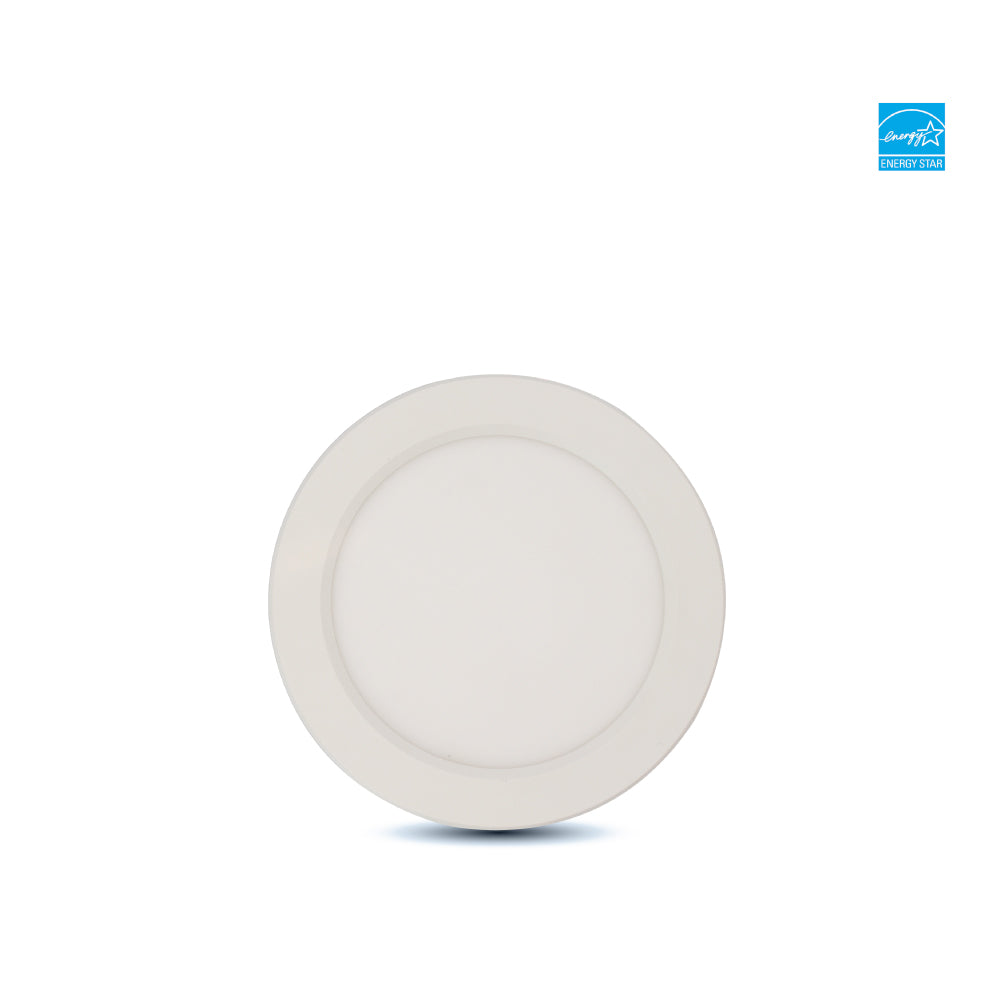

FM1-7-5CCT

7" Super Slim LED Flush Mount - Features clippable trims and selectable color temperature (CCT) for a sleek, customizable lighting solution.

HIGHLIGHTS

Edge-Lit Technology: Provides instant-on illumination with no glare or dark spots for comfortable lighting.
Ultra-Slim Profile: At just 0.7" thick, it installs easily on standard J-boxes using the included mounting bracket.
Durable Construction: Made with a PC lamp body and a white translucent acrylic lens for long-lasting performance.
Advanced Dimming & Safety: Triac dimmable, certified airtight, and IC rated for safe and efficient operation.
Selectable Color Temperature: Offers five CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any setting.
Extended Lifespan: Engineered for longevity with a rated life of over 50,000 hours.

PRODUCT SHEETS

Spec Sheet

FM1-7-5CCT Spec Sheet

Instruction Manual

FM1-7-5CCT Instruction Manual

Dimmer List

FM1-7-5CCT Compatible Dimmer List

IES Files

FM1-7-5CCT IES Files

5CCT Selectable

Specifications

Wattage

15W
Voltage

120V AC
Lumens

1000 lmn
Beam Angle

110°
Lifetime

50,000 hours
CRI

80Ra+
Dimmable

Yes (TRIAC dimming)
Colour Temperature

5CCT [2700K/3000K/3500K/4000K/5000K]
Grade of Protection

IP54
Rating

IC rated/ Wet location / Indoor use
Application

Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
Operating Temperature

-20°C ~ +40°C
Warranty

5 Years

Product features

Interchangeable Rings (sold separately)

Black Ring

FM1-7-5CCT-RING-BK
Black

Satin Nickel Ring

FM1-7-5CCT-RING-SN
Satin Nickel

Accessories

Retrofit Kit

FM1-RF7+9-KIT
Retrofit Kit
