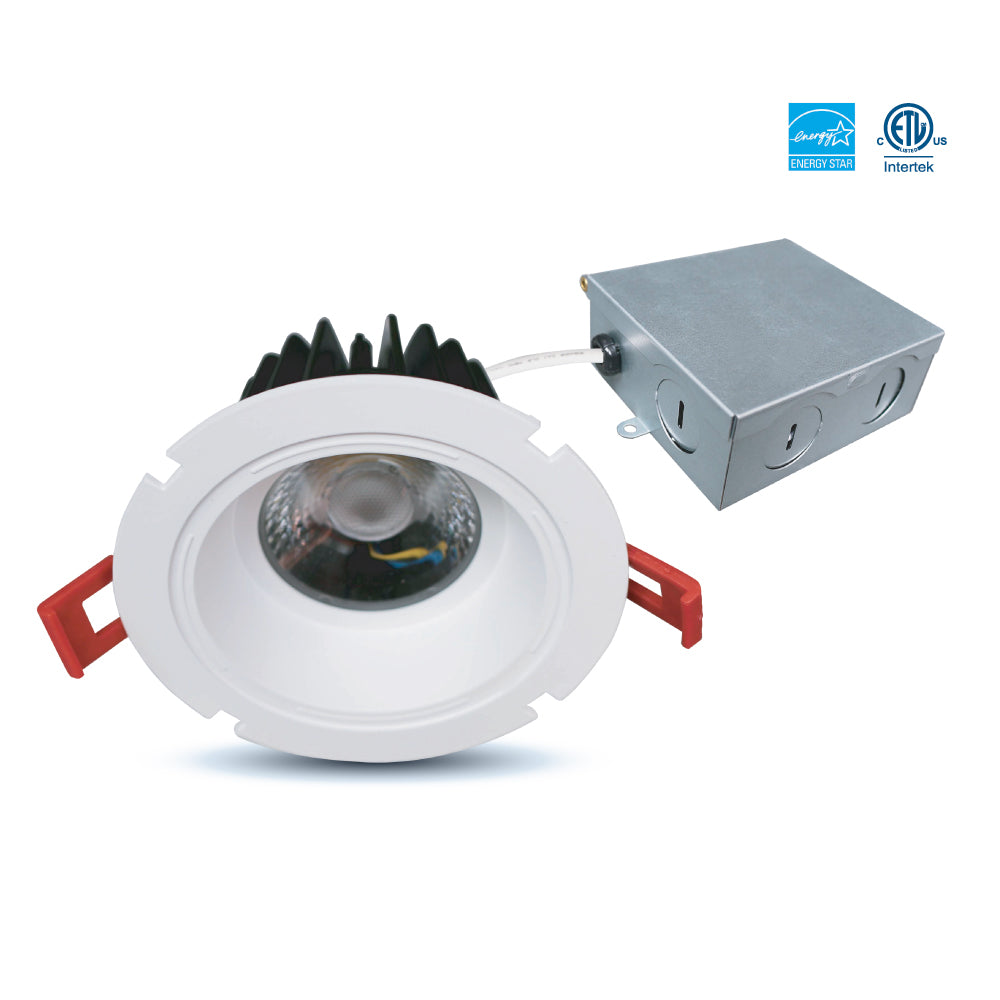

SLIM-RG4-5CCT

4" slim regressed LED downlight with selectable CCTs for glare-free, modern lighting.

HIGHLIGHTS

  • Class 2 Transformer Included – Comes integrated in junction box for safe, reliable power
  • No Housing Required – Type IC rated, air tight, and approved for wet locations
  • Quick Installation – Installs easily with spring clips directly into the ceiling
  • Robust Construction – Aluminum die-cast body with 38° beam spread option
  • New White Shower trim available - SLIMRG4-RING-SH

PRODUCT SHEETS

Spec Sheet

SLIM-RG4-5CCT Spec Sheet

Instruction Manual

SLIM-RG4-5CCT Instruction Manual

Dimmer List

SLIM-RG4-5CCT Compatible Dimmer List

IES Files

SLIM-RG4-5CCT IES Files

5CCT Selectable

Specifications
  • Wattage
    15W
  • Voltage
    120V AC
  • Lumens
    1000 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Wet location
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø3-3/4" (95 mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

Product features

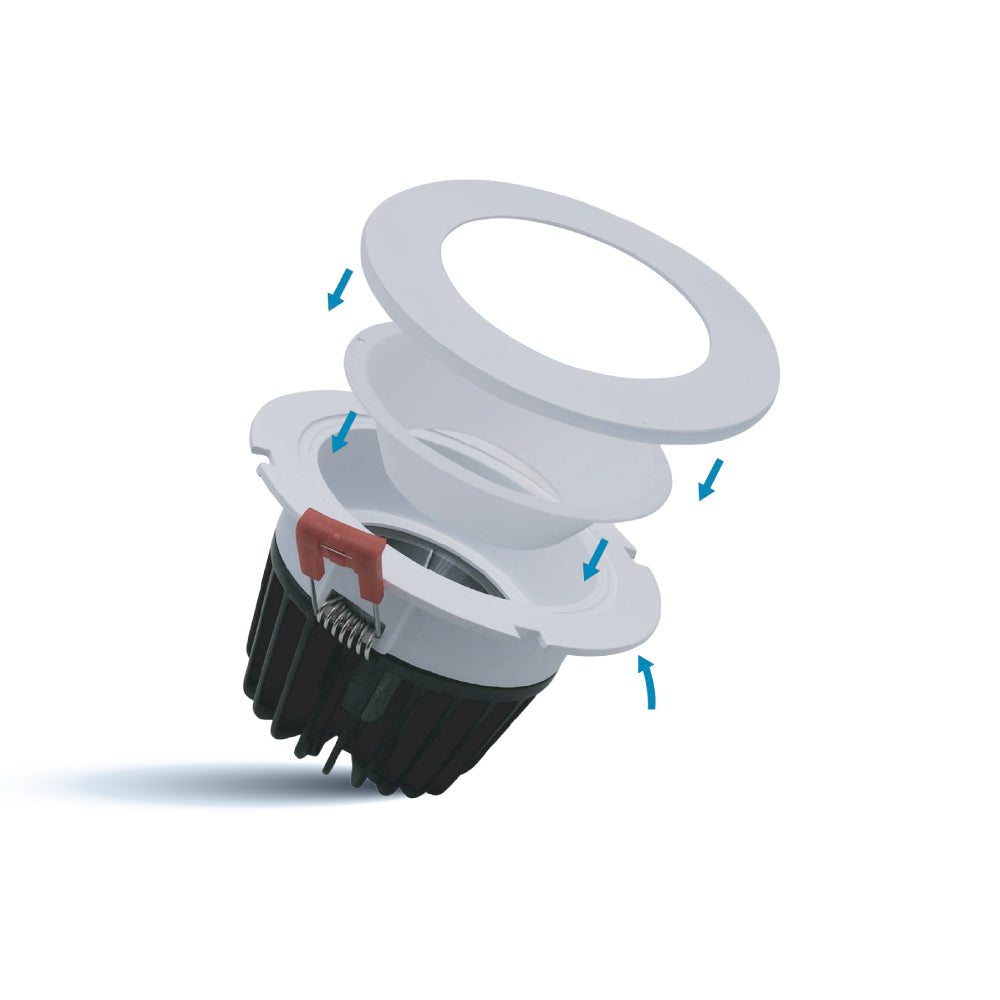

INTERCHANGEABLE TRIMS (sold separately)

Chrome Alzak reflector
SLIMRG4-RF-ALCH
(Chrome Alzak reflector)
Haze Alzak Reflector
SLIMRG4-RF-ALHZ
(Haze Alzak Reflector)
White baffle reflector
SLIMRG4-RF-BFWH
(White baffle reflector)
Black baffle reflector
SLIMRG4-RF-BFBK
(Black baffle reflector)
Regular ring white
SLIMRG4-RING-WH
(Regular ring white)
Regular ring black
SLIMRG4-RING-BK
(Regular ring black)
Shower trim White
SLIMRG4-RING-SH
(Shower trim White)

ACCESSORIES (sold separately)

PLATE13-3A, PLATE13-3A-L, PLATE26-3A, PALTE26-3A-L
PLATE13-3A, PLATE13-3A-L, PLATE26-3A, PALTE26-3A-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE3A-HB
PLATE3A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-24/60/120/240
CORD-24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
OT-010-RG4
OT-010-RG4
(0-10V Class 2 LED Drive)
