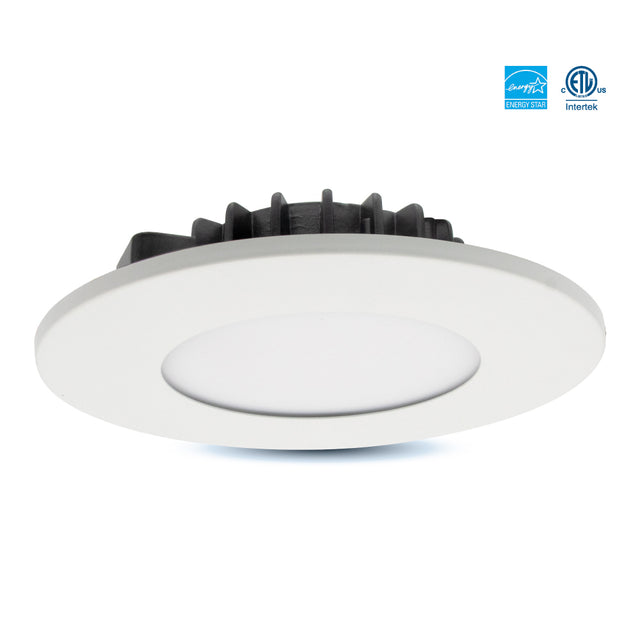

SLIM4BP-5CCT

4" LED slim downlight with selectable CCT and interchangeable magnetic rings for flexible design and easy customization.

HIGHLIGHTS

Installation Options: Compatible with recessed can housing or surface-mounted using a junction box
Light Quality: Uniform LED light distribution with no uneven shadows
Trim Rings: Interchangeable magnetic rings; white finish included in box
Mounting: Easy, fast installation directly into ceiling with junction box
Junction Box: Best suited for deep 4" octagonal junction box (e.g., 54171-K)

PRODUCT SHEETS

Spec Sheet

SLIM4BP-5CCT Spec Sheet

Instruction Manual

SLIM4BP-5CCT Instruction Manual

Dimmer List

SLIM4BP-5CCT Compatible Dimmer List

IES Files

NA

5CCT Selectable

Specifications

Wattage

9W
Voltage

120V AC
Lumens

715 lmn
Beam Angle

110°
CRI

80
Air Tight

Yes
Dimmable

Yes (TRIAC dimming)
Lifetime

50,000 hours
Rating

IC Rated / Indoor use / for Wet location (indoor only)
Grade of Protection

IP54
Application

Drop ceilings / Office / Attics / Hallways / Bathrooms / Kitchens / Basements
LGP

Glass
Colour Temperature

5CCT [2700K/3000K/3500K/4000K/5000K]
Operating Temperature

-20°C ~ +40°C
Warranty

5 Years
Case Quantities

24

Product features

DECORATIVE TRIMS (sold separately)

Satin Nickel

SLIM4BP-RING SN
(Satin Nickel)

Black

SLIM4BP-RING BK
(Black)

Chrome Black

SLIM4BP-RING CBK
(Chrome Black)

ACCESSORIES (sold separately)

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
(Construction plate made up of galvanized steel for recessed lighting)

PLATE4-HB

PLATE4-HB
(Galvanized steel mounting plate with hanger bars)

CORD-24/60/120/240

CORD-24/60/120/240
(Flexible Connector 2FT/5FT/10FT/20FT)

DMD-ELV

DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

SLIM4BP-RECACC

SLIM4BP-RECACC
(Recessed Mounting)

BOX 54171-K

BOX 54171-K
(Steel Octagonal Junction Box for ORTECH 4" slim lights)
