1 6

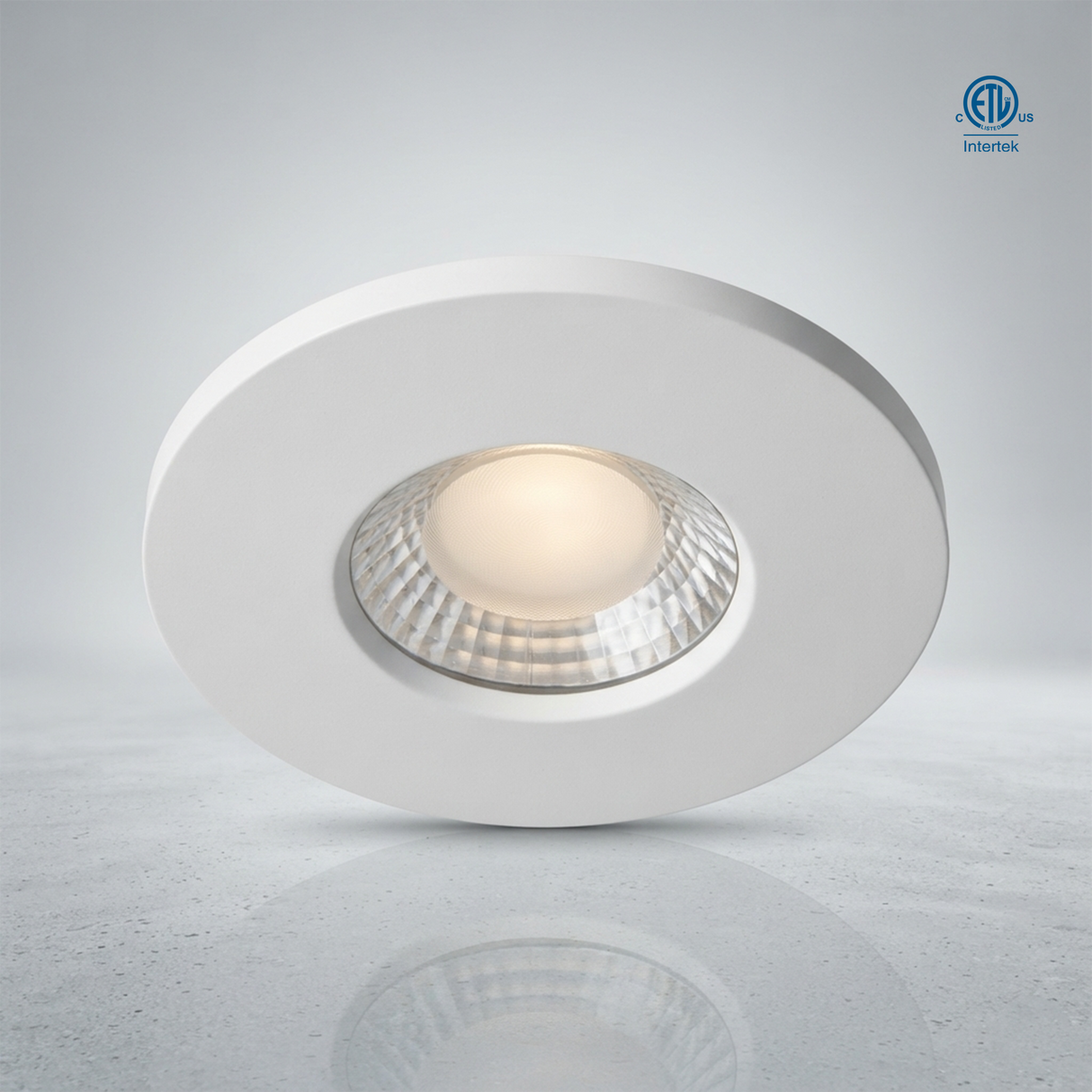

SLIM4BP-DL-5CCT

4" LED slim downlight with selectable CCT and interchangeable trims for flexible design and easy customization.

HIGHLIGHTS

  • Flexible Installation Options: Fits most standard 4" junction boxes or 4" recessed housings for easy upgrades.
  • Slim Non-Conductive Trim: Lightweight dead‑front design with a smooth convex lens for a clean, modern look.
  • High-Output Illumination: Delivers up to 700 lumens for bright, efficient lighting in any room.
  • Smooth Phase-Cut Dimming: Supports 5% LE & TE dimming at 120V with compatible controls for perfect ambiance.
  • Wet Location Rated: Safe and suitable for bathrooms, showers, and other moisture‑prone areas.

PRODUCT SHEETS

Spec Sheet

SLIM4BP-DL-5CCT Spec Sheet

Instruction Manual

SLIM4BP-DL-5CCT Instruction Manual

Dimmer List

SLIM4BP-DL-5CCT Compatible Dimmer List

IES Files

NA

5CCT Selectable

Specifications
  • Wattage
    9W
  • Voltage
    120V AC
  • Lumens
    700 lmn
  • Beam Angle
    50°
  • CRI
    90Ra+
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Wet location (indoor only)
  • Grade of Protection
    IP54
  • Application
    Drop ceilings / Office / Attics / Hallways / Bathrooms / Kitchens / Basements
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    24

Product features

DECORATIVE TRIMS (sold separately)

Black Trim
SLIM4BP-DL-RINGBK
(Round Black Trim)

ACCESSORIES (sold separately)

SLIM4BP-DL-RF-KIT
SLIM4BP-DL-RF-KIT
(Retrofit Kit)
