SLIM4FL+FR-5CCT

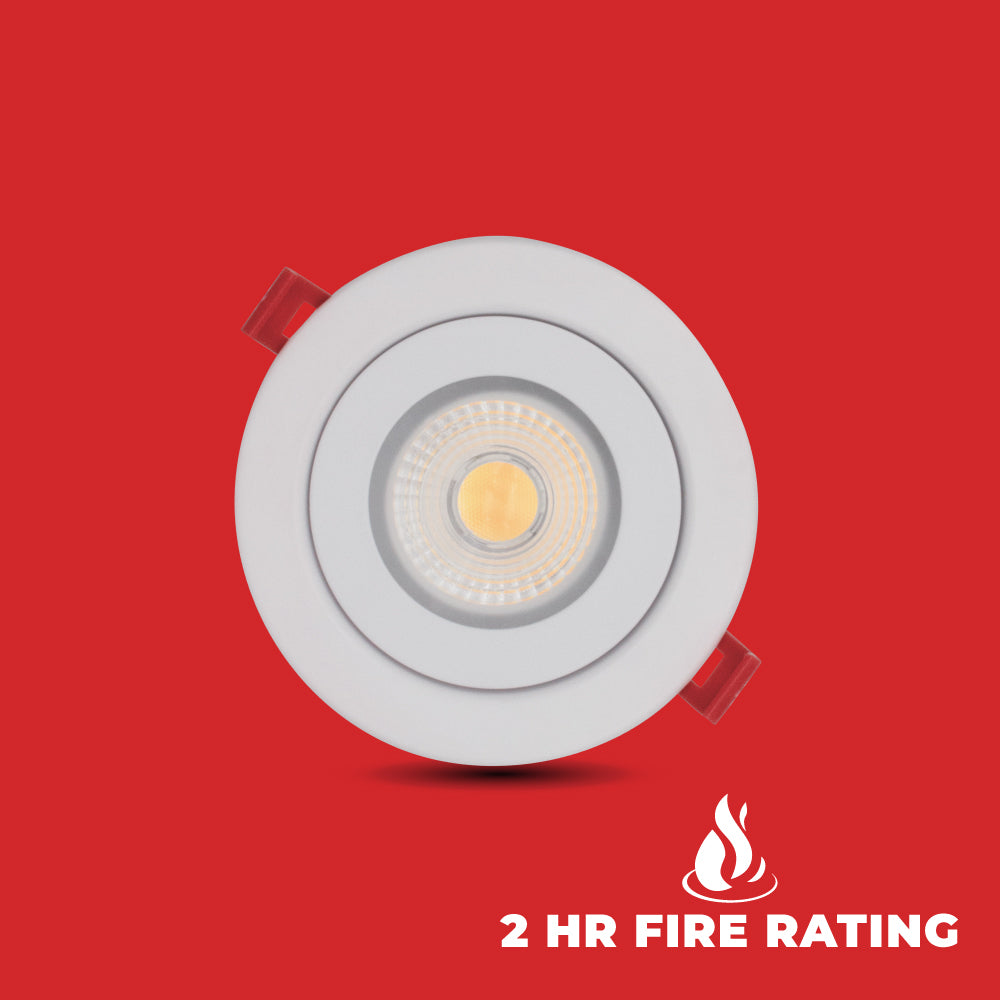

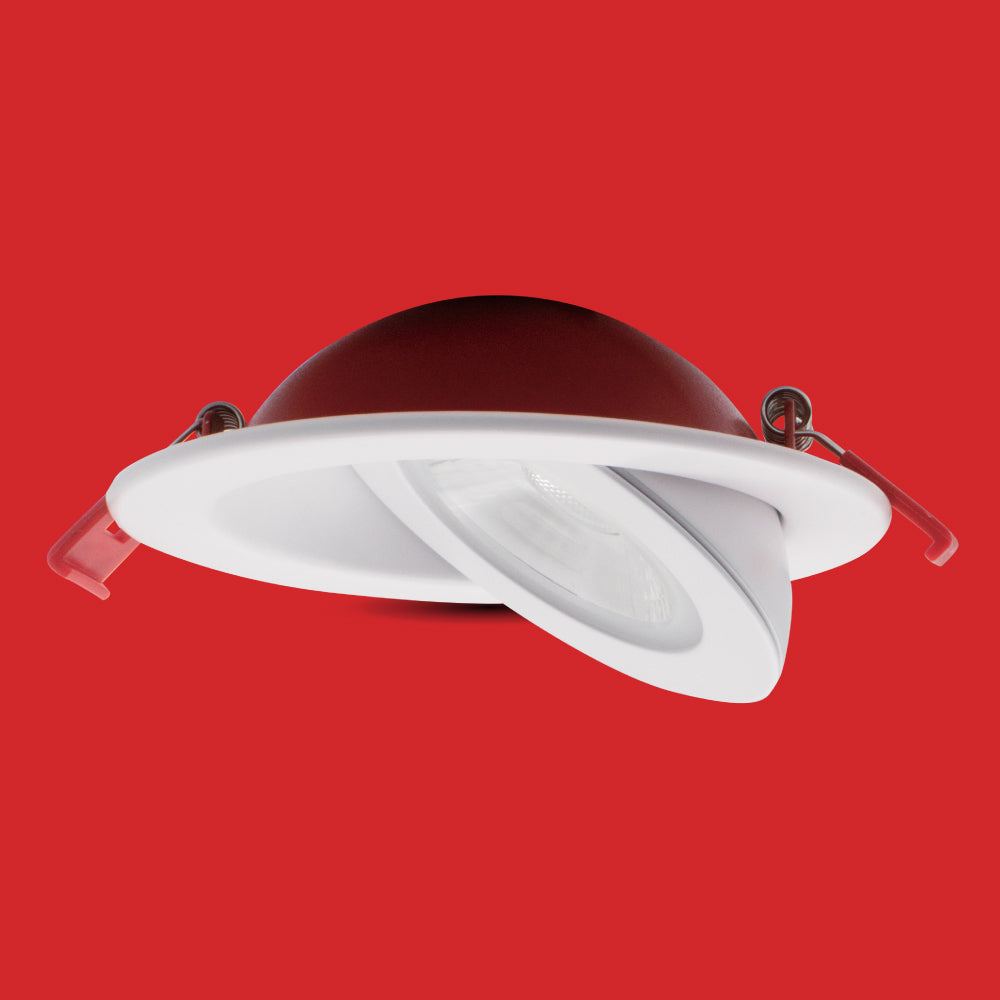

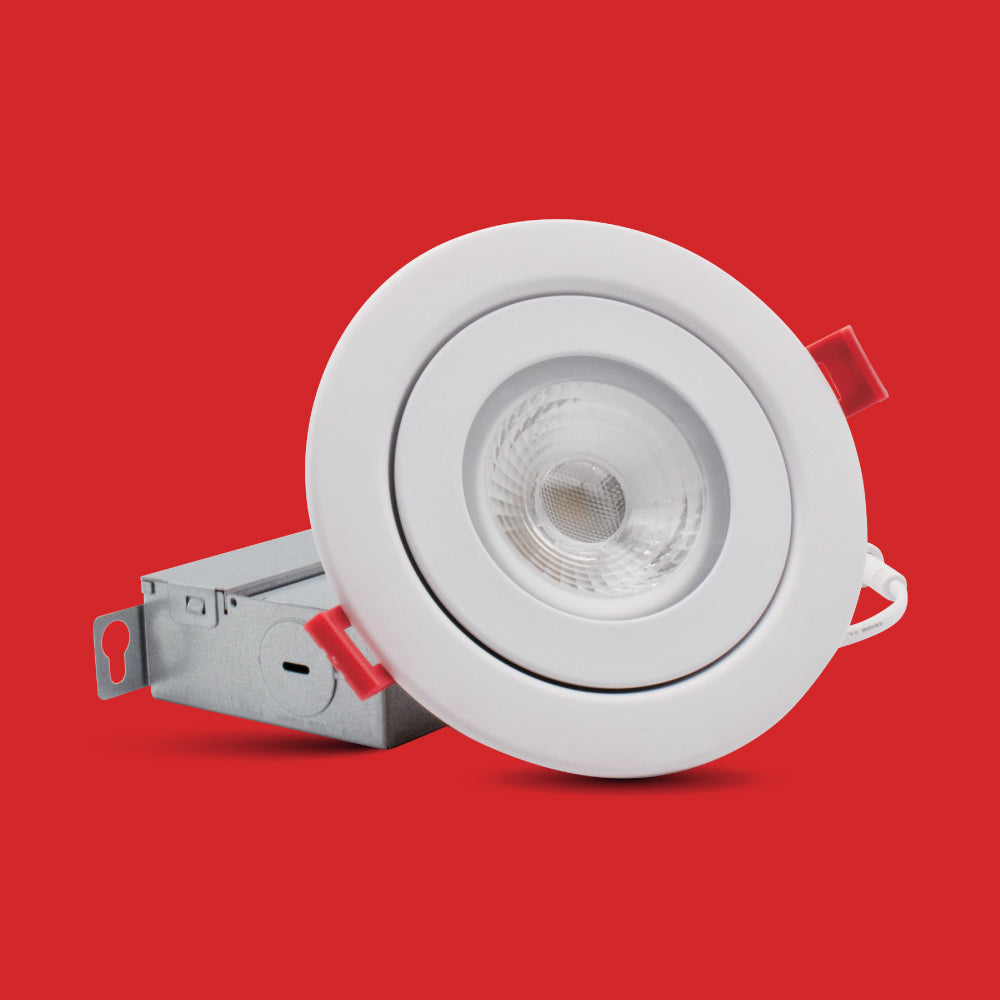

4" fire-rated floating gimbal recessed LED light with selectable CCT for safe, adjustable directional lighting.

HIGHLIGHTS

  • Fire Rating: Reinforced, heat-resistant steel casting provides 2-hour fire protection

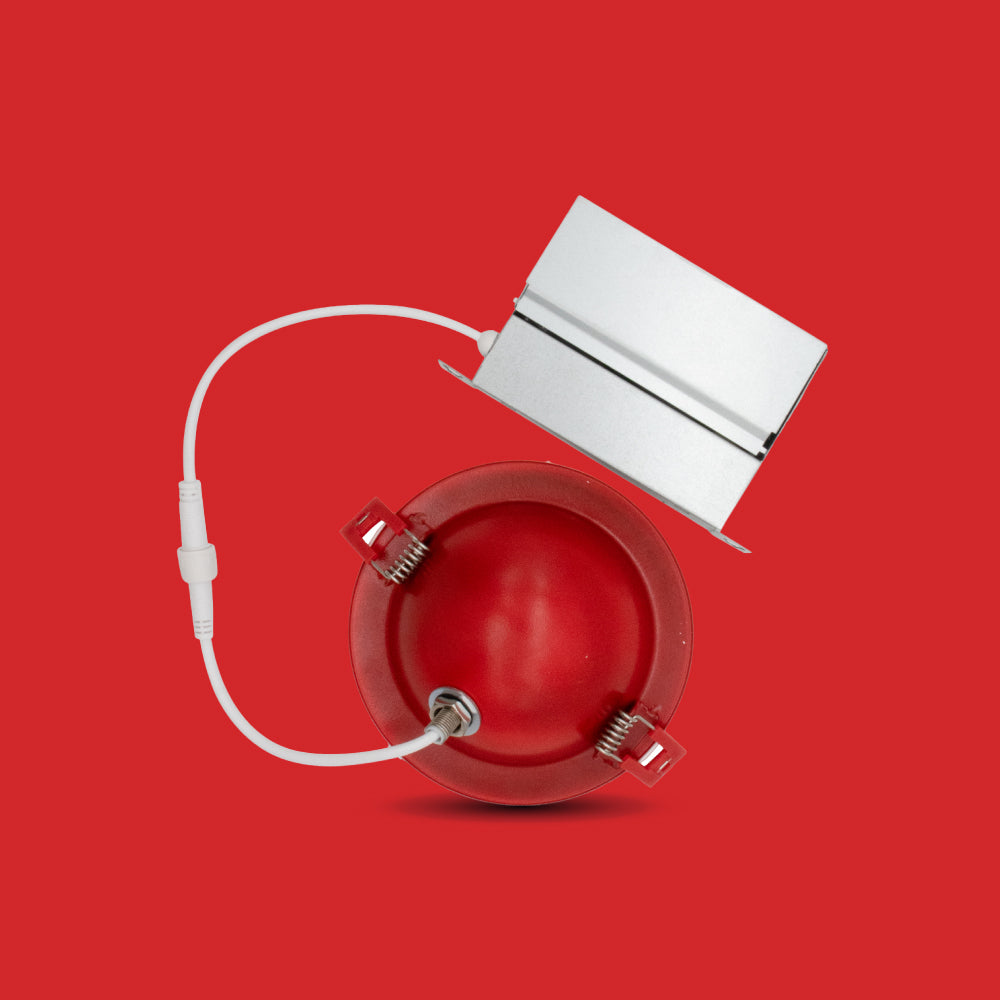

  • Driver: Junction box with commercial-grade driver included
  • Installation: Easy setup with no additional box required
  • CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K
  • Cable: FT6 plenum-rated cable included
  • Tested & Certified to comply with UL 263-2011(R2022) & ASTM E119-20 & CAN/ULC-S101-14 (click to see the Test Report)
  • Rated for ceiling assemblies with up to 2 layers of drywall, each 5/8 inch, for a total of 1-1/4 inches

PRODUCT SHEETS

Spec Sheet

SLIM4FL+FR-5CCT Spec Sheet

Instruction Manual

SLIM4FL+FR-5CCT Instruction Manual

Dimmer List

SLIM4FL+FR-5CCT Compatible Dimmer List

IES Files

SLIM4FL+FR-5CCT IES Files

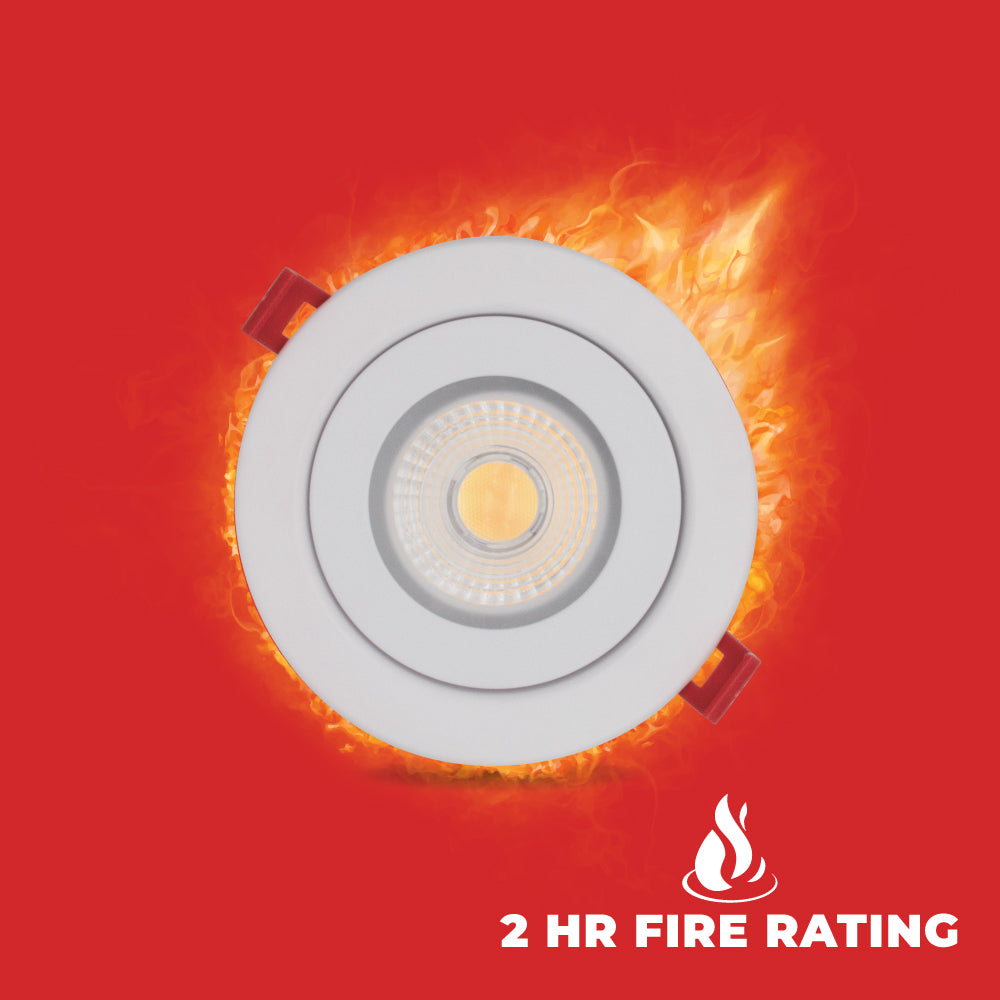

2 HOUR FIRE RATING

Specifications
  • Wattage
    9W
  • Voltage
    120V AC
  • Lumens
    750 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC rated/ Indoor use/ Damp Location
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Balcony / Overhanging eaves
  • Cutout
    Ø4-1/4” (108mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

Product features

ACCESSORIES (sold separately)

PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L
PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L"
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4A-HB
PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-B24 | CORD-B120
CORD-B24 | CORD-B120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
