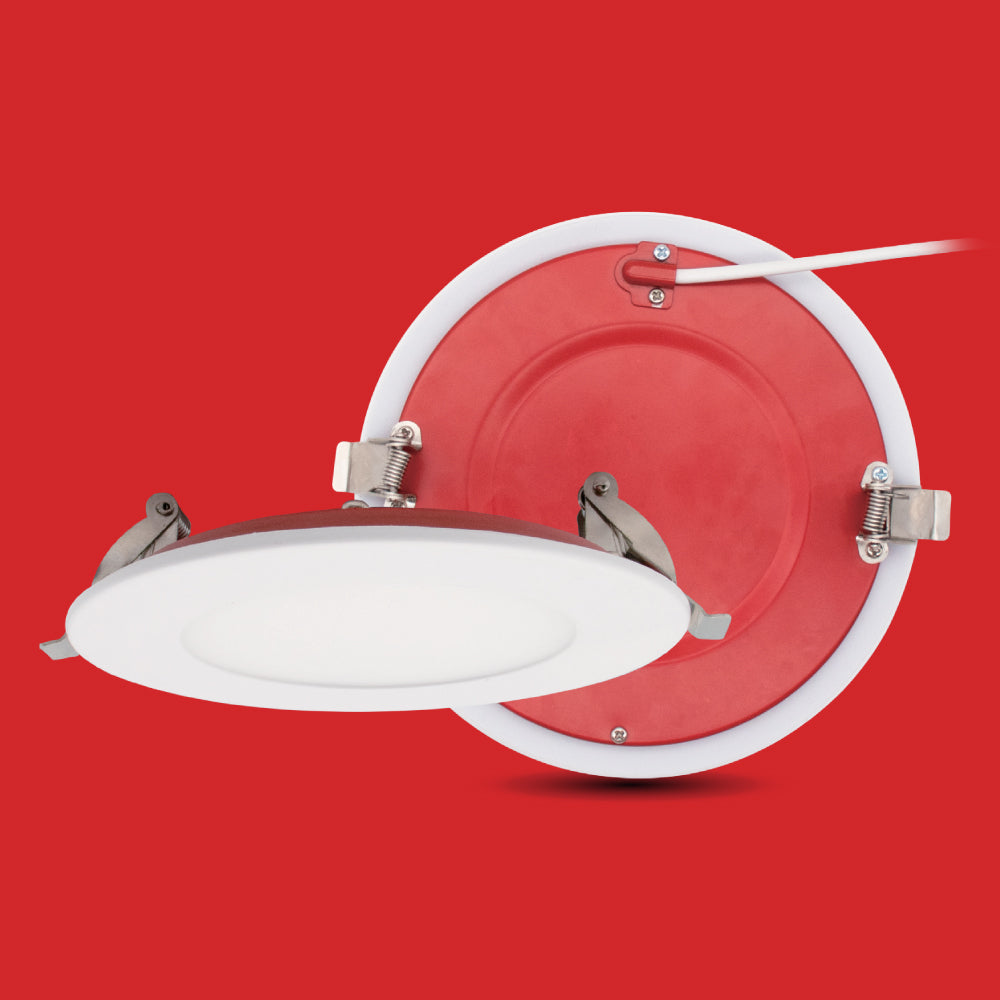

SLIM4FR-5CCT

4" LED fire-rated recessed downlight with selectable CCT for safe, versatile lighting in code-compliant installations.

HIGHLIGHTS

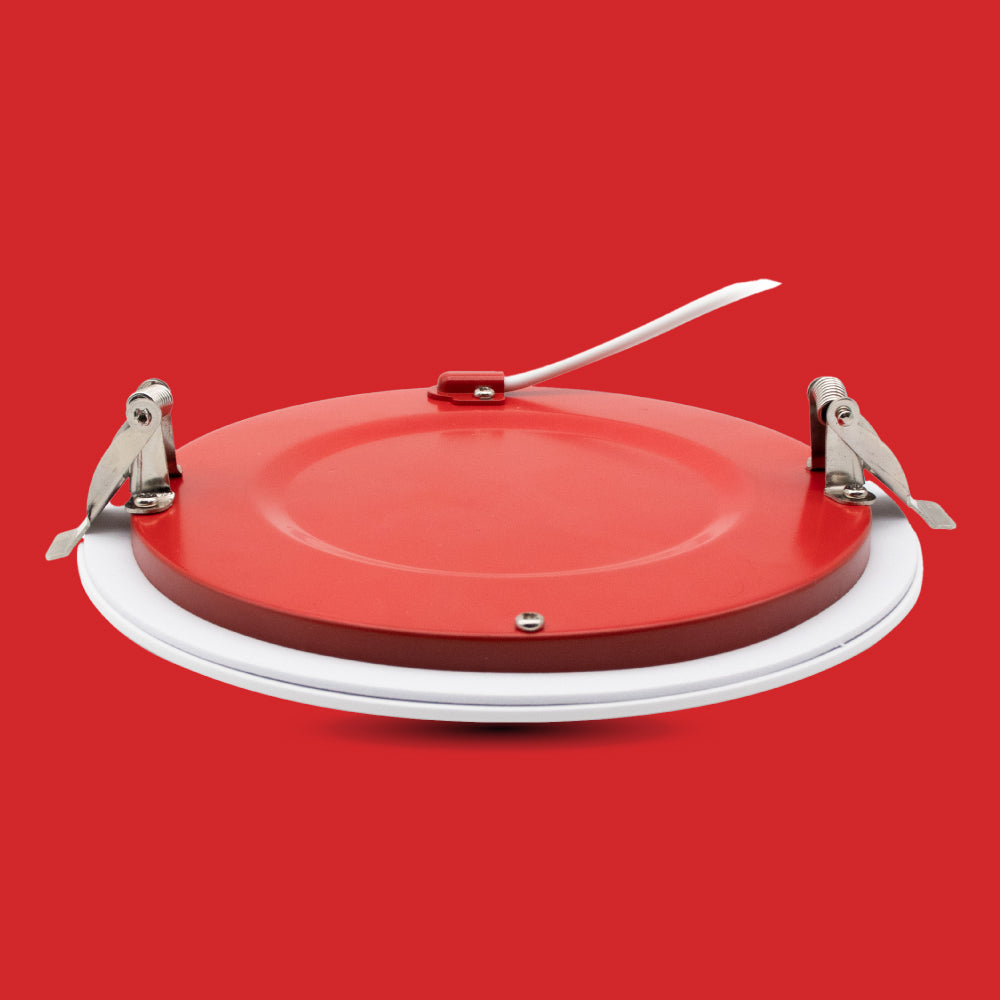

  • Fire Rating: Reinforced, heat-resistant steel casting provides 2-hour fire protection
  • CCT Options: Adjustable 5-color selectable CCT

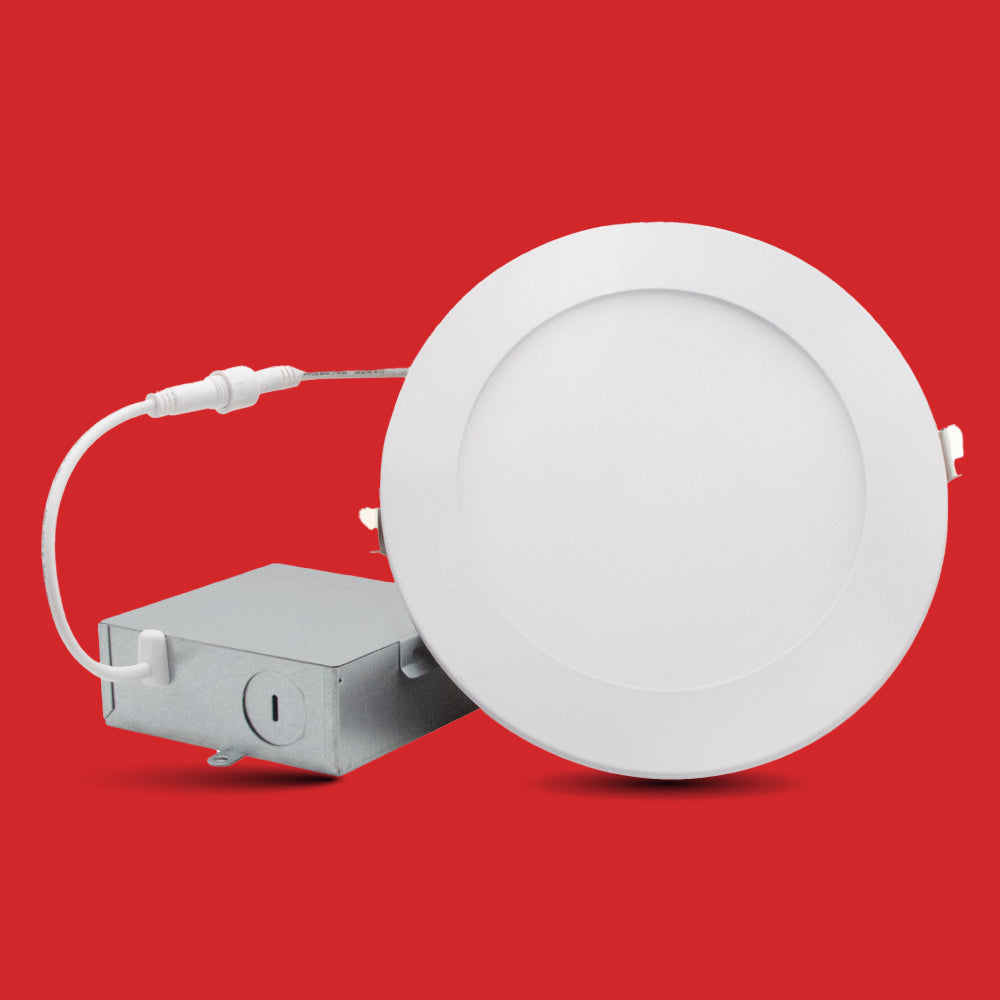

  • Driver: Residential/commercial grade driver included
  • Cable: FT6 plenum-rated cable for safe in-ceiling use
  • Tested & Certified to comply with UL 263-2011(R2022) & ASTM E119-20 & CAN/ULC-S101-14 (click to see the Test Report)
  • Rated for ceiling assemblies with up to 2 layers of drywall, each 5/8 inch, for a total of 1-1/4 inches

PRODUCT SHEETS

Spec Sheet

SLIM4FR-5CCT Spec Sheet

Instruction Manual

SLIM4FR-5CCT Instruction Manual

Dimmer List

SLIM4FR-5CCT Compatible Dimmer List

IES Files

SLIM4FR-5CCT IES Files

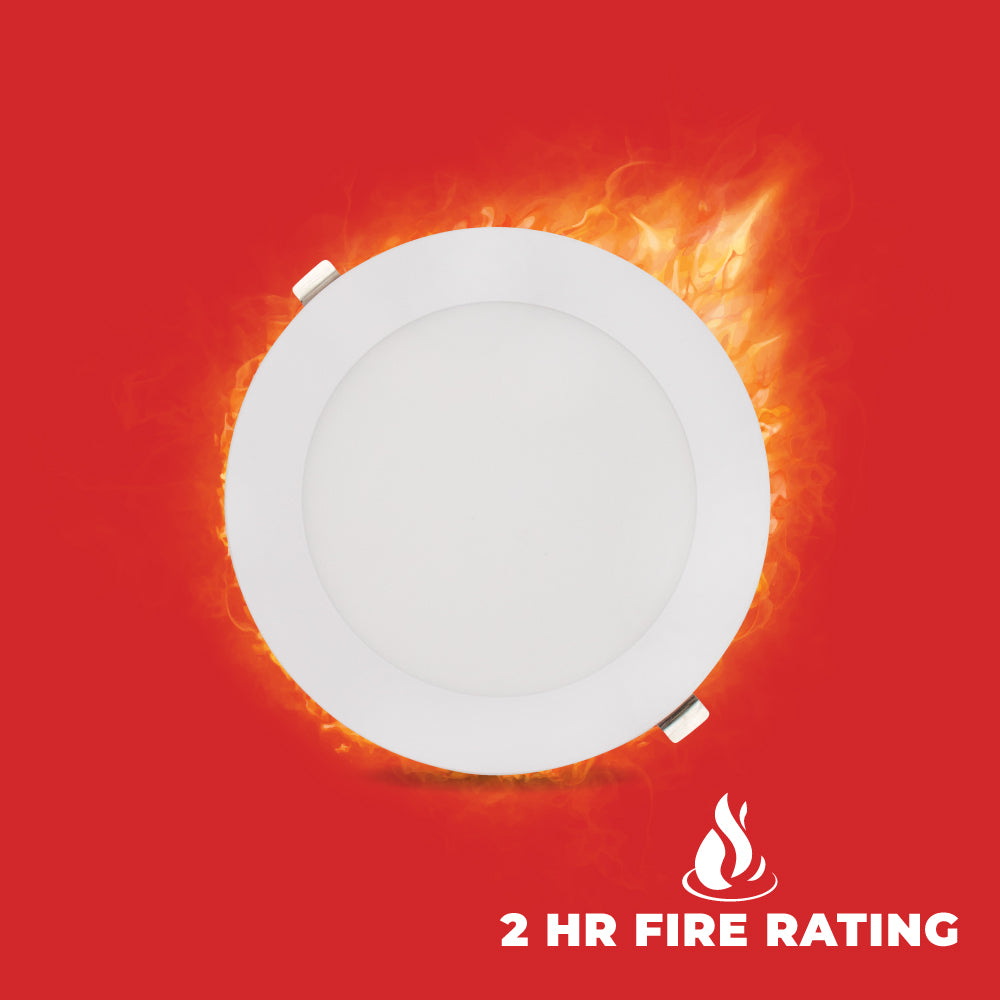

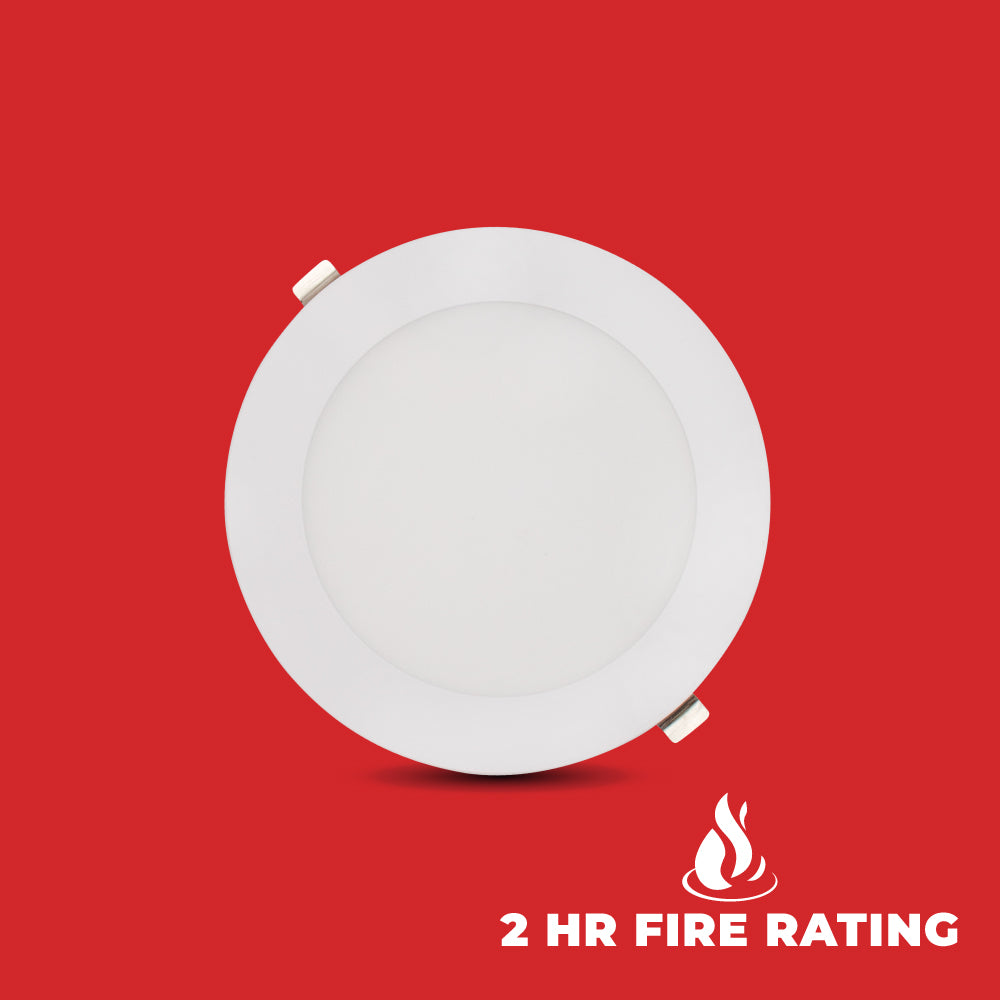

2 HOUR FIRE RATING

Specifications
  • Wattage
    12W
  • Voltage
    120V AC
  • Lumens
    800 lmn
  • Beam Angle
    120°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC rated/ Indoor use/ Wet Location
  • Grade of Protection
    IP54
  • Application
    Recessed ceiling / Balcony / Overhanging eaves
  • Cutout
    Ø4-1/4” (108mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

Product features

DECORATIVE TRIMS (sold separately)

SLIM4-RING BK
SLIM4-RING BK"
(Black ring)
SLIM4-RING SN
SLIM4-RING SN
(Satin Nickel)

ACCESSORIES (sold separately)

PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L
PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L"
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4A-HB
PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-B24 | CORD-B120
CORD-B24 | CORD-B120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
