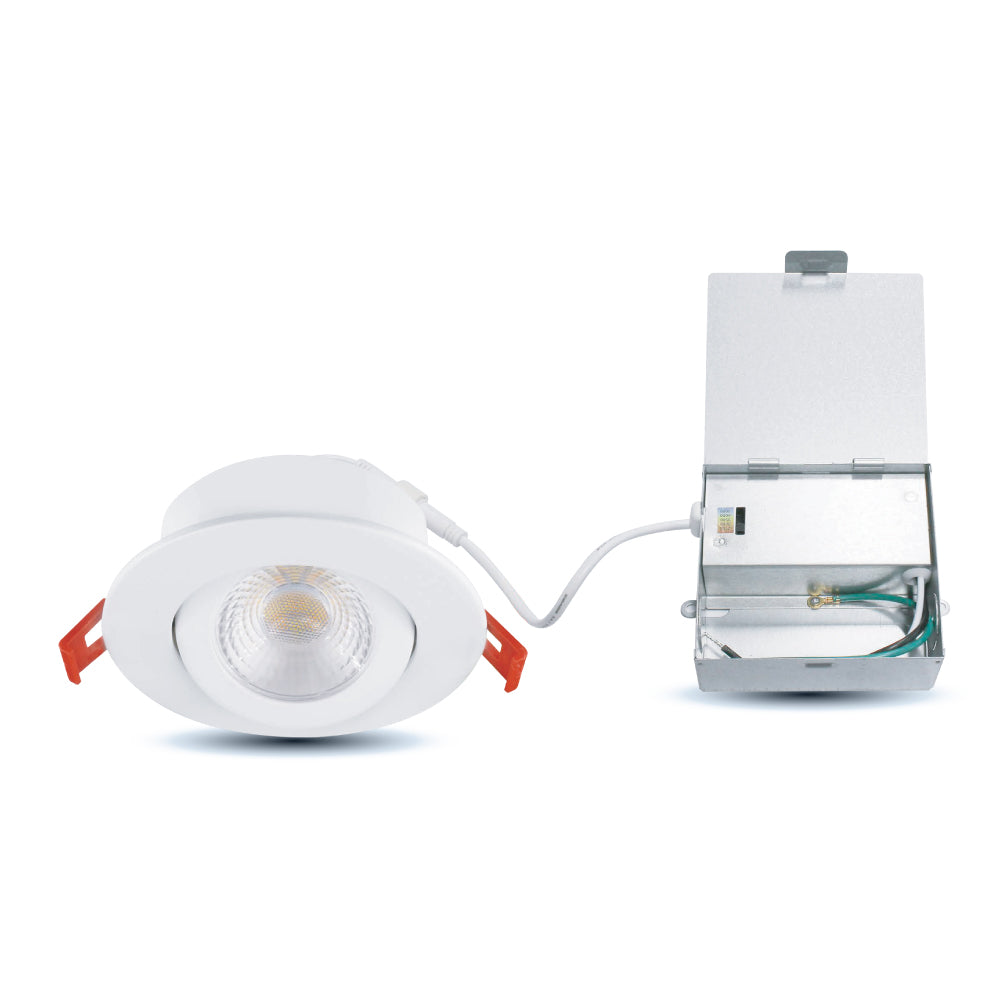

SLIM4GIM-5CCT

4" slim LED gimbal downlight with selectable CCT for sleek, adjustable directional lighting.

Color: White

HIGHLIGHTS

  • Adjustability: Gimbal downlight with 30° tilt for directional lighting
  • Transformer: Class 2 transformer included in junction box
  • Installation: Easy and fast clip-in design for direct ceiling mounting
  • Housing: No housing required; Type IC, air tight, and damp location rated
  • Efficiency: High brightness with low power consumption; up to 80% energy savings

5CCT SELECTABLE

Specifications
  • Wattage
    9W
  • Voltage
    120V AC
  • Lumens
    700 lmn
  • Beam Angle
    38°
  • CRI
    80
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC Rated / Indoor use / for Damp location
  • Grade of Protection
    IP44
  • Application
    Recessed ceiling / Balcony / Overhanging eaves, etc.
  • Cutout
    Ø4-1/8" (105 mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years
  • Case Quantities
    18

CERTIFICATIONS

Product features

ACCESSORIES (sold separately)

PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
PLATE13-4, PLATE13-4-L, PLATE26-4, PALTE26-4-L
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4-HB
PLATE4-HB
(Galvanized steel mounting plate with hanger bars)
CORD B24/B120
CORD B24/B120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM4GIM-5CCT Spec Sheet

Instruction Manual

SLIM4GIM-5CCT Instruction Manual

Dimmer List

SLIM4GIM-5CCT Compatible Dimmer List

IES Files

SLIM4GIM-5CCT IES Files
